Model: SATA15M
Features:
1. Industrial 15'' LCD panel, 1024*768 resolution, wide viewing angle, high nits, true color.
2. Adopt multi-points PCAP touch panel , high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
3. Anti glare.
4. High brightness 1000 nits, sunlight readable.
5. with a dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
6. High performance mainboard, 7x24 continuous operation.

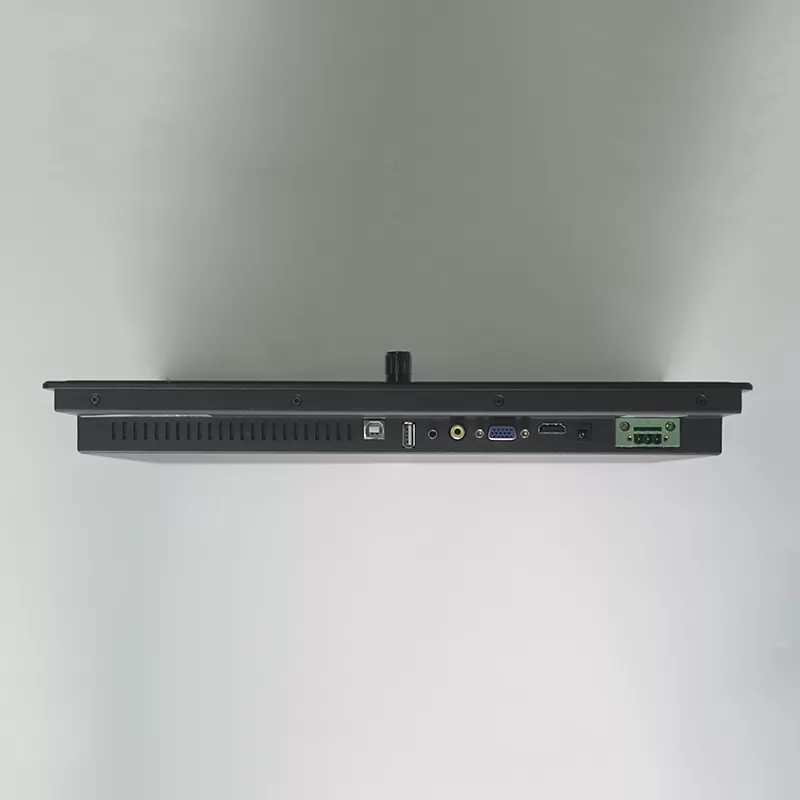

7. VGA+HDMI+AV+USB player+USB for touch.
8. Support embedded mounting, ceiling mount, wall mount, desk stand mouting etc.
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Manual dimmer |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch, non touch Optional) |
| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| AV | 1x AV |
| USB player | 1xUSB player |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Black, Silver |

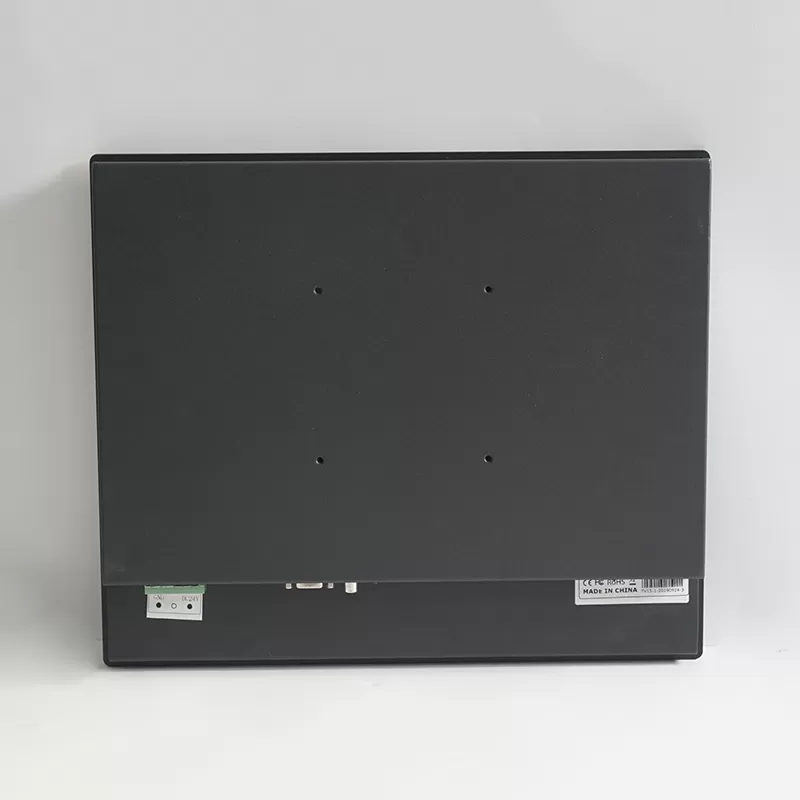

| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, Storage: 5% to 90% |
| Packing Details | |
| Net weight | 5kgs |
| Gross weight | 6kgs |
| Product Dimension | 37.26*31.19*3.85cm |
| Packing size | 48*45*18cm |
| Accessories | Power adapter, power cord, HDMI cable, USB touch cable, embedded screws |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
