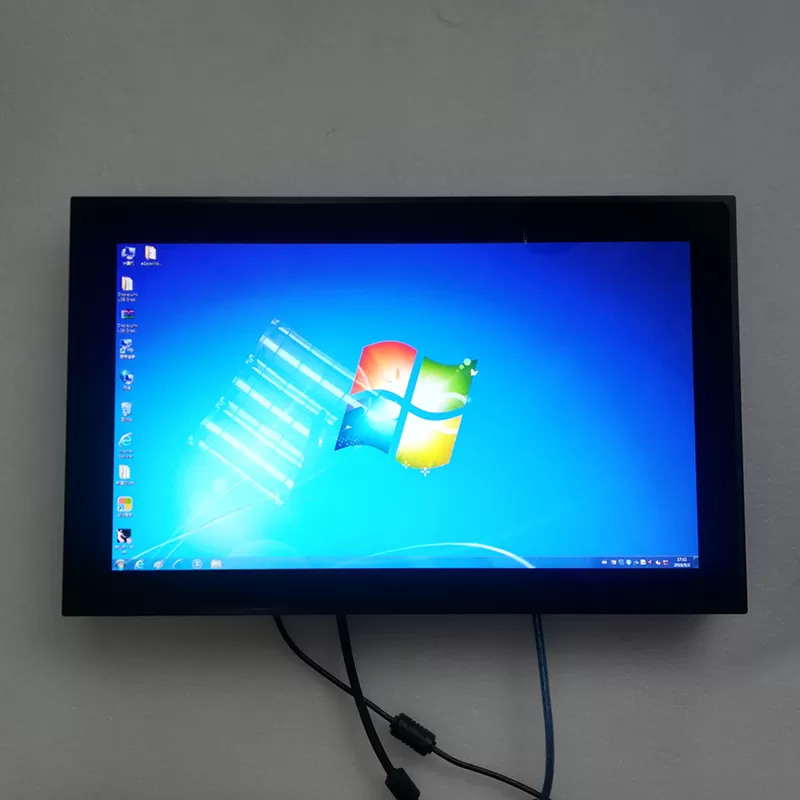

Model: SATA156M
Features:
1. Open frame design, Front IP65 waterproof and dustproof.
2. Industrial 15.6'' LCD screen, 1920*1080 high resolution, wide viewing angle, high nits, true color.
3. Adopt 10 points Capacitive touch panel, high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operating.
5. 1000 nits, sunlight readable, ideal for embedded in outdoor kiosk.
| LCD panel | |
| Panel size | 15.6" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/65° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires Resistive touch, non touch Optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum alloy bezel+ High strength cold rolled steel back case |
| Color | Black |
| VESA mounting | 100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, Storage: 5% to 90% |
| Packing Details | |
| Net weight | 5kgs |
| Gross weight | 6.5kgs |
| Product Dimension | 43.58*24.61*3.8 cm |
| Packing size | 52*46*18 cm |
| Accessories | Power adapter, USB touch cable, HDMI cable, open frame kits |
| Other | |
| Mounting | Open frame |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
