Model: SATA101M
Features:

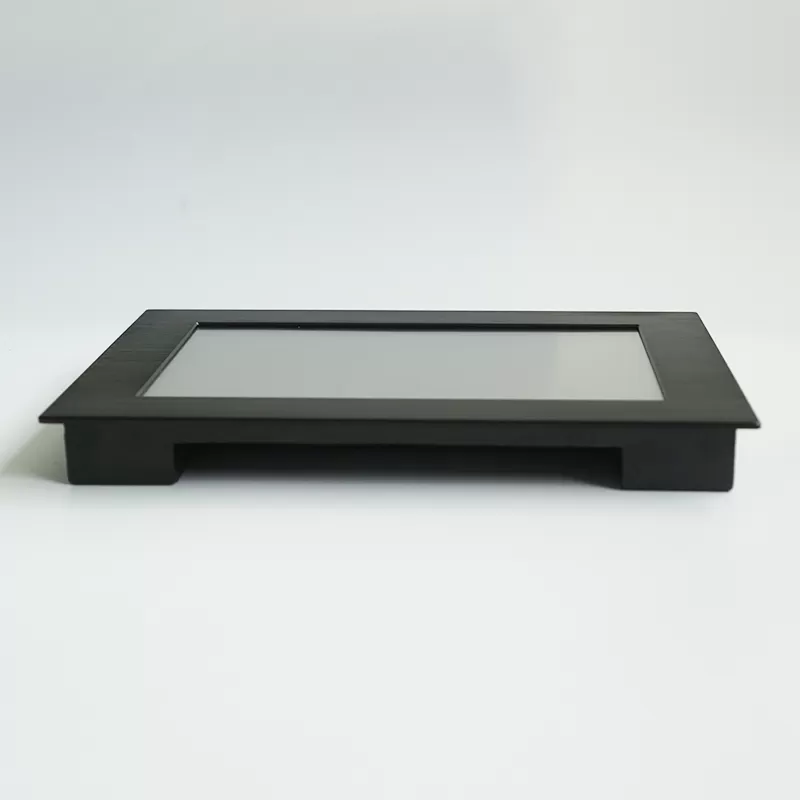

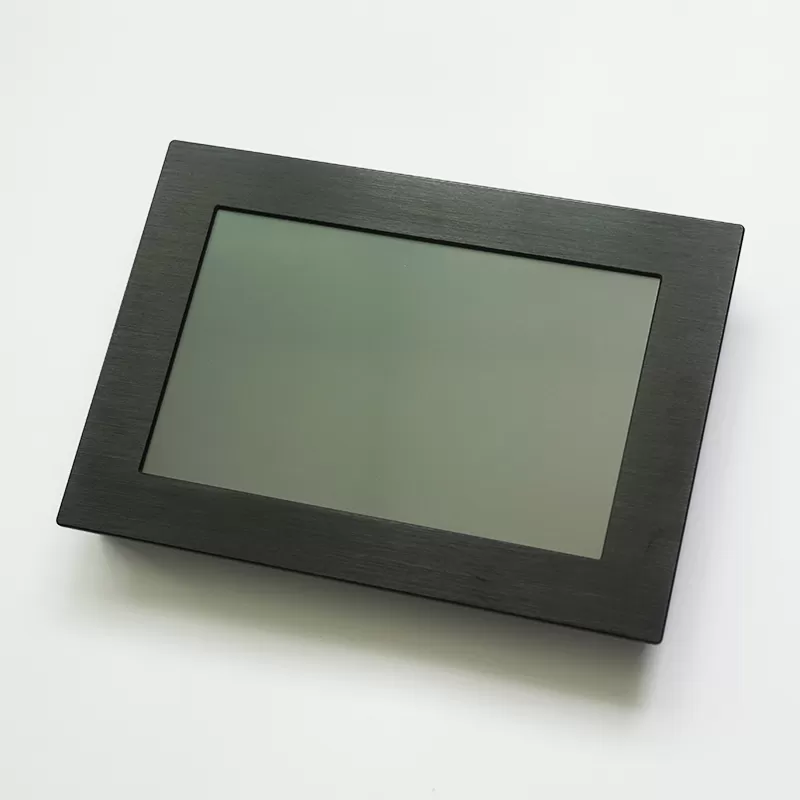

Durable Aluminum Alloy Design
Front bezel crafted from brushed aluminum alloy, combining strength with a modern industrial look.
Seamless design provides enhanced protection against dust and moisture.
Front IP65 waterproof and dustproof rating ensures reliable performance in harsh environments such as outdoor kiosks and factory floors.
Industrial-Grade LCD Display
Equipped with an industrial LCD panel for long life and stable performance.
Offers a wide viewing angle and true color display for consistent image quality from any direction.
1000 nits high brightness, ensuring sunlight readability even in outdoor or high-light environments.
5-Wire Resistive Touch Panel
Adopts high-quality 5-wire resistive touch technology known for stability and long service life.
Provides precise touch response and excellent anti-interference performance.
Works reliably even when operated with gloves, stylus, or under humid conditions.
High-Performance Mainboard
Designed for 7x24 continuous operation, supporting uninterrupted use in industrial and embedded systems.
Ensures smooth performance and long-term reliability in demanding applications.
Flexible Mounting Options
Supports multiple installation methods: wall mounting, embedded mounting, and desk stand mounting.
Allows easy integration into control cabinets, kiosks, and workstations.
Sunlight Readable Performance
1000 nits brightness delivers clear visibility in outdoor or high-glare environments.
Ideal for outdoor kiosks, vehicle-mounted systems, and industrial control panels.
Application Scenarios
Perfect for industrial automation, embedded systems, transportation equipment, outdoor terminals, and commercial kiosks.
Suitable for any application requiring a durable, high-brightness, and precise touchscreen display that can operate continuously in tough conditions.
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000nits, sunlight readable |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wires Resitive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (10 points Capacitive touch, non touch Optional) |

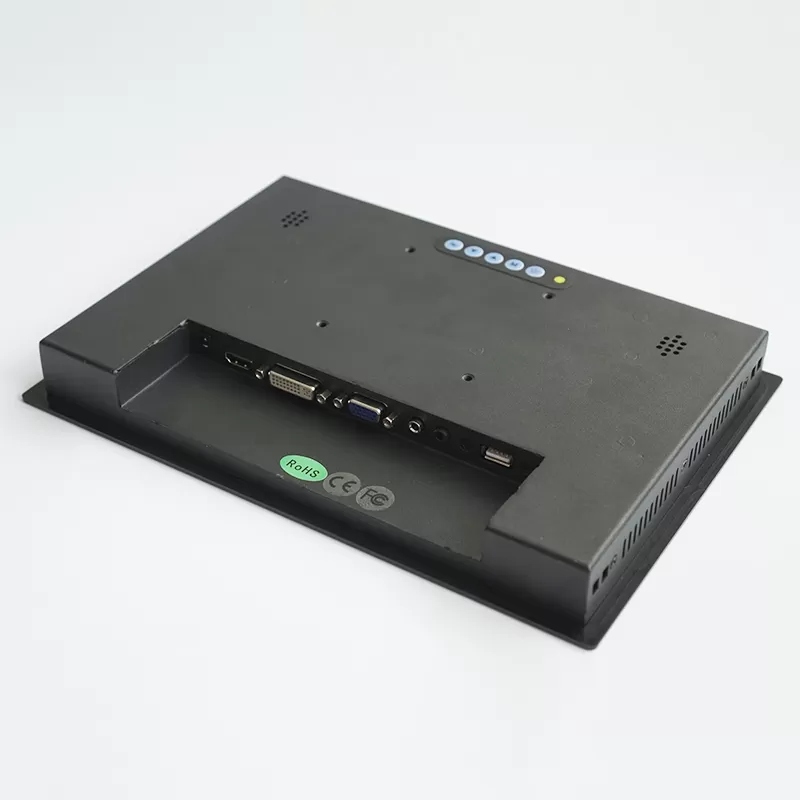

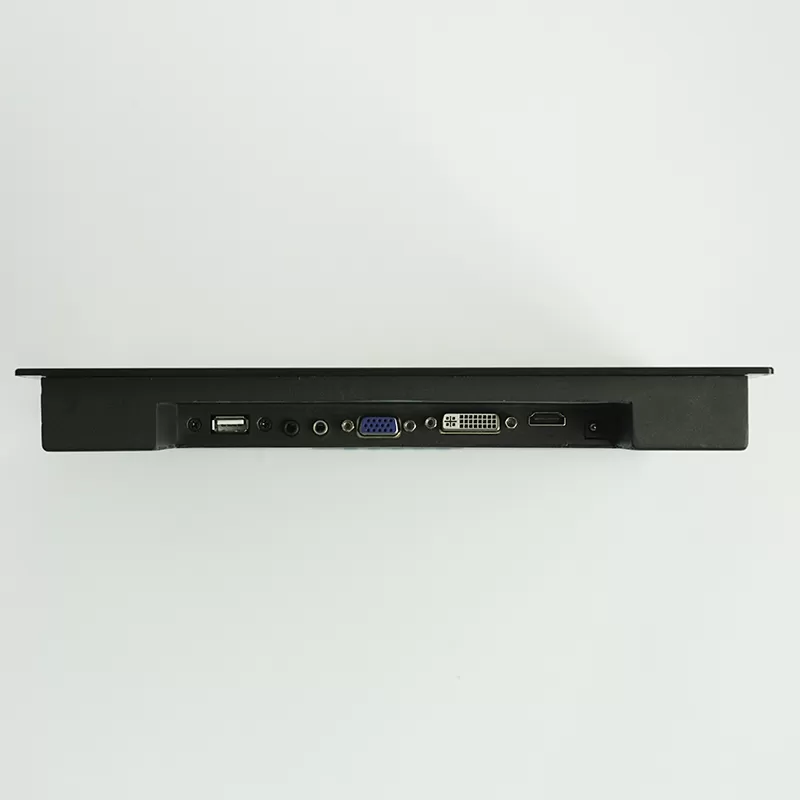

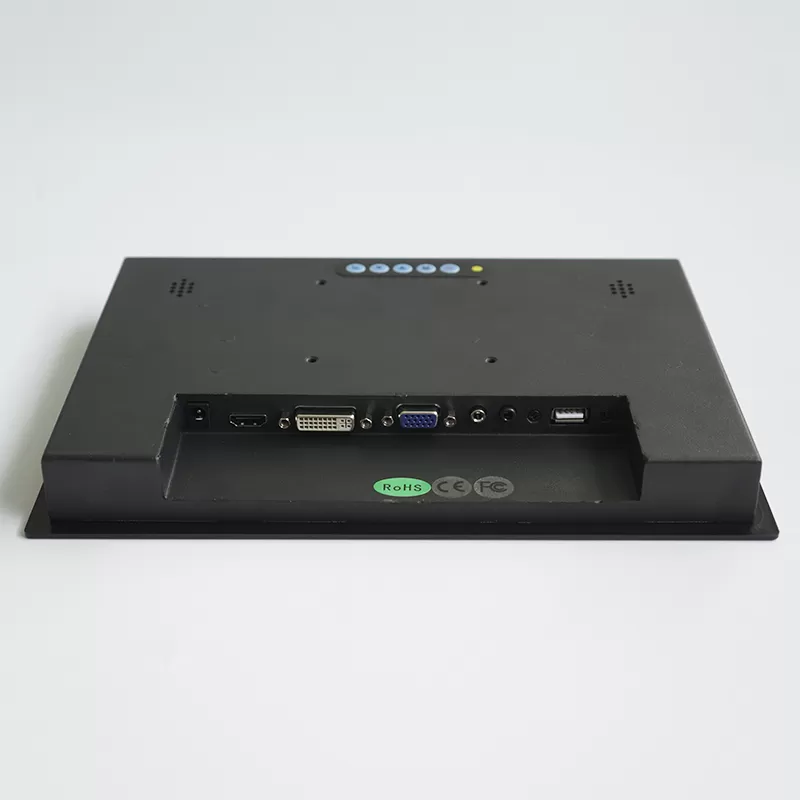

| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black (Color can customize) |
| VESA mounting | 75×75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1.7kgs |
| Gross weight | 2.5kgs |

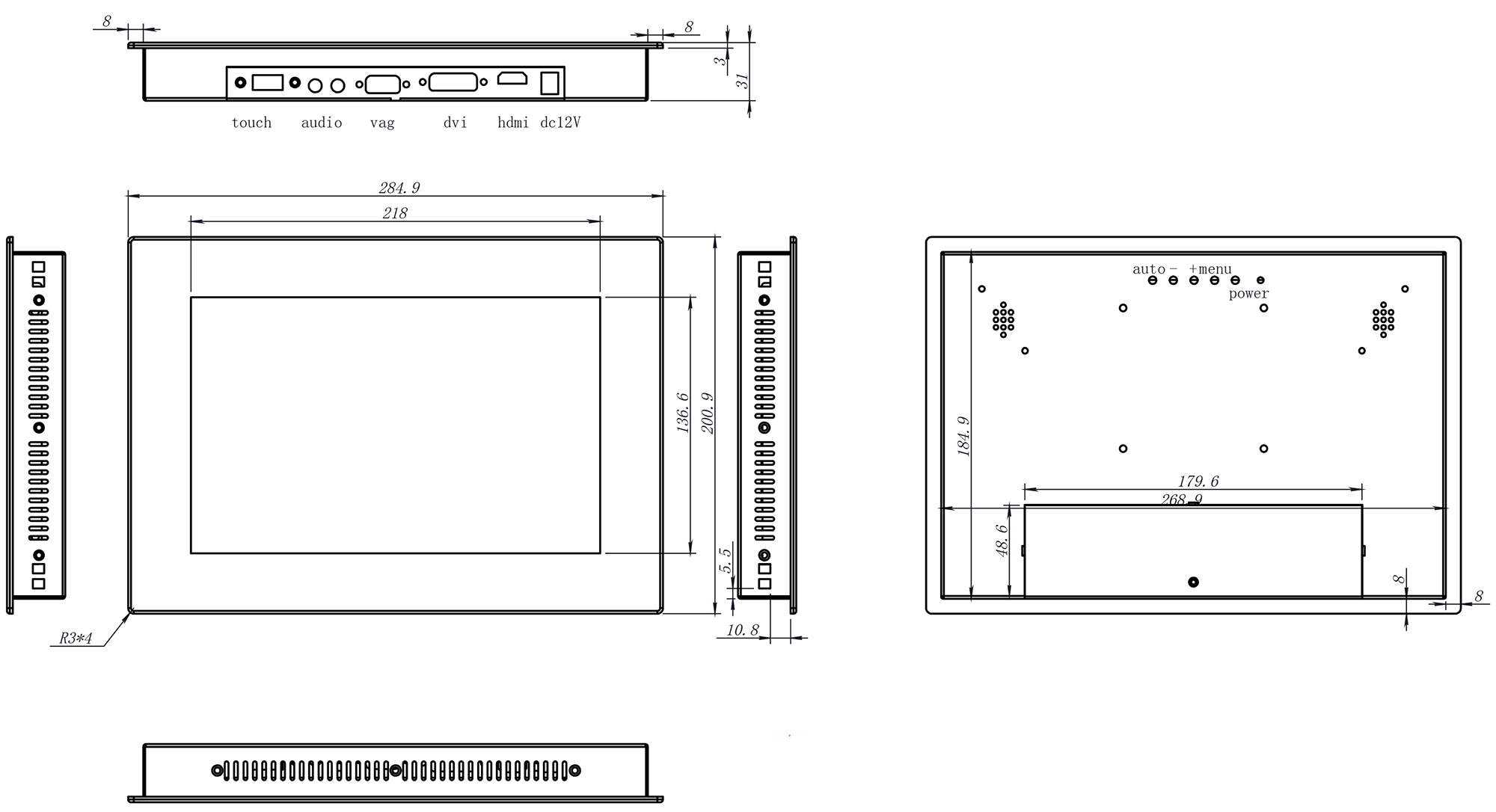

| Product Dimension | 28.49×20.09×3.4cm |
| Packing size | 33×30×10cm |
| Accessories | Power adapter, USB touch cable, HDMI cable, embedded screws |
| Other | |
| Embedded mounting | |
| mounting | Wall mounting brackets (Optional) |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
