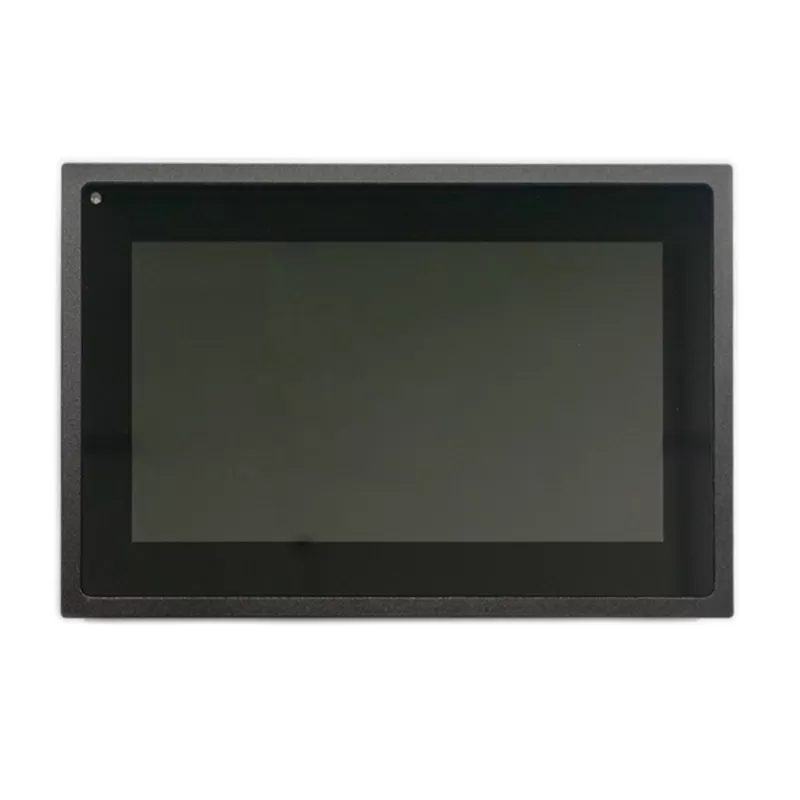

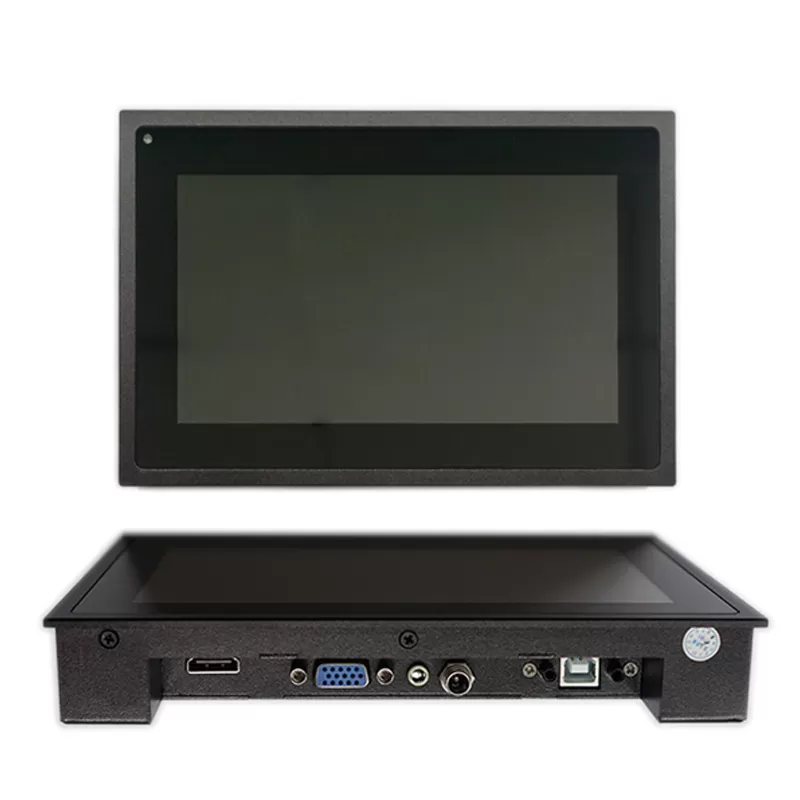

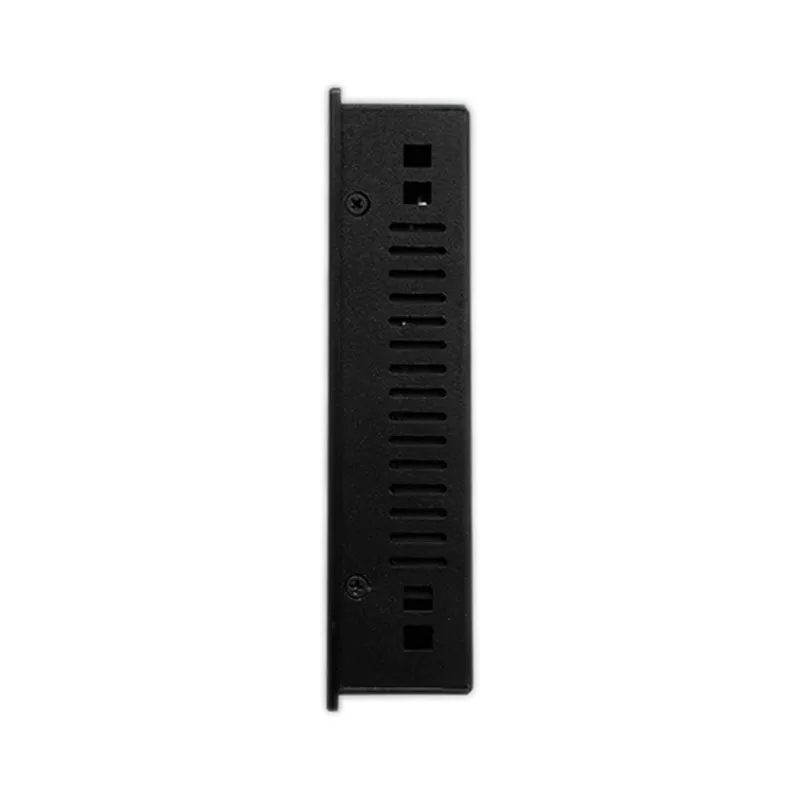

Model: SATA07M
Features:
1. Robust aluminium alloy bezel+High strength cold rolled steel back base, dustproof and shockproof.
2. Full Flat panel, Front panel IP65 waterproof.
3. Industrial grade LCD panel, wide operating temperature: -20 to 70°C, storage: -30 to 80°C.
4. 1000 nits high brightness, sunlight readable.
5. With light sensor for auto dimming, eye-protecting.
6. Multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
7. High performance driver board, 7x24 continuous operation.
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness | With light sensor, to adjust brightness automatically |
| Contrast ratio | 800:1 |
| View angle | 75°/75°/70°/75° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 wires Resistive touch, non touch Optional) |

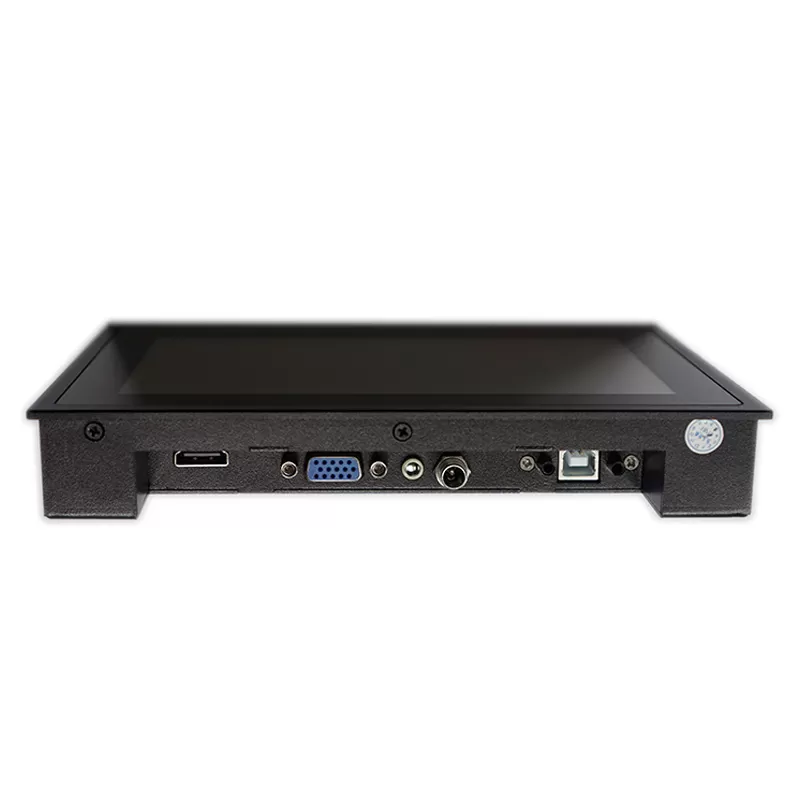

| Singal Ports | |
| VGA | 1×VGA |
| HDMI | 1×HDMI |
| DVI | Optional |
| AV | Optional |
| Audio in/out | Optional |

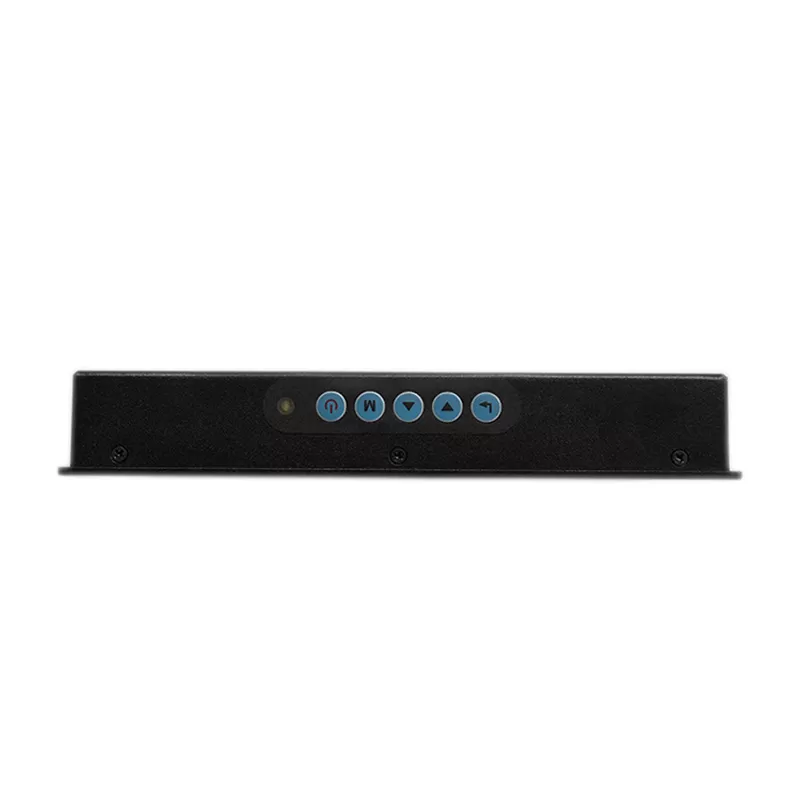

| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤10W |
| Enclosure | |
| Material | Aluminium alloy bezel+High strength cold rolled steel back case |
| Color | Black(Color can customize) |

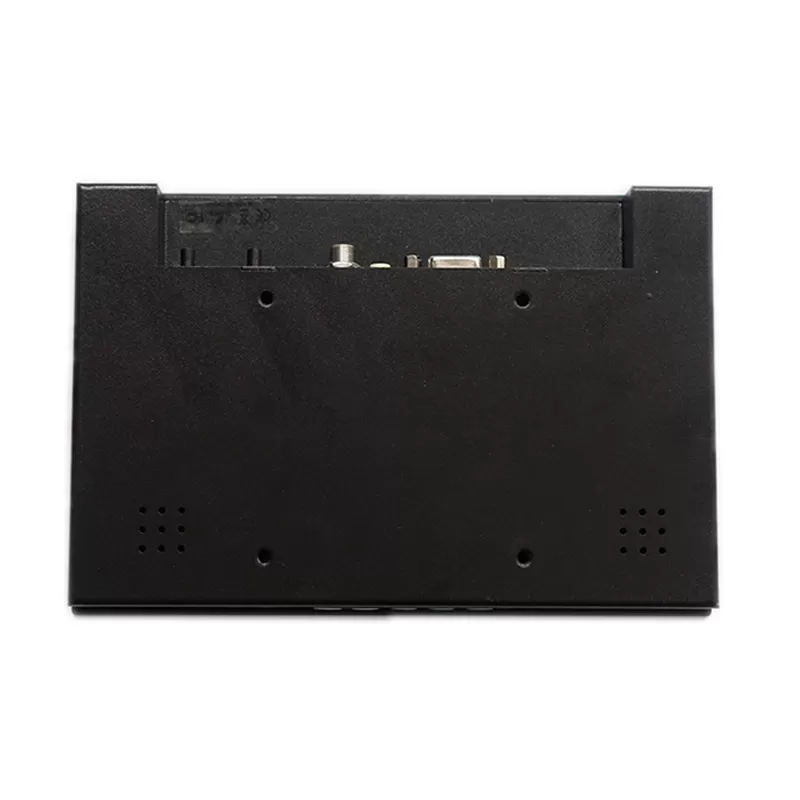

| VESA mounting | 75×75mm |
| IP Grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage : -30 to 80°C |
| Relative humidity | Operating: 10% to 90% , storage: 5% to 90% |
| Packing Details | |
| Net weight | 1.85kgs |
| Gross weight | 2.5kgs |
| Product Dimension | 19.11×12.66×3.07 cm |
| Packing size | 37×28×10 cm |
| Accessories | Power adapter, HDMI /VGAcable, USB touch cable |
| Other | |
| Mounting | Embedded screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
