Model: SATAX4
Features:
1. Full Aluminum alloy enclosure, built-in fan for heat dissipation.
2. High performance motherboard, 7x24 continuous operation.
3. Support processor Intel i3 6100U, i5 6500U, i7-6700U.
4. Support MAX DDR4 1866/2133 32GB.
5. Support 1*MSATA, 1*2.5 inches and 1*3.5 inches hard disk section.
6. Support 6*COM(RS232/RS422/RS485).
7. Support 1*PCI-E 16X Slot.
8. Compatible Windows 7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i3-6100, dual core, four threads, 3.7GHz |
| CPU Optional | Intel® Core i5-6500, Quad core, Quad threads, 3.2GHz, Max 3.6GHz |
| CPU Optional | Intel® Core i7-6700, Quad core, eight threads, 3.4GHz, Max 4.0GHz |
| Chipset Group | Intel H110 |
| Memory | Support 1*DDR4 1866/2133MHz, DIMM Slot max 32GB |
| GPU | CPU Integrated core graphics card |
| Storage | Support 1*MSATA, 1*2.5'' and 3.5" SSD/HDD |
| Display | 1x VGA, 1xHDMI, 1xDP(Support synchronous and asynchronous display, dual display) |
| Network | 2*Intel RTL8111F 10/100M/1000M Lan |

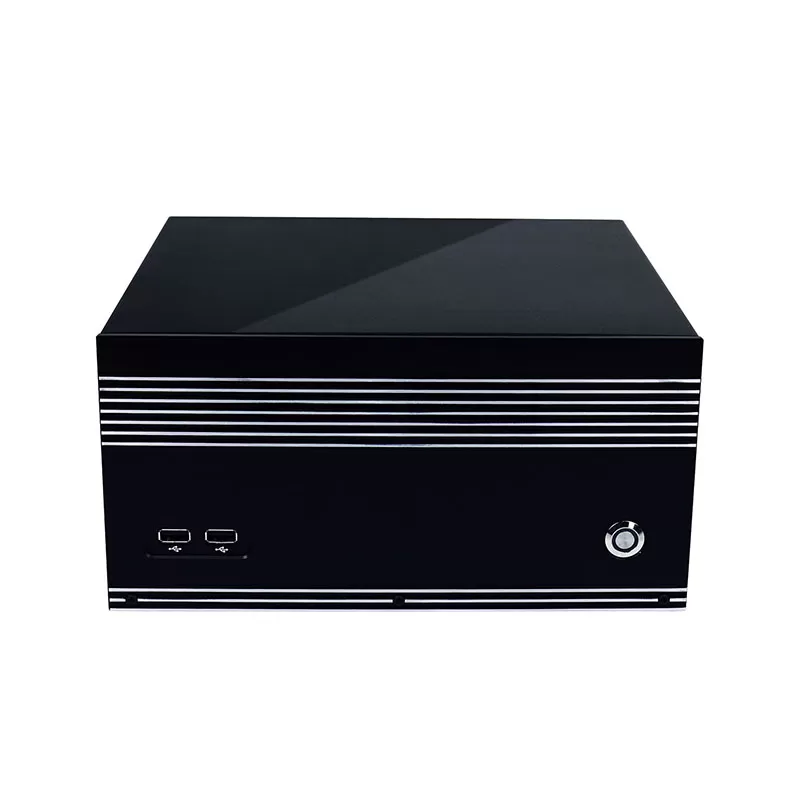

| Front I/O | 2*USB2.0, 1*Power Switch |

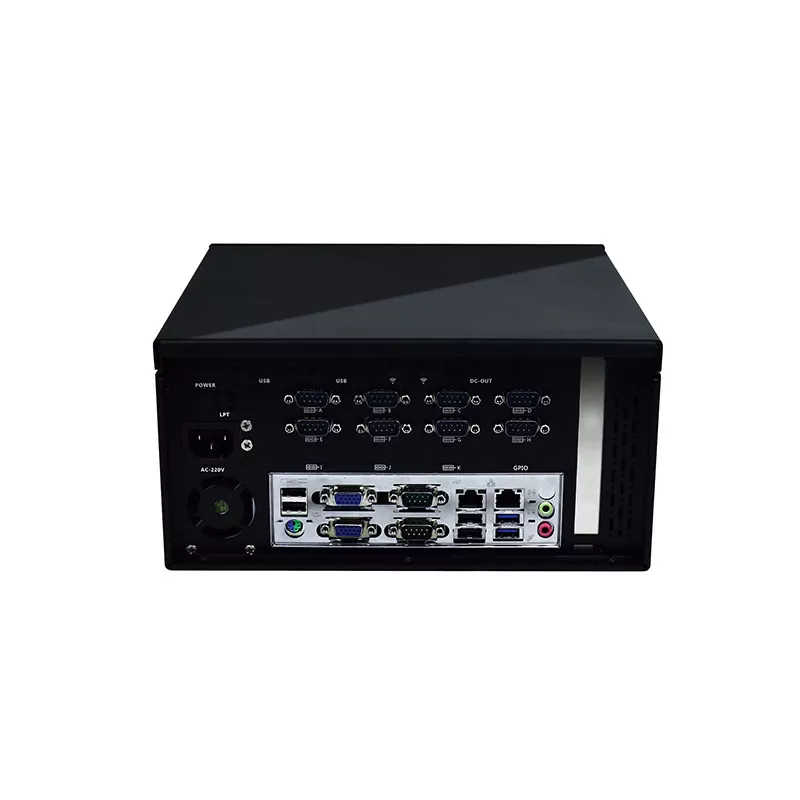

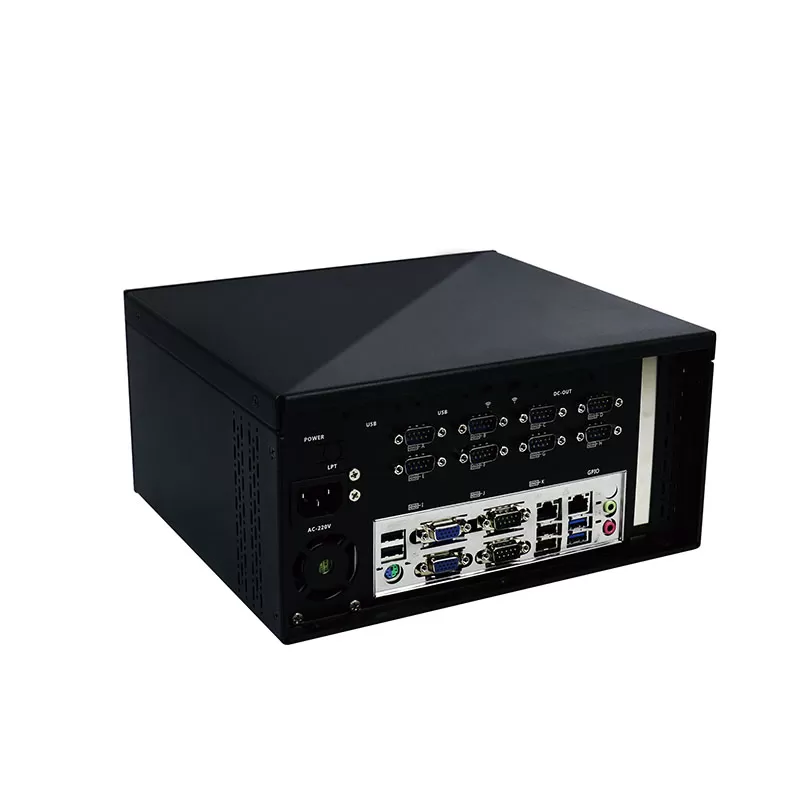

| Rear I/O | 4*USB3.0, 2*USB2.0, 2*RJ45(1000M), 1*PS/2, 1*VGA/HDMI/DP, 2*Audio, 6*COM (COM3 Support RS232/442/485 optional), 1*AC |
| Expansion | 1*PCIE X16, Max length 196mm, 1*MINI PCIE(MSATA or WIFI) |
| Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V(47-63Hz) |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black(Color customise for bulk orders) |
| Operating Environment | |
| Temperature Range | Operating: 0 to 50°C, storage: -10 to 50°C |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 3.5kgs |
| Gross weight | TBD |

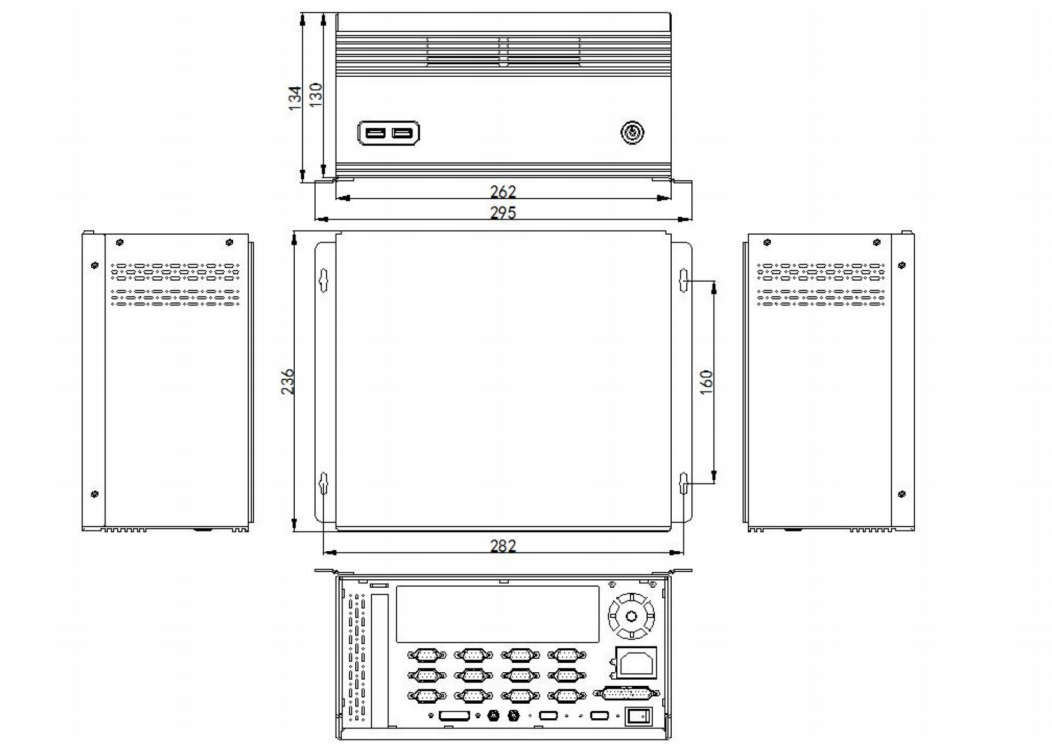

| Product Dimension | 26.2*13*23.6cm |
| Packing size | TBD |
| Accessories | Power adapter, wall mount bracket, CD card, user manual, warranty card |
| Other | |
| Mounting way | Wall mount |
| Warranty | 3 years warranty |
