Model: SATA1226
Features:
1. All aluminum alloy structure, no fan design.
2. Support Intel Celeron J6412 quad-core processor.
3. Support DDR4 SODIMM memory slot, up to 32G.
4. Support 3*Intel i226-V 2.5G Ethernet.
5. Support 2*M.2 slots, support 4G/5G.
6. Support 1 Mini PCIE slot.
7. Support 6*COM ports (COM1, 2 support RS232/485 mode Optional).
8. Compatible Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Onboard Intel® Celeron J6412 (Quad Core, Quad thread, Base 2.0GHz, Turbo 2.6GHz) |
| Memory | Support 1*DDR4 SODIMM Memory Slot, 3200MT/s, up to 32GB |
| BIOS | AMI UEFI BIOS |
| Storage | Support 1*M.2 Card Slot(Support SATA protocol), 1*2.5'' SSD/HDD |
| Display Chip | Integrated Intel HD Graphics Core Graphic card |
| Display interface | 1xHDMI, 1xDP (support synchronous asynchronous dual display) |
| Network | 3xIntel i226-V 2.5G LAN |

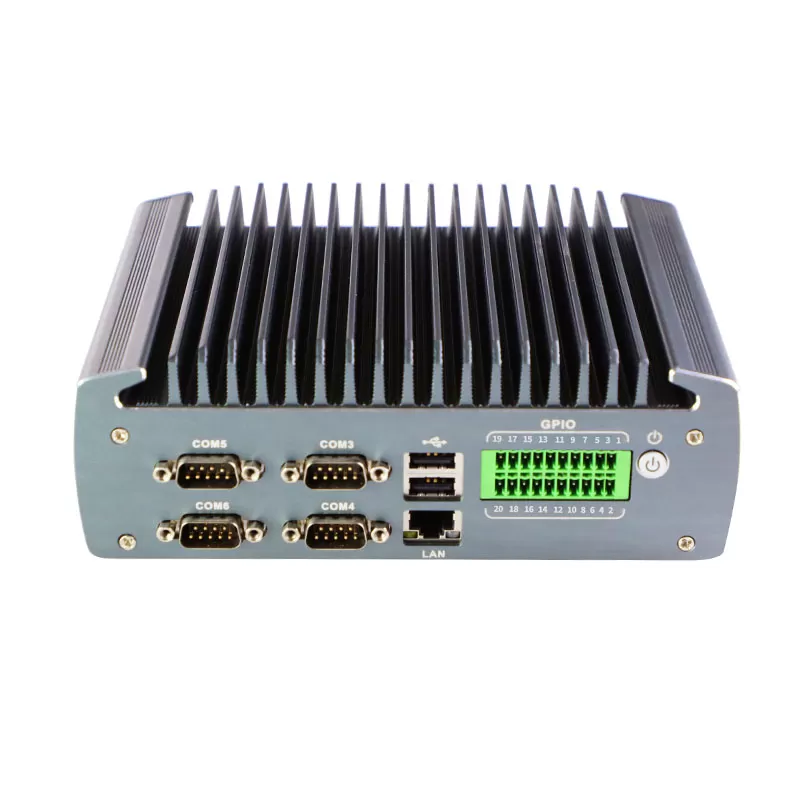

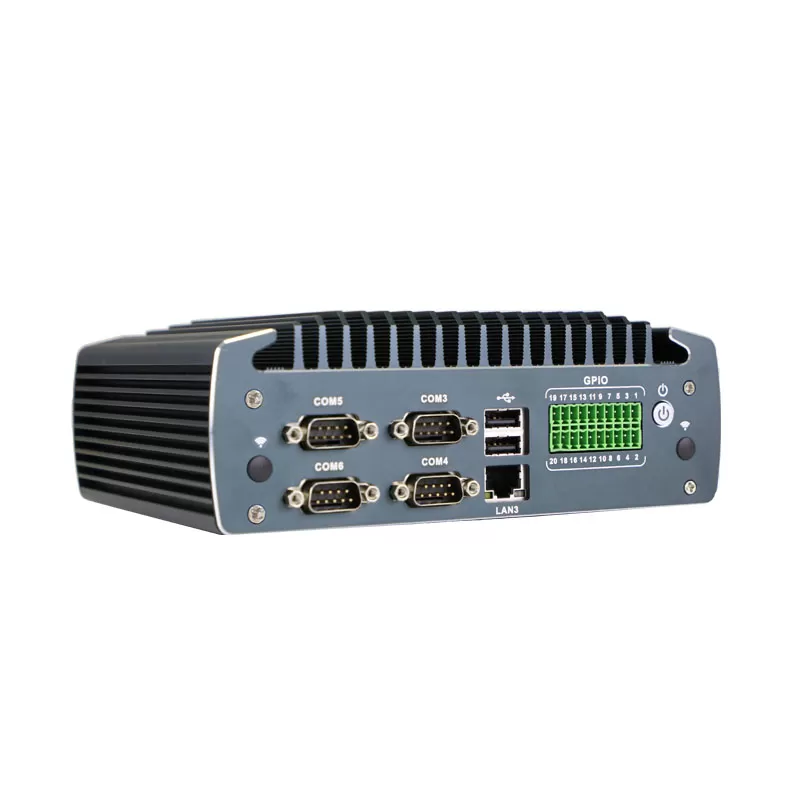

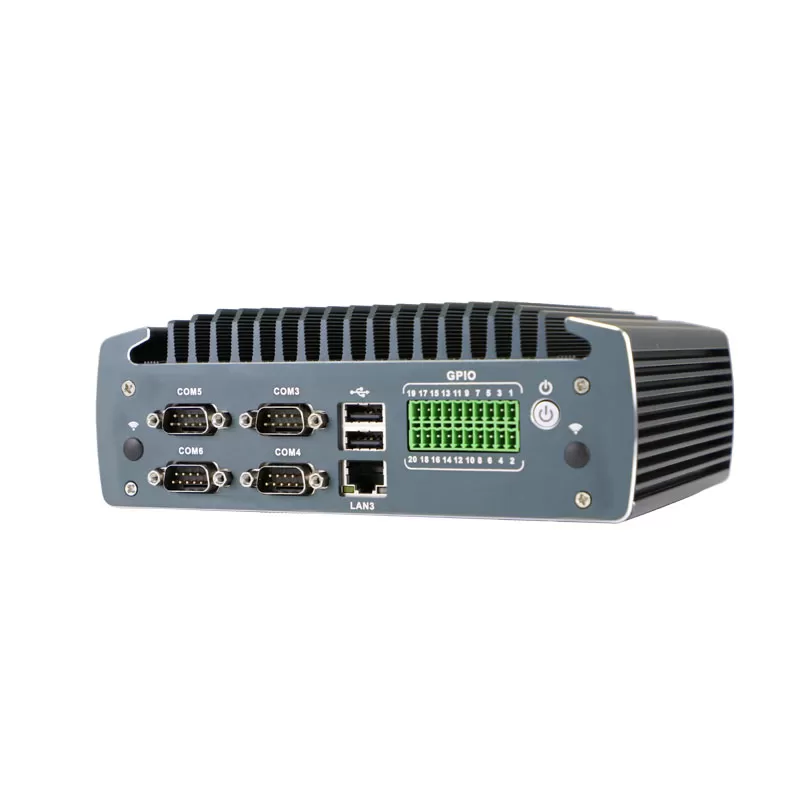

| Front I/O | 4xCOM, 2xUSB2.0, 1x2.5G LAN, 18xGPIO Phoenix terminal, 1xPower switch |

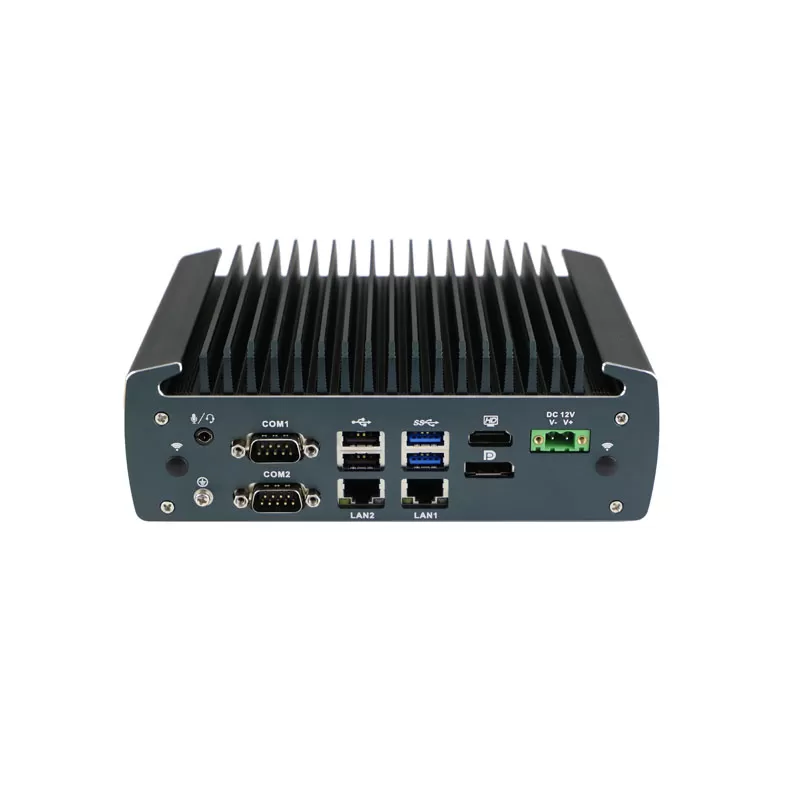

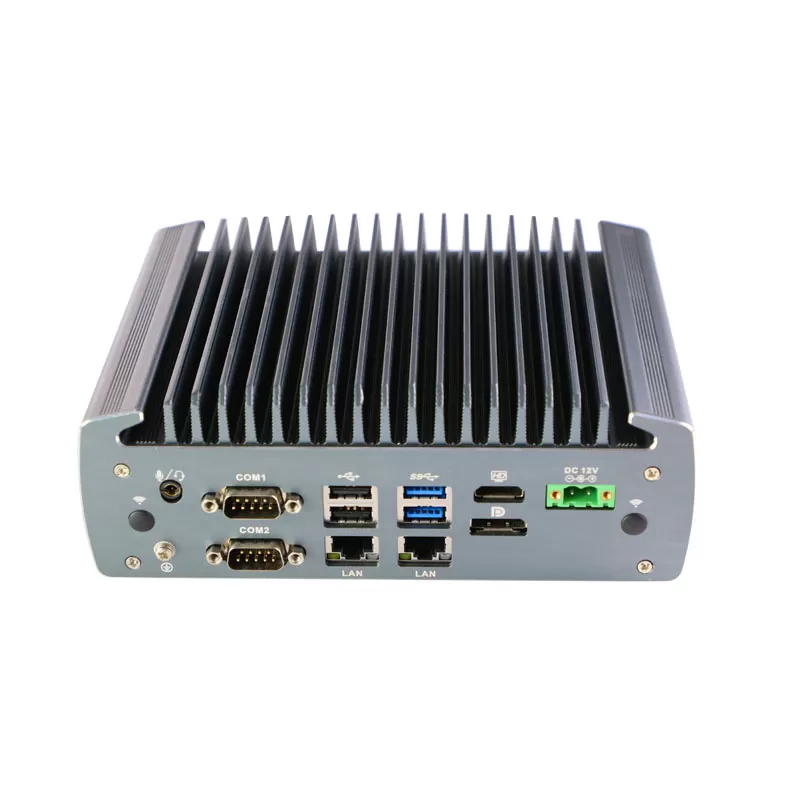

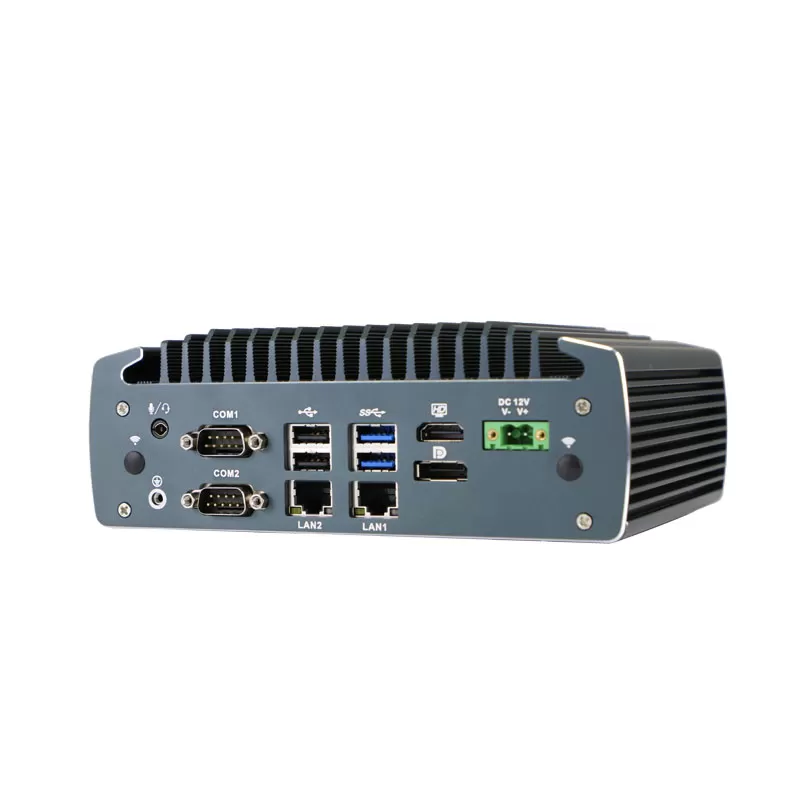

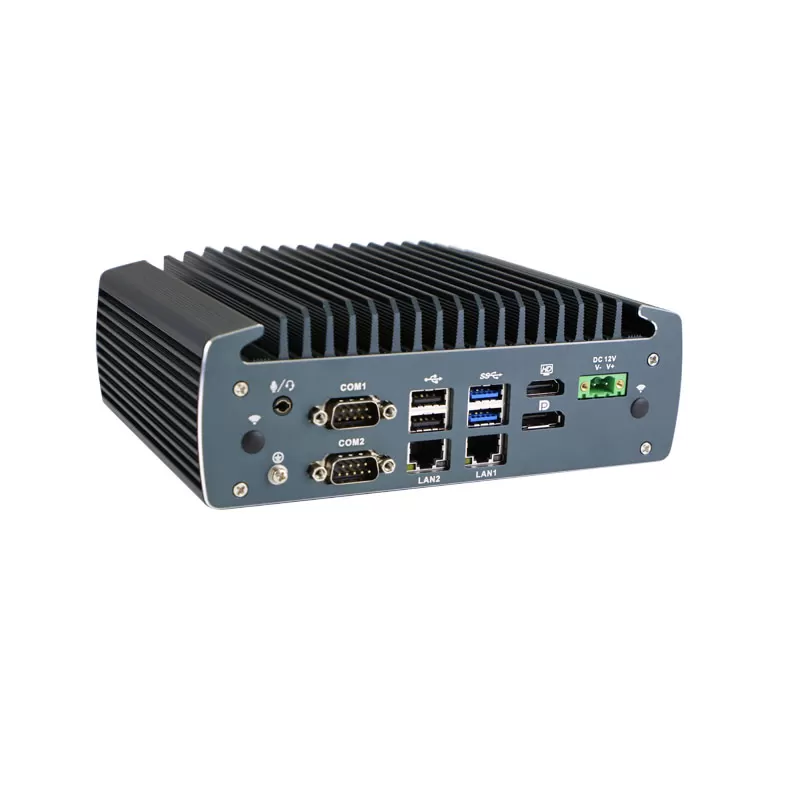

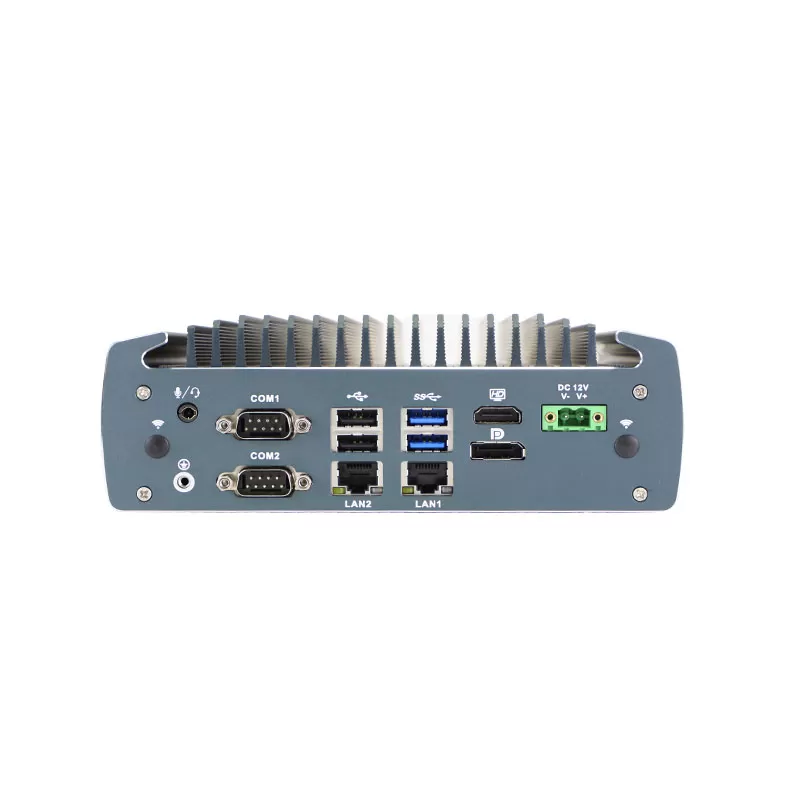

| Rear I/O | 2xCOM(COM1, 2 support RS232/485 Optional), 2xUSB2.0, 2xUSB3.0, 2x2.5G LAN, 1xHDMI/DP/2 pin Phoenix terminal/2 in 1 Audio interface |
| Expansion interface | 1xM.2 M-key Card Slot 2280(Support SATA Protocol) |
| 1xM.2 B-key slot 3042/3052 (4G/5G) with SIM card seat | |
| 1xMINI PCIE(WIFI/Bluetooth) | |
| Optional: 2*USB2.0 | |
| Other function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0~255), TPM2.0 security encryption |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fodera 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V(9-36V Optional) |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Dark Grey(color can customize) |
| Operating Environment | |
| Temperature Range | Operating: 0 to 50°C(Commercial HDD), -20~60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.5kgs |
| Gross weight | 2kgs |

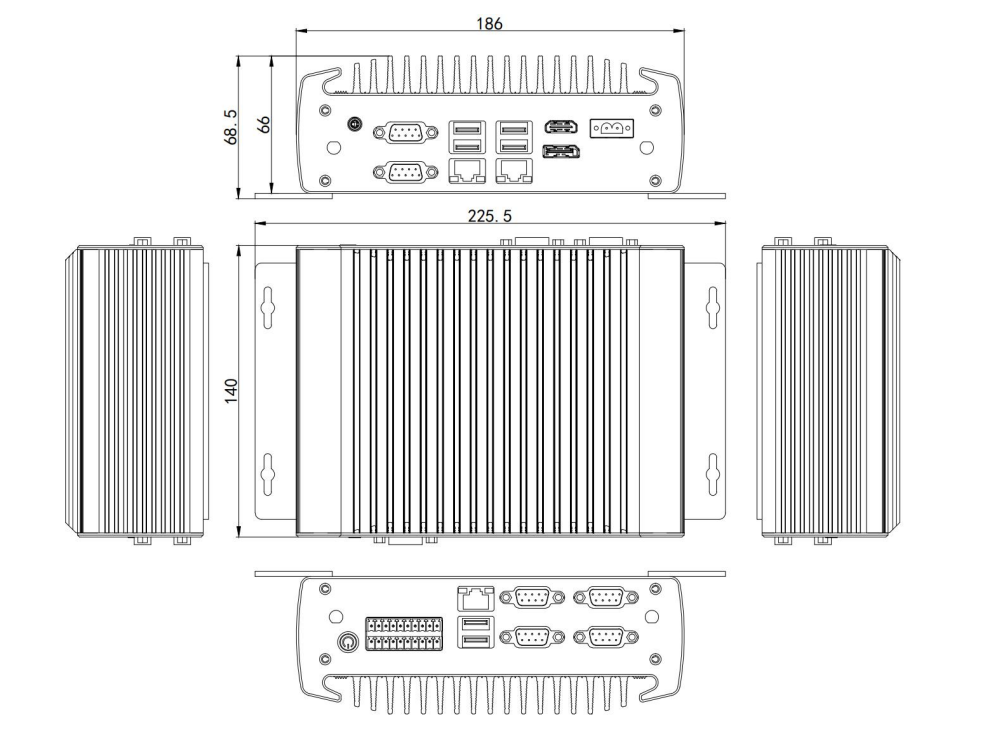

| Product Dimension | 18.6*14*6.6cm |
| Packing size | TBD |
| Accessories | Power adapter, power plug, vesa bracket, user manual, warranty card, CD Card |
| Other | |
| Mounting way | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
