Model: SATA06
Features:
1. 8/10th Celeron/Pentium/Core CPU Optional.
2. 2xRS-232 serial ports.
3. 6xIntel i225V 2.5G network cards.
4. One key restoration, watchdog, diskless start.
5. Low power consumption without fan.
6. Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Pentium 5405U, dual core, quad thread, 2.3GHz |
| CPU Optional | Intel® Core i3-8140U, dual core, quad thread, 2.1GHz, Turbo 3.9GHz |
| CPU Optional | Intel® Core i5-8260U, quad core, eight thread, 1.6GHz, Turbo 3.9GHz |
| CPU Optional | Intel® Core i5-8365U, quad core, eight thread, 1.6GHz, Turbo 4.1GHz |
| CPU Optional | Intel® Core i7-8569U, quad core, eight thread, 2.8GHz, Turbo 4.7GHz |
| CPU Optional | Intel® Core i5-10210U, quad core, eight thread, 1.6GHz, Turbo 4.2GHz |
| CPU Optional | Intel® Core i7-10510U, quad core, eight thread, 1.8GHz, Turbo 4.9GHz |
| CPU Optional | Intel® Core i5-1235U, ten core, twelve thread, 1.3GHz, Turbo 4.4GHz |
| CPU Optional | Intel® Core i7-1265U, ten core, twelve thread, 1.8GHz, Turbo 4.8GHz |
| Memory | 1x SODIMM DDR4 (Can up to 16GB) |
| Storage | 1x MSATA, 1x HDD/SSD |
| Network | 6x2.5GbE RJ45 Intel i225V |

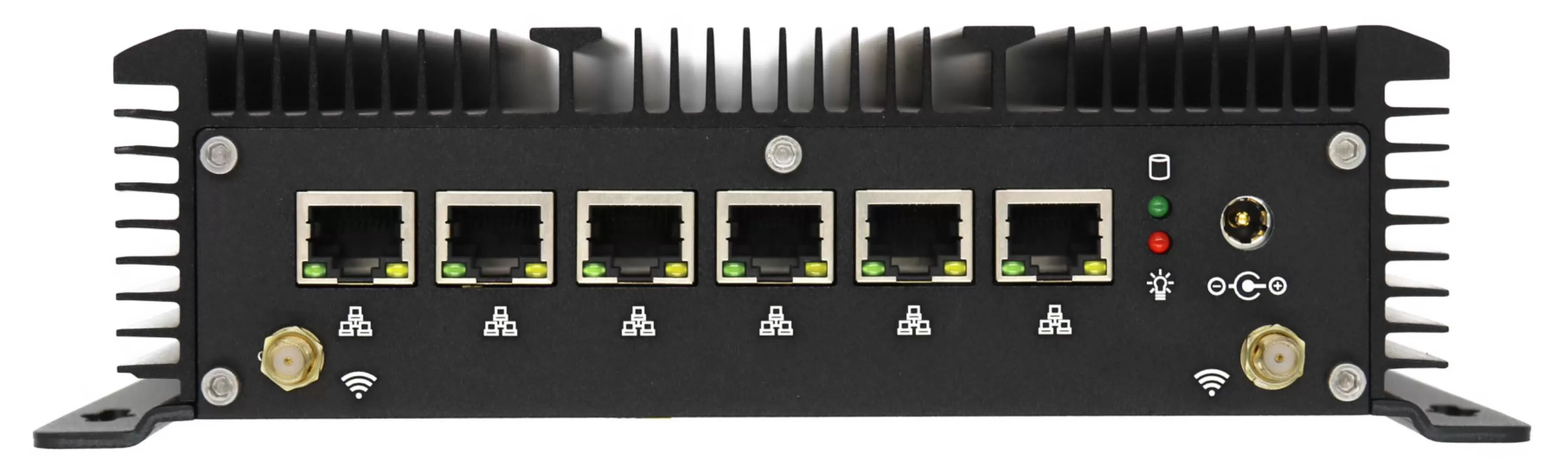

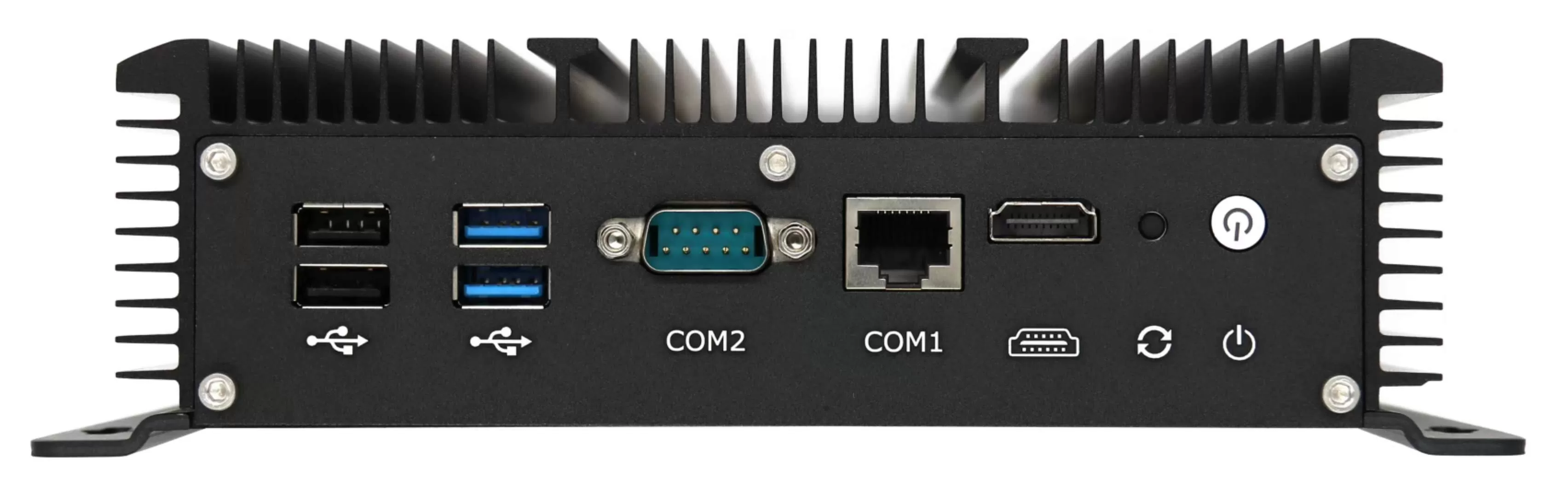

| I/O Interface | 2xUSB 3.0, 2xUSB2.0, 1xRJ45(Cisco standard), 1xDB9 COM, 6x2.5GbE RJ45 Intel i225V, 1xHDMI, 1xPower LED, 1xHDD LED, 1xPower button, 1xReset button, 1xPower input, 1xSIM Card slot, 2xAntenna(WIFI/3G/4G Optional) |
| Expansion | Mini-PCIe x 1 full card, onboard SIM card slot, support 3G/4G module, WIFI Bluetooth |
| Operation System | Support Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, no disk start-up |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 1.35kgs |
| Gross weight | 2.5kgs |

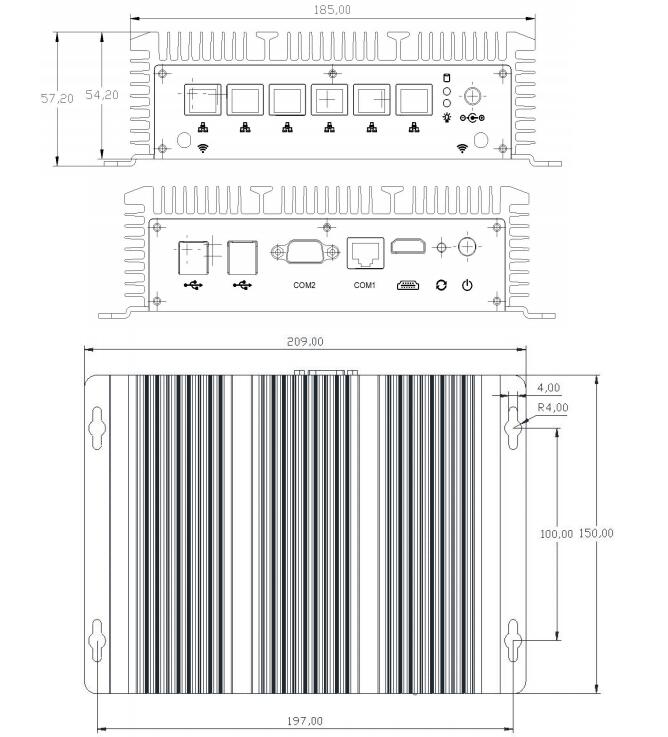

| Product Dimension | 20.9*15*5.7cm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
