Model: SATA08
Features:
1. Intel 4/6/7/8/10 Core i3/i5/i7 CPU Optional.
2. Gen 4: DDR3L SODIMM x1(up to 8GB), Gen 6/7/8: DDR4 SODIMM x1(up to 16GB), Gen 8/10: DDR4 SOIMM x2(up to 32GB).
3. 2*DB9 COM serial ports.
4. 2*Realtek 8111 Gigabit network cards.
5. Watchdog, no disk start-up.
6. Low power consumption without fan.
7. Windows® 7/8/10, WES 7/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i5-4278U, dual core, quad thread, 2.6GHz |
| CPU Optional | Intel® Core i7-4578U, dual core, quad thread, 3.0GHz Turbo 3.5GHz |
| CPU Optional | Intel® Core i3-8130U, dual core, quad thread, 2.2GHz Turbo 3.4GHz |
| CPU Optional | Intel® Core i5-8260U, quad core, eight thread, 1.6GHz, Turbo 3.9GHz |
| CPU Optional | Intel® Core i7-8665U, quad core, eight thread, 1.9GHz, Turbo 4.8GHz |
| CPU Optional | Intel® Core i3-10110U, dual core, quad thread, 2.1GHz, Turbo 4.1GHz |
| CPU Optional | Intel® Core i5-1245U, ten core, twelve thread, 1.6GHz, Turbo 4.4GHz |
| CPU Optional | Intel® Core i7-1265U, ten core, twelve thread, 1.8GHz, Turbo 4.8GHz |
| CPU Optional | Intel® Core i7-1355U, ten core, twelve thread, 1.7GHz, Turbo 5.0GHz |
| Memory | Gen 4: DDR3L SODIMM x1(up to 8GB), Gen 6/7/8: DDR4 SODIMM x1(up to 16GB), Gen 8/10: DDR4 SOIMM x2(up to 32GB). |
| Storage | Gen 4: 1x MSATA, 1x 2.5inch HDD/SSD(6/7/8/10th Gen 1x M.2 2280, support SATA and NVME Protocol) |
| Display | 1x VGA, 1x HDMI |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x Realtek 8111E LAN |

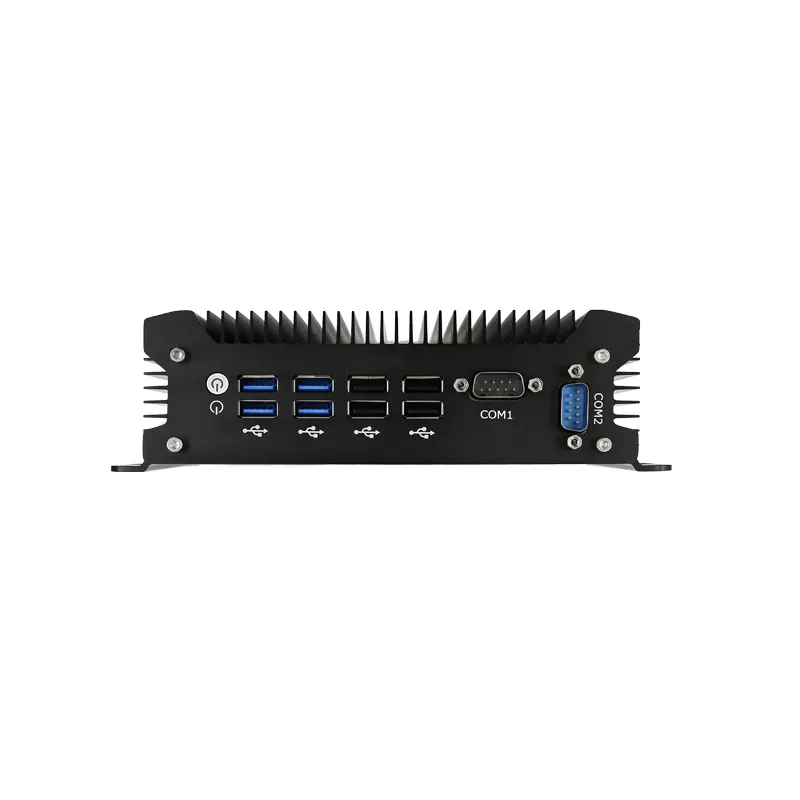

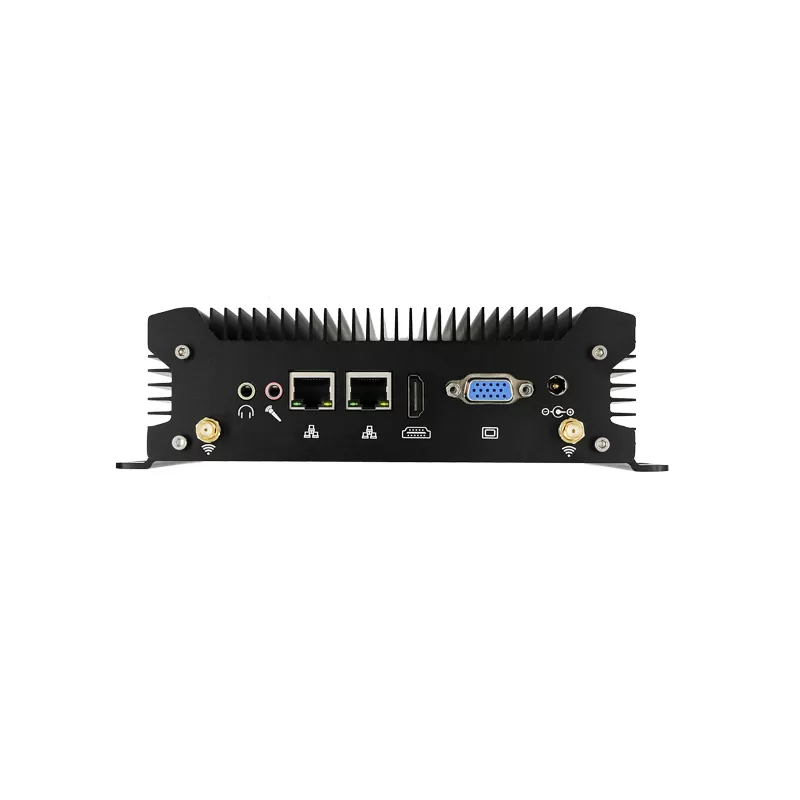

| I/O Interface | 4x USB 3.0, 4x USB 2.0, 2x DB9 COM, 1x HDMI, 1x VGA(or HDMI), 2x WIFI Antenna, 1x Audio/MIC, 1x DC 12V-19V port, 1x Power switch |
| Expansion | 1x Mini-PCIE Half/Full size (6th Gen with SIM Card socket), support 3G/4G, WIFI, Bluetooth |
| Operation System | Support Windows® 7/8/10, WES 7/10, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, no disk start-up |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V-19V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 1.8kgs |

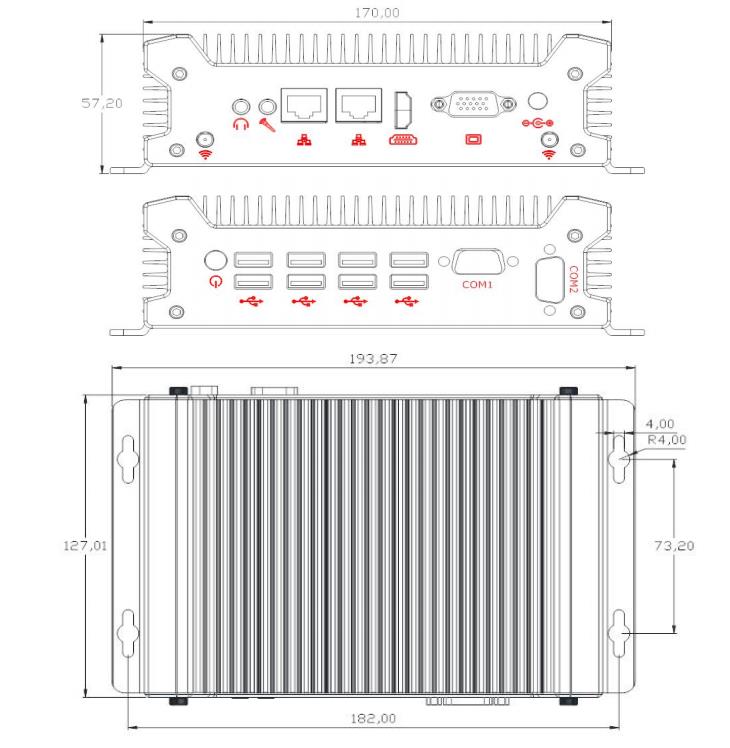

| Product Dimension | 19.39*12.7*5.72cm |
| Packing size | 32*25.7*11.8cm, 1pc/ctn; Big Carton: 61*33.5*28.7cm, 10kgs 5pcs/ctn |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
