Model: SATA101
Features:
1. All aluminum alloy structure, no fan design.
2. Support Intel Celeron J1900 quad-core processor.
3. Support DDR3L 8G memory.
4. Support 1*MSATA slot, 1*2.5-inch hard disk bit.
5. Support 1*Mini PCIE slot.
6. Support 6 COM ports (COM1, 2 support RS232/485 Optional).
7. Compatible with Win7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Celeron J1900, Quad Core, Quad threads, 2.0GHz, Max. Turbo 2.41GHz |
| Memory | 1*DDR3L 1333/1600MHz SODIMM Memory Slot (Max 8GB) |
| BIOS | AMI UEFI BIOS |
| Graphics | Integrated Intel HD Graphics core display |
| Display | 1x HDMI, 1x inbuilt LVDS Card slot(support syn and asy dual display) |

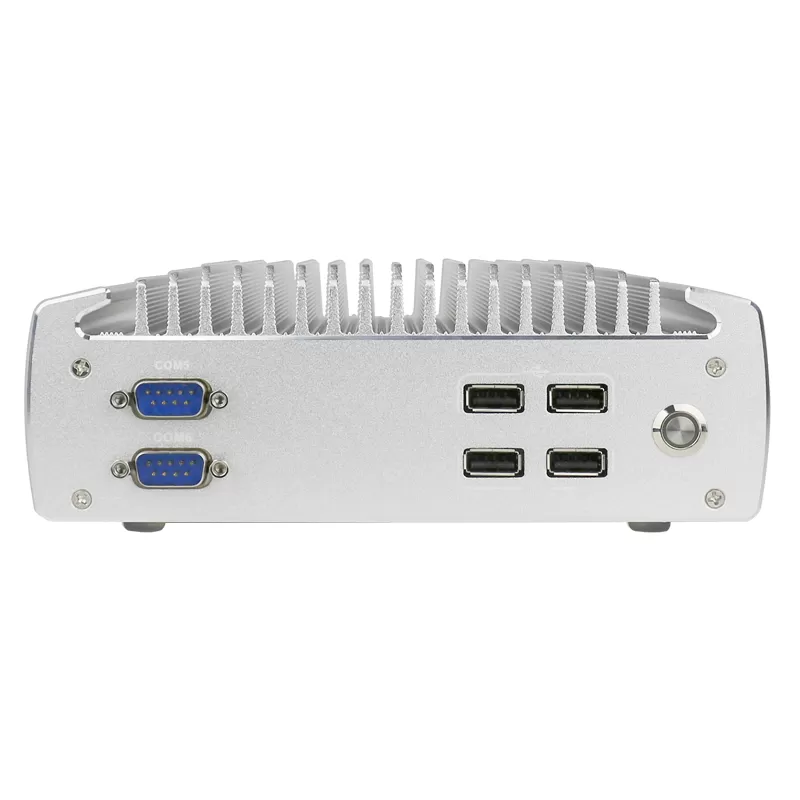

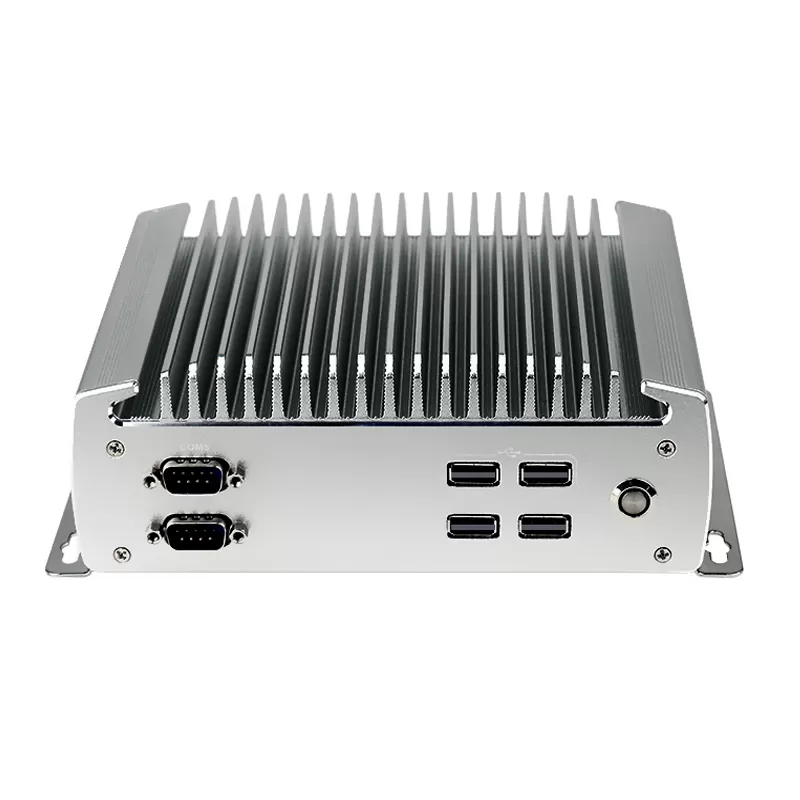

| Front I/O | 4xUSB2.0, 2xCOM, 1xPower switch |

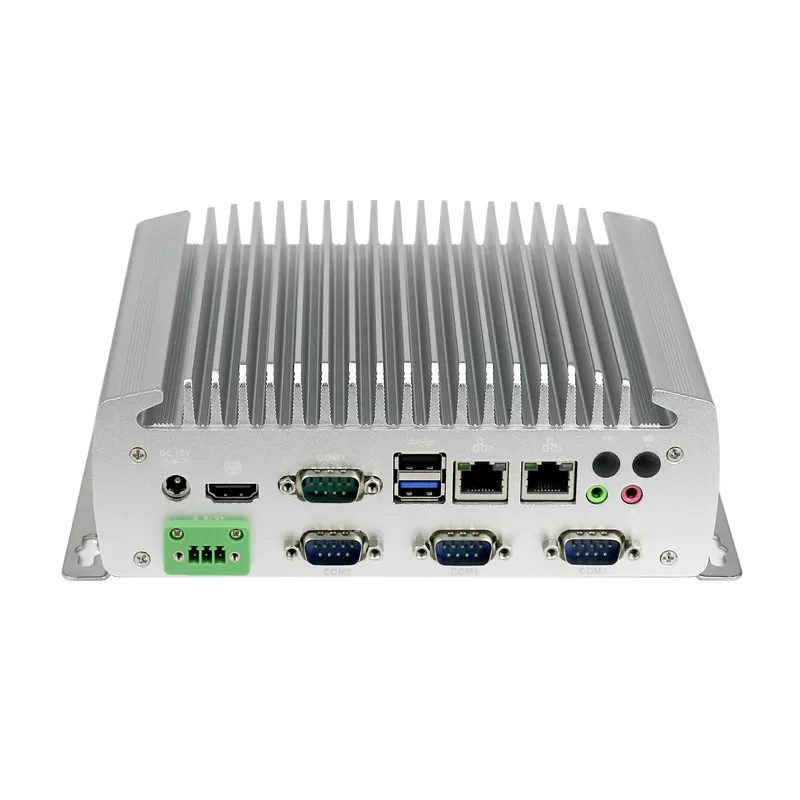

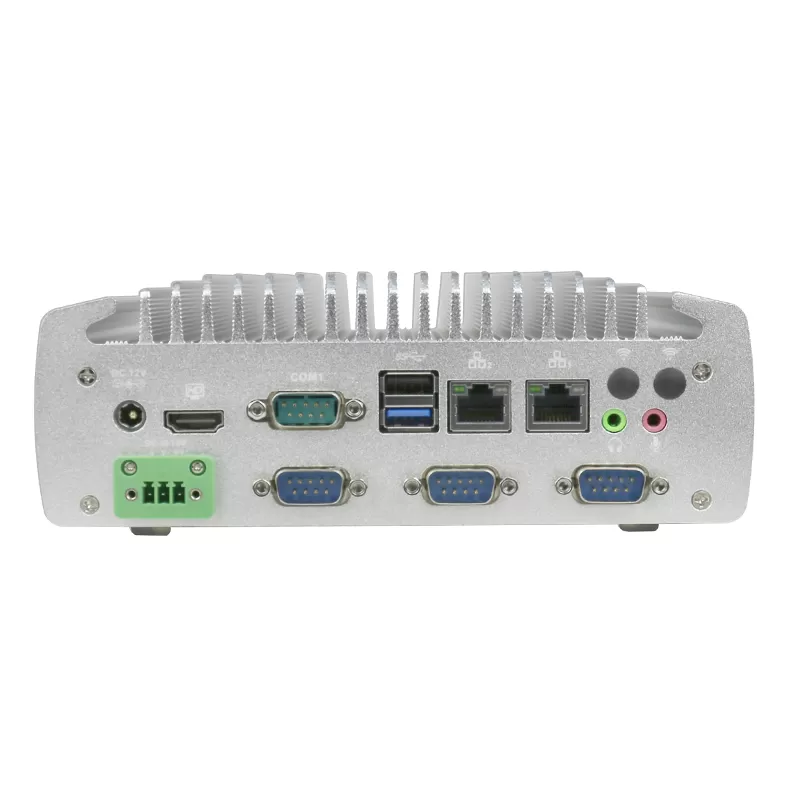

| Rear I/O | 1xUSB3.0, 1xUSB2.0, 4xCOM(COM 1 2 support RS232/RS485 Optional), 1x3 pin Phoenix terminal, 2xRJ45 1000M LAN, 1xHDMI/MIC/Line out/DC |
| Expansion slot | Support 1xMINI PCIE slot (support MSATA) |
| Supports 1xMINI PCIE slot (WIFI/3G/4G Optional, with SIM slot) | |
| Network | 2x Intel i211-AT 10/100/1000M Ethernet LAN |
| Storage | 1x MSATA Slot, 1*2.5-inch hard disk |
| Other function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| OS | Win 7/8/10, Ubuntu, Debian, Fedora and etc |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, color can customize Optional |
| Operating Environment | |
| Temperature Range | 0°C-50°C(Commercial HDD), -20°C to 60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.3kgs |
| Gross weight | 2.1kgs |

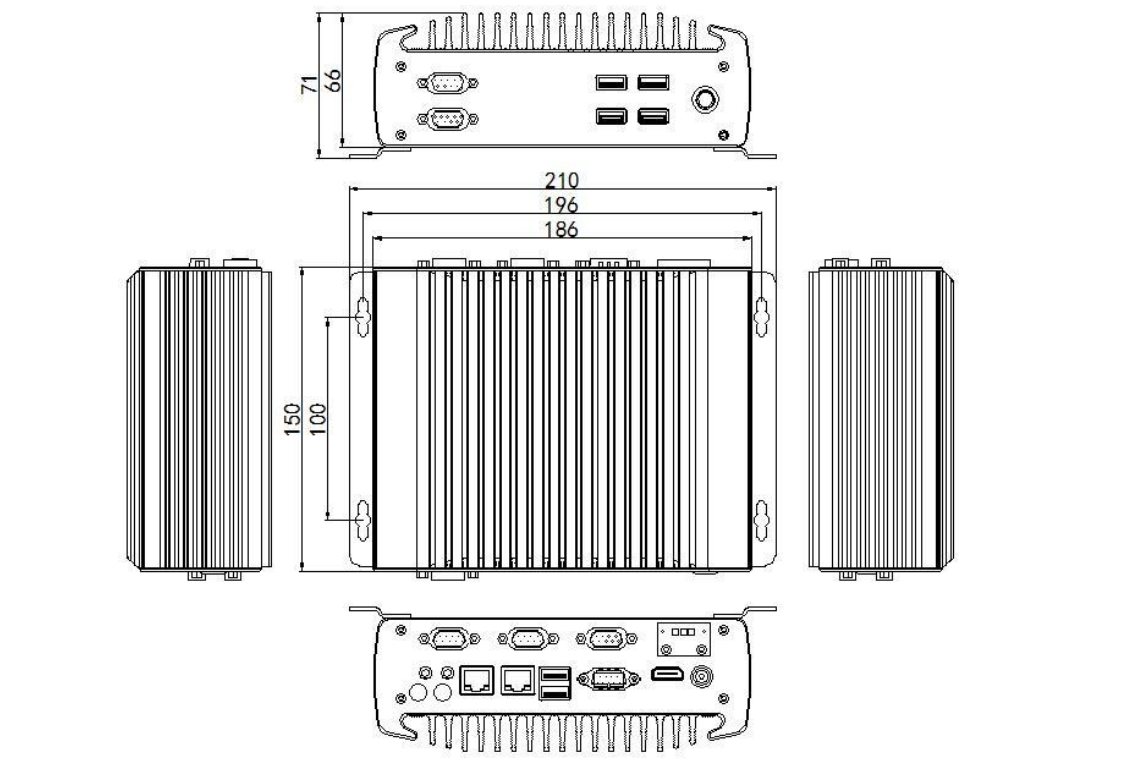

| Product Dimension | 18.6×15×6.6cm |
| Packing size | 27.3×14.6×22cm |
| Other | |
| Application | Industrial automation, medical, logistics and transportation, warehousing, e-education |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
