Model: SATA1026
Features:
1. All aluminum alloy structure, no fan design.
2. On-board Intel Celeron J4125 quad-core processor.
3. Support 2*Intel i211-AT Gigabit network.
4. Support 1*M.2 slot and 1 Mini PCIE expansion slot.
5. Support WIFI/3G/4G (choose one of three).
6. Support 6 COM ports, COM1 support RS485.
7. Compatible with Windows 10, Ubuntu, Debian, Fedora and etc.
| Model: SATA1026 | |
| PC | |
| CPU | Intel®Celeron J4125, quad core, quad thread, 4MB Cache, 2.0GHz Max 2.7GHz |
| Architecture | Gemini Lake Refresh |
| Memory | 1x DDR4 2400 MHz SODIMM Memory Slot, Max. 8GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel UHD Graphics card 600 |
| Display port | 1xHDMI, 1xVGA (support syn and asy display, support 4096x2160 @30Hz Max) |
| Front I/O | 4xUSB2.0, 1xPower switch, 1xCOM |

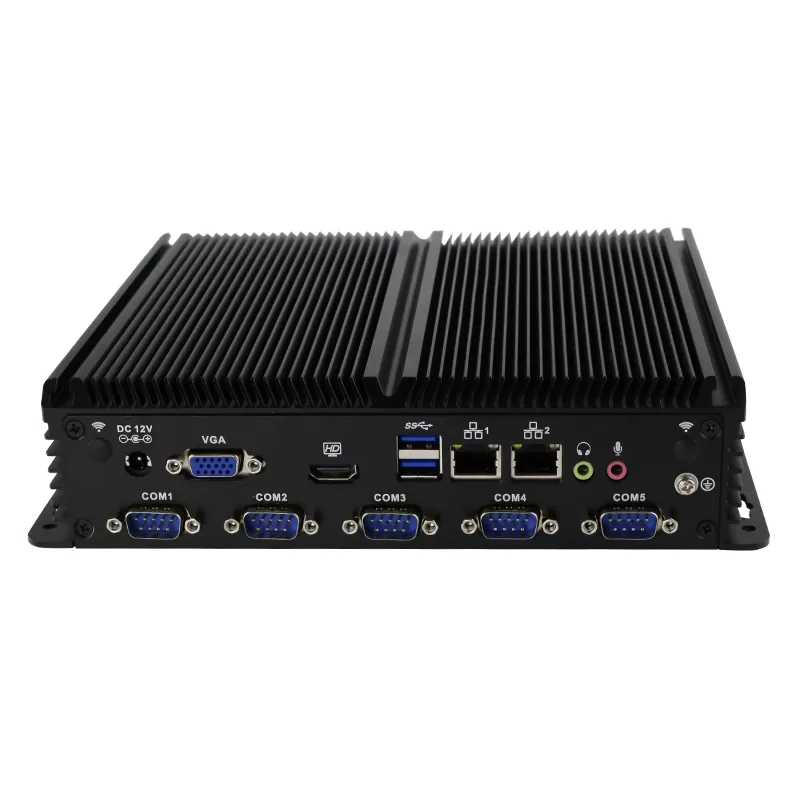

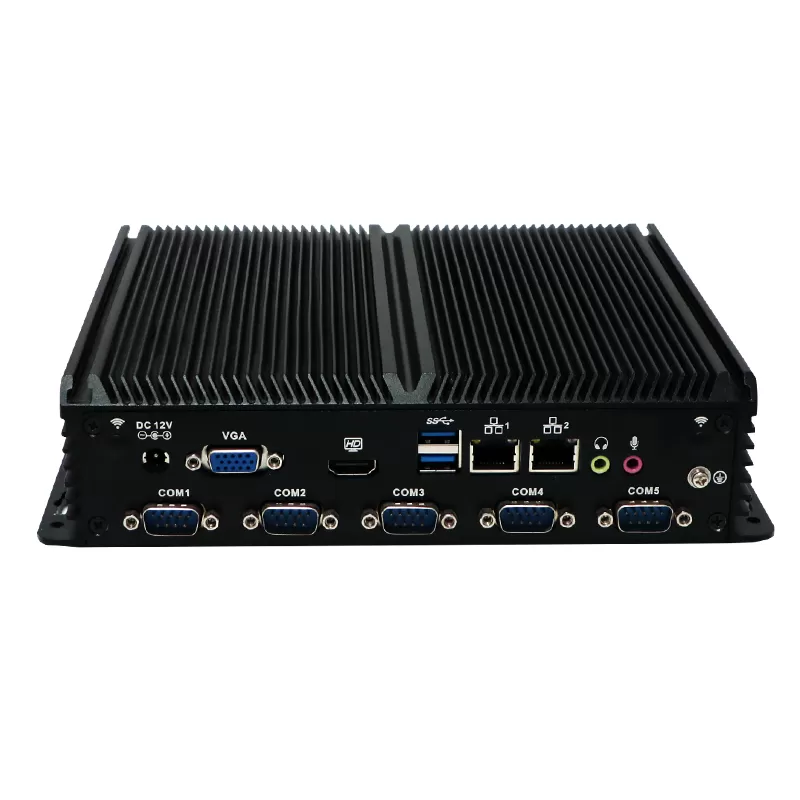

| Rear I/O | 2xUSB 3.0, 5xCOM, 2x1000M LAN, 1xVGA/HDMI/DC, 2x Audio |
| Expansion | Support 1*M.2 2280 M-key Card slot(support SATA protocol) |
| Support 1*MINI PCIE (support 4G/WIFI/Bluetooth, internal SIM Card Slot) | |
| Optional: GPIO, 4*USB2.0, PS/2, 1*LPT Parallel port | |
| Network | 2*Intel i211-AT 10/100/1000M Ethernet port |
| Storage port | 1*M.2 2280 slot, 1*2.5 inch hard disk |
| Other function | Power on electricity, wake by internet, PXE boot |
| Operation System | Support Windows 10, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 50°C(Commercial HDD), -20°C-60°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 2kgs |

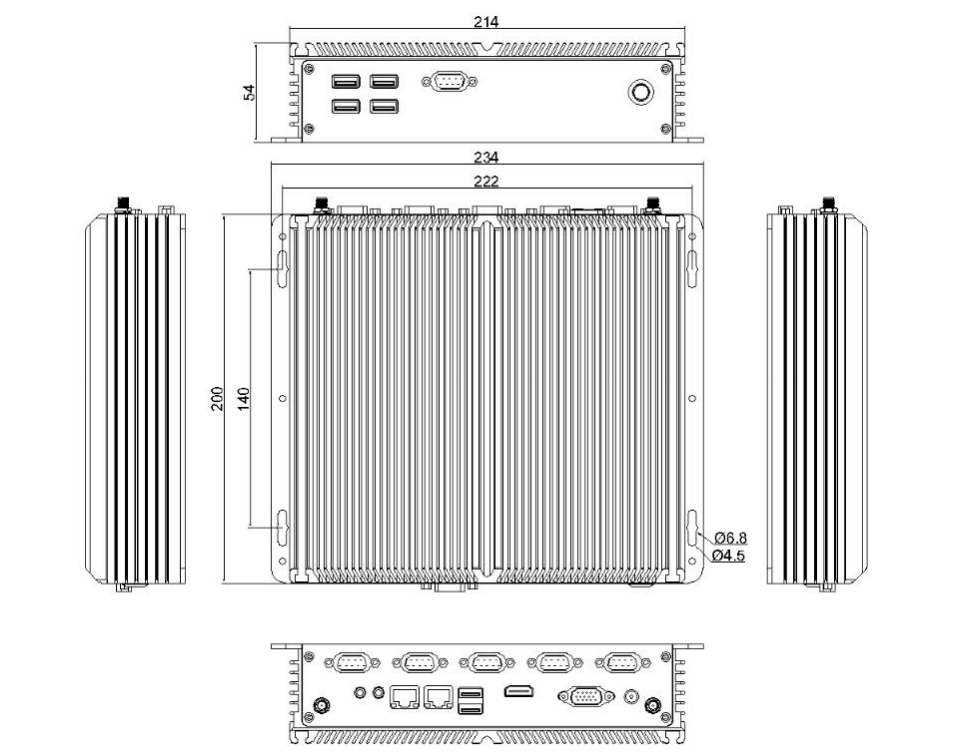

| Product Dimension | 23.4*20*5.4cm |
| Packing size | 27.3*14.6*22cm |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Warranty | 3 years warranty |
