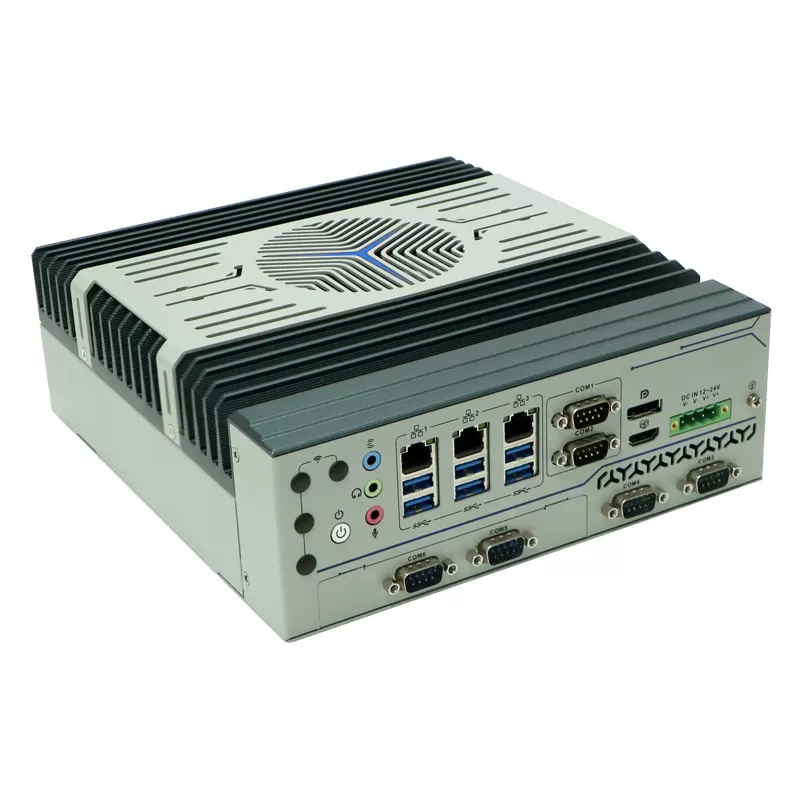

Model: SATA502
Features:
1. All aluminum alloy structure.
2. Support 10th/11th generation independent Core™ i3/i5/i7 processors.
3. Support 2*DDR4 3200 SODIMM memory slots, up to 64G.
4. Support 3*Intel 2.5G Ethernet.
5. Support 2*M.2 slots, support 4G/5G.
6. Support 6*COM ports (COM1, 2 support RS232/485 mode Optional).
7. Support DC 12~24V wide voltage input.
8. Compatible with Windows 10, Win11, Ubuntu/Debian/Fedora and etc.
| PC | |
| CPU | Intel® Core i3 10305T (quad core eight threads, 3.0GHz, Max. Turbo 4.0 GHz) |
| CPU Optional | Intel® Core i5 10500T (Six core twelve threads, 2.3GHz, Max. Turbo 3.8GHz, 12MB Cache) |
| CPU Optional | Intel® Core i7-10700T (Eight core sixteen threads, 2.0GHz, Max. Turbo 4.5GHz, 16MB Cache) |
| Memory | 2*DDR4 2666/3200MHz SODIMM memory slot, Max. Support 64GB |
| BIOS | AMI UEFI BIOS |
| Storage | 1*M-Key 2280 slot(support SATA/NVME protocol), 2*2.5”Hard drive slot |
| Display | 1*HDMI, 1*DP (Support Synchronous and asynchronous dual display) |
| Display Chip | Integrated Intel UHD Graphics 630 /Intel UHD Graphics 750 |
| Network | 3*Intel i225-V 2.5G Ethernet port |

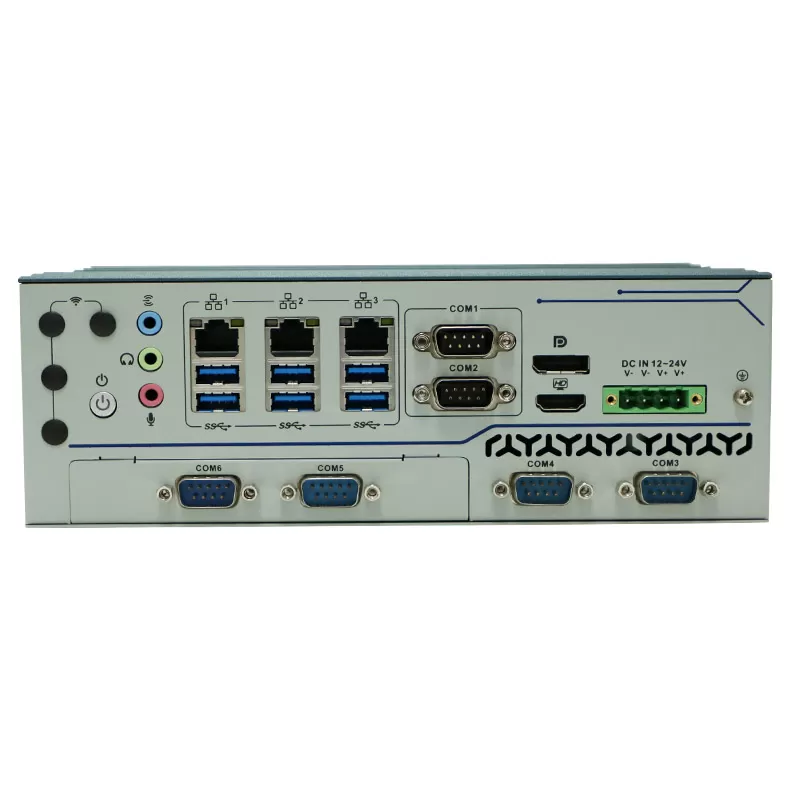

| Front I/O | 1*4pin phoenix terminal, 1*HDMI, 1*DP, 6 COM(COM1, 2 support RS232/RS485 Optional), 6*USB3.0, 3*Intel 2.5G LAN, 1*MIC, 2*Audio, 1*Power switch |
| Expansion Slot | Support 1*M.2 M-Key 2280 (Support SATA/NVME protocol) |
| Support 1*Mini PCIE Card Slot(WIFI/Bluetooth Optional) | |
| Support 1*M.2 B-Key 3042/3052 (support 4G/5G), with SIM Card Slot | |
| Expandable interface (standard shipment does not have this interface): 4*USB2.0, 16*GPIO | |
| Other function | Power-on electricity, timed power-on, LAN wake-up, PXE boot, watchdog (level 0 to 255), TPM2.0 |
| Operation System | Support Windows 7/8/10/11, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12-24V, 4PIN Phoenix terminal |
| Power consumption | ≤50W |
| Enclosure | |
| Material | High quality all aluminum alloy with hard anodized surface |
| Color | Dark grey+light white, other color can customize |
| Operating Environment | |
| Temperature Range | Operating: -0 to 50°C(Commerical HDD), storage: -20 to 60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 2.78kgs |
| Gross weight | 3.5kgs |

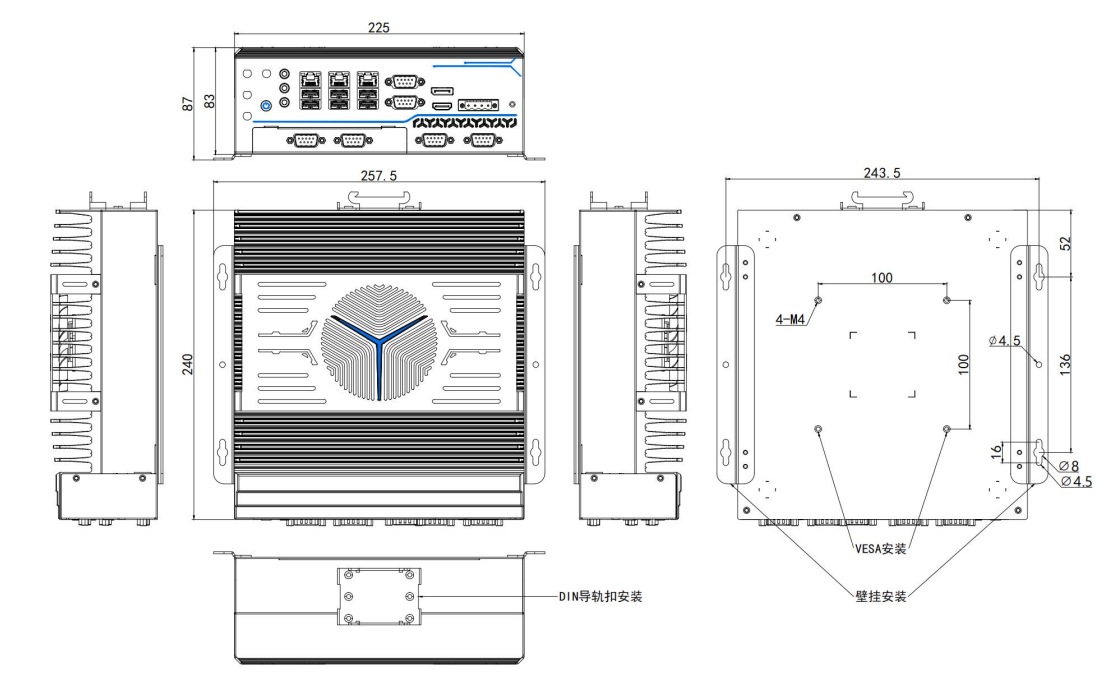

| Product Dimension | 22.5*24*8.3cm |
| Packing size | 38.5*27.2*19.5cm 4.5kgs 1pc/ctn (48.5*40*29.5cm 13.5kgs 3pcs/ctn) |
| Accessories | Power adapter, power cord, wall mount bracket, user manual, warranty card |
| Other | |
| Mounting | Wall mounting brackets |
| Vesa mount(Optional) | |
| DIN Rail(Optional) | |
| Desktop(Optional) | |
| Warranty | 3 years warranty |
