Model: SATA3126
Features:
1. Full Aluminum alloy enclosure, fan design.
2. Onboard Intel Tiger Lake series processor.
3. Support DDR4 SODIMM RAM Slot, Max up to 32GB.
4. Support 3*Intel i225-V 2.5G Ethernet.
5. Support 2*M.2 Slot and 4G.
6. Support 1*MINI PCIE Slot.
7. Support 6*COM(COM1,2 support RS232/RS485 Optional)
8. Compatible with Windows 7/8/10, Win11, Ubuntu/Debian/Fedora and etc.

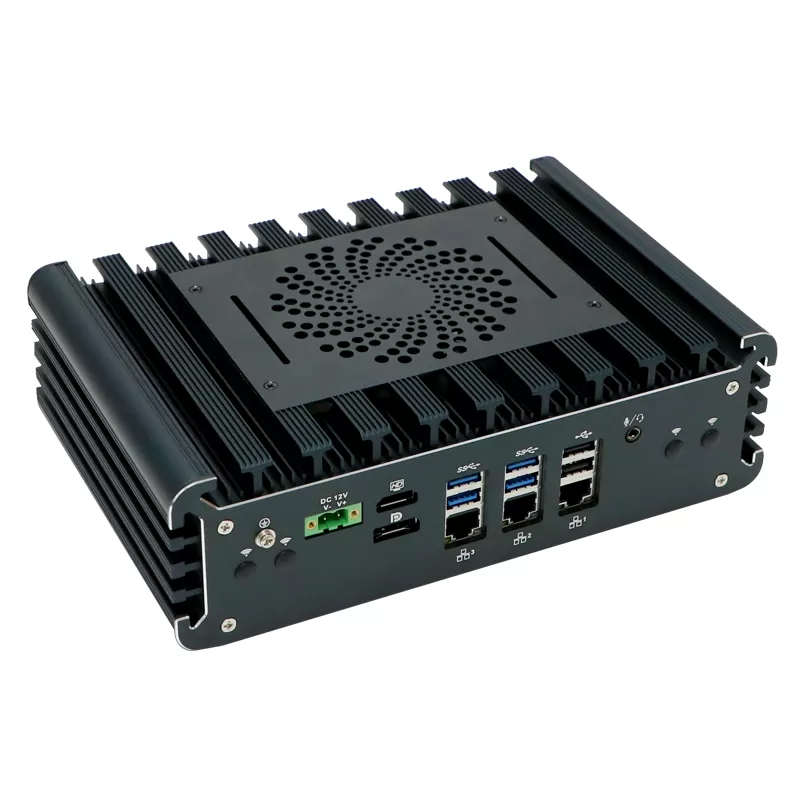

The Win11 Aluminum Alloy Industrial Mini Computer is a powerful and compact industrial-grade computing solution designed for high reliability, flexible connectivity, and long-term stability in demanding environments. Powered by the Intel Tiger Lake series processor, this industrial mini PC delivers strong computing performance and energy efficiency, making it ideal for applications such as industrial automation, edge computing, intelligent transportation, and IoT gateways.
With its full aluminum alloy enclosure and advanced cooling design, the system ensures excellent heat dissipation and stable operation even under continuous workloads. The rugged metal housing also enhances durability, protecting internal components from dust, vibration, and harsh industrial conditions.
High-Performance Intel Tiger Lake Processing
At the core of this industrial mini computer is the Intel Tiger Lake processor, known for its improved CPU performance and advanced architecture. The processor provides reliable computing power for multitasking environments, enabling smooth execution of industrial control software, monitoring platforms, and data processing applications.
To further enhance performance, the system supports DDR4 SODIMM memory with capacity up to 32GB, ensuring fast data processing and efficient multitasking. This makes the device well suited for edge computing, real-time data analysis, and high-performance industrial workloads.
Ultra-Fast 2.5G Networking for Industrial Applications
Reliable and high-speed networking is critical in modern industrial systems. This mini computer features three Intel i225-V 2.5G Ethernet ports, delivering significantly faster network throughput compared to traditional Gigabit Ethernet connections.
The triple 2.5G LAN ports enable advanced networking scenarios such as:
Industrial gateway and edge server deployment
Network security appliances and firewalls
High-speed data transmission in industrial IoT environments
Smart factory communication networks
This powerful networking capability allows the system to efficiently handle large data transfers, real-time monitoring, and high-bandwidth applications.
Flexible Expansion with M.2 and Mini PCIe
To support various industrial communication and storage requirements, the system offers multiple expansion options. The device includes two M.2 slots, which can be used for high-speed SSD storage modules or 4G communication modules for wireless connectivity.
Additionally, the Mini PCIe slot provides further expansion possibilities, allowing integration of additional communication modules, wireless cards, or specialized industrial interfaces. This flexibility makes the device highly adaptable for different embedded and IoT applications.
Multiple Serial Ports for Industrial Equipment Integration

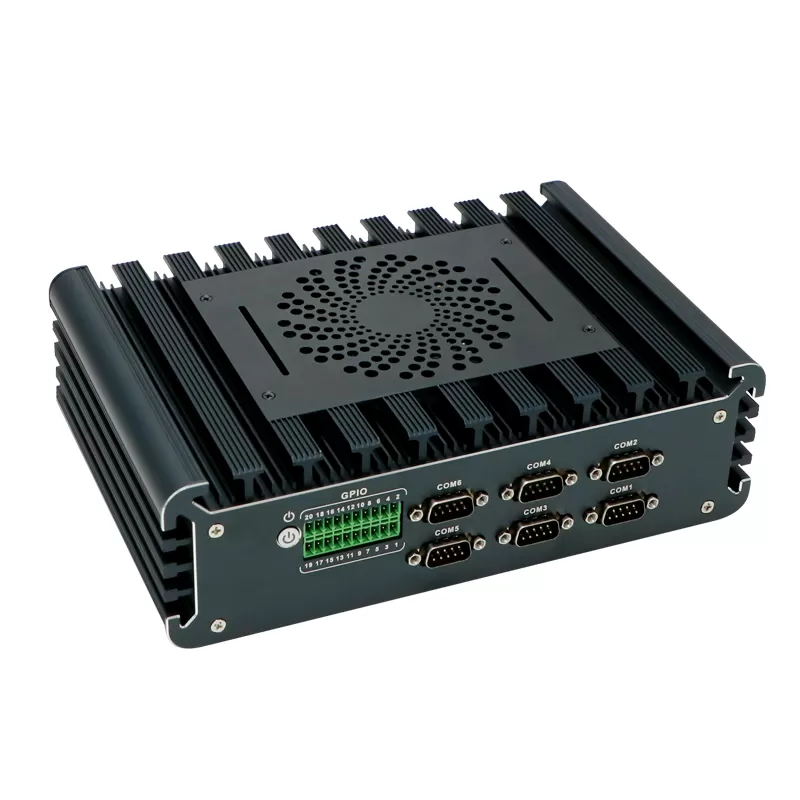

Industrial environments often require reliable serial communication with external equipment. This mini computer is equipped with six COM ports, allowing seamless integration with devices such as PLCs, sensors, barcode scanners, industrial controllers, and automation systems.
Among these interfaces, COM1 and COM2 support optional RS232 or RS485 modes, providing greater compatibility with a wide range of industrial communication protocols and legacy equipment.

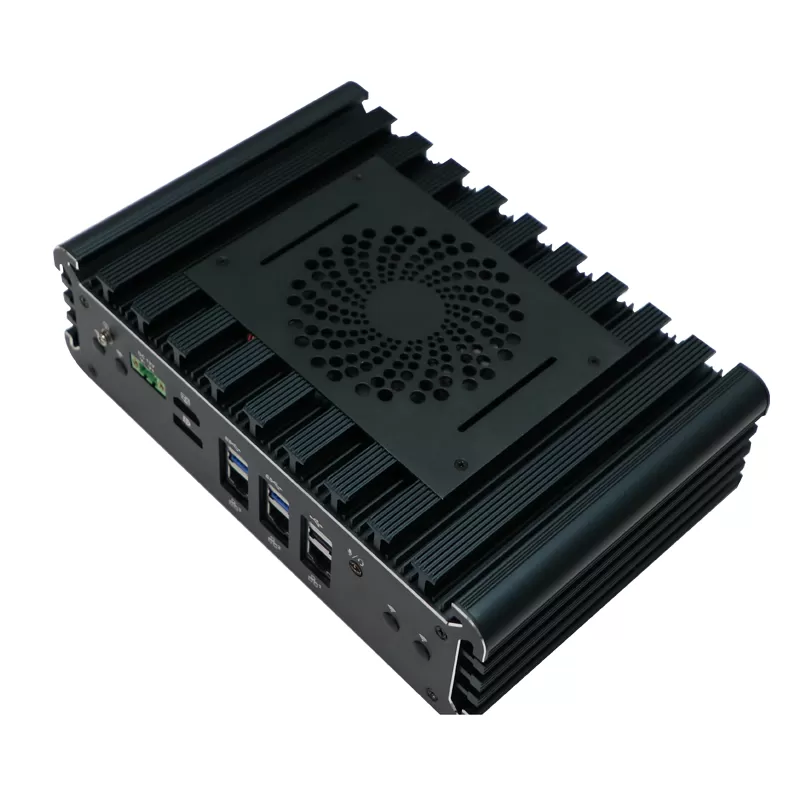

Rugged Aluminum Alloy Design
The full aluminum alloy enclosure not only provides a modern and compact appearance but also significantly improves thermal performance and mechanical durability. The metal structure enhances heat dissipation while protecting internal hardware from physical damage.
This robust design makes the device suitable for continuous 24/7 operation in industrial environments, including factories, transportation hubs, warehouses, and outdoor installations.
Wide Operating System Compatibility
The Win11 Aluminum Alloy Industrial Mini Computer supports a wide range of operating systems, allowing developers and system integrators to deploy their preferred platforms with ease. Supported systems include:
Windows 7 / Windows 8 / Windows 10
Windows 11
Ubuntu
Debian
Fedora
Other Linux distributions
This broad compatibility enables the system to run various industrial control software, IoT platforms, AI edge applications, and enterprise management systems.
Thanks to its powerful performance, high-speed networking, and versatile expansion options, the Win11 Aluminum Alloy Industrial Mini Computer is widely used in multiple industries, including:
Industrial automation and machine control
Edge computing and industrial IoT gateways
Smart manufacturing systems
Network security and firewall appliances
Intelligent transportation systems
Digital signage and smart retail terminals
Industrial monitoring and data acquisition platforms
The Win11 Aluminum Alloy Industrial Mini Computer combines Intel Tiger Lake processing power, ultra-fast 2.5G networking, flexible expansion capabilities, and rugged industrial design in a compact form factor. With support for multiple operating systems and rich industrial interfaces, it provides a reliable and scalable computing platform for modern industrial and IoT applications.
| Model: SATA3126 | |
| PC | |
| CPU | Intel® Core i3 1115G4 (Dual core quad threads, 3.0GHz, pulse frequency 4.1GHz) |
| CPU Optional | Intel® Core i5 1135G7 (Quad core eight threads, 2.4GHz, Max. Turbo 4.2GHz, 8MB Cache) |
| CPU Optional | Intel® Core i7-1165G7 (Quad core eight threads, 2.8GHz, Max. Turbo 4.7GHz, 12MB Cache) |
| Memory | 1*DDR4 3200MHz SODIMM memory slot, Max. Support 32G |
| BIOS | AMI UEFI BIOS |
| Storage | 1*M-Key 2280 slot(support NVME protocol), 1*2.5”Hard drive slot |
| Display | 1*HDMI, 1*DP (Support Synchronous and asynchronous dual display) |
| Display Chip | Integrated Intel HD Graphics/Intel Iris(R)Xe Graphics core chip |
| Network | 3*Intel i225-V 2.5G Ethernet port |

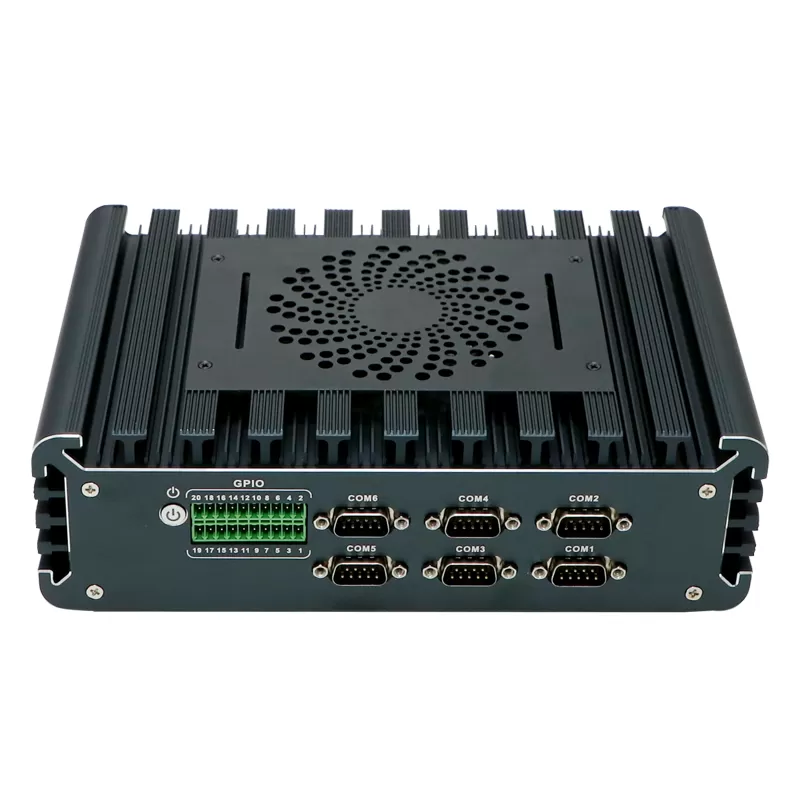

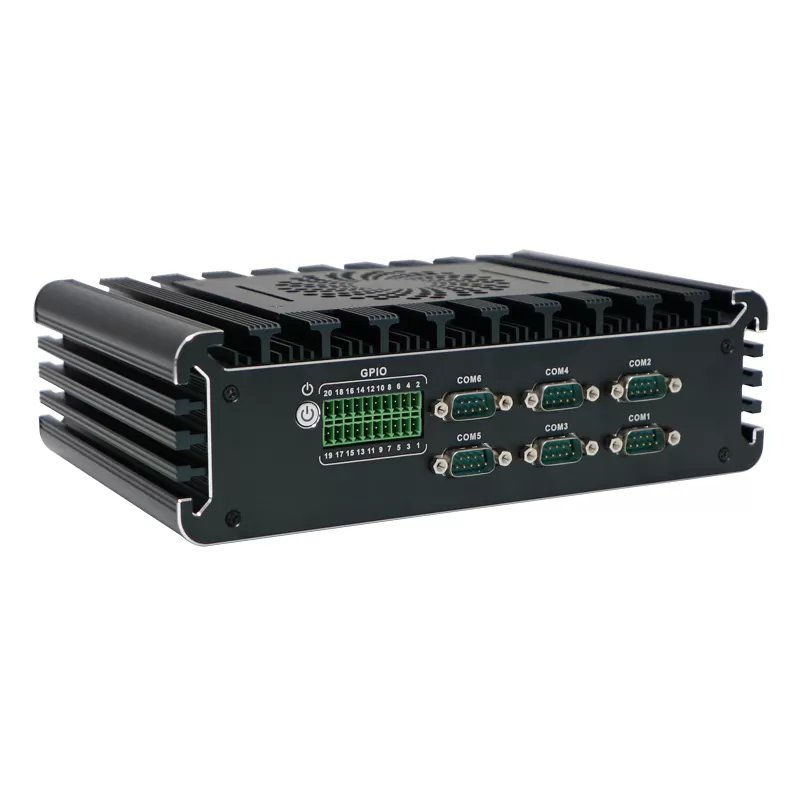

| Front I/O | 1*Power Switch, 1*16 pin GPIO Phoenix terminal, 6*COM(COM1, 2 support RS232/RS485 Optional) |

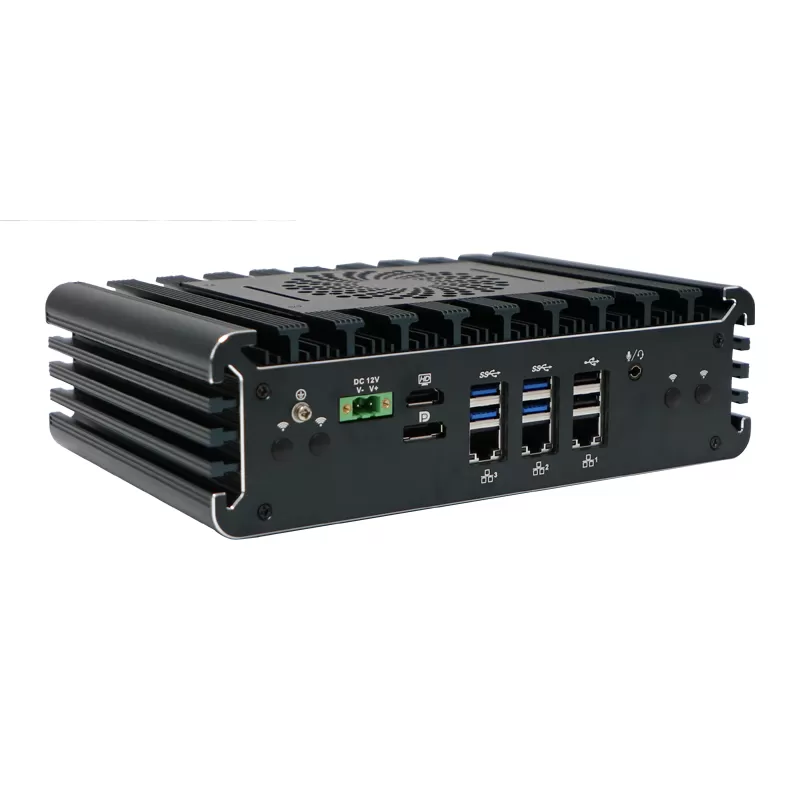

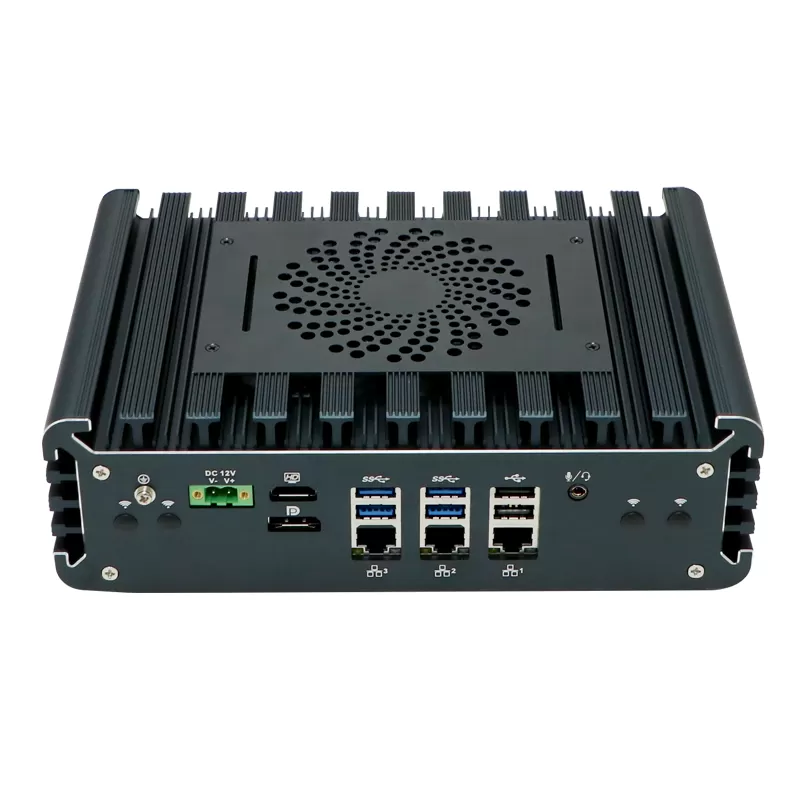

| Rear I/O | 3*USB3.0, 3*USB2.0, 3*Intel 2.5G LAN, 1*HDMI, 1*DP, 1*Audio/MIC two-in-one port, 1*2 pin Phoenix terminal |
| Expansion Slot | Support 1*M.2 M-Key 2280 (Support NVME protocol) |
| Support 1*Mini PCIE Card Slot(WIFI/Bluetooth Optional) | |
| Support 1*M.2 B-Key 3042/3052 (support 4G), with SIM Card Slot | |
| Expandable interface (standard shipment does not have this interface): 2*USB2.0 | |
| Other function | Power-on, timed power-on, LAN wake-up, PXE boot, watchdog (level 0 to 255) |
| Operation System | Support Windows 7/8/10/11, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | High quality all aluminum alloy with hard anodized surface |
| Color | Dark Grey, other color can customize |
| Operating Environment | |
| Temperature Range | Operating: -0 to 50°C(Commerical HDD), storage: -20 to 60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 2.4kgs |
| Gross weight | 3.2kgs |

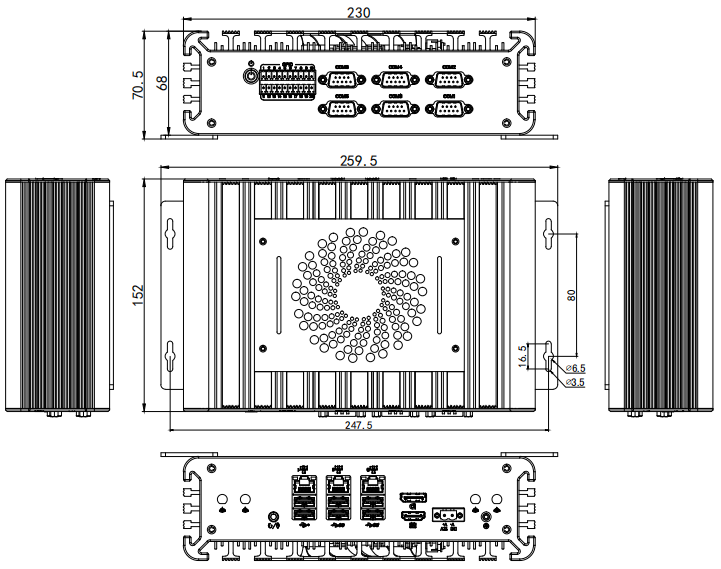

| Product Dimension | 23*15.2*6.8cm |
| Packing size | TBD |
| Accessories | Power adapter, power cord, wall mount bracket, user manual, warranty card |
| Other | |
| Mounting | Wall mounting brackets |
| Desktop(Optional) | |
| Warranty | 3 years warranty |
