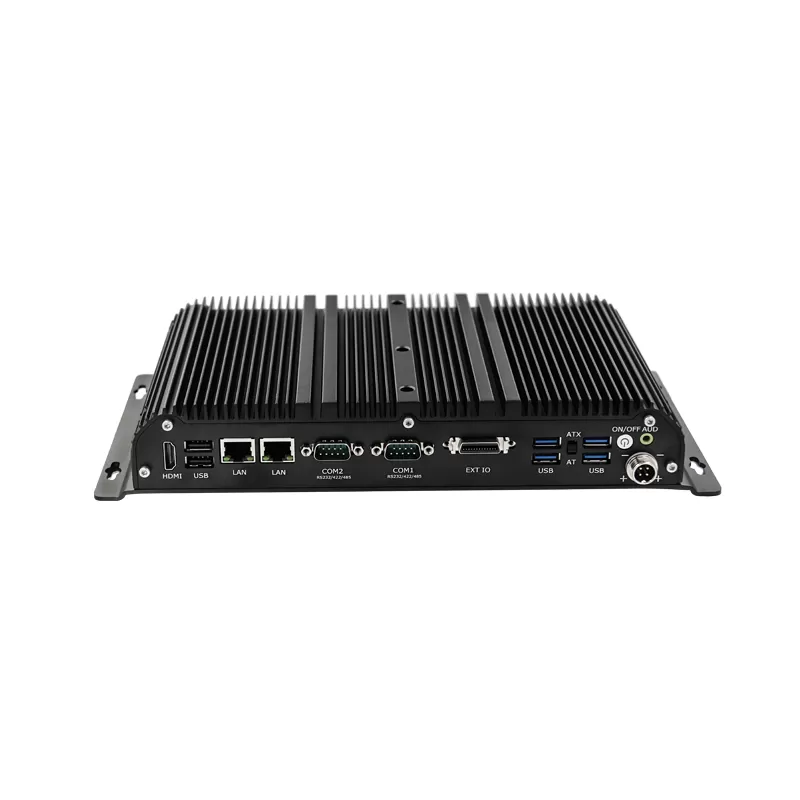

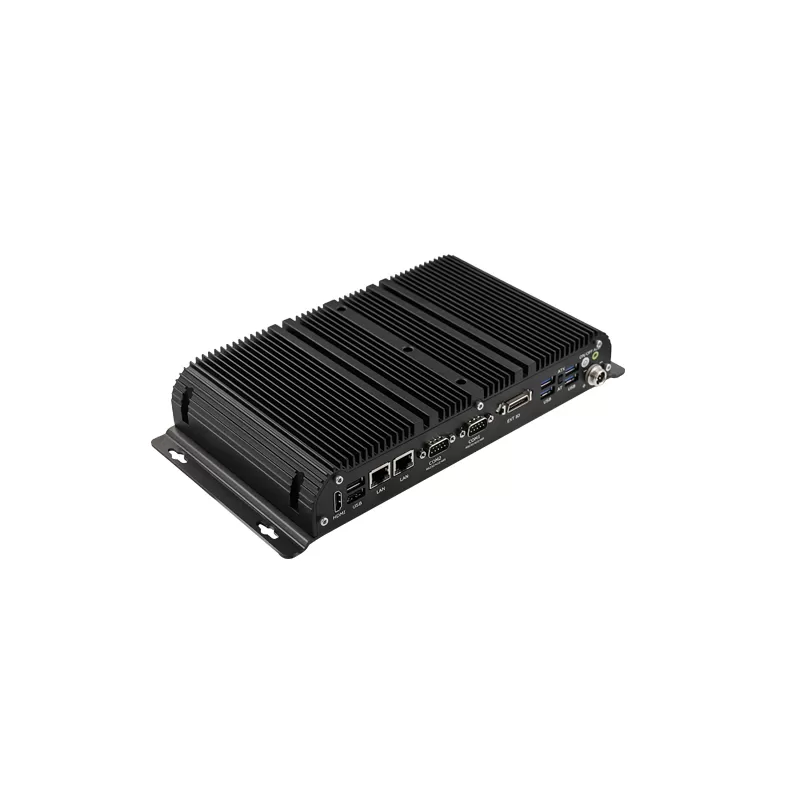

Model: SATA09
Features:
1. Intel Atom J4125/J6412, J4125/J6412: DDR4 SODIMM x1.
Intel 8/10/11th Core i3/i5/i7, 8/10/11th: DDR4 SOIMM x2.
2. 2xRS232 COM.
3. 2xIntel I225V 2.5G LAN.
4. Support 5G module.
5. 9-36V, fanless.
6. Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| CPU Optional | Intel® Alder Lake N100, quad core, quad thread, 3.4GHz Max. 6MB Cache, Fanless |
| CPU Optional | Intel® Core i5-8260U, 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.9 GHz, 6MB Cache, Fanless |
| CPU Optional | Intel® Core i7-8569U, 4 Cores, 8 Threads, Base 2.8 GHz, Turbo 4.7 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10210U 4 Cores, 8 Threads, Base 1.3 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10610U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-1135G7, 4 Cores, 8 Threads, Base 2.4GHz, Turbo 4.2 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-1165G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7 GHz, 12MB Cache, Fanless |
| Memory | 1x SODIMM DDR4(J4125/J6412), 2x SODIMM DDR4 (i3/i5/i7) |
| Storage | 1x M.2 2242/2260/2280 SATA, 1x 2.5 inch HDD/SSD, 1x M.2 2280 NVME |
| Display | 1xHDMI |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x2.5Gbe RJ45 Intel I225V LAN(4*2.5G LAN Optional) |

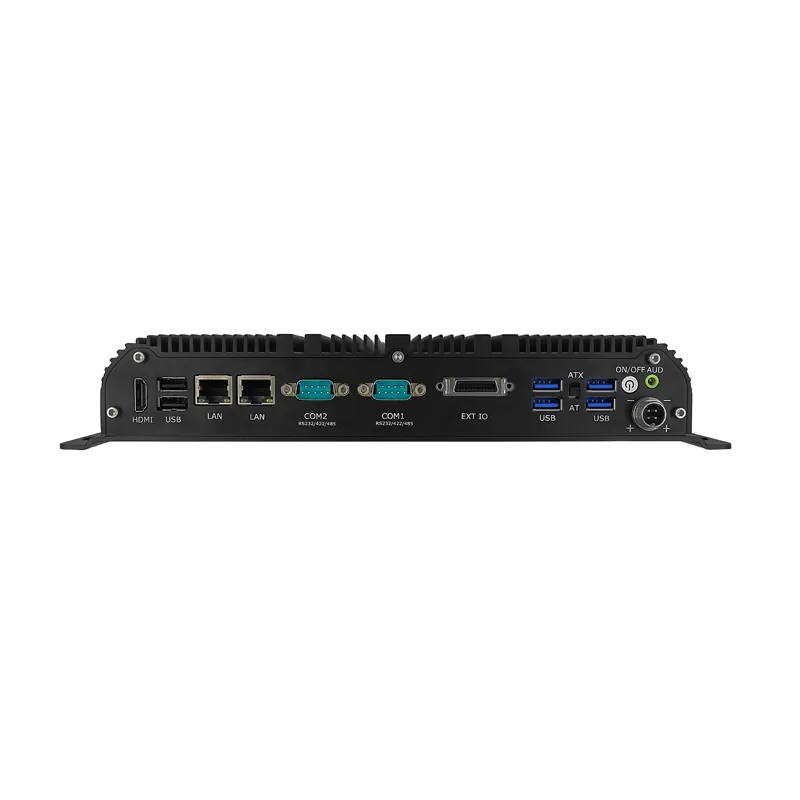

| I/O Interface | 4x USB 2.0, 2x USB 3.0(J4125/J6412), 4xUSB3.0, 2*USB2.0(i3/i5/i7), 2x DB9 COM, 2x 2.5G LAN, 1x HDMI, 1xPower button, 1x4 pin aviation power socket, 1x MIC, 1x Extended I/O: Integrated 4-channel 3-wire COM, 10-channel GPIO, 1xremote switch, 5xAntenna(WIFI/BT/3G/4G/5G) |
| Expansion | M.2 3042/3052 3G/4G/5G module, onboard SIM card slot M.2 2230 WIFI Bluetooth |
| Operation System | Support Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, no disk start-up |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 1.8kgs |
| Gross weight | 2.2kgs |

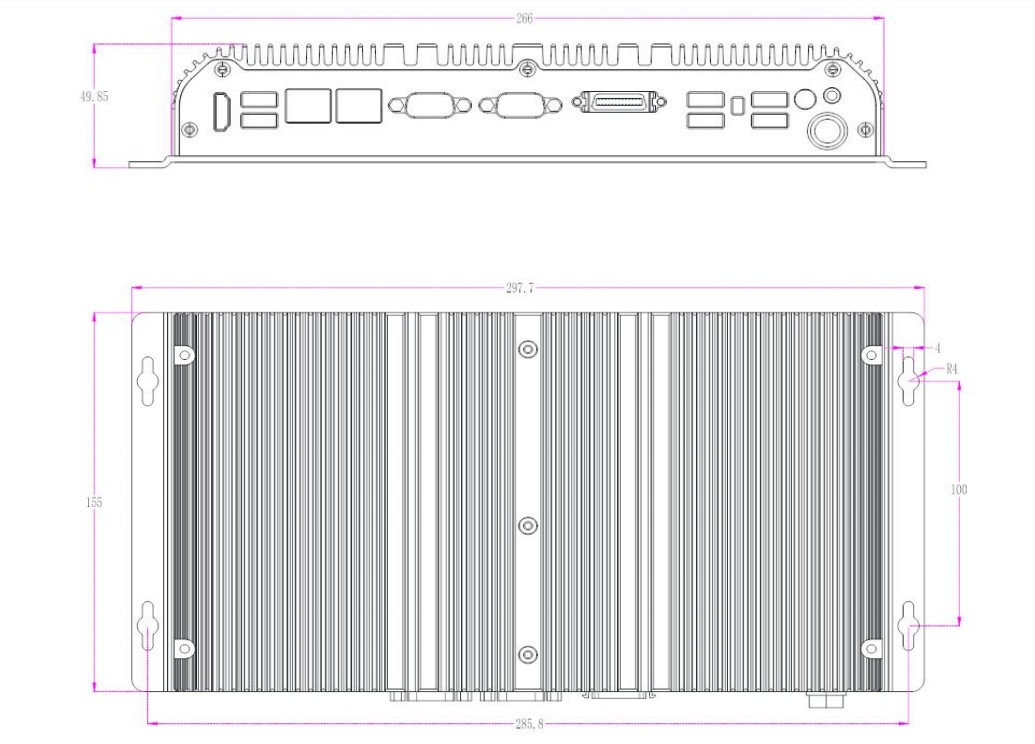

| Product Dimension | 30*15.5*5cm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
