Features:

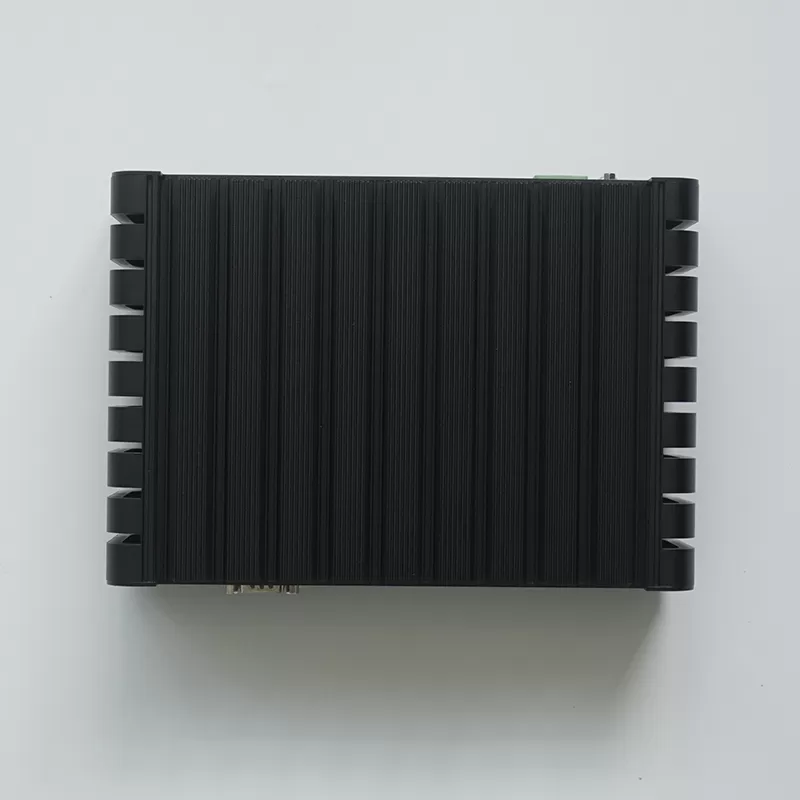

1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Support processor Intel 3855U, i3 6100U, i5 6200U, i7-6500U
4. Support MAX DDR4 1866/2133 16GB
5. Support 2*GPIO(18pins)
6. Support WIFI/3G/4G
7. Support 4*USB 3.0.
8. Support 5*RJ45 (4*POE)
9. Compatible Windows 7/8/10, Linux.
| Model: SATA603 | |
| PC | |
| CPU | Intel® Core i3-6100U, dual core, 2.3GHz. Intel® Core i5-6200U, dual core, 2.5GHz. |
| Memory | Support 1x DDR4 1866/2133 MHz Max 16GB |
| Storage | 1x M.2 (Support PCIE x2), 1x SATA 3.0 |
| Expansion | Support 1x MINI PCIE Channel (WIFI/3G/4G Optional), embedded 1x SIM slot on the back |
| Display | 1x DP, 1x HDMI |
| Display Chip | Integrated Intel HD Graphics 520 card |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 5x Realtek 8111E 10/100/1000M (4xPOE standard 802.3f ) |

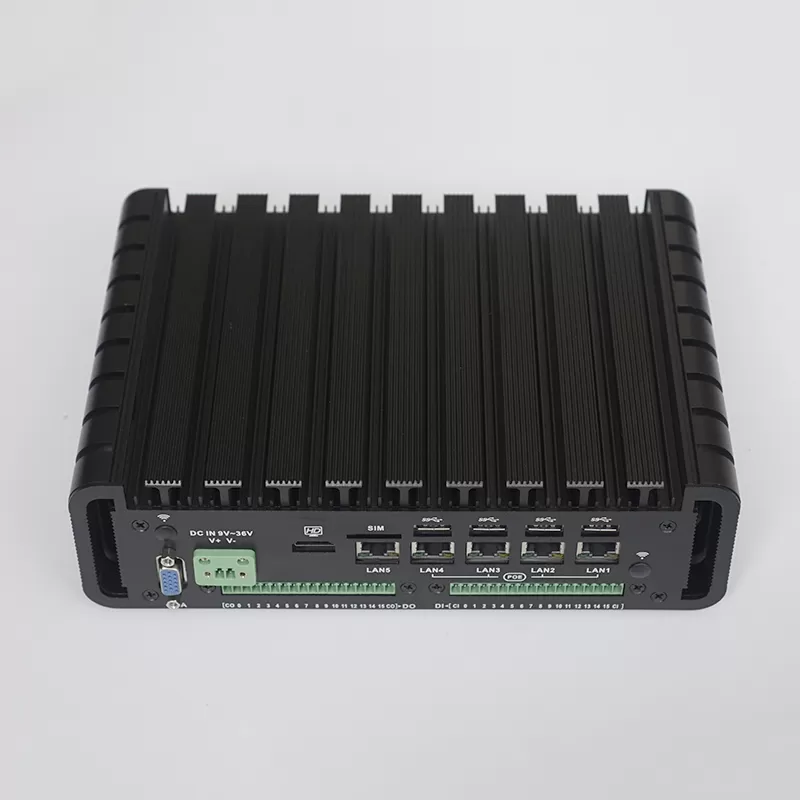

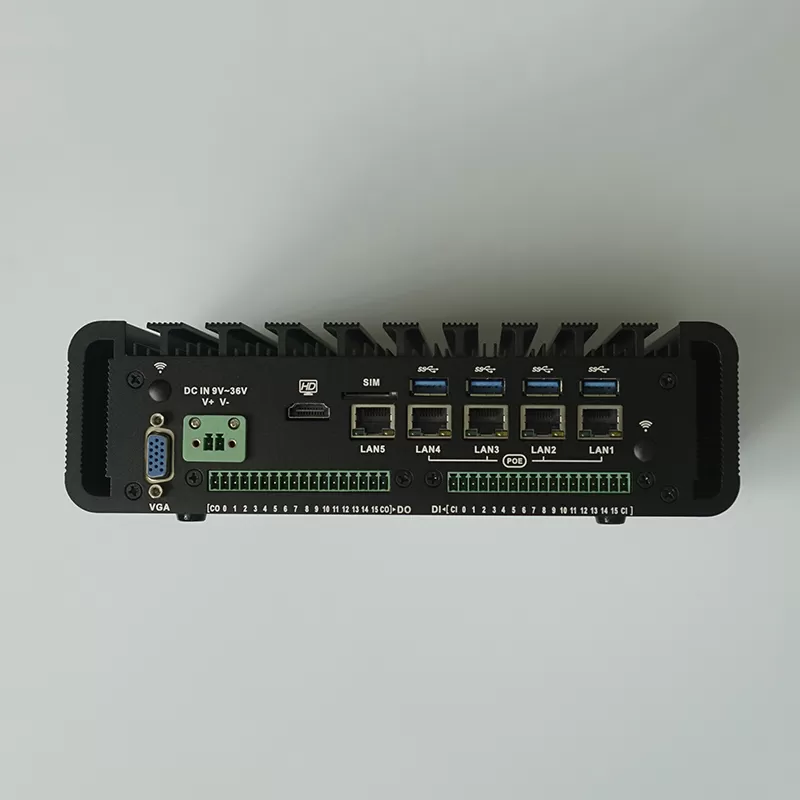

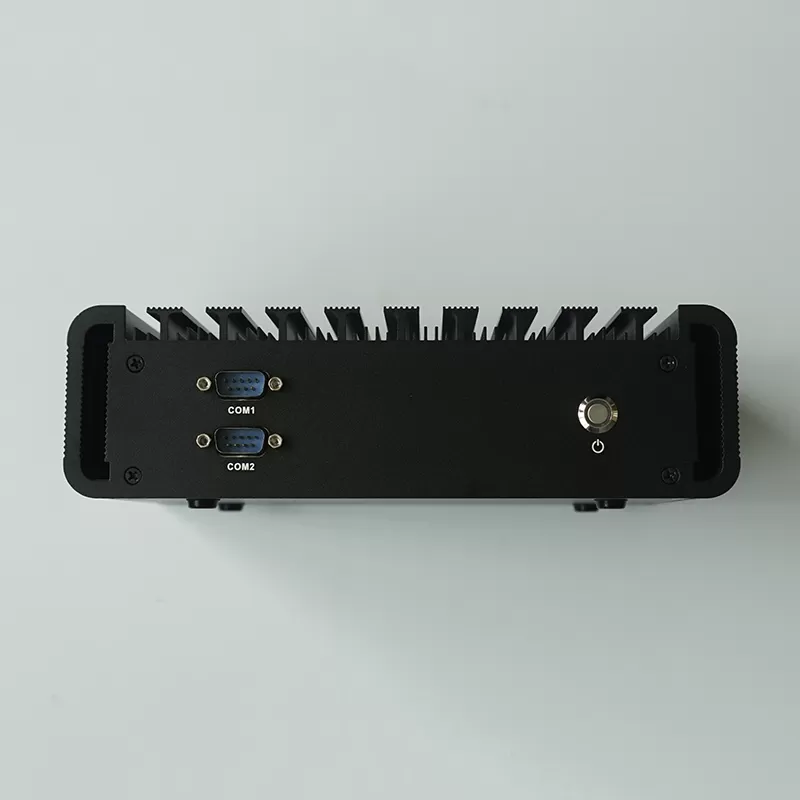

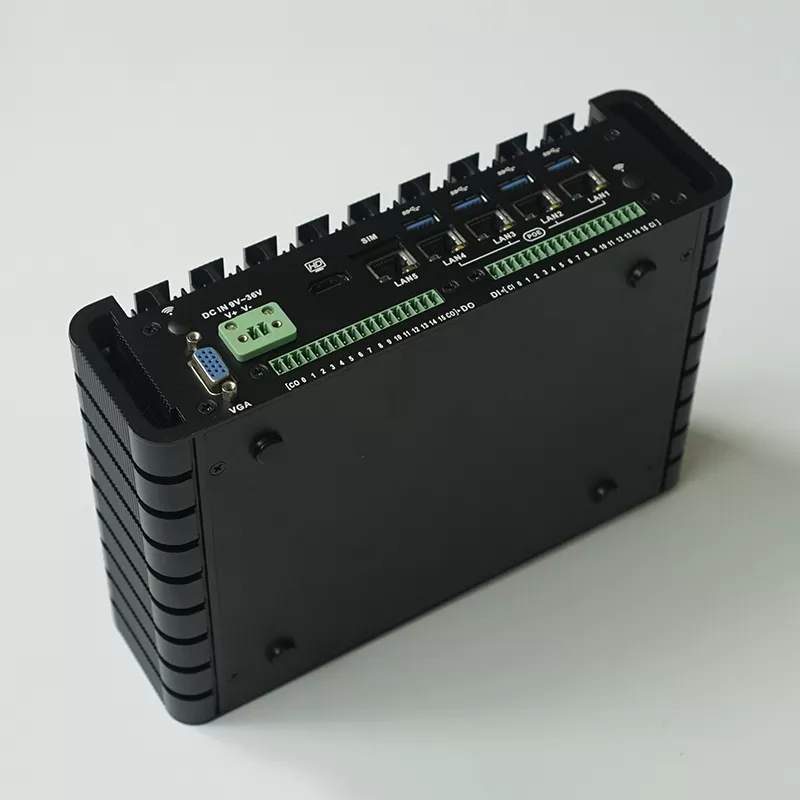

| I/O Interface | 4x USB 3.0, 2x GPIO(18pins), 1x HDMI, 1xVGA, 1x Power switch, 1x 2 in 1 Audio, 1x DC 9-36Vport (phonix terminal 2pins), 2x COM, 1x Audio, 2x RJ45 1000M Lan |
| BIOS | SPI AMI EFI |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, color can customise |
| Operating Environment | |
| Temperature Range | Operating: -10 to 50°C, storage: -10 to 60°C |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 2.3kgs |
| Gross weight | 3kgs |

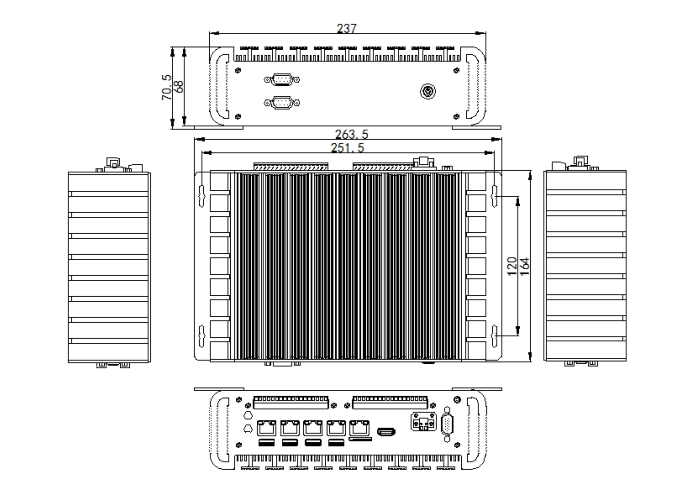

| Product Dimension | 23.7*16.4*7.05cm |
| Packing size | 28*25*15cm |

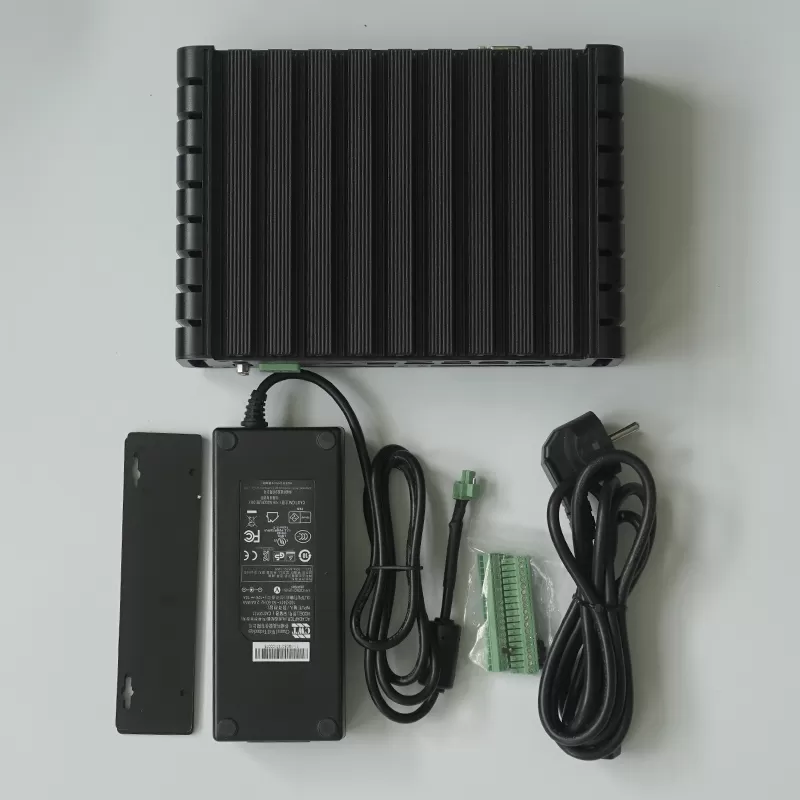

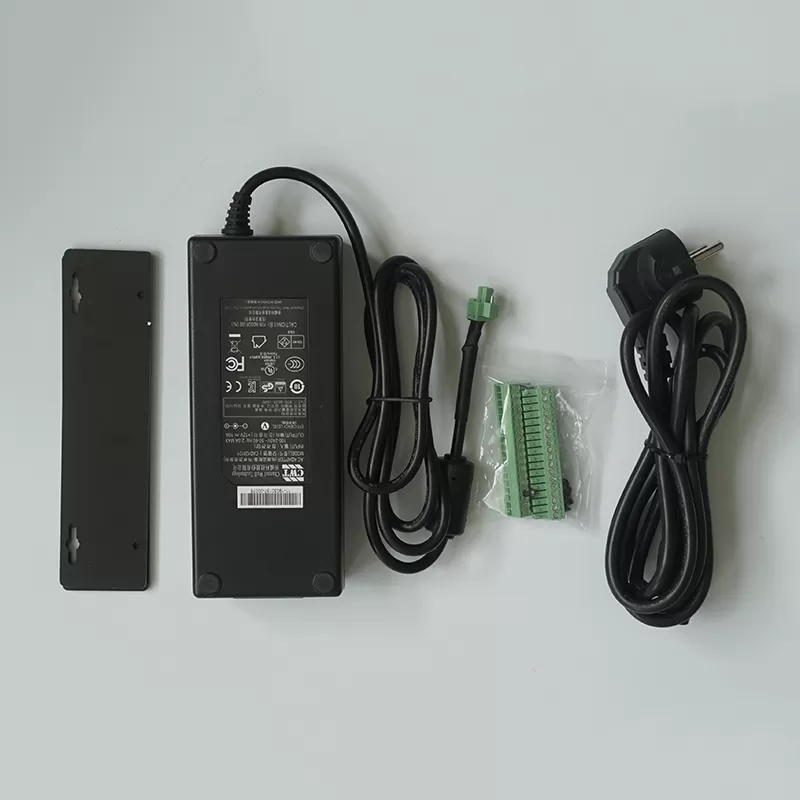

| Accessories | Power adapter, open frame kits, user manual, warranty card |
| Other | |

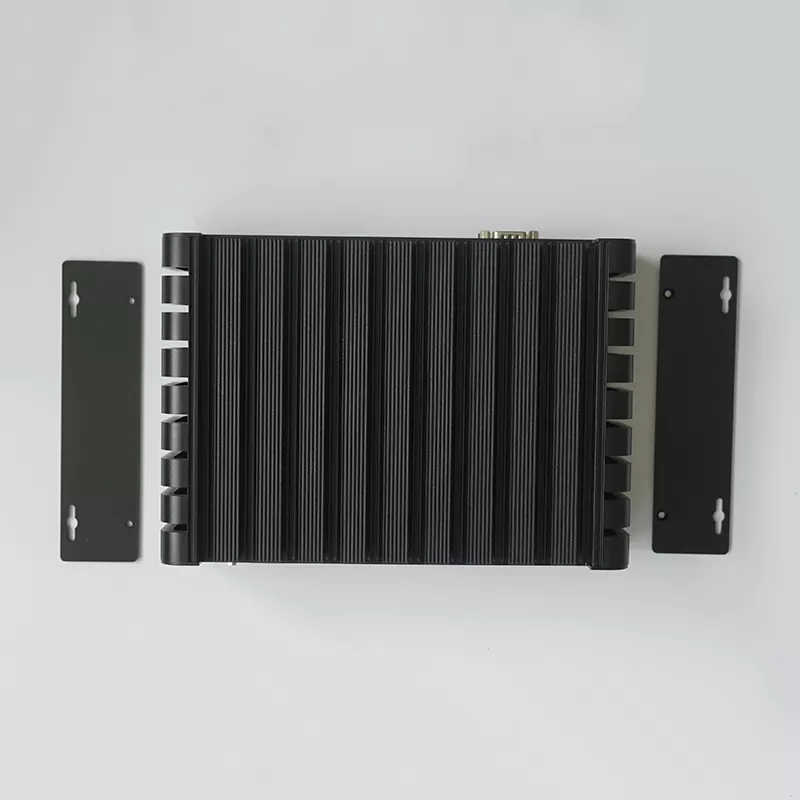

| Mounting (options) | Open frame |
| Wall mounting brackets (Optional) | |
| Warranty | 3 years warranty |
