Model: SATA711
Features:
1. All-aluminum alloy structure, fanless design.
2. Onboard Intel N97, 12th generation Core i5/i7.
3. Support DDR4 3200MT/S 16G/64G memory.
4. Support 1 PCIE X4 slot and 1 PCI slot.
5. 2xMINI PCIE slots, 1x 4G module slot, 1x WIFI slot.
6. Support 6x COM ports (4 in 485 mode), SW/CAN, 8-channel isolated GPIO.
7. Support DC wide voltage input of 12 to 24V, and supports reverse connection protection of positive and negative poles.
9. Compatible Windows 10/11, Linux.
| PC | |
| CPU | Onboard Intel® N97, Quad Core, Quad thread, 2.0GHz, Max. Turbo 3.6GHz, 6MB Cache |
| CPU Optional | Onboard Intel® Core i5-1235U, ten core, twelve thread, 1.3GHz, Max Turbo 4.4GHz, 12MB Cache |
| CPU Optional | Onboard Intel® Core i7-1255U, ten core, twelve thread, 1.7GHz, Max. Turbo 4.7GHz, 12MB Cache |
| Memory | Support 1*DDR4 3200 SODIMM ,max. 16GB(N97), Max. 64GB(i5/i7) |
| BIOS | AMI EFI BIOS |
| Storage | 1xM.2 slot (SATA protocol)+1x 2.5-inch hard drive expansion bay |
| Display Chip | Integrated Intel® UHD Graphics /Intel® Iris® Xe Graphics eligible core graphics card |
| Display interface | 1*VGA, 1*HDMI (support synchronous asynchronous dual display) |
| Network | N97: 2xIntel i210-AT 1000m ports; 1235U/1255U: 1xIntel i210-AT, 1xi219-V 1000m port |

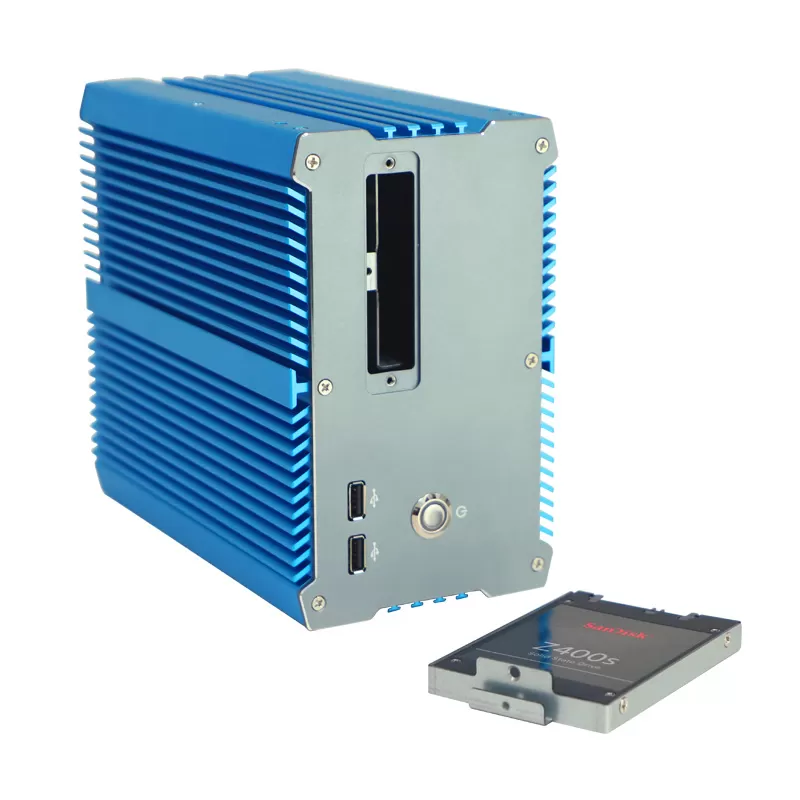

| Front I/O | 2*USB2.0, 1*Power switch, 4pin Phoenix terminal(remote control switch), 1*2.5" Hard disk slot |

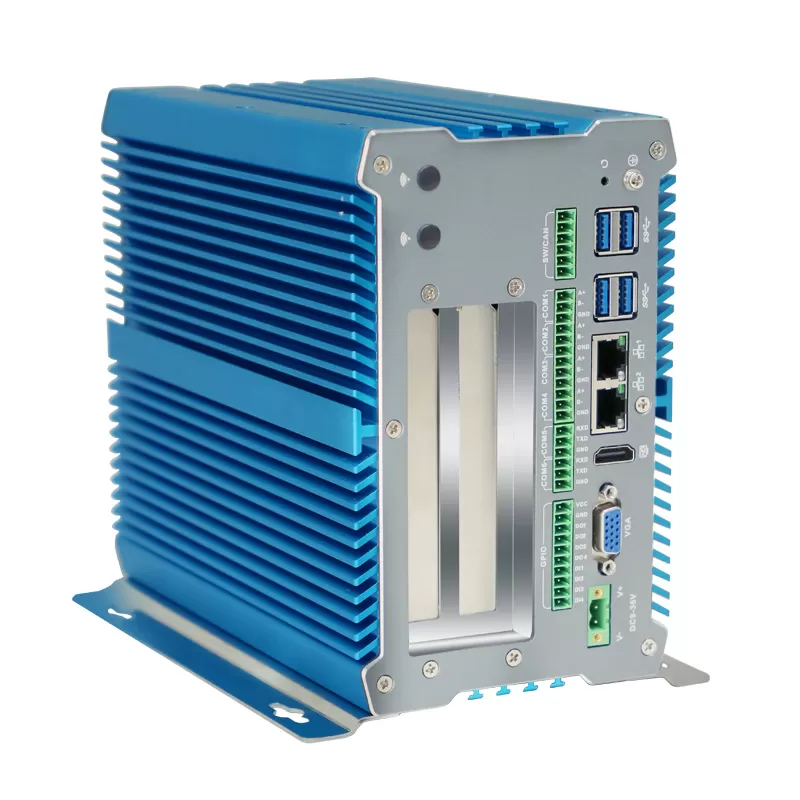

| Rear I/O | 3*USB3.0, 1*USB2.0, 2*Intel 1000M Lan, 1*VGA, 1*HDMI, 1*2P power Phoenix terminal, 1*CMOS Clear button, 6*COM(COM1-4 support RS485 mode, COM5-6 support RS232 mode), 10pin GPIO(4 in 4 out, With optocoupler isolation), 6pin phoenix termial(Customizable Pins) |
| Expansion interface | Support 1xM.2 2280 M-key slot (supporting SATA protocol) |
| Supports 1xMINI PCIE slot (supporting 3G/4G), with a SIM card slot | |
| Supports 1 MINI PCIE slot (supports WIFI/ Bluetooth) | |
| Optional interface: Audio interface, expandable 4-in and 4-out GPIO | |
| Expansion card slot | 1x PCIE 4X slot (N97 1X, 1235U/1255U 4X)+1x PCI slot (32-bit) |
| Other function | Power-on startup, scheduled startup, network wake-up, PXE startup, watchdog (0-255 levels) |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fodera 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12-24V, Support reverse polarity protection |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Blue or Grey, color can be customized for bulk orders. |
| Operating Environment | |
| Temperature Range | Operating: 0 to 50°C(Commercial HDD), -20 to 60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 4kgs |
| Gross weight | 4.9kgs |
| Product Dimension | 21.6*18.5*11.5cm |
| Packing size | 32*28*23cm |
| Accessories | Power adapter, power plug, vesa bracket, user manual, warranty card, CD Card |
| Other | |
| Mounting way | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
