Model: SATA1326
Features:

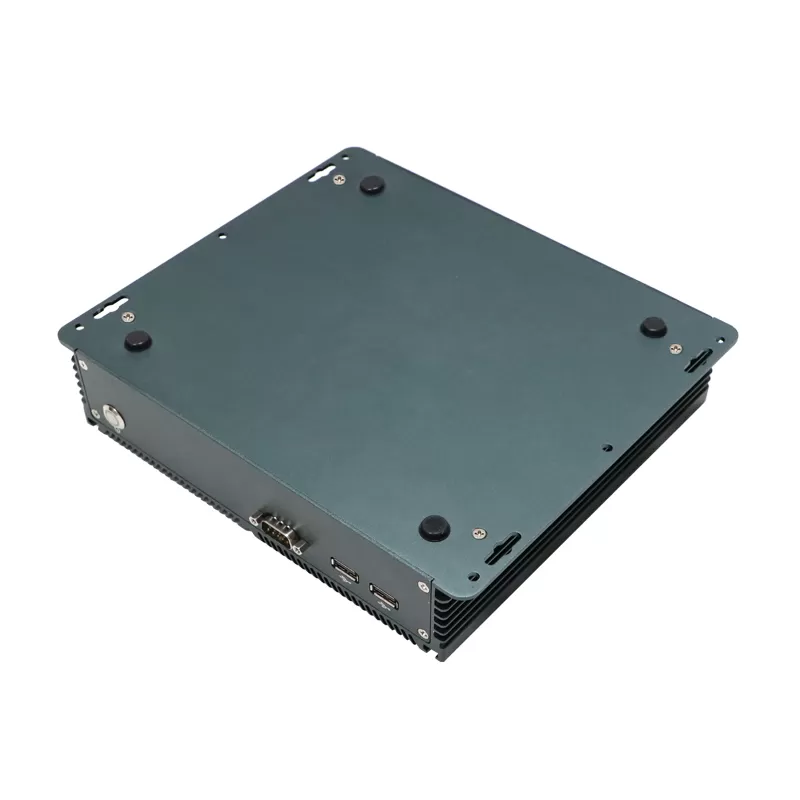

1. Fully aluminum alloy structure, no fan design.
2. Onboard Alder Lake-N processor.
3. Support DDR4 SODIMM memory slot, up to 16G.
4. Support 2x10/100/1000M Ethernet.
5. Support 3xM.2 slots, support 5G.
6. Support 3xUSB3.0 interfaces.
7. Support 6xCOM ports (COM1, 2 support RS232/485 mode Optional).
7. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| Model: SATA1326 | |
| PC | |
| CPU | Intel®N100, quad core, quad thread, 6MB Cache, Max 3.4GHz |
| Memory | 1x DDR4 3200MHz SODIMM Memory Slot, Max. 16GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics card |
| Display port | 2xHDMI (support syn and asy dual display) |

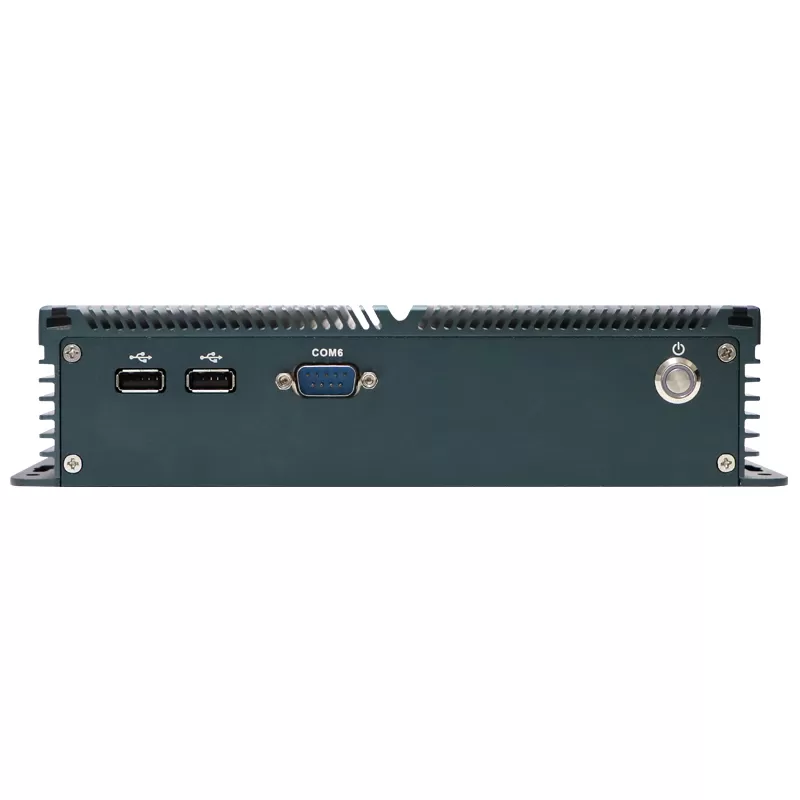

| Front I/O | 2xUSB2.0, 1xCOM RS232, 1xPower switch |
| Rear I/O | 3xUSB 3.0, 1xUSB2.0, 5xCOM(COM1 2 support RS232/RS485 Optional), 2x1000M LAN, 2xHDMI, 1xDC/two in one Audio |
| Expansion | Support 1*M.2 M-Key 2280 Slot (support NVMEx1 or SATA Protocol) |
| Support 1*M.2 E-key (support WIFI/Bluetooth) | |
| Support 1*M.2 B-key Slot 3042/3052 (support 4G/5G), with SIM Card socket | |
| Optinal: 8*GPIO | |
| Network | 2*Intel RTL8111H 10/100/1000M Ethernet port |
| Storage port | 1*M-Key 2280 slot (support NVME 1x or SATA), one 2.5-inch hard disk |
| Other function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Metal gray |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 50°C(Commercial HDD), -20°C-60°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.98kgs |
| Gross weight | 2.1kgs |

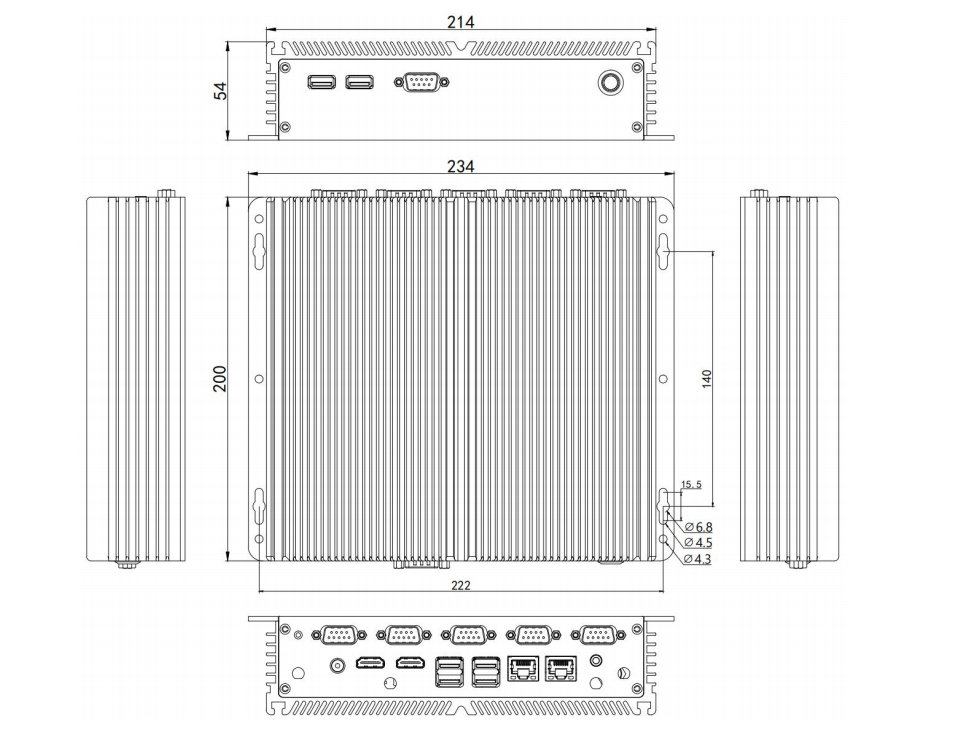

| Product Dimension | 23.4*20*5.4cm |
| Packing size | 27.3*14.6*22cm |
| Accessories | Power adapter, power cord, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (Optional) |
| Desktop (Optional) | |
| Warranty | 3 years warranty |
