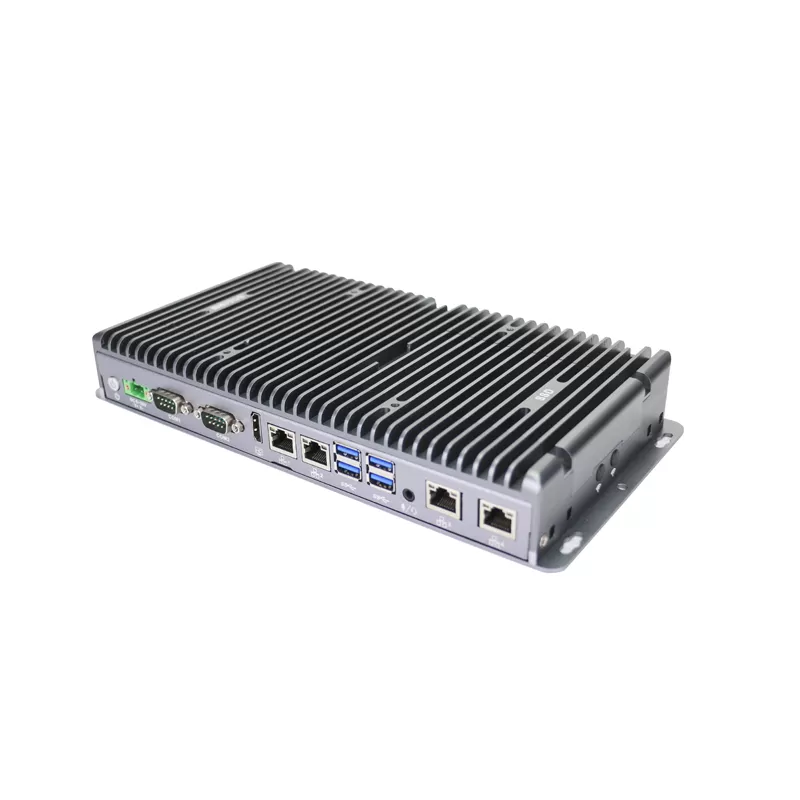

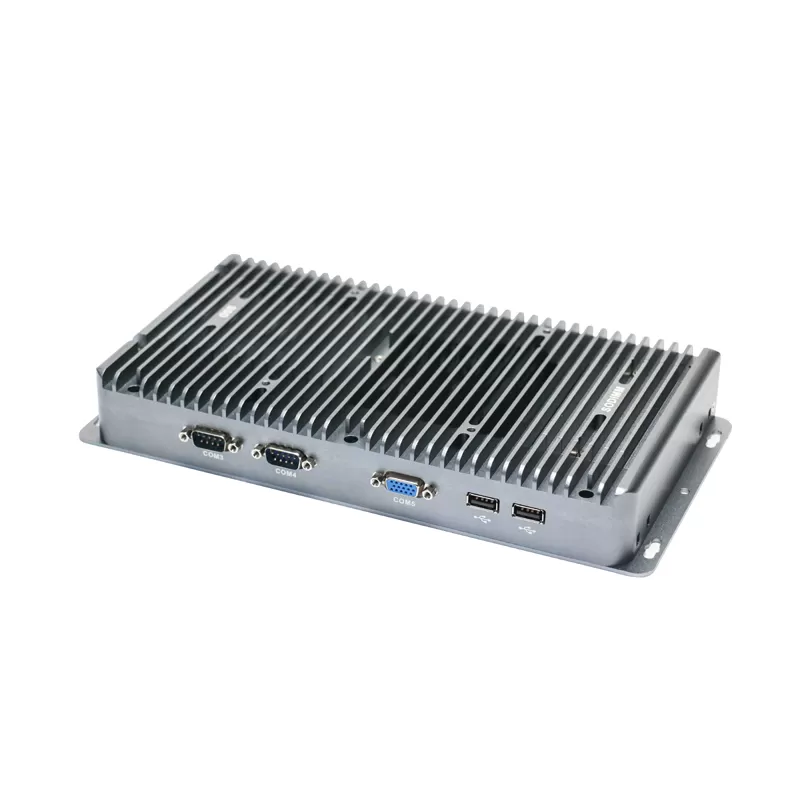

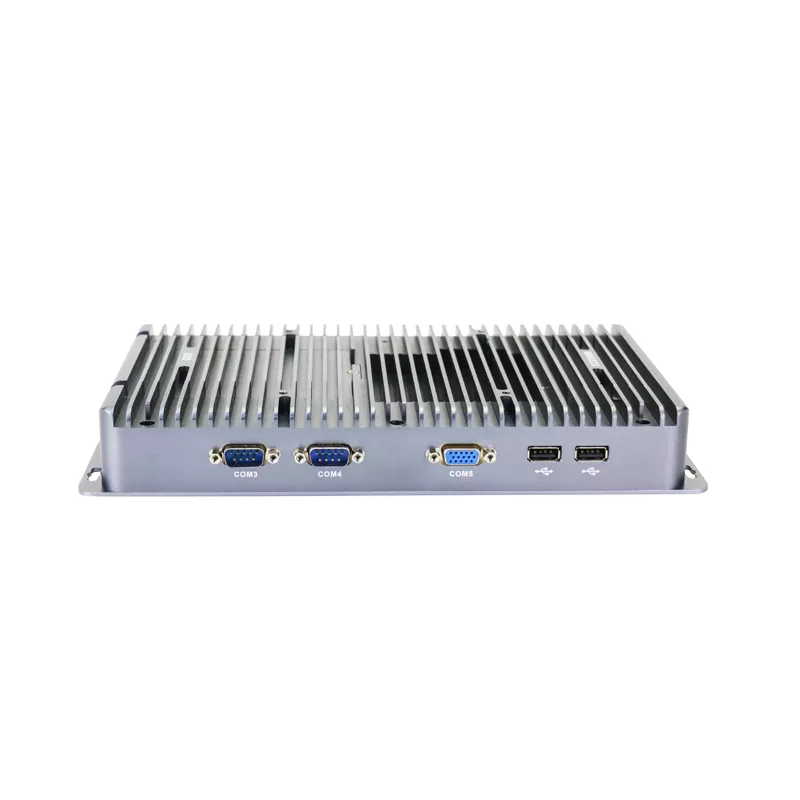

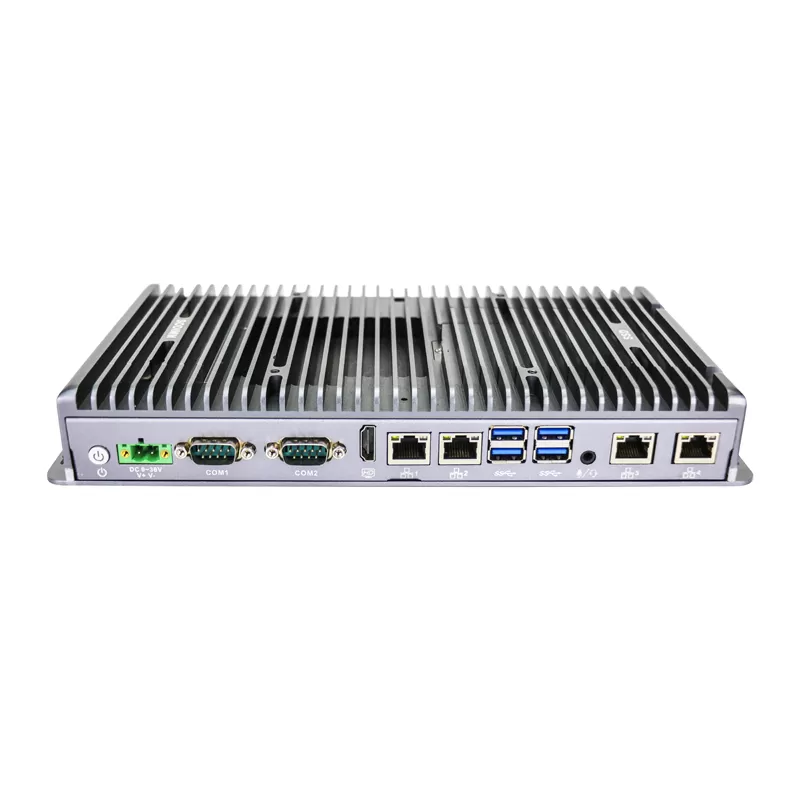

Model: SATA3046
Features:
1. Onboard Intel Whiskey Lake U Series processor.
2. Support 9-36V Wide voltage, support TPM2.0 security encryption.
3. Support 4*RS232, (COM1 2 can choose RS232/422/485 Optional).
4. 4*1000M LAN.
5. Compatible with desktop, wall mount, embedded into and Vesa.
6. Compatible with Win 7/8/10/11, Ubuntu, Debian, Fedora and etc
| PC | |
| CPU | Intel® Celeron 4205U dual core, dual thread, 1.8GHz 2MB Cache |
| CPU Optional | Intel® Core i5-8260U Quad core, eight thread, 1.6GHz 6MB Cache |
| CPU Optional | Intel® Core i7-8565U Quad core, eight thread, 1.8GHz 8MB Cache |
| RAM | Support 1*DDR4 2133/2400 SODIMM ram slot, max 32GB |
| BIOS | SPI AMI EFI BIOS |
| Display chip | Integrated Intel UHD Core Graphics |
| Display interface | 1*VGA, 1*HDMI(Support Sync and Asynch dual display) |
| Network | 4*Intel i211-AT 10/100/1000M Ethernet |

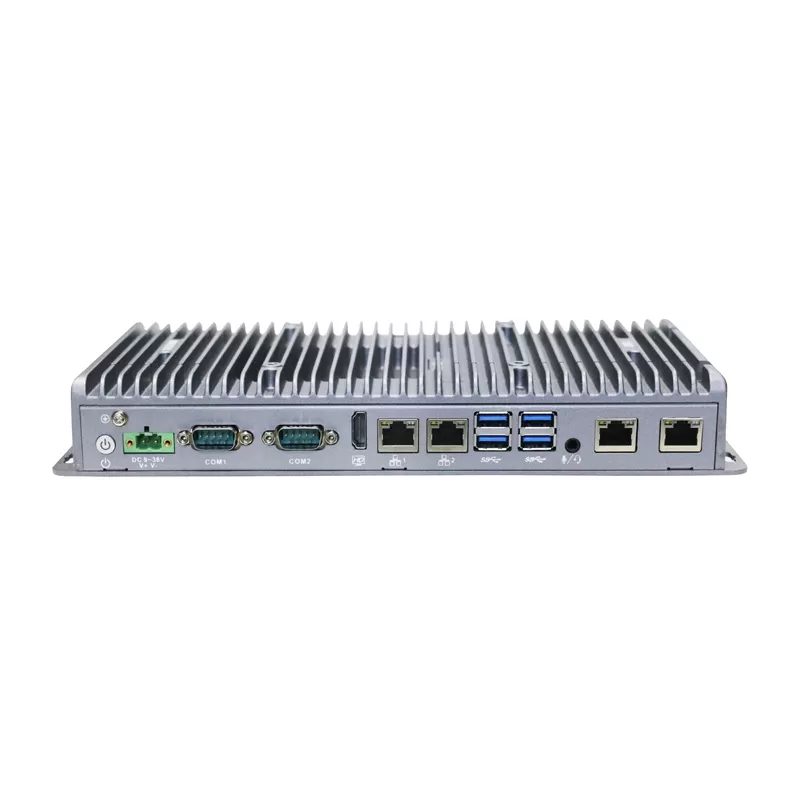

| I/O Interface | 4*USB3.0, 2*USB2.0, 4*COM(COM1 2*RS232/RS485 COM Optional), 4*1000M Gigabit Lan, 1*VGA, 1*HDMI, 1*Power switch, 1*Audio two in one, 1*DC, 1* Phoenix Terminal Power Input Interface |
| Expansion slot | Support 1*M.2 M-Key 2280 Card Slot(Support SATA Protocol) |
| Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), With SIM slot | |
| GPIO(8 in 8 out), 2*COM, 1*USB2.0(Optional) | |
| Storage | 1*M.2 2280 Card slot, 1*2.5 inch hard disk, support RAID 0/1 |
| Other function | TPM2.0 Security encryption, Electricity boot, Timing boot, Wake on LAN, PXE Start, Watch dog(0-255 level) |
| OS | Win 7/8/10/11, Ubuntu, Debian, Fedora and etc |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Power supply | DC 9-36V (Support reverse polarity protection) |
| Power consumption | ≤50W |
| Enclosure | |
| Material | Aluminium Alloy |
| Color | Titanium gray or customise |
| Operating Environment | |
| Temperature Range | 0-50°C(Commercial HDD), -20°C to 60°C(Industrial SSD), Surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.45kgs |
| Gross weight | 2kgs |

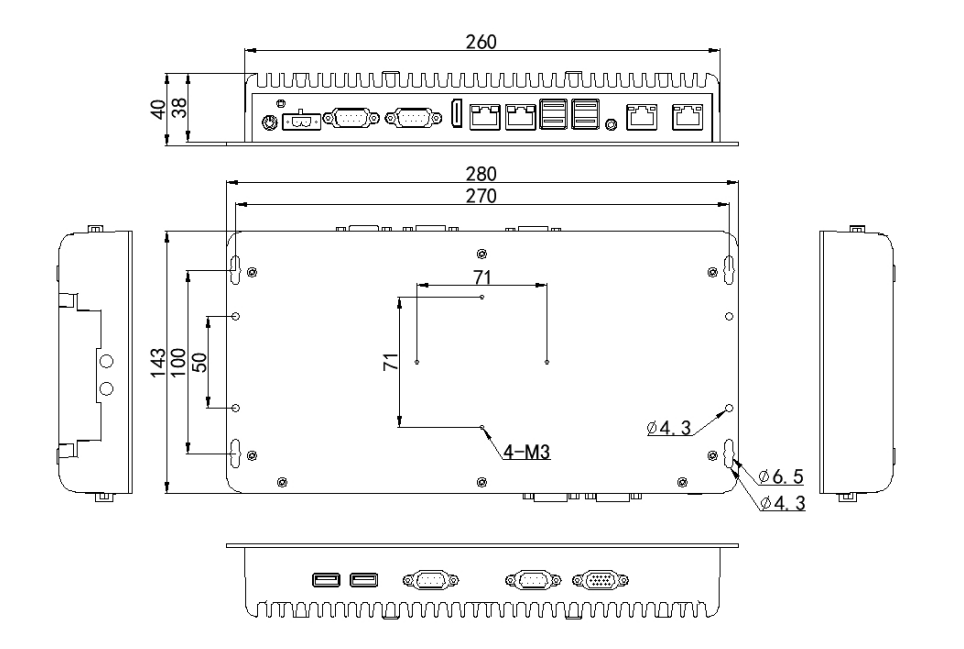

| Product Dimension | 280×143×40mm |
| Packing | TBD |
| Other | |
| Mounting | Wall mounting brackets |
| Desktop(Optional) | |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
