Features:
1. Robust and durable all-metal enclosure, sealing design, full IP67 waterproof
2. Industrial LCD panel, high brightness up to 1000 nits, sunlight readable.
3. Adopt high precision industrial 4 wires resistive touch screen or 10 points capacitive touch
4. High performance mainboard, 7x24 continuous operation.
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 800*600 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch (4 wires resistive touch Optional) |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <5ms |
| Luminousness | 85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (PCAP touch Optional) |
| Singal Ports | |
| VGA | 1×VGA |
| HDMI | Optional |
| DVI | Optional |
| AV | Optional |
| Audio in/out | Optional |
| OSD controlled by remove control | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | Aluminium alloy front bezel +High strength cold rolled steel back case |
| Color | Black, white, Silver, color can customise |
| VESA mounting | 75×75/100×100 mm |
| IP-grade | IP67 |
| Operating Environment | |
| Temperature Range | Operating: -20°C to 70°C, storage: -20°C to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 2.5kgs |
| Gross weight | 3kgs |

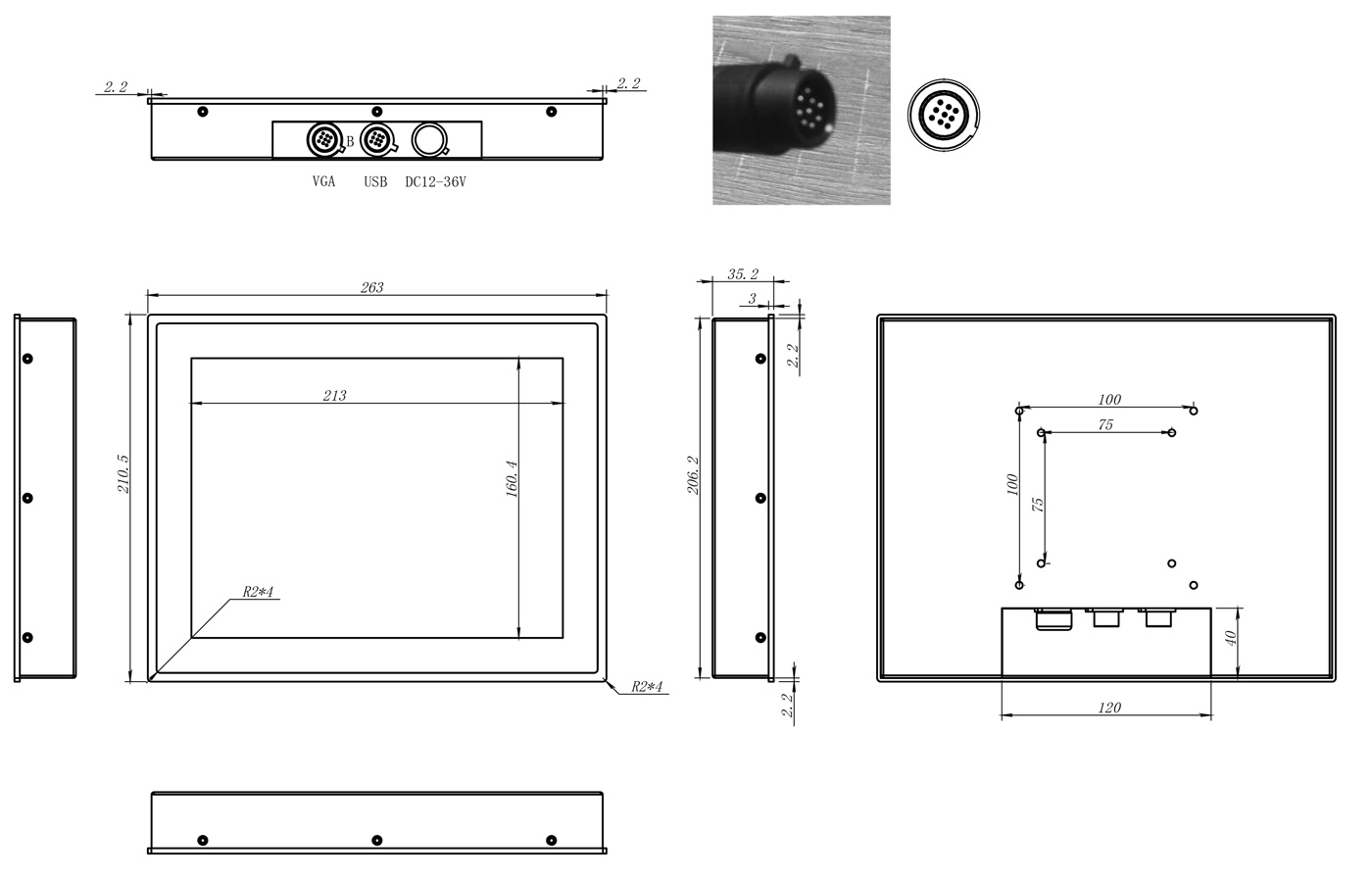

| Product Dimension | 26.3×21.05×3.52cm |
| Packing size | 36×30×15cm |
| Accessories | Power adapter, VGA/USB cable, remove control |
| Other | |
| Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 75×75 mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
