Model: SATA121MW
Features:

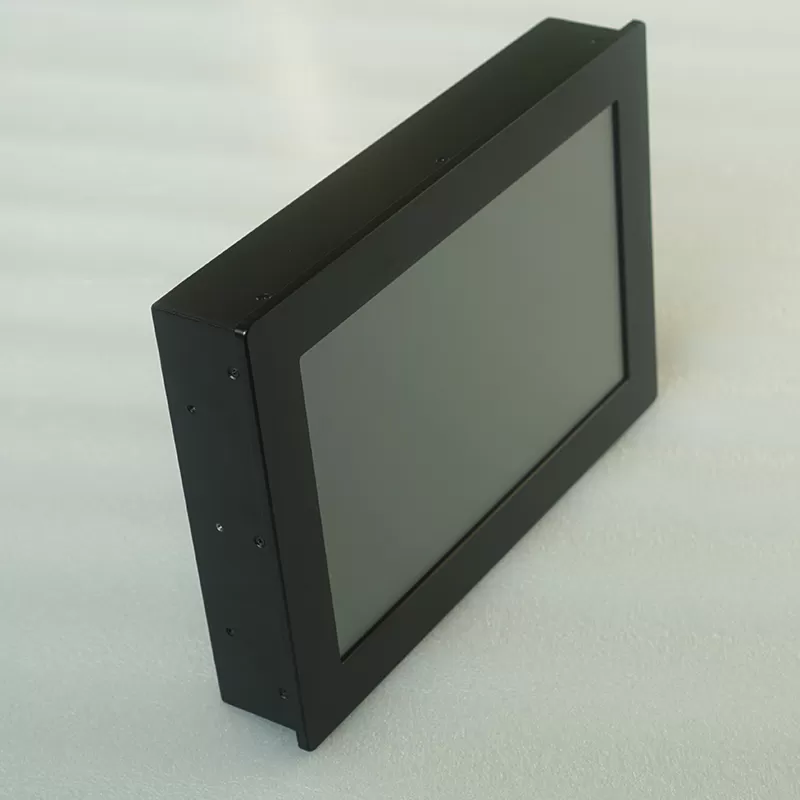

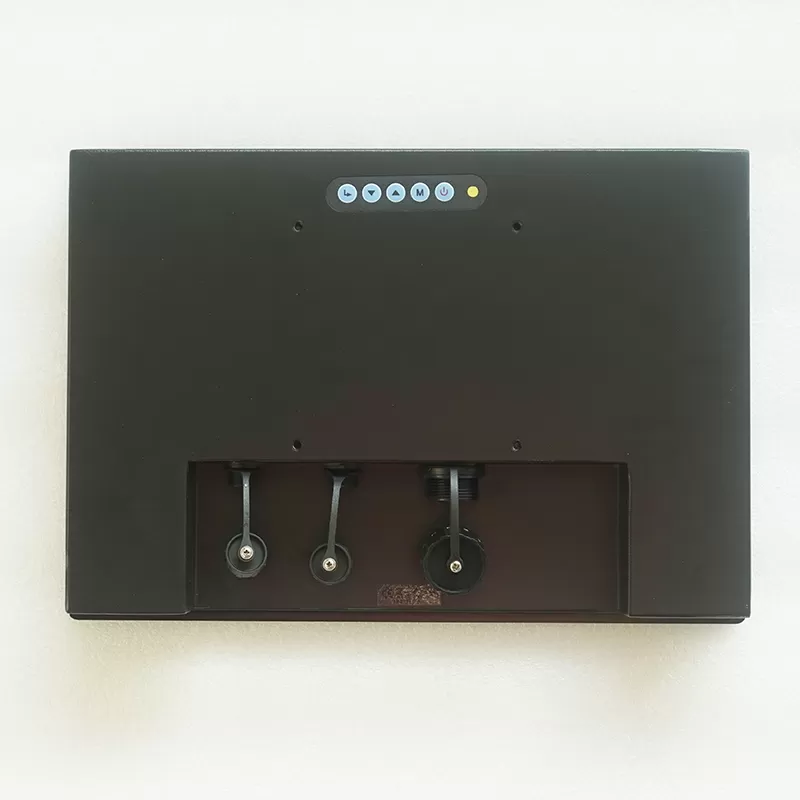

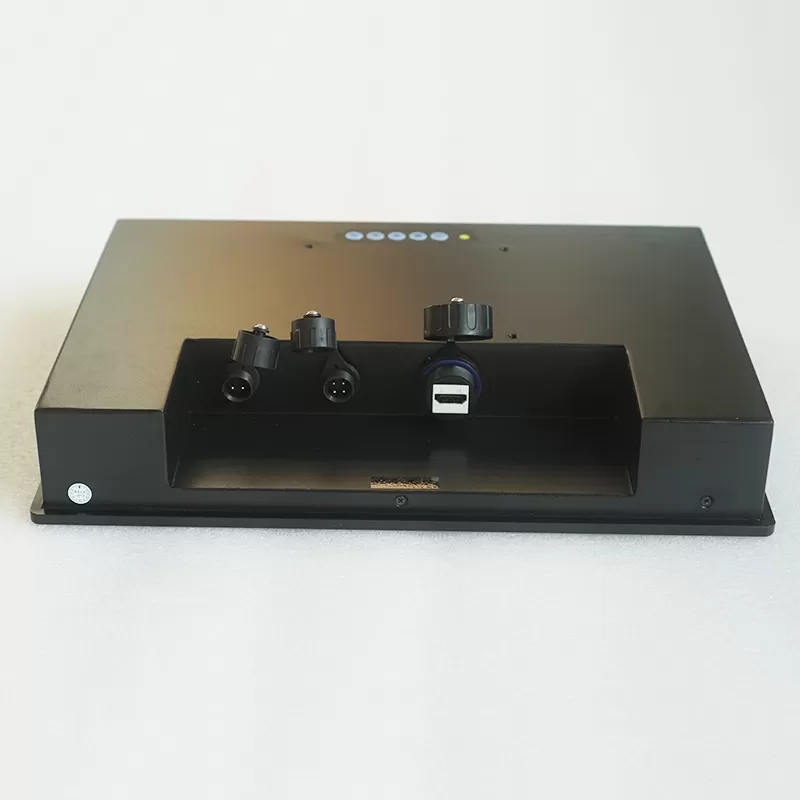

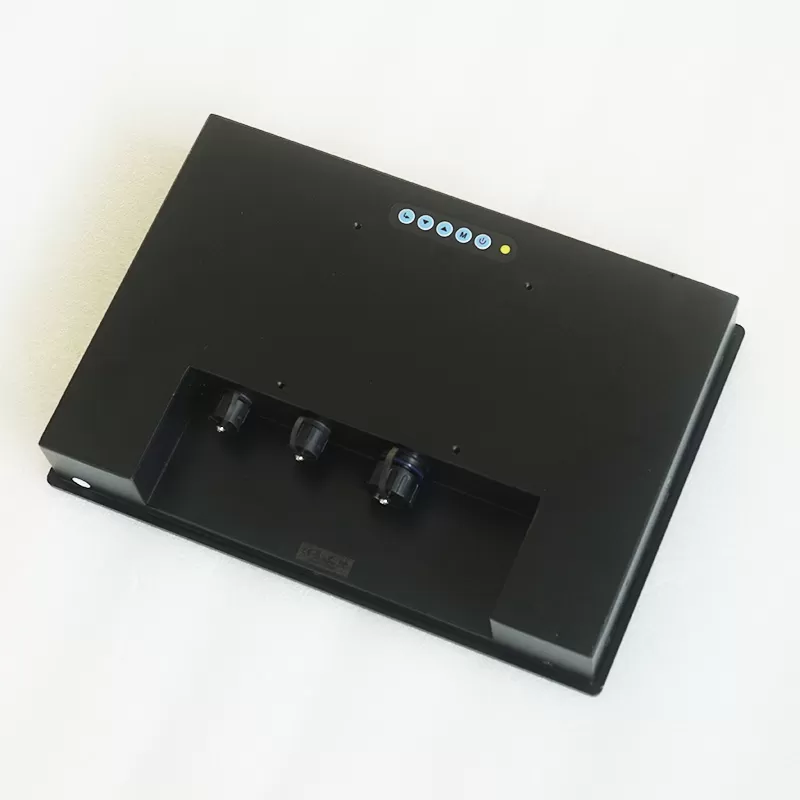

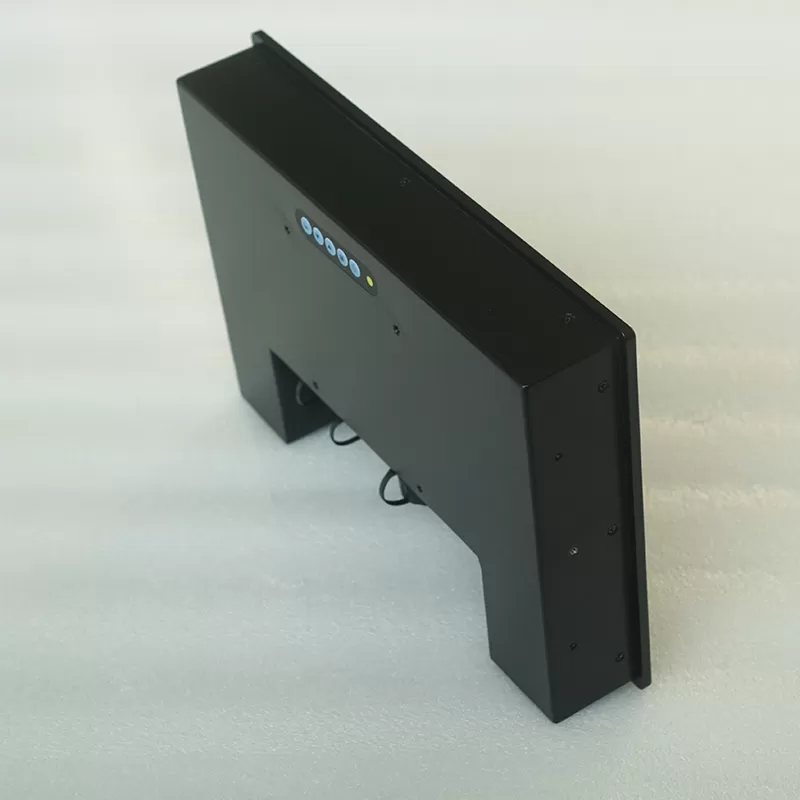

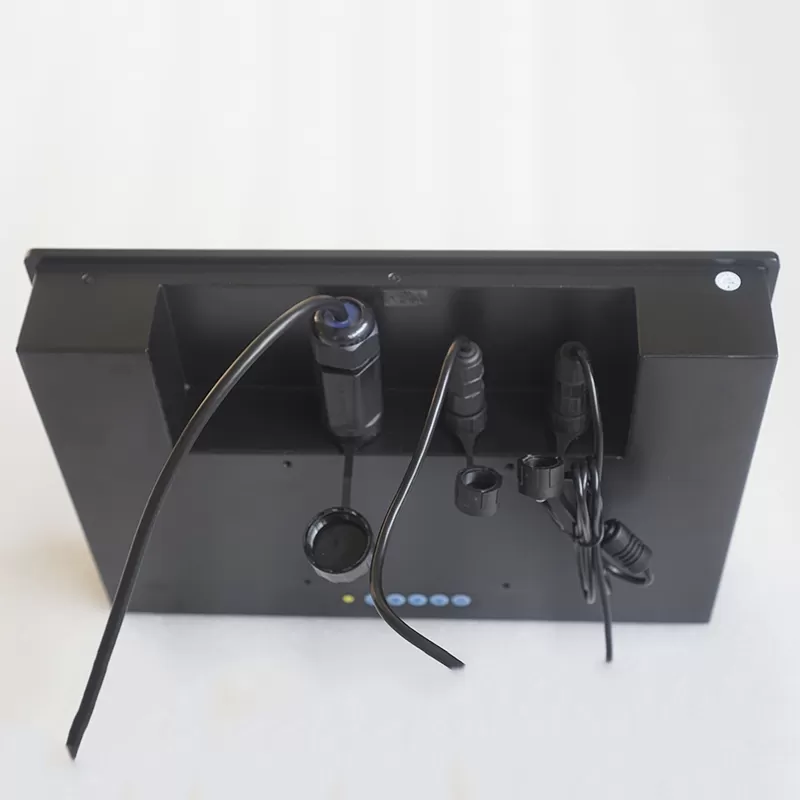

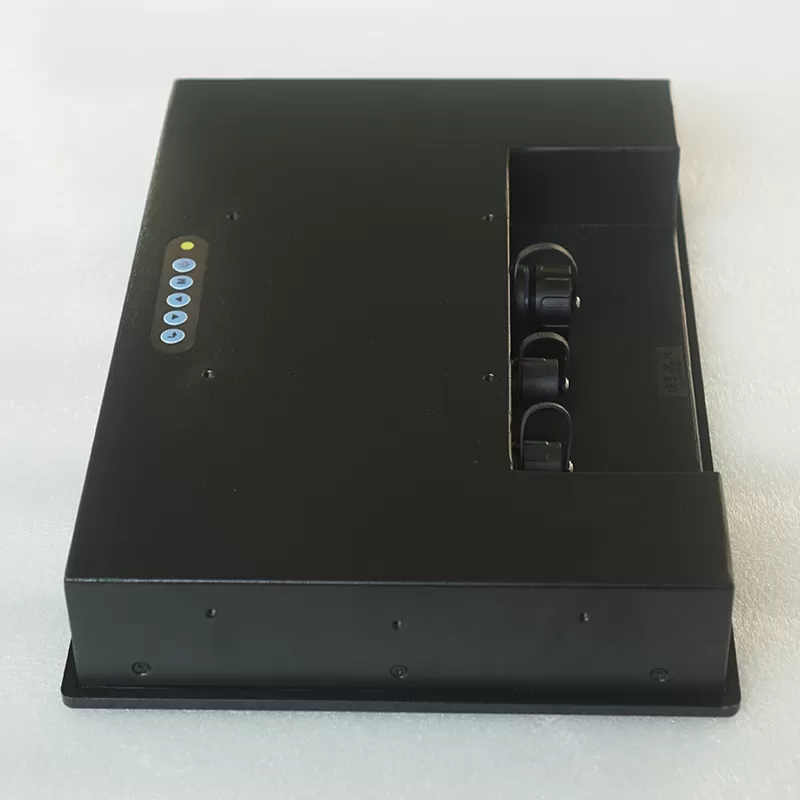

1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.

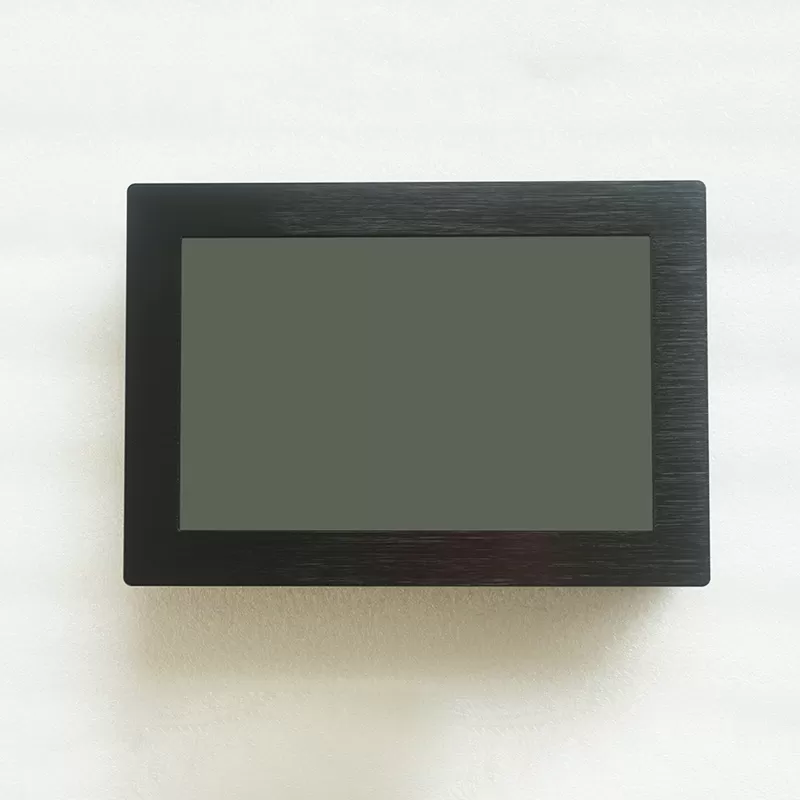

2. 12" Industrial LCD panel, high brightness 1000 nits, sunlight readable.
3. Adopt industrial 5 wires resistive touch screen. stable, durable, anti-interference.
4. Wide Temperature Range: Operating: -20 to 70°C, storage: -30 to 80°C.
5. High performance mainboard, 7x24 continuous operation.
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/80°/60° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wires resistive touch |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (PCAP touch, non touch Optional) |
| Singal Ports | |
| HDMI | 1xHDMI |
| VGA | Optional |
| DVI | Optional |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Ubuntu, Debian, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminium alloy front bezel+High strength cold rolled steel back case |
| Color | Black, White, Silver, color can customize |
| VESA mounting | 100x100 mm |
| IP-grade | Full IP67 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 3kgs |
| Gross weight | 4.2kgs |

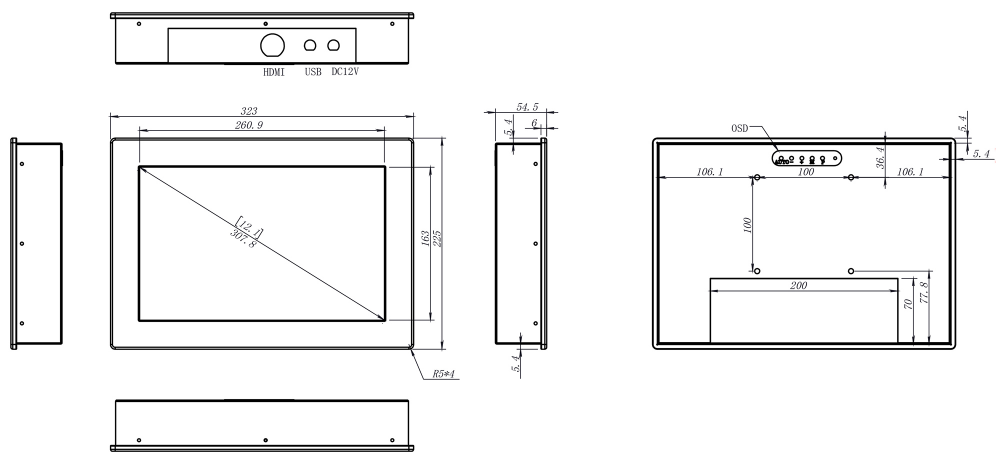

| Product Dimension | 32.3x22.5x5.45cm |
| Packing size | 47x38x20 cm |

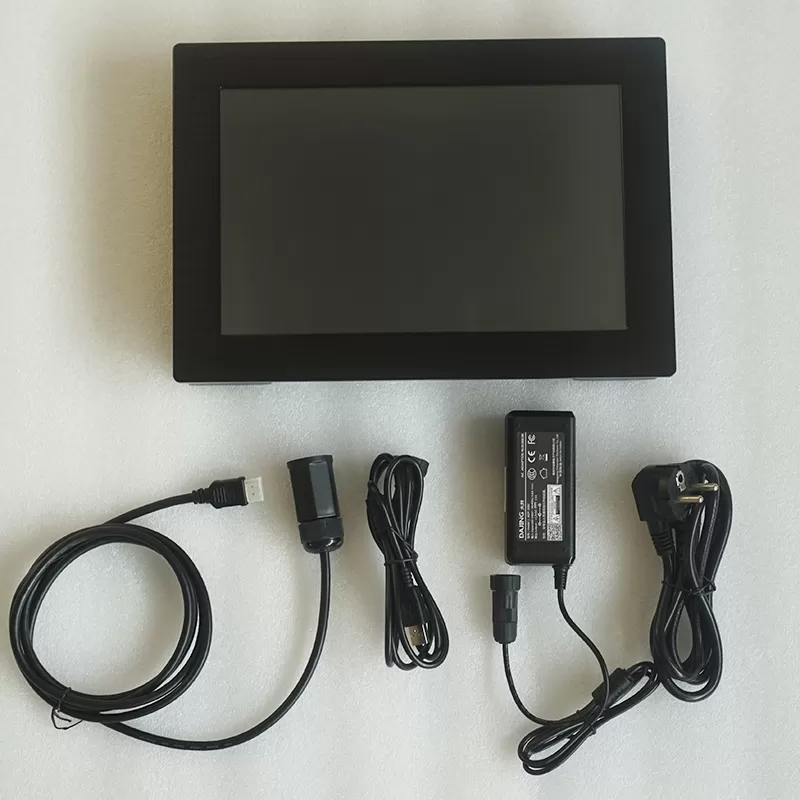

| Accessories | Power adapter, waterproof HDMI cable, USB cable |
| Other | |
| Mounting (options) | 1) Wall brackets for wall-mounting, VESA 100×100 mm |
| 2) Stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
