Features:
In today’s industrial and outdoor environments, digital displays must deliver far more than vivid images — they must survive and thrive under harsh conditions. The SATA32M 32-Inch Waterproof Monitor from SATA IPC is a high-performance industrial display built to withstand water, dust, sunlight, and continuous 24/7 operation. Engineered with advanced materials, cutting-edge display technology, and industrial-grade components, this monitor sets the benchmark for outdoor and industrial visual solutions.

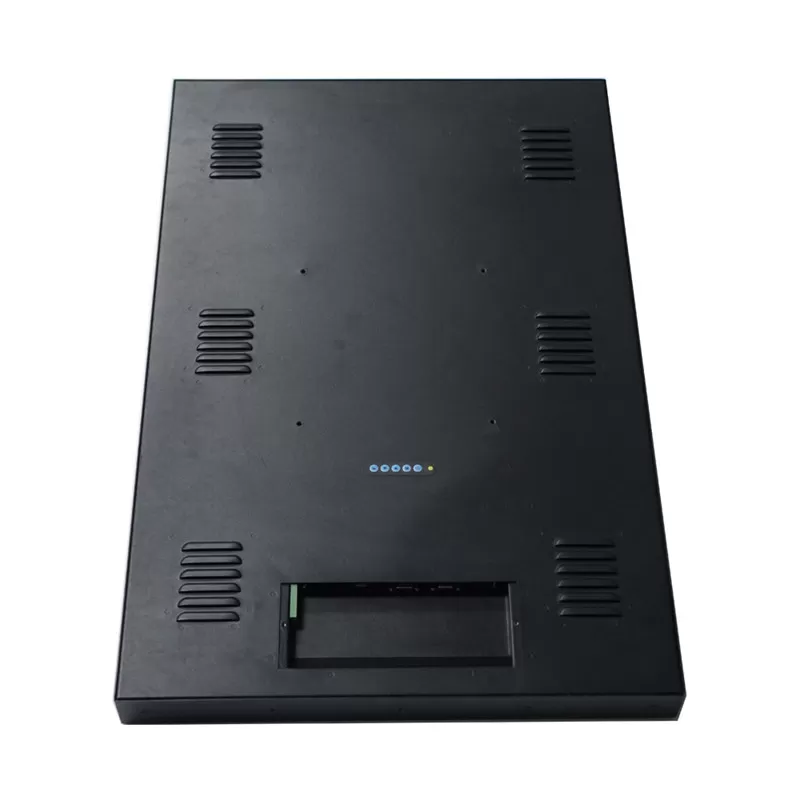

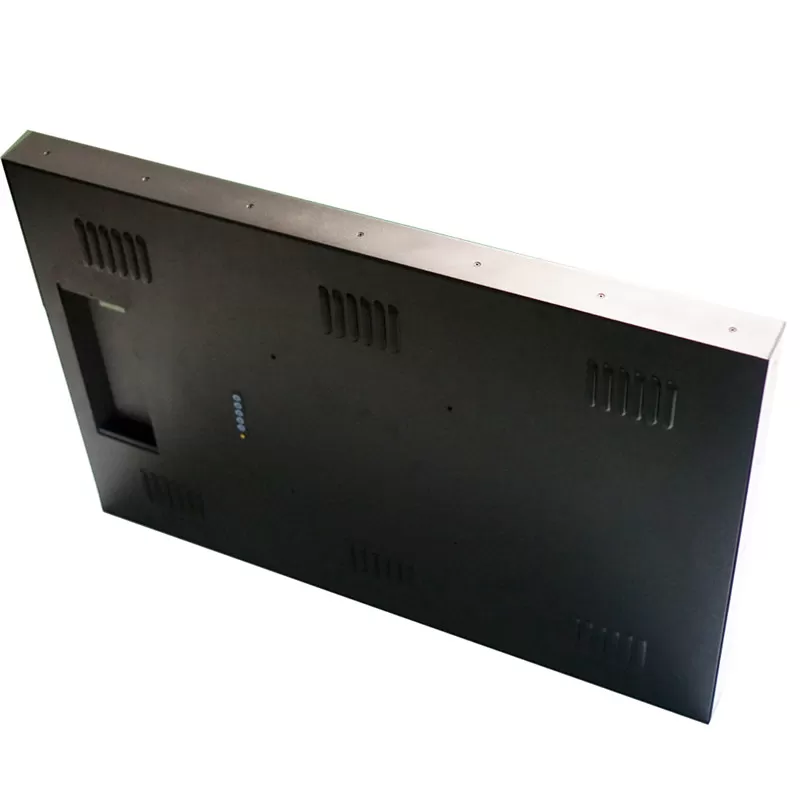

Rugged Aluminum Enclosure
Built with a durable aluminum housing for excellent heat dissipation.
IP65 waterproof rating ensures full protection against water and dust, ideal for outdoor and industrial environments.
Industrial-Grade IPS LCD Panel
Delivers a full viewing angle with clear, vivid image quality.
High brightness up to 1500 nits, ensuring perfect visibility even under direct sunlight.
High-Precision PCAP Touch Panel
Supports multi-point touch with fast and accurate response.
Equipped with anti-glare, UV-resistant, and IR-resistant glass for enhanced durability and outdoor performance.
Optical Bonding Technology
Reduces internal reflection and improves image clarity.
Enhances screen durability against impact, moisture, and dust.
High-Performance Mainboard
Designed for 7x24 continuous operation, ensuring long-term stability.
Optimized for industrial applications requiring reliability and endurance.
Advanced Signal Compatibility
Uses HDMI 1.4 digital decoding scheme for strong compatibility with multiple devices.
Ensures seamless image transmission and high-definition performance.

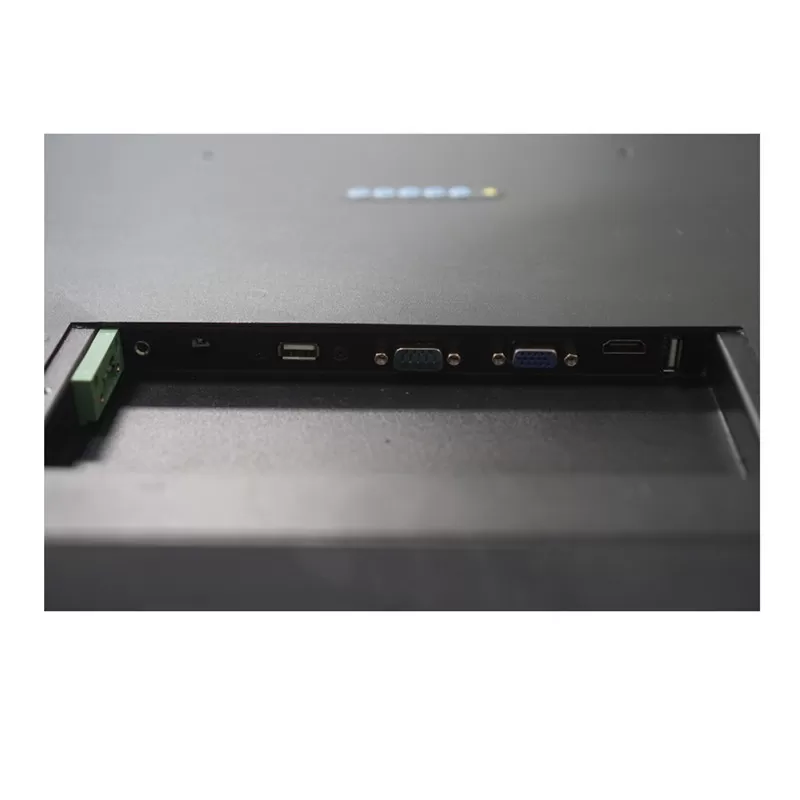

Flexible Input Interfaces
Includes VGA, HDMI, USB for touch, and RS232 ports.
RS232 allows remote control of brightness and power on/off for easy management.
Sunlight Readable Performance
With 1500 nits brightness, the monitor provides crystal-clear visibility even in outdoor daylight.
Perfect for outdoor kiosks, marine use, digital signage, and industrial control systems.
Thanks to its rugged build and advanced display performance, the SATA32M 32-inch waterproof monitor finds applications in a wide range of industries:
Factory Automation – Real-time data visualization, production control, and equipment monitoring.
Transportation Systems – Reliable display for rail, bus, and airport terminals.
Smart Retail – Interactive outdoor kiosks and self-service checkout systems.
Outdoor Advertising – Digital billboards and signage that perform flawlessly under direct sunlight.
Public Information Terminals – Weatherproof display solutions for city centers, parking lots, and tourism spots.
Marine and Offshore Use – Corrosion-resistant and waterproof, perfect for navigation or deck monitoring.
The SATA32M’s flexibility and resilience make it a universal solution for businesses that need reliable visual performance under harsh environmental conditions.
SATA IPC has built a strong reputation as a global provider of industrial computing and display solutions. Each product is engineered for long-term reliability, exceptional image quality, and operational efficiency.
With the SATA32M 32-Inch Waterproof Monitor, customers gain:
Proven IP65 protection against dust and water
Long service life with rugged construction and premium components
Outstanding sunlight readability and wide viewing angles
Seamless touch interaction and responsive performance
24/7 operational stability for mission-critical environments
Whether for industrial automation, outdoor signage, or marine systems, the SATA32M delivers performance, durability, and clarity — all in one robust solution.
Contact SATA IPC today to learn more about integrating the SATA32M Waterproof Monitor into your next industrial or outdoor project and experience professional-grade display technology built to last.
| LCD panel | |
| Panel size | 32" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 1200:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | (Infrared touch Optional) |
| Singal Ports | |
| HDMI | 1×HDMI |
| VGA | 1×VGA |
| RS232 | 1×RS232 |
| AV | Optional |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 24V |
| Power consumption | ≤130W |
| Enclosure | |
| Material | Aluminum alloy |
| Color | Black, White, Silver color can customize |
| VESA mounting | 200×200 mm |
| IP Grade | IP65 |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 18kgs |
| Gross weight | 20kgs |
| Product Dimension | 80×53×7.92cm |
| Packing size | 100×64×17 cm |
| Accessories | Power adapter, HDMI/USB/RS232 cable |
| Other | |
| Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 200×200mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
