Model: SATA1121
Features:
1. All aluminum alloy structure, no fan design.
2. On-board Intel Celeron J6412 quad-core processor.
3. Support 3*Intel i225-V 2.5G Ethernet.
4. Support 1*M.23052 B-key, 5G module Optional.
5. Support 3*M.2 slots (WIFI+ 4G/5G).
6. Support 6*USB ports (3 USB3.1).
7. Support synchronous/asynchronous trial display, support 4K full HD.
8. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel®Celeron J6412, quad core, quad thread, 1.5MB Cache, 2.0GHz Max 2.6GHz |
| Architecture | Elkhart Lake |
| Memory | 1x DDR4 3200 MHz SODIMM Memory slot, Max. 32GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel UHD Graphics |
| Network | 3*Intel i225-V 2.5G Ethernet port |
| Display port | 1xHDMI, 2xDP HD Display port(support syn and asy trial display, support 4096x2160@60Hz) |

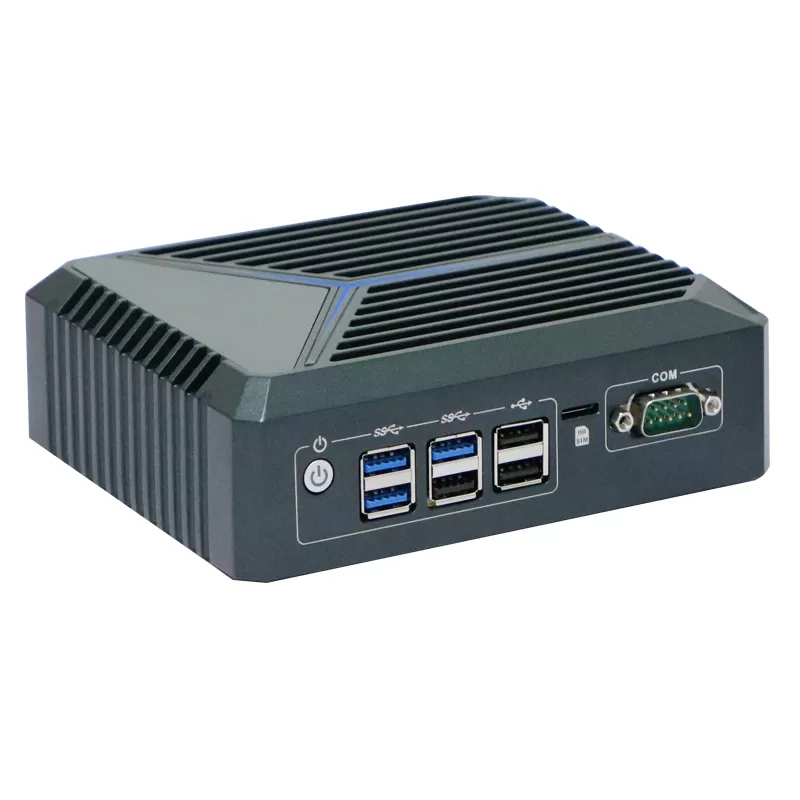

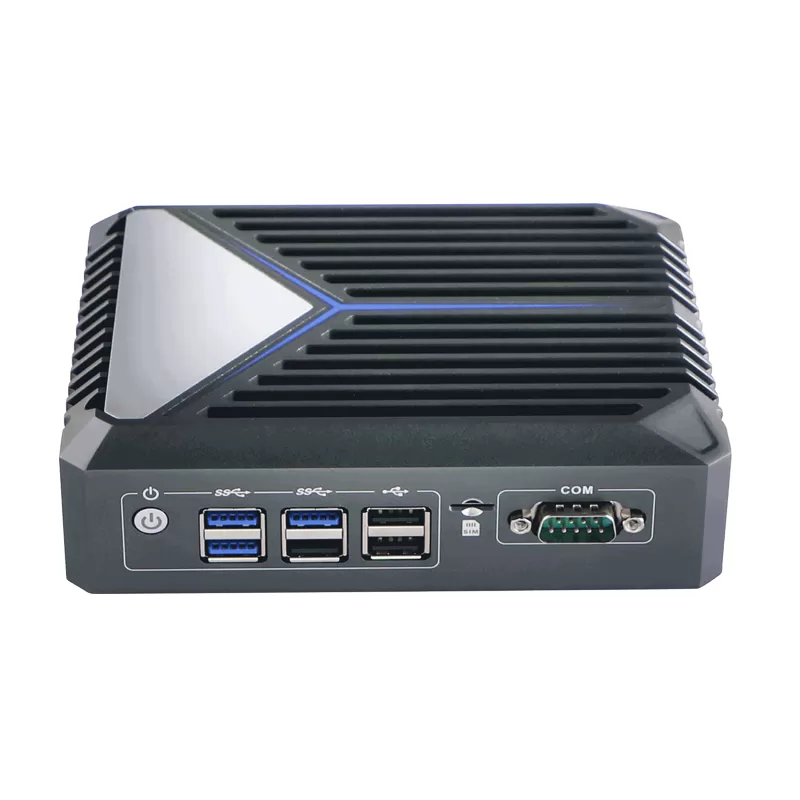

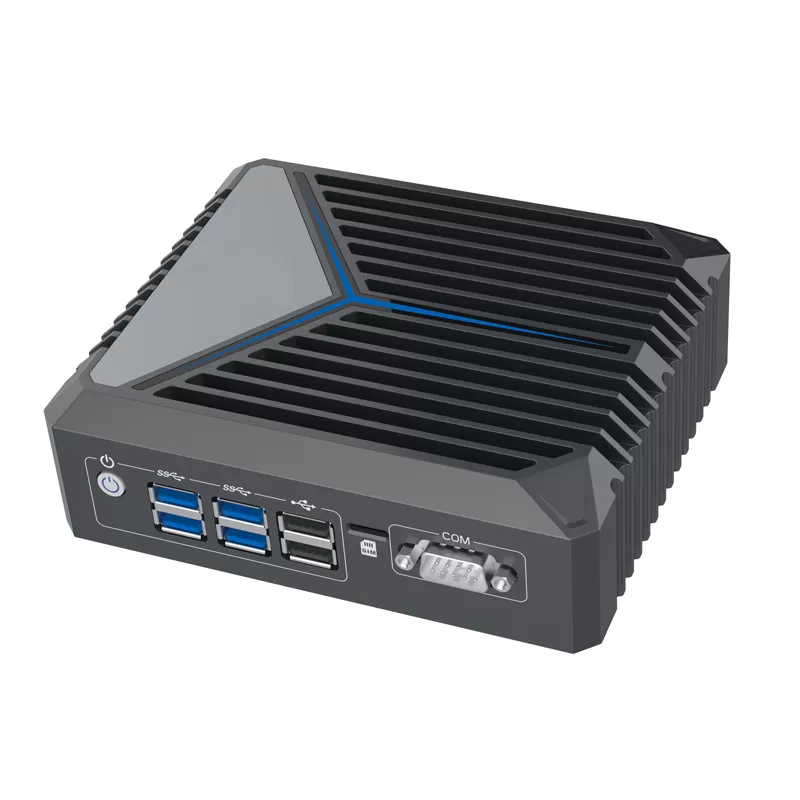

| Front I/O | 3*USB3.1, 3*USB2.0, 1*COM, 1*SIM Card Slot, 1*Power switch |

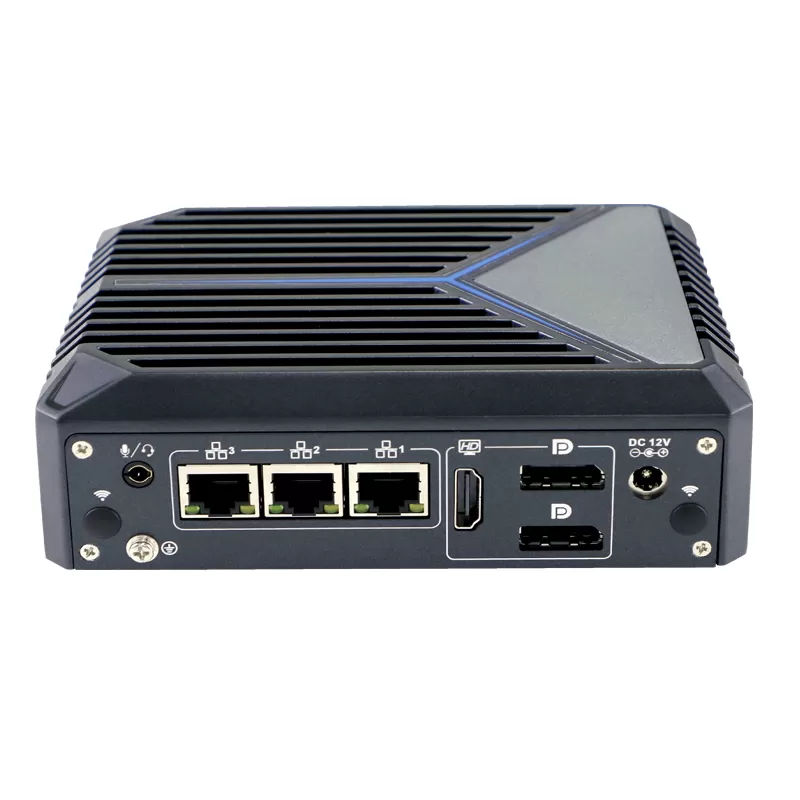

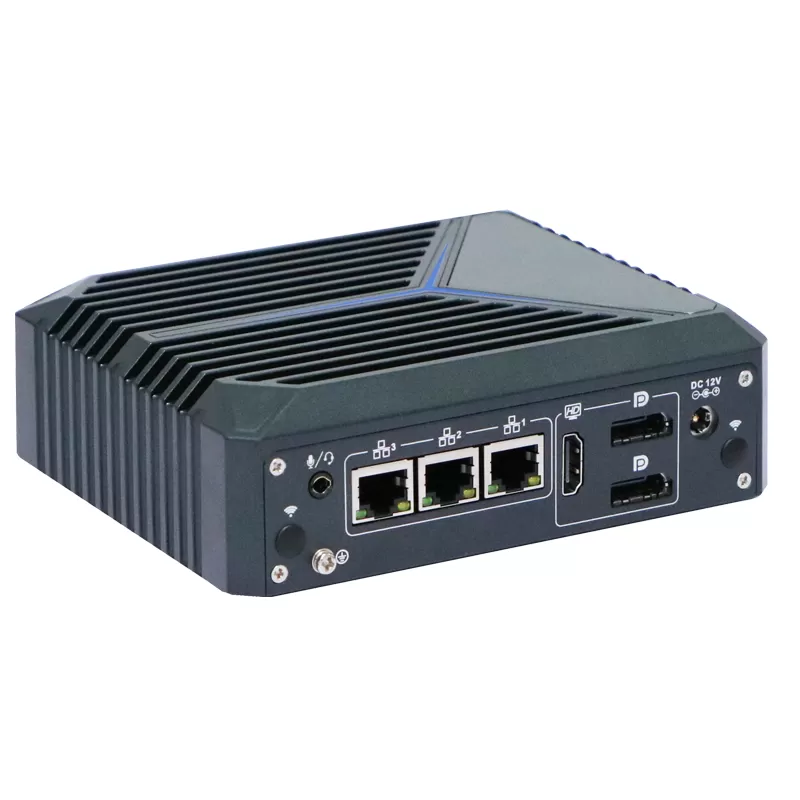

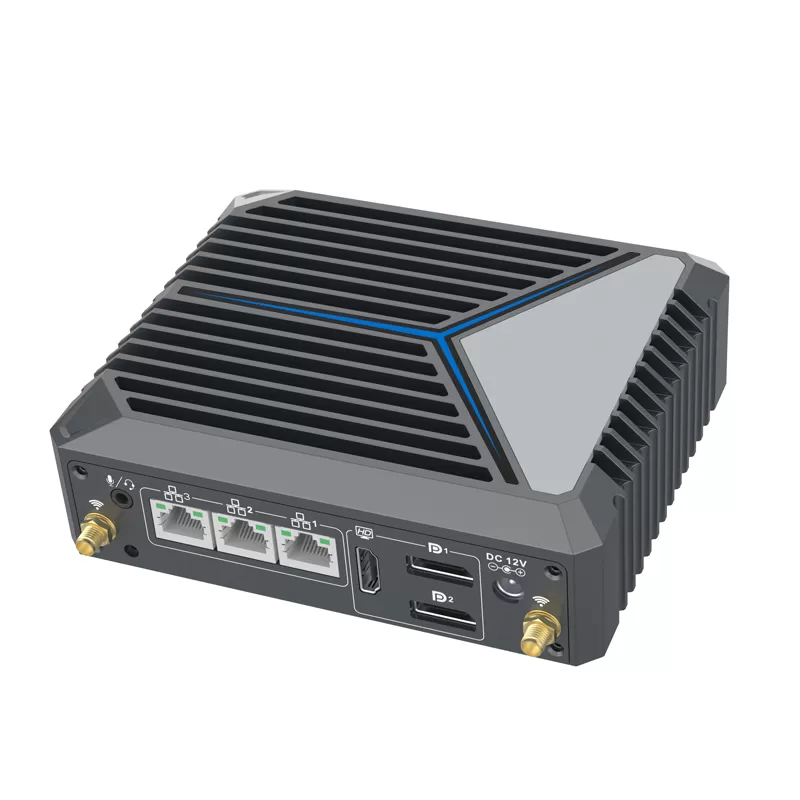

| Rear I/O | 3*2.5G RJ45 LAN, 2*DP, 1*HDMI, 1*DC IN, 1*Audio two in one port |
| Expansion slot | Support 1*M.2 2280 M-key Card slot (support SATA protocol) |
| Support 1*M.2 3052 B-key Card slot (USB3.0, support 4G/5G), external SIM Card Slot | |
| Support 1*M.2 2230 E-key Card Slot (support WIFI/Bluetooth) | |
| Storage port | 1*M.2 2280 Card slot, onboard 1*2.5 inch hard disk |
| Other function | Power-on, timed startup, network wake up, PXE startup, watchdog (0-255 level), TPM2.0 security encryption |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Metallic grey |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 40°C(Commercial HDD), -20°C-60°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 0.84kg |
| Gross weight | 1.15kgs |

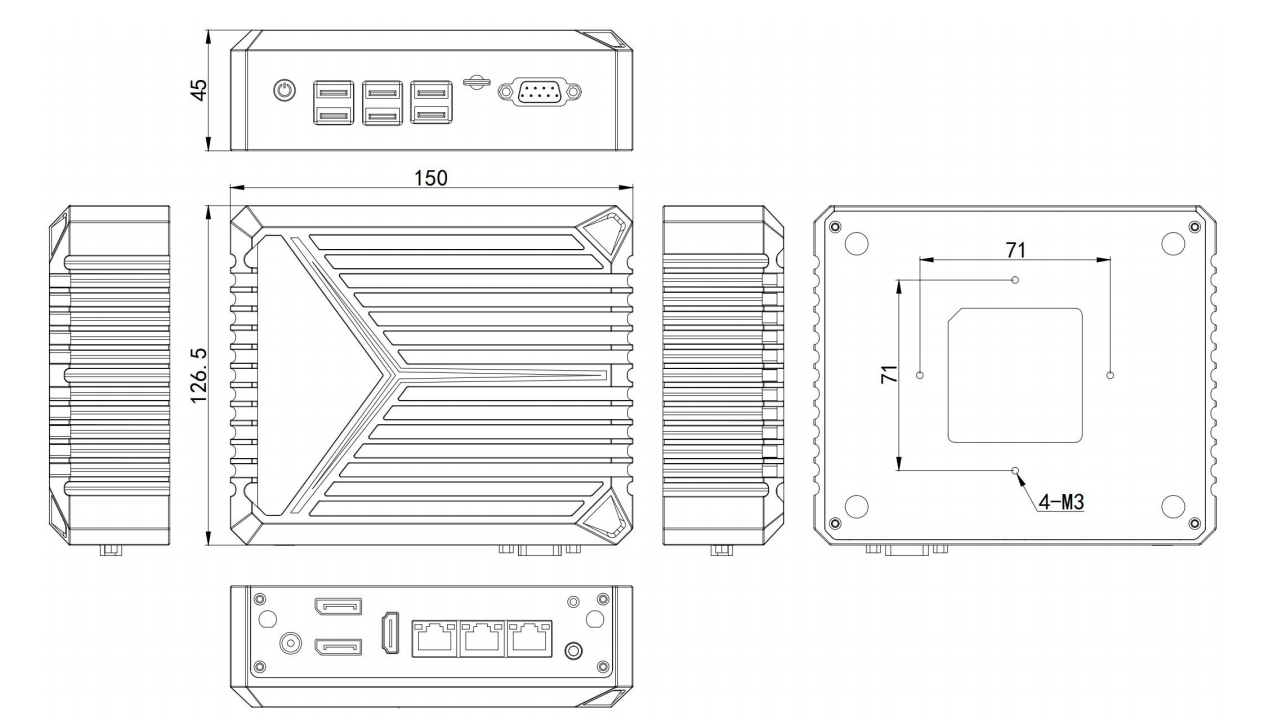

| Product Dimension | 15*12.65*4.5cm |
| Packing size | 21*16*13.5cm |
| Accessories | Power adapter, power cord, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (Free) |
| Desktop (Optional) | |
| Warranty | 3 years warranty |
