Model: SATA1342
Features:

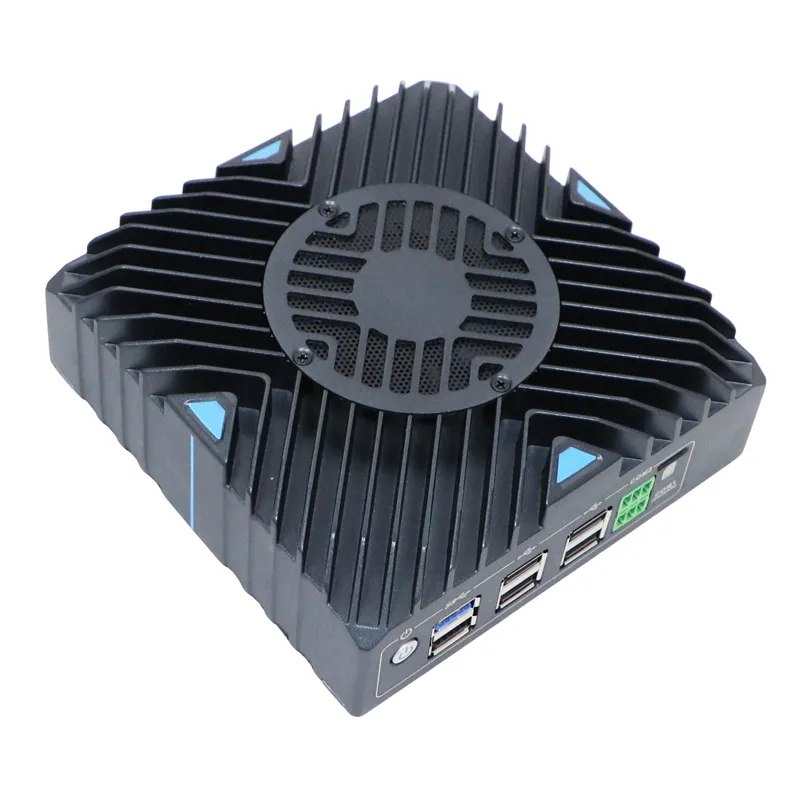

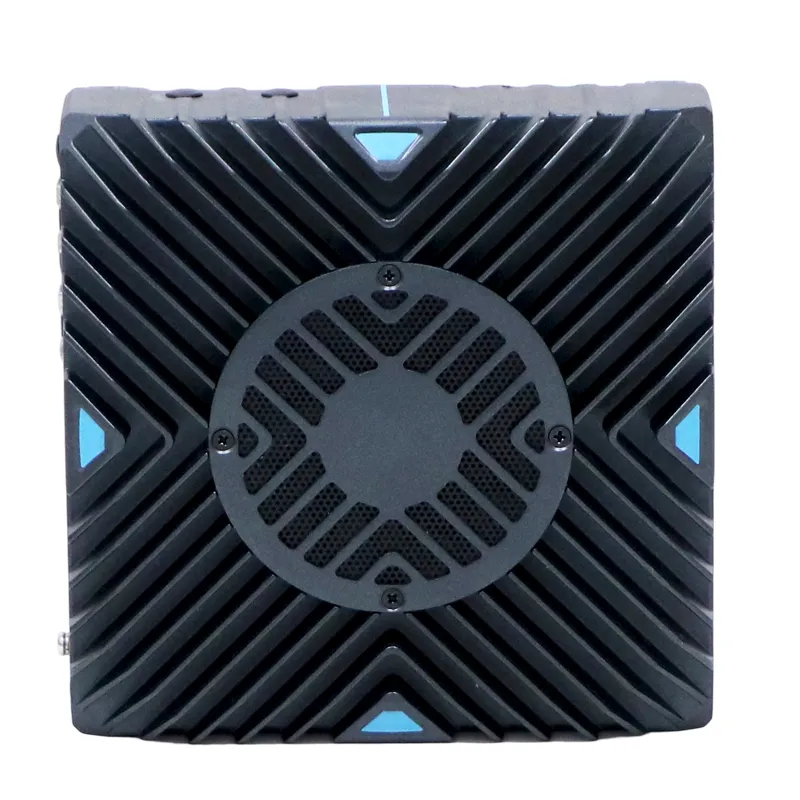

1. All-aluminum alloy structure, fan-assisted heat dissipation design.
2. Onboard Intel Twin Lake processor.
3. Support 2xIntel i226-V 2.5G Ethernet interfaces.
4. Support 2x10 GbE SFP+ interfaces.
5. Support SSD+WIFI+4G/5G at the same time.
6. Support 4K high-definition dual display, DP+HDMI display interfaces.
7. 2 x3-pin Phoenix terminal serial ports (2 can be selected in RS232/485 mode).
8. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel®Twin Lake N150, quad core, quad thread, 6MB Cache, 1.2GHz Max 3.6GHz |
| Architecture | Twin Lake |
| Memory | 1x DDR5 4800 MHz SODIMM Memory slot, Max. 16GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel UHD Graphics card 600 |
| Display port | 1xHDMI, 1xDP HD Display port(support syn and asy display, support 4096x2160 @60Hz Max) |

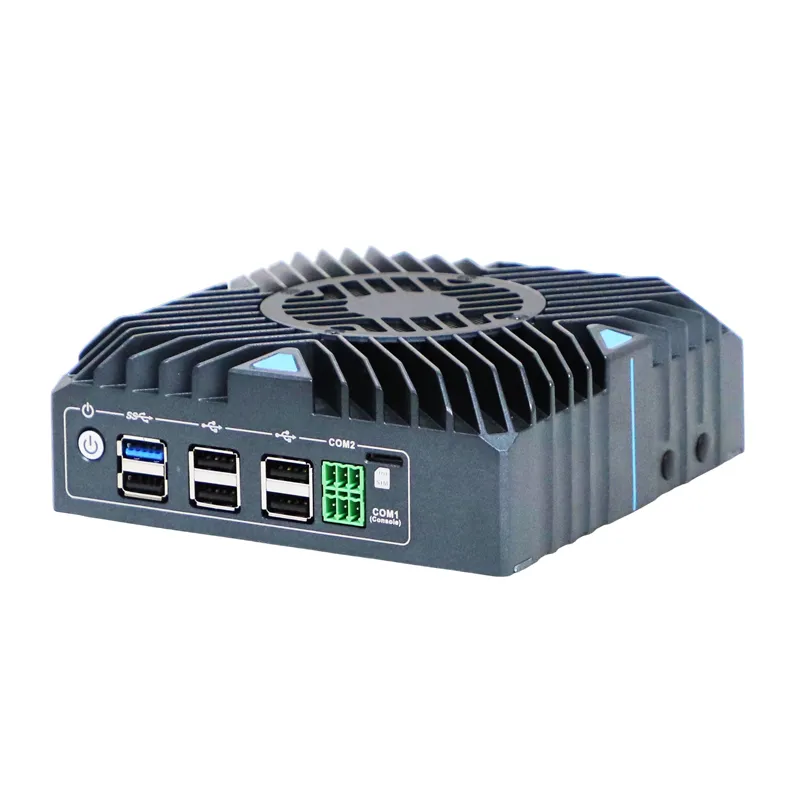

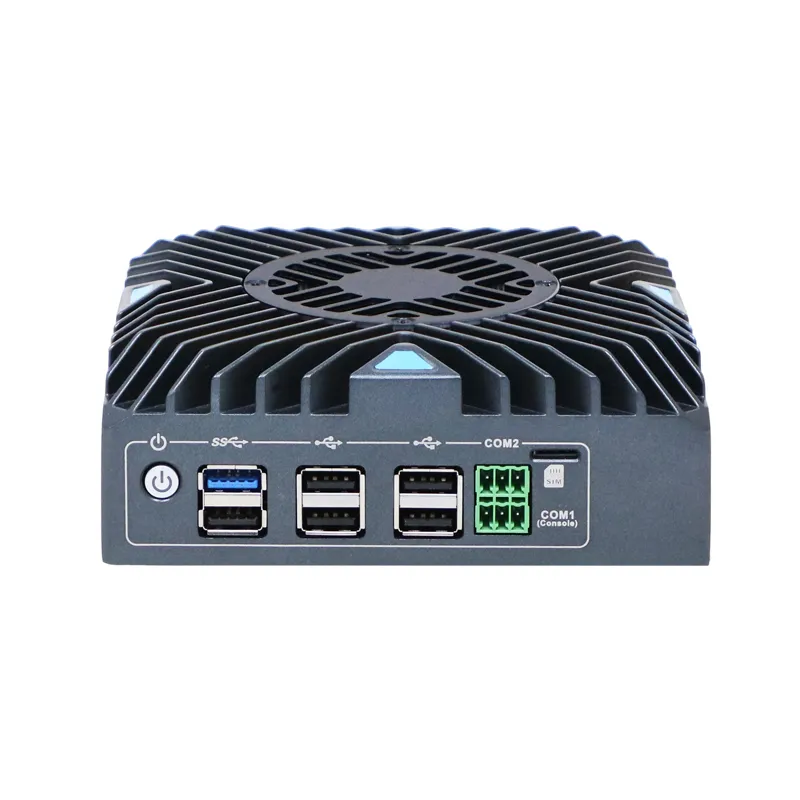

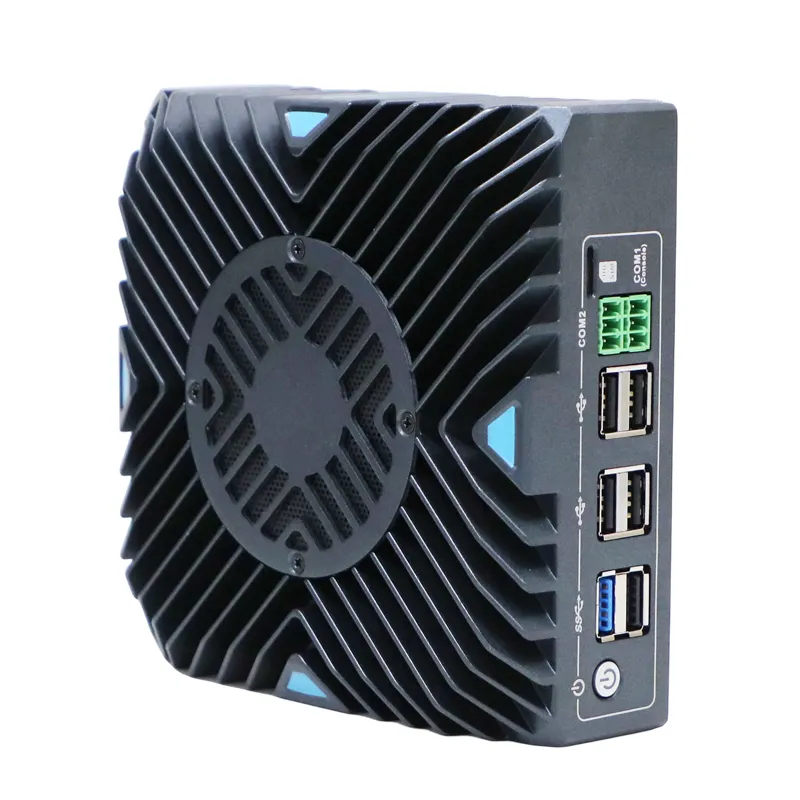

| Front I/O | 1*Power switch, 1*USB3.1, 5*USB2.0, 1*SIM Card Slot, 2x 3-pin Phoenix COM ports (support 2 RS232/485 mode Optional, COM1 support console) |

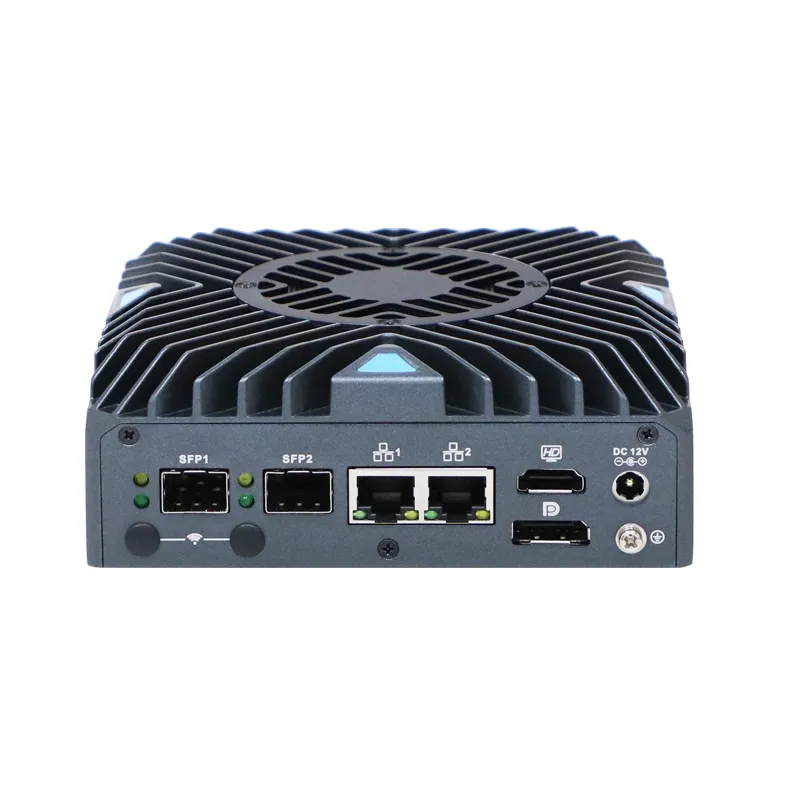

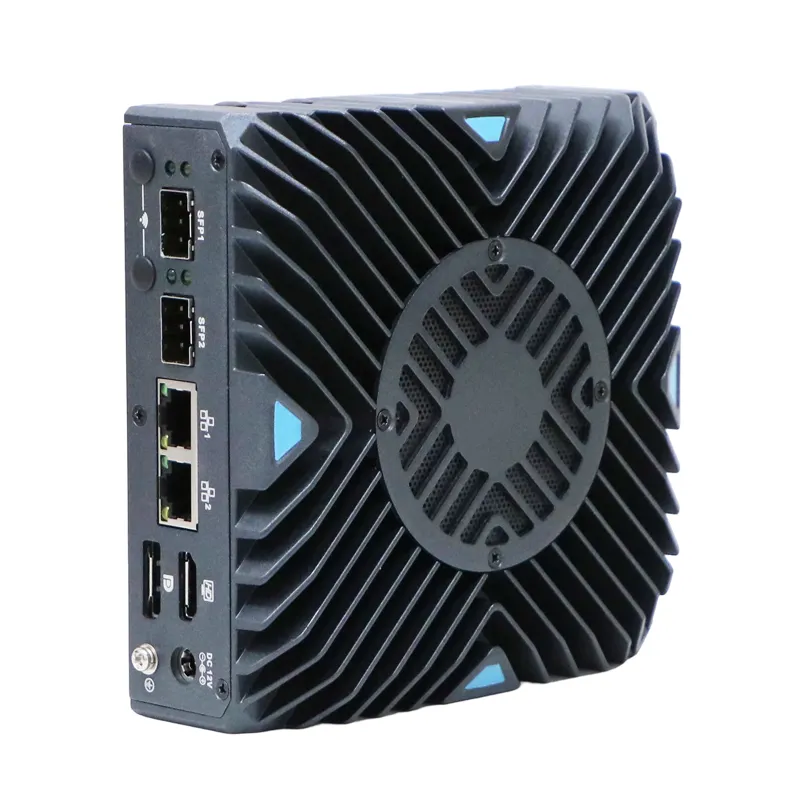

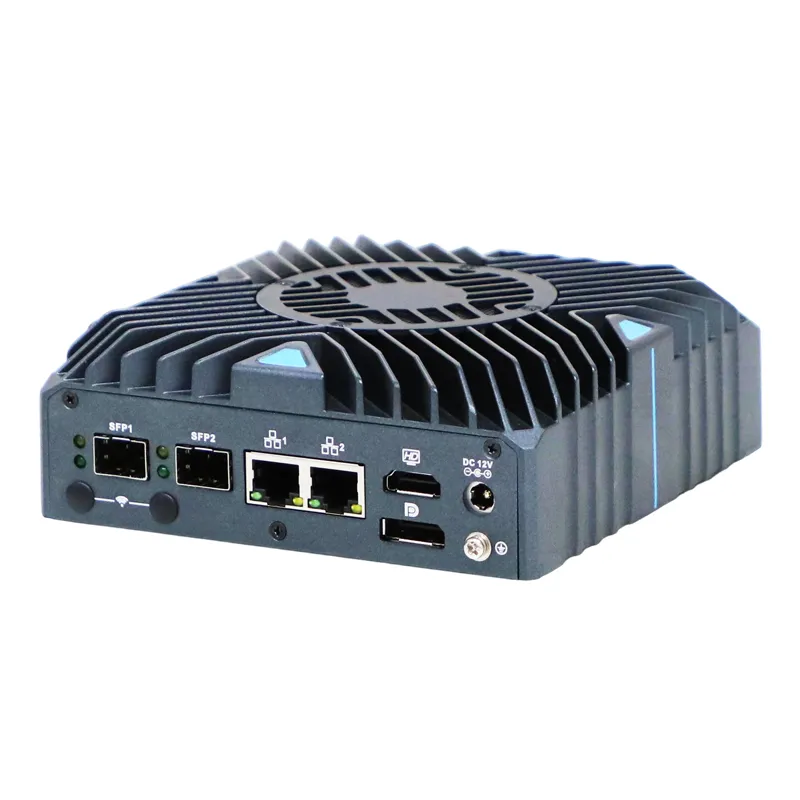

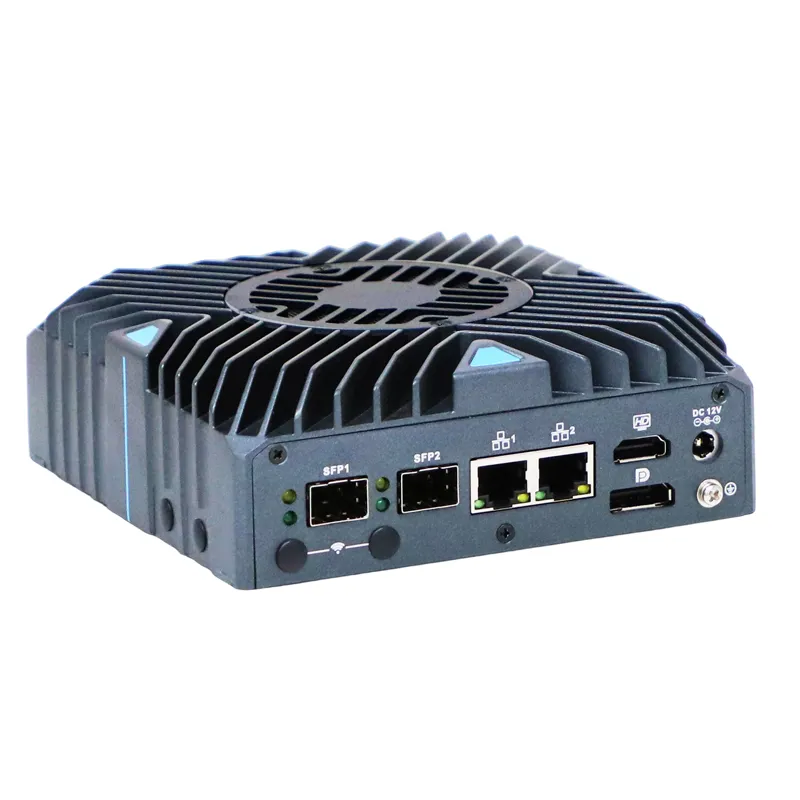

| Rear I/O | 1*DC, 1*HDMI, 1*DP, 2*2.5G LAN, 2*SFP+10G LAN |
| Expansion | Support 1xM.2 2280 M-key Card slot (support SATA protocol and PCIe 3.0x1 NVME protocol) |
| Support 1xM.2 2230 E-key slot (PCIe & USB protocols/CNVIo2 protocol) | |
| Support 1xM.2 3052 B-key slot (USB3.0 interface, supports 4G/5G), and 1x external Nano-SIM card slot | |
| Optional: 4xGPIO | |
| Network | 2xIntel i226-V 100/1000/2500M Ethernet cards, 2 x10 GbE SFP+ interfaces (Intel 82599) |
| Storage port | 1*M.2 2280 Card slot, onboard 1*2.5 inch hard disk |
| Other function | Power-on startup, timed startup, PXE boot, network wake-up, watchdog (0-255 levels), TPM 2.0 security encryption |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Metallic grey |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 40°C(Commercial HDD), -20°C-50°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 0.8kg |
| Gross weight | 1.21kgs |

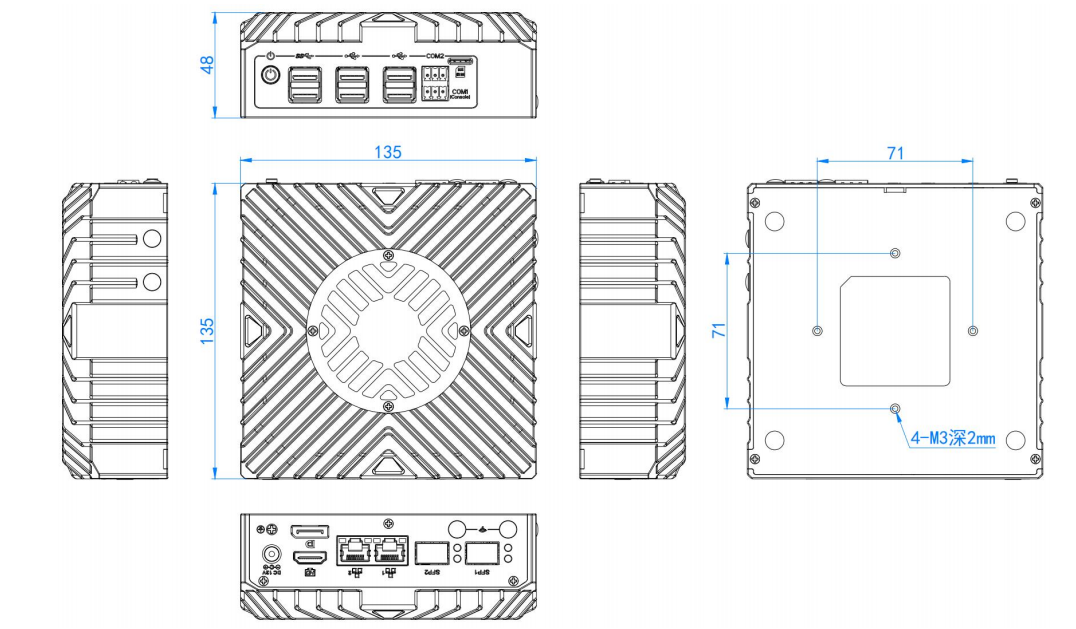

| Product Dimension | 13.5*13.5*4.8cm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Application | Firewalls, VPNs, network servers, network security, routers, and other related fields |
| Warranty | 3 years warranty |
