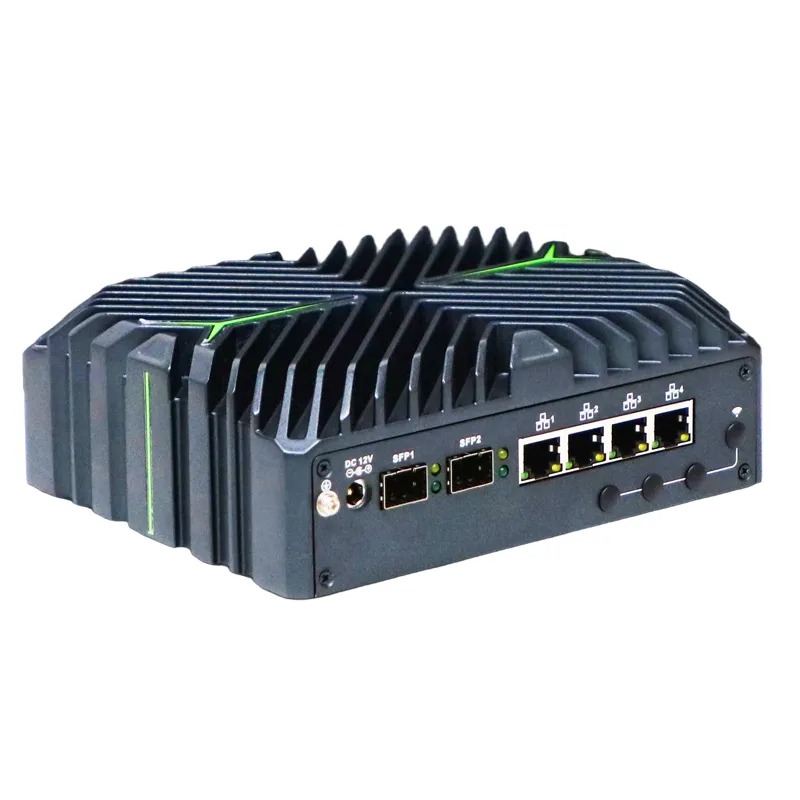

Model: SATA3261
Features:
1. All-aluminum alloy construction, fanless design.
2. Onboard 12th generation Intel® Core™ processor.
3. Support 1xHDMI+1xDP+1xType-C port for simultaneous/asynchronous triple display.
4. Support 4x2.5G Ethernet ports (Intel i226), 2x10GbE SFP+ ports.
5. Support 3xM.2 slots (supporting simultaneous SSD+WIFI+4G/5G).
6. Support 2xDDR5 memory slots, up to 64GB of memory.
7. Compatible with Windows 10/11, iKuai, pfsense, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel®Core i5-1235U, 10 core, 12 threads, Base 2.2GHz, Max. Turbo 4.4GHz, 12MB Cache |
| CPU Optional | Intel®Core i7-1255U, 12 core, 12 threads, Base 2.0GHz, Max. Turbo 4.7GHz, 12MB Cache |
| Memory | 2x DDR5 4800 MHz SODIMM Memory slot, Max. 64GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel® Iris® Xe Graphics eligible |
| Display port | 1xHDMI, 1xDP, 1xType-C HD Display port(support syn and asy display, support 4096x2160 @60Hz Max) |

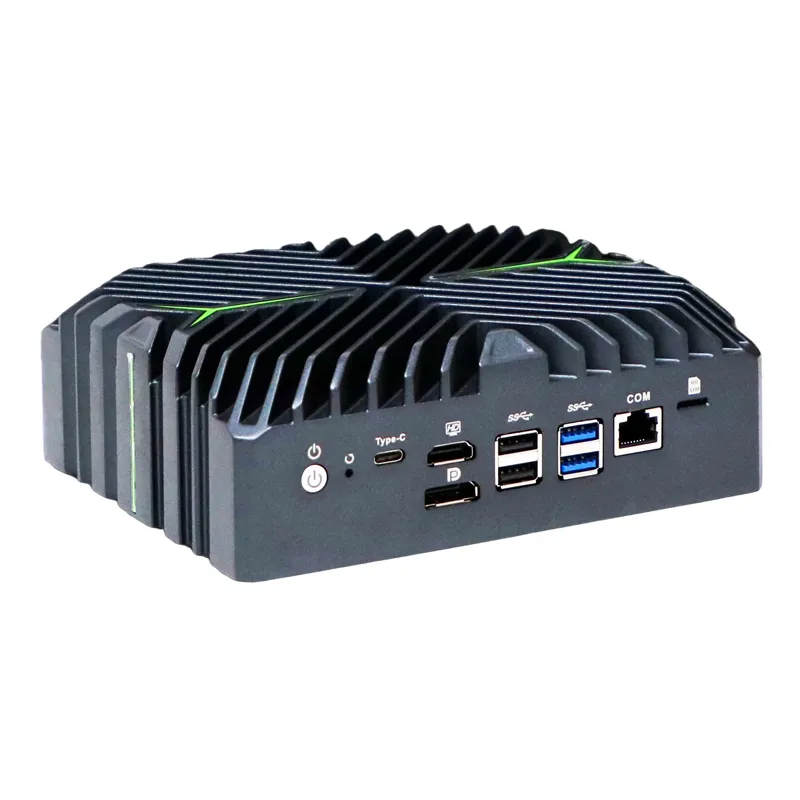

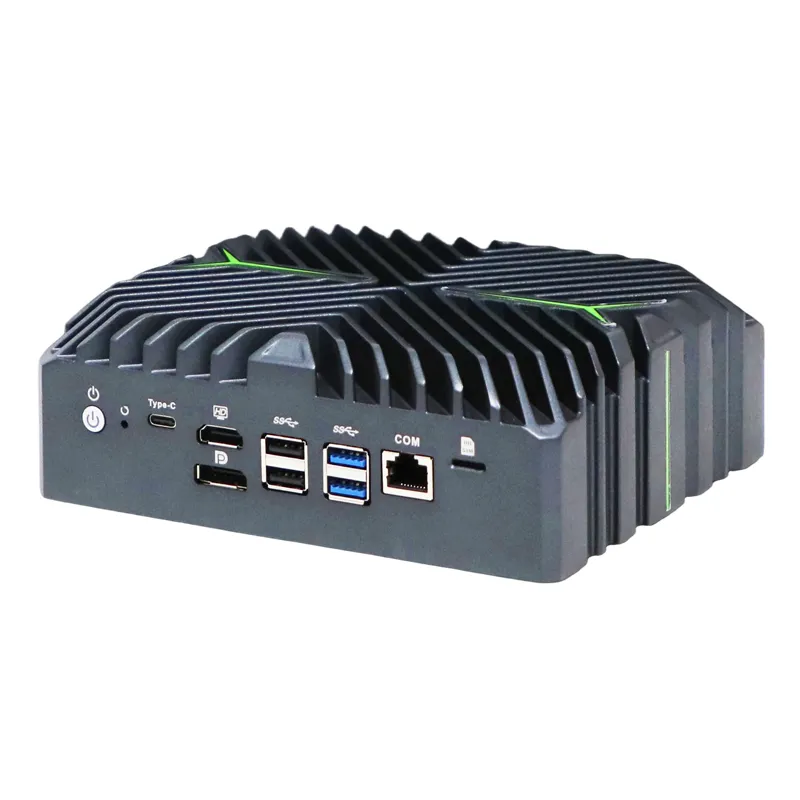

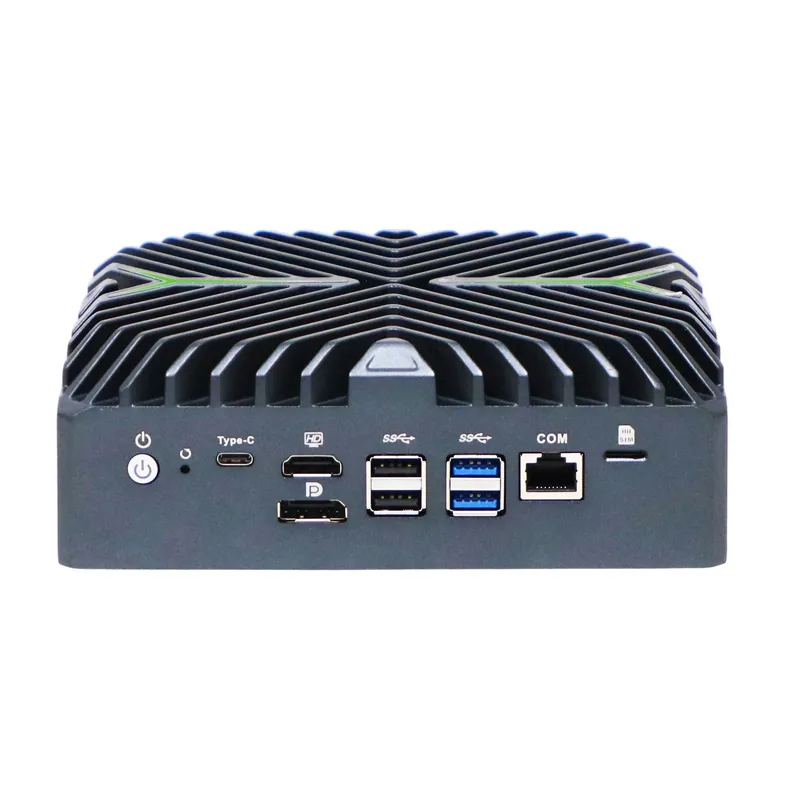

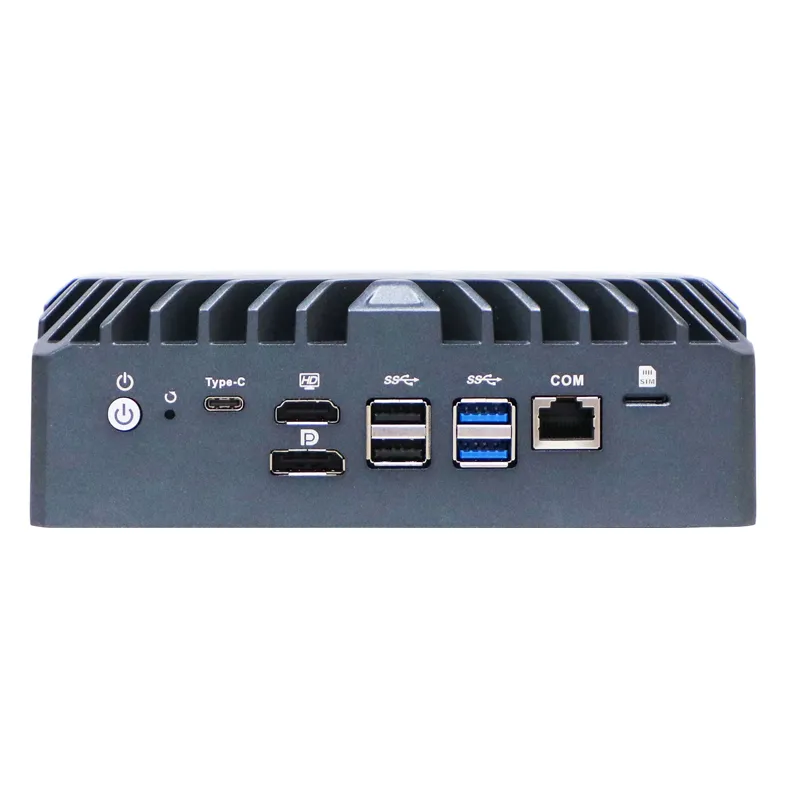

| Front I/O | 1x switch button, 1 restart/BIOS button, 1xType-C port (support video output/USB 3.2/PD 5V1A), 1x DP port, 1xHDMI port, 2xUSB 2.0 ports, 2xUSB 3.2 ports, 1xRJ45 port (support Console function), 1xNano-SIM card slot |

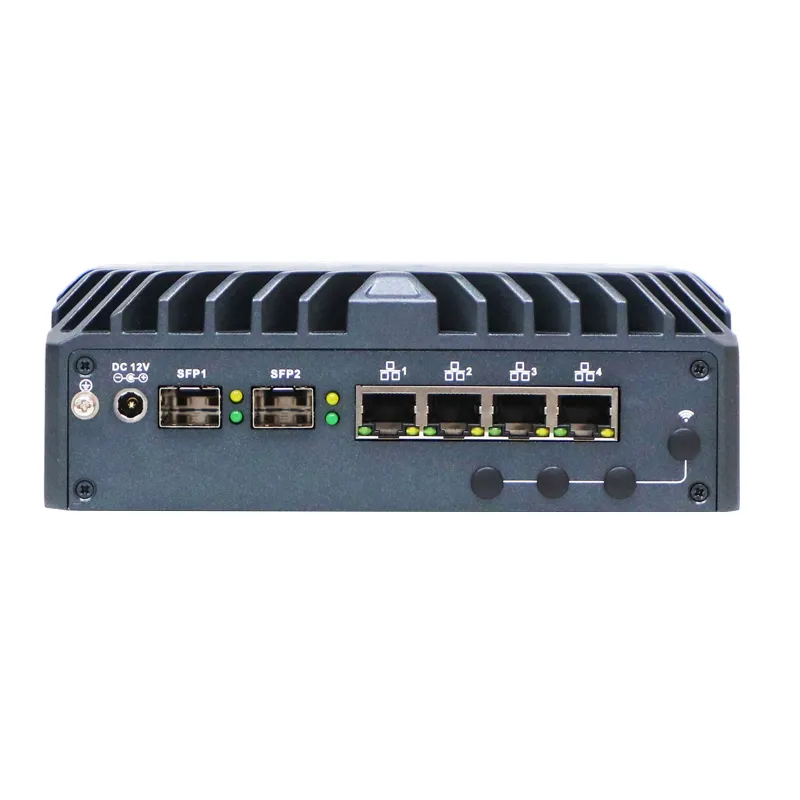

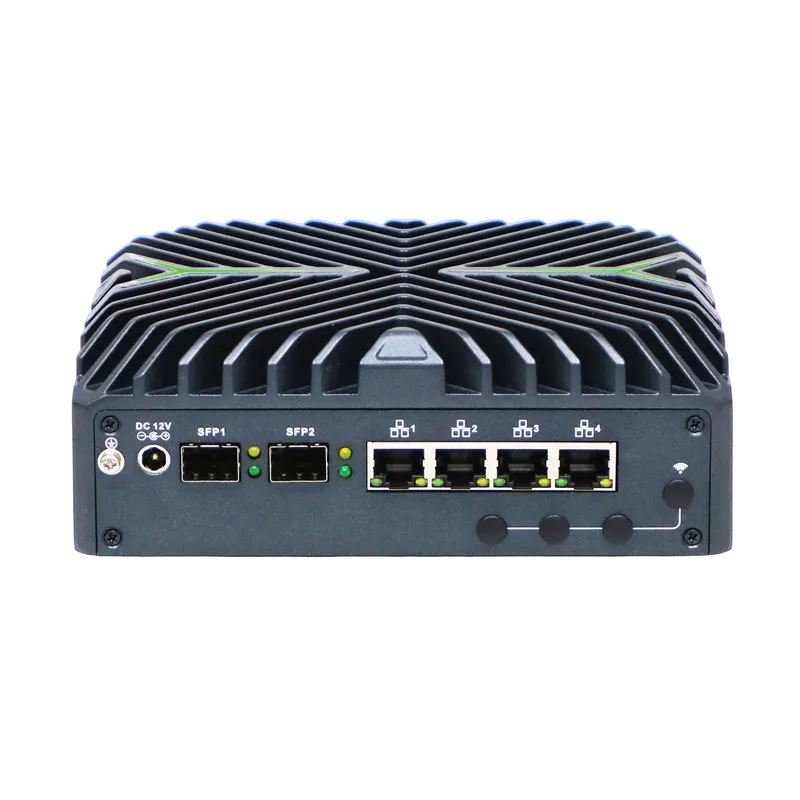

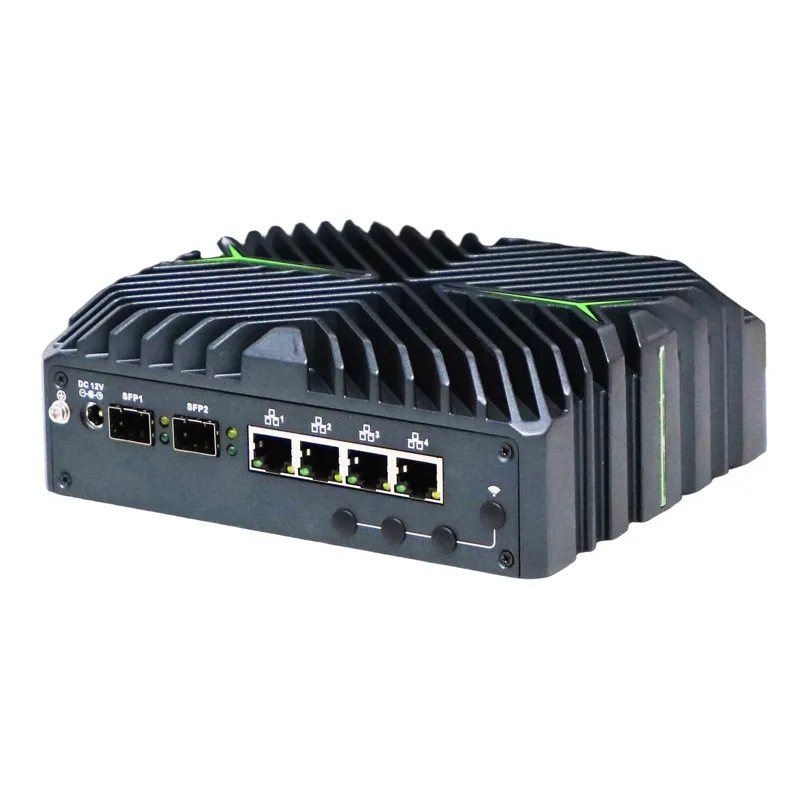

| Rear I/O | 1xDC 12V, 2xIntel 10 GbE SFP+ interfaces, 4xIntel 2.5G network ports |
| Expansion | Support 1xM.2 2280 M-Key slot (only NVME protocol, PCIe 4.0 x4) |
| Support 1xM.2 2230 E-key slot (PCIe & USB protocols/CNVIo2 protocol) | |
| Support 1xM.2 3042/3052 B-key slot (USB3.0 interface, supports 4G/5G), and an external Nano-SIM card slot | |
| Optional: 4xGPIO, 2xUSB 2.0 | |
| Network | 4x Intel i226 100M/1000M/2500M Ethernet interfaces, LAN1 support Intel vPro (i226-LM) Optional |
| 2x 10 GbE SFP+ interfaces (Intel 82599) | |
| Storage port | 1*M.2 2280 Card slot, onboard 1*2.5 inch hard disk |
| Other function | Power-on startup, timed startup, PXE boot, network wake-up, watchdog (0-255 levels), TPM 2.0 security encryption |
| Operation System | Support Windows 10/11, iKuai, pfsense, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Metallic grey |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 50°C(Commercial HDD), -20°C-50°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.29kgs |
| Gross weight | 2kgs |

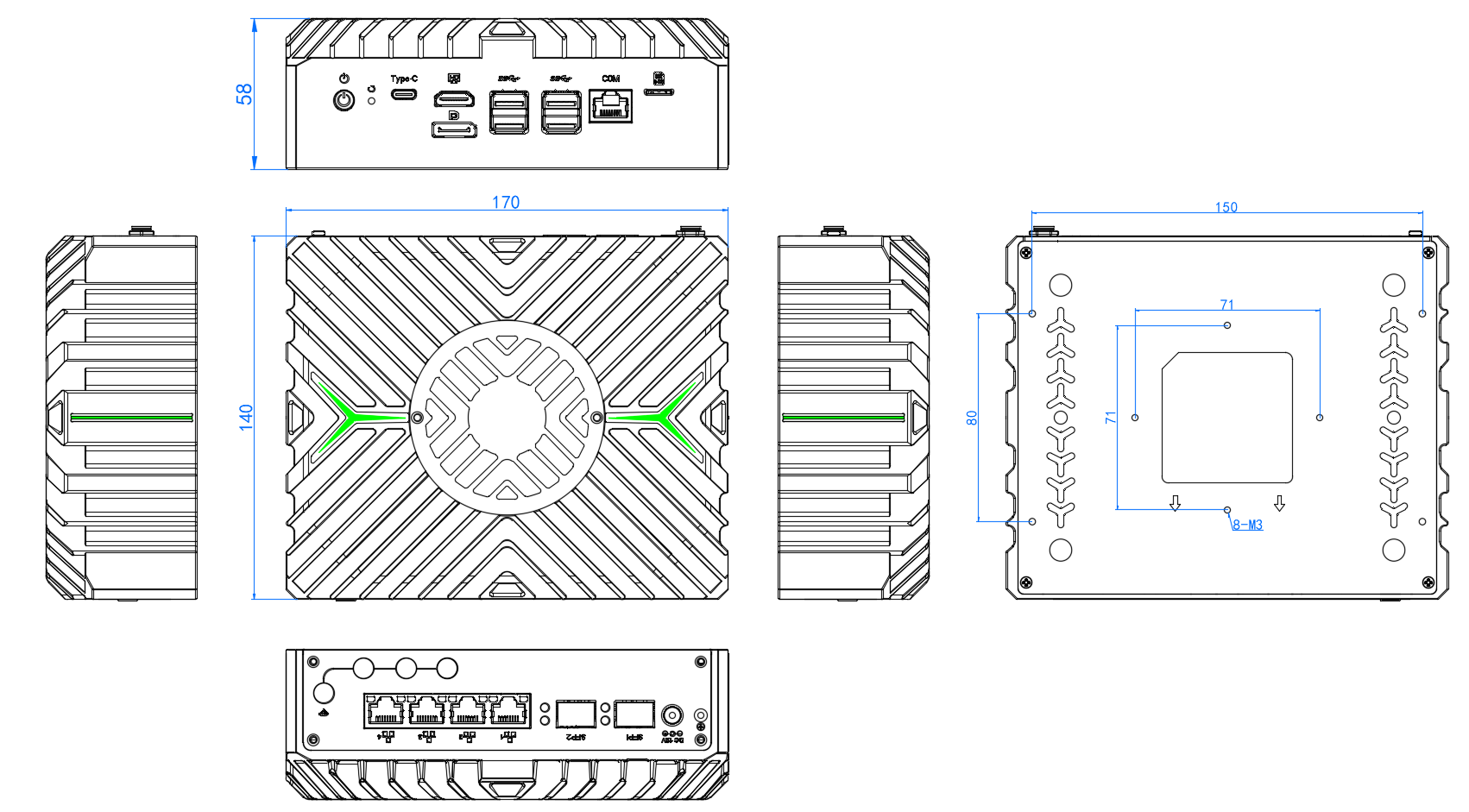

| Product Dimension | 170*140*58mm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Application | Firewalls, VPNs, network servers, network security, routers, and other related fields |
| Warranty | 3 years warranty |
