Model: SATA20K
Features:
1. Full Aluminum alloy enclosure, fanless design.
2. Support Petium 8505, 13th Core i5/i7 processor.
3. Support 2xDDR5 Memory Slot, up to 64GB.
4. Support 1xSATA3.0 Slot, 2xM.2 2280 SSD Drive(NVME PCIE4.0x4).
5. 4xIntel I226 2.5G adaptive cards, 2xSFP 10G LAN(4x10G LAN Optional).
6. High performance motherboard, 7x24 continuous operation.
7. Compatible with Windows 10/11, Linux.
| PC | |
| CPU | Intel® Pentium 8505 Processor, FCBGA1744, five core six thread, 1.2GHz |
| CPU Optional | Intel® Core i5-13420H, Qcta core, twelve thread, 2.1GHz, Max. Turbo 4.6GHz, 12MB Cache |
| CPU Optional | Intel® Core i7-13620H, ten core, sixteen thread, 2.4GHz, Max. Turbo 4.9GHz, 24MB Cache |
| Memory | 2*262pin DDR5 SODIMM memory slot(power support 1.1V), Max. Support 64G |
| BIOS | AMI EFI BIOS |
| Storage | 1xSATA3.0 interface, 1xM2 2280 SSD interface (support NVME protocol PCIE4.0 X4) |
| Display Chip | Intel® UHD Graphics for 12th Gen Intel® Processors |
| Display | 1xDP, 1xHDMI |
| Network | 4x INTEL I226 2.5G network card chip, 2 x10G optical ports (Optional 4x10G optical ports/4 electrical ports) |

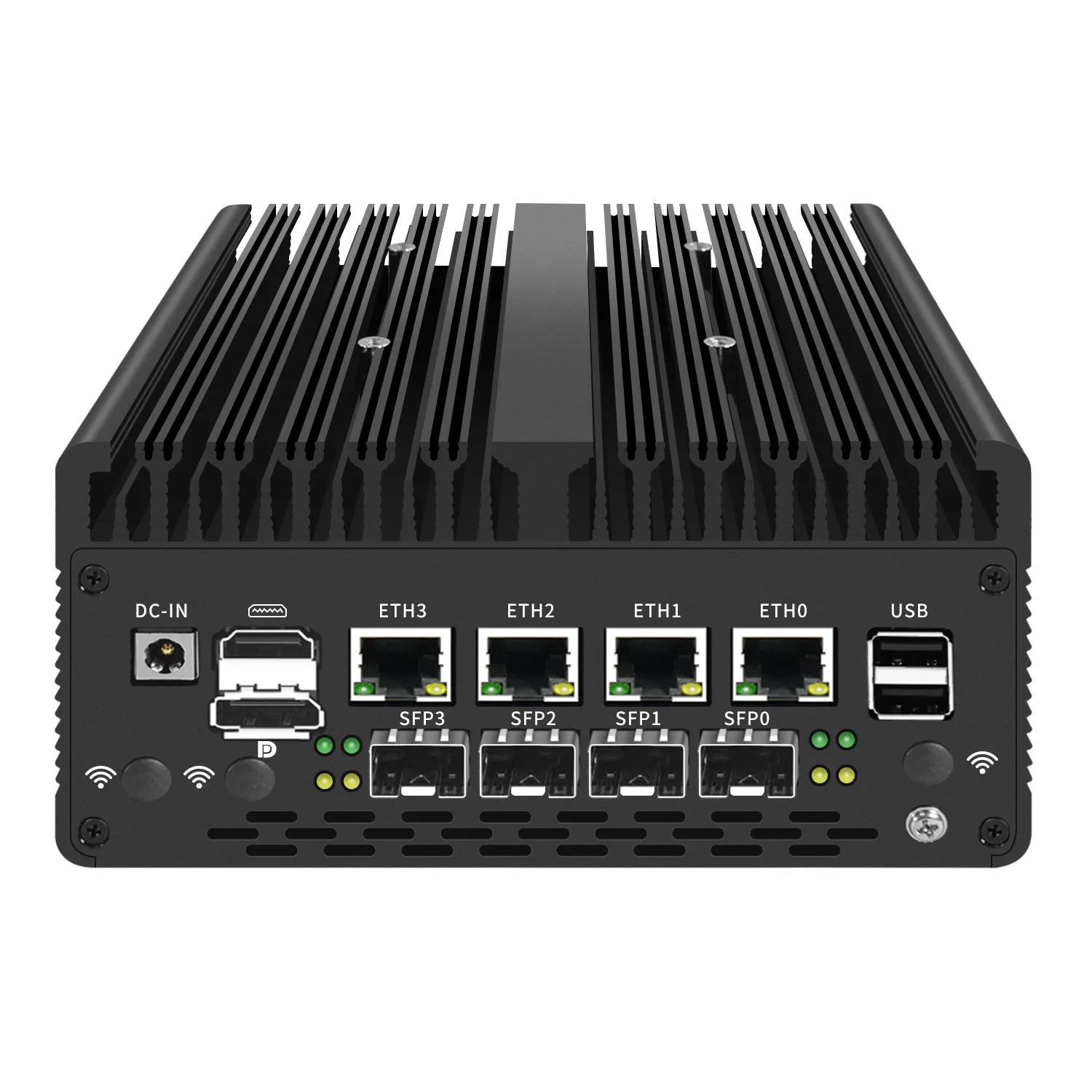

| Front I/O | 4xLAN, 2xUSB2.0, 1xDC, 1xDP, 1xHDMI, 2xSFP 10G LAN |

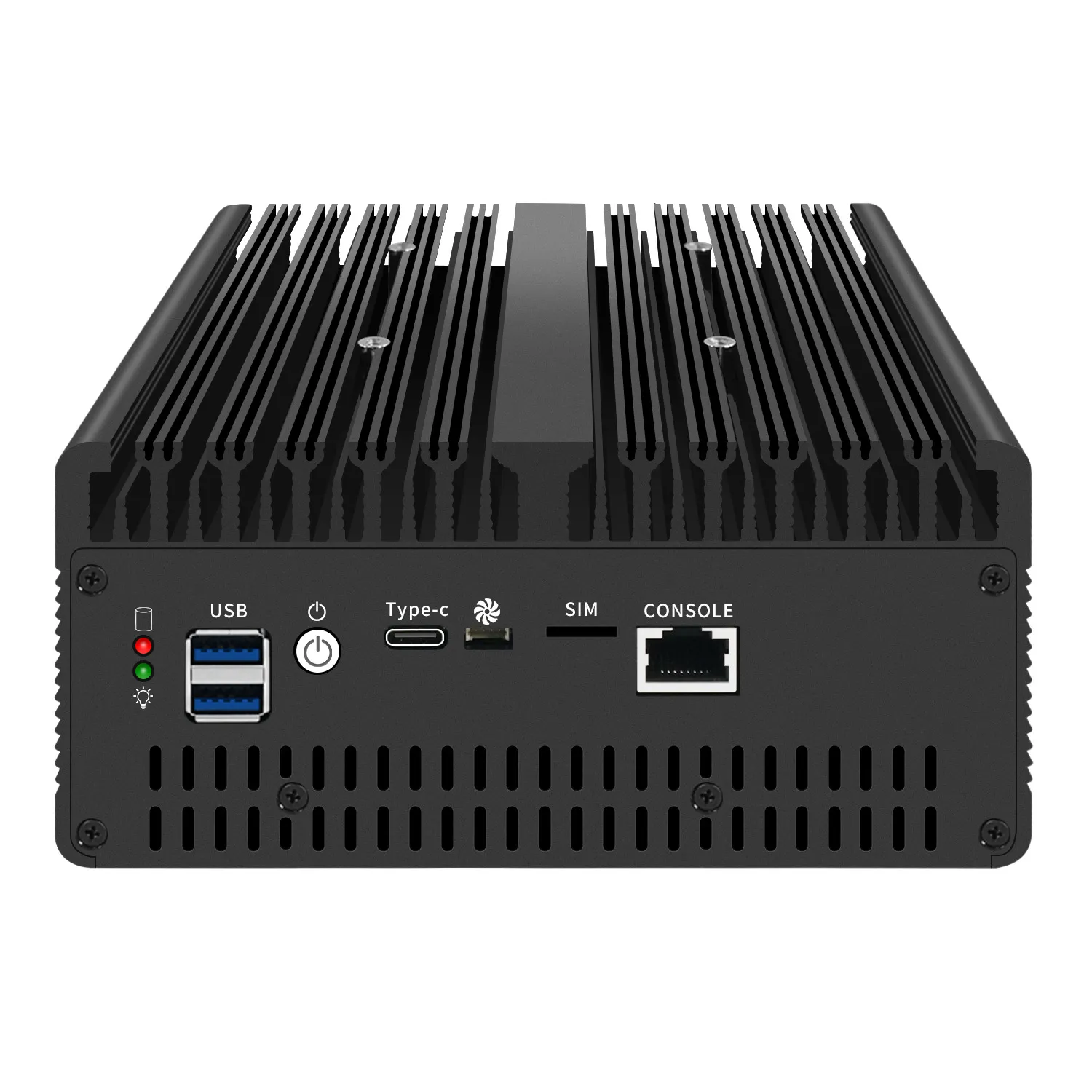

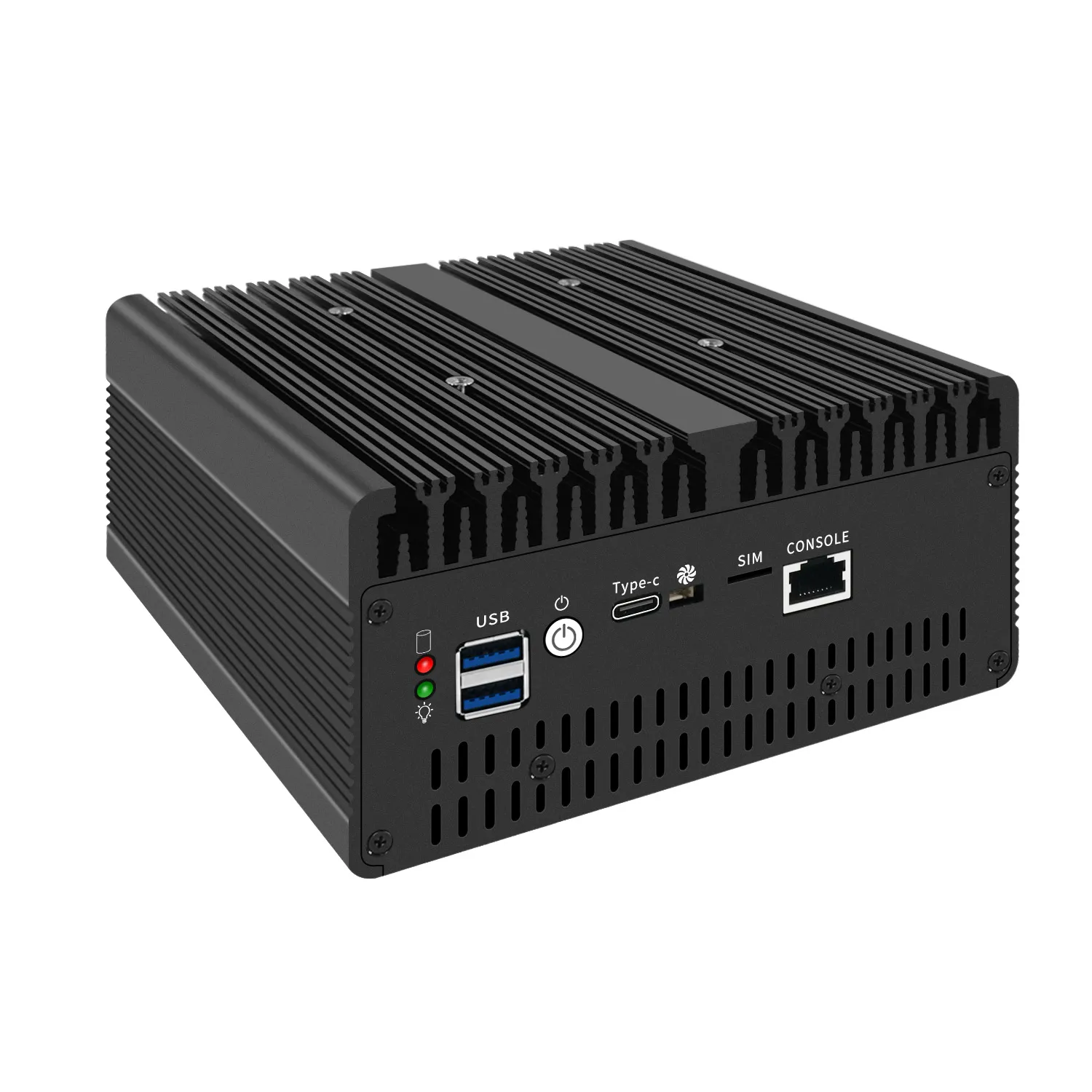

| Rear I/O | 2*USB3.0, 1xPower switch, 1xType-C/SIM Card Slot/Console |
| Expansion Slot | 1x X8 PCI-E expansion slot (PCIE3.0 only X4 signal) 1xM2 3052 interface (PCIE3.0/USB signal), 1x M2 2230 interface (PCIE3.0/USB/CNVI signal) |
| Other function | Power-on startup, timed startup, network wake-up, PXE boot, watchdog |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, color can be customized for bulk orders |
| Operating Environment | |
| Temperature Range | Operating: 0 to 50°C(Commercial HDD), -20°C~+50°C(industrial SSD), surface air flow |
| Relative humidity | 5%~90%, non-condensing |
| Packing Details | |
| Net weight | 1.5kgs |
| Gross weight | 2.5kgs |
| Product Dimension | 15x14.3x8.4cm |
| Packing size | TBD |
| Accessories | Power adapter, power cord, user manual, warranty card |
| Other | |
| Mounting | Vesa mount |
| Desktop | |
| Warranty | 1 year warranty |
