Model: SATA3122
Features:

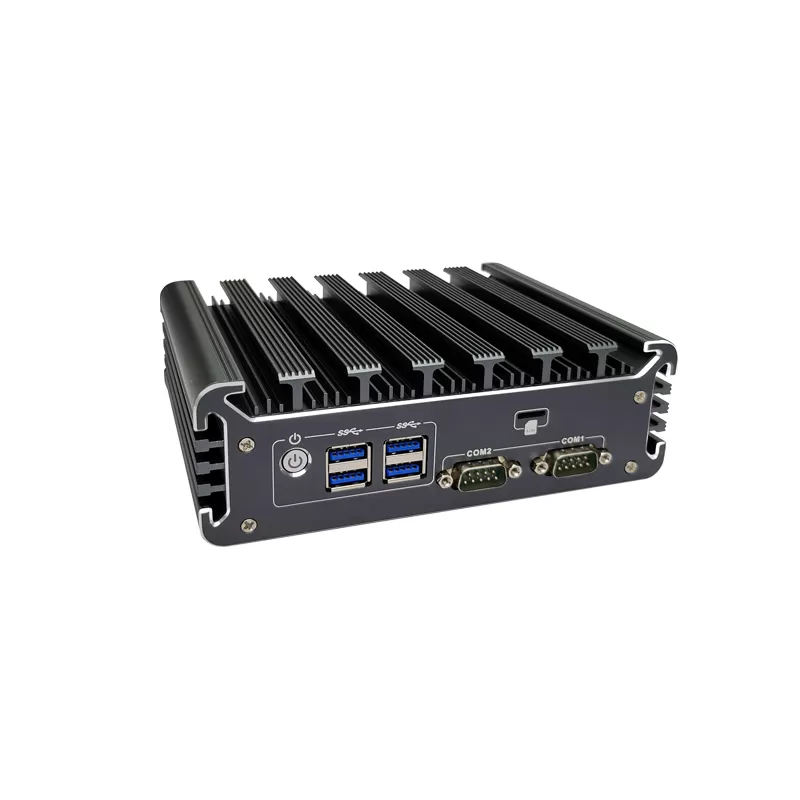

1. All aluminum alloy structure, no fan design.
2. On-board 7th generation Intel ® Core ™ processor.
3. Support 2*Intel i225-V 2.5G Ethernet.
4. Intel Iris Plus Graphics 640.
5. Support TPM2.0 security encryption, can support Windows 11 system.
6. Support 2*COM ports (2*RS232/485 mode Optional).
7. Support DC 12V input.
8. Compatible with Windows 10, Windows 11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i5-7260U (Dual core 4 threads, 2.2G, Max. Turbo 3.4G) |
| RAM | Support 1*DDR4 2133 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Iris Plus Graphics 640 |
| Display Port | 1*DP, 1*HDMI |

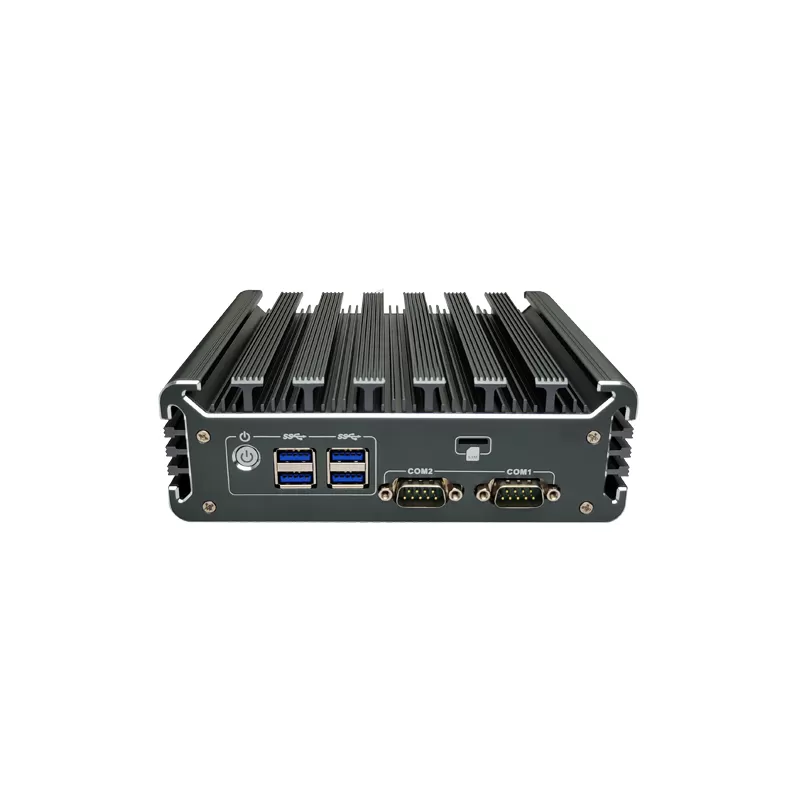

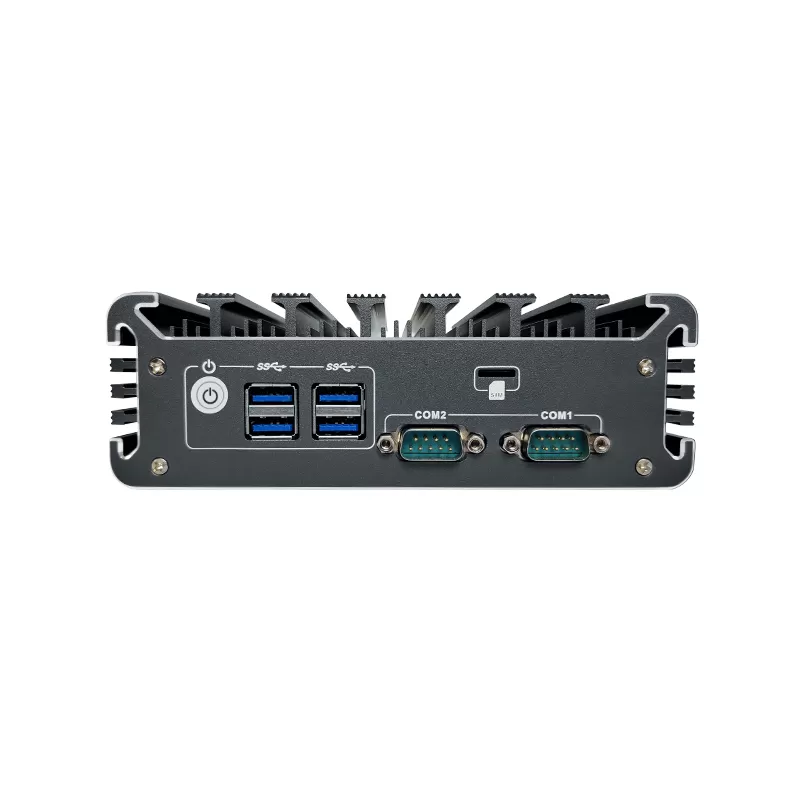

| Front I/O | 2*COM (2*COM RS232/485 Optional), 4*USB3.0, 1*Power Switch, 1*SIM slot |

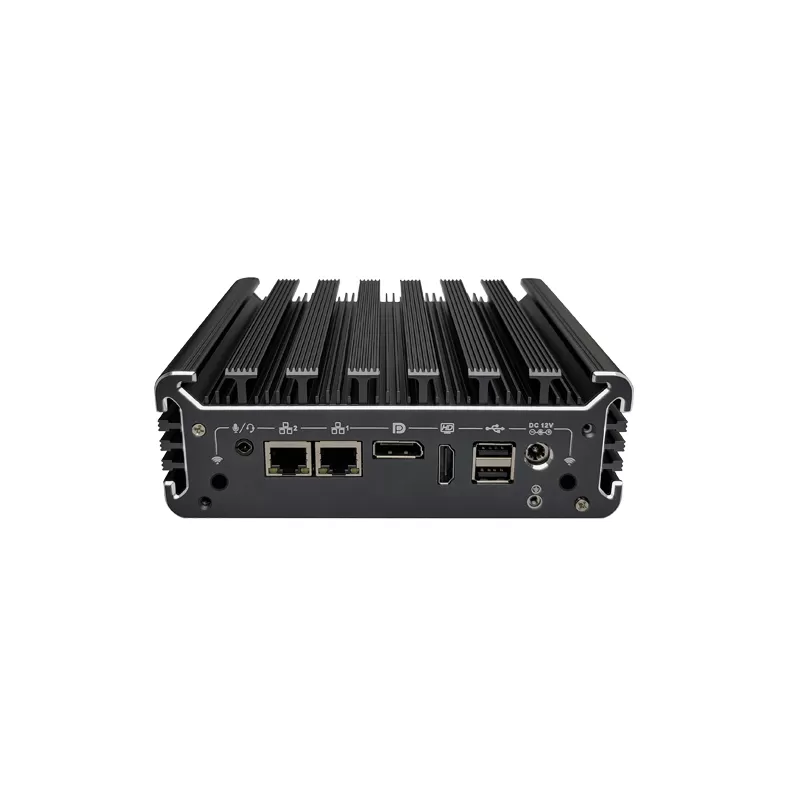

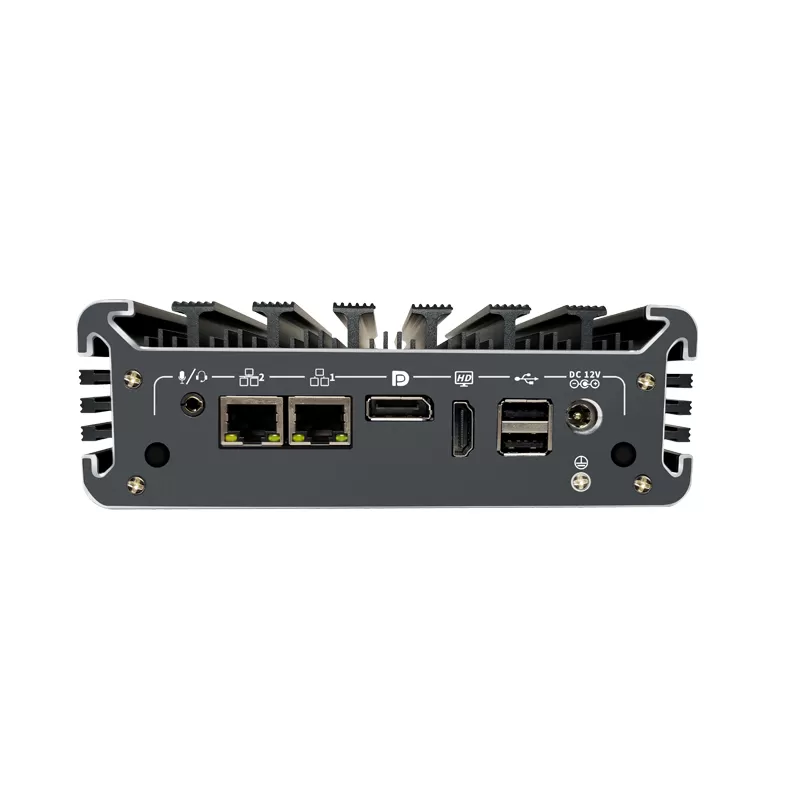

| Rear I/O | 1*DC-IN, 2*USB2.0, 1*HDMI, 1*DP, 2*Intel i225-V 2.5G LAN, 1*Audio (Support Mic and Speaker at the same time) |
| Expansion Slot | Support 1*M.2 2280 M-key slot (Support SATA and NVME Protocol) |
| Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three), external SIM socket | |
| Network | 2*Intel i225-V 2.5G 1000/2500M LAN |
| Storage | Support 1*M.2 2280 slot, 1*2.5” Hard disk, support RAID 0/1 |
| Other Function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0 ~ 255) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Black (Color can customize) |
| Operating Environment | |
| Temperature Range | Operating: 0°C~ +40°C (HDD), -20°C~ +50°C (Industrial grade SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.16kgs |
| Gross weight | 2kgs |

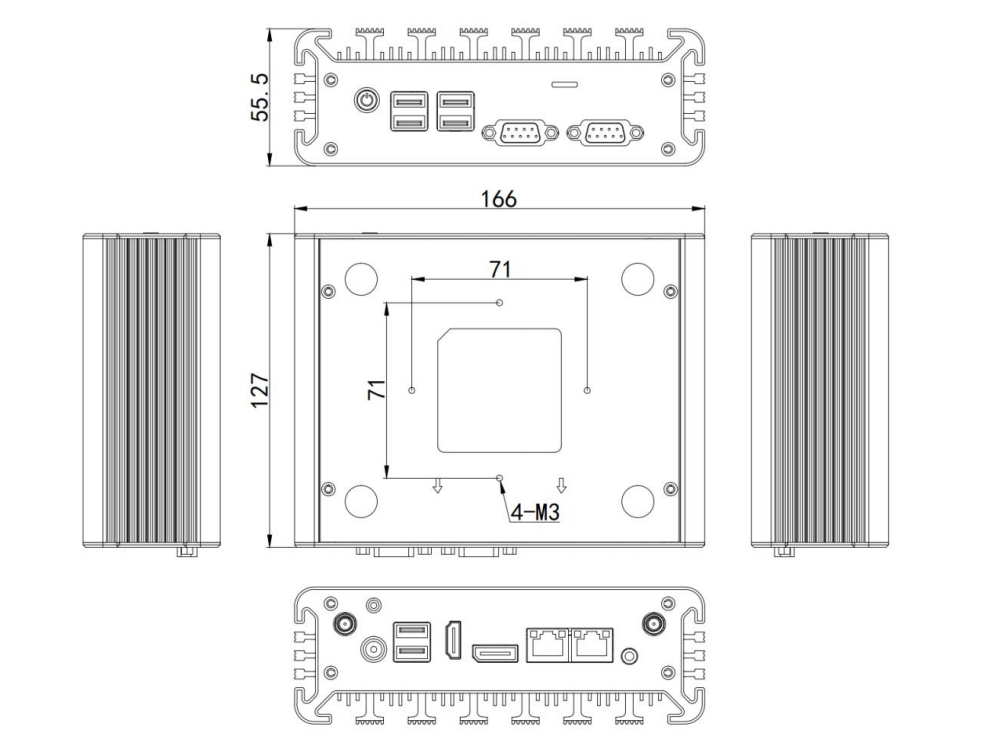

| Product Dimension | 16.6*12.7*5.55cm |
| Packing size | 21*16*13.5cm |
| Accessories | Power adapter, power cord, warranty card |
| Other | |
| Mounting (options) | Wall mounting brackets (Optional) |
| Application | Industrial automation, medical, logistics, transportation, warehousing, e-education and etc |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
