Model: SATA3281
Features:

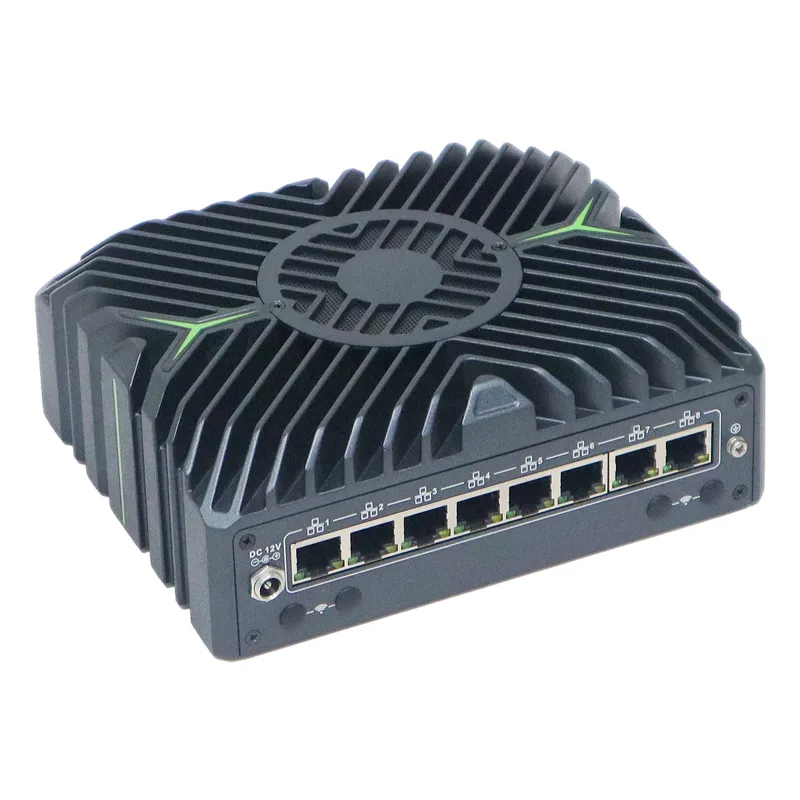

1. All-aluminum alloy construction with fan-assisted efficient heat dissipation.
2. Onboard 14th generation Intel® Core™ Ultra processor.
3. 8x Ethernet ports (1 Intel i226-LM supporting vPro, 7 Intel i226-V).
4. 1x HDMI+1x DP+1x Type-C port, supporting synchronous/asynchronous triple display.
5. Can simultaneously support M.2 (NVMe) + 2.5-inch SSD + WIFI + 4G/5G.
6. Compatible with Windows 10/11, iKuai, pfsense, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Onboard Intel® Core™ Ultra 5 125U (12 core 14 threads, Max. Turbo 4.3G, 12MB Cache) |
| CPU Optional | Onboard Intel® Core™ Ultra 7 155U (12 core 14 threads, Max. Turbo 4.8G, 12MB Cache) |
| NPU | Intel® AI Boost（Max Frequency 1.4 GHz） |
| Memory | 2x DDR5 5600 MHz SODIMM Memory slot, Max. 64GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel® Iris® Xe Graphics eligible |
| Display port | 1xHDMI, 1xDP, 1xType-C HD Display port(support syn and asy display, support 4096x2160 @60Hz Max) |

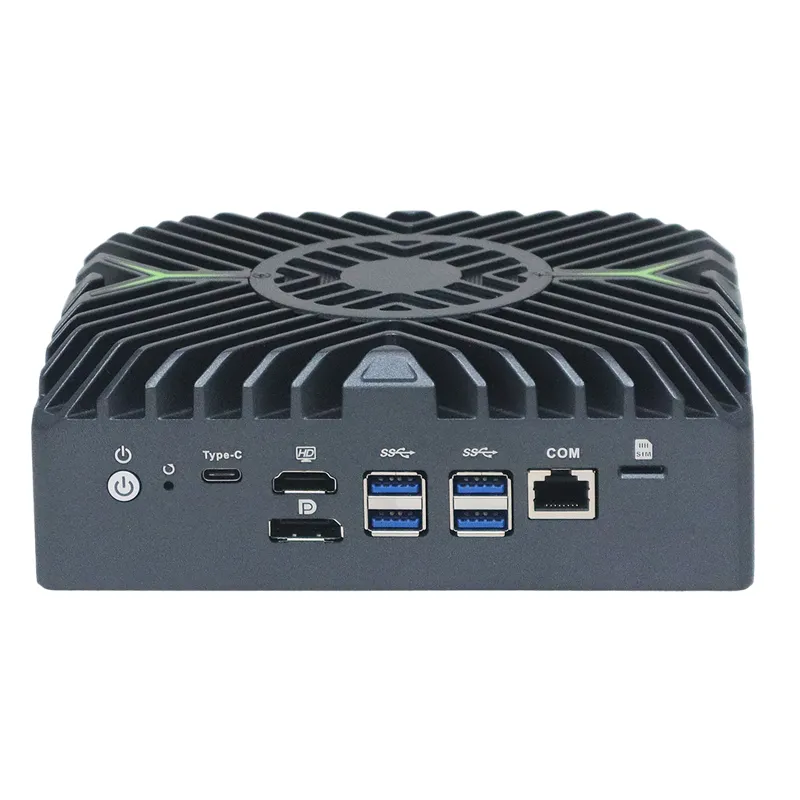

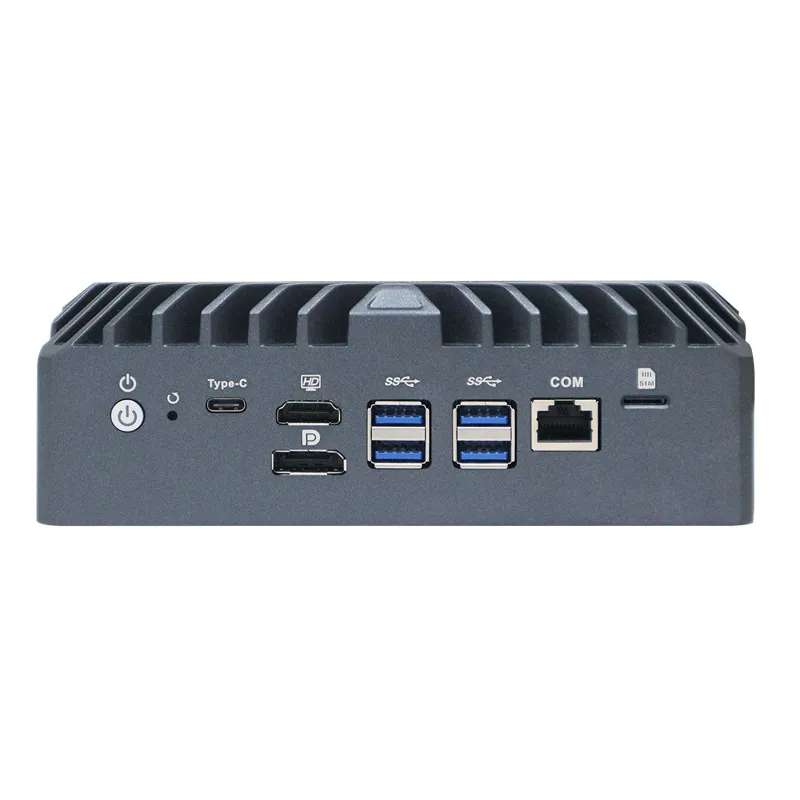

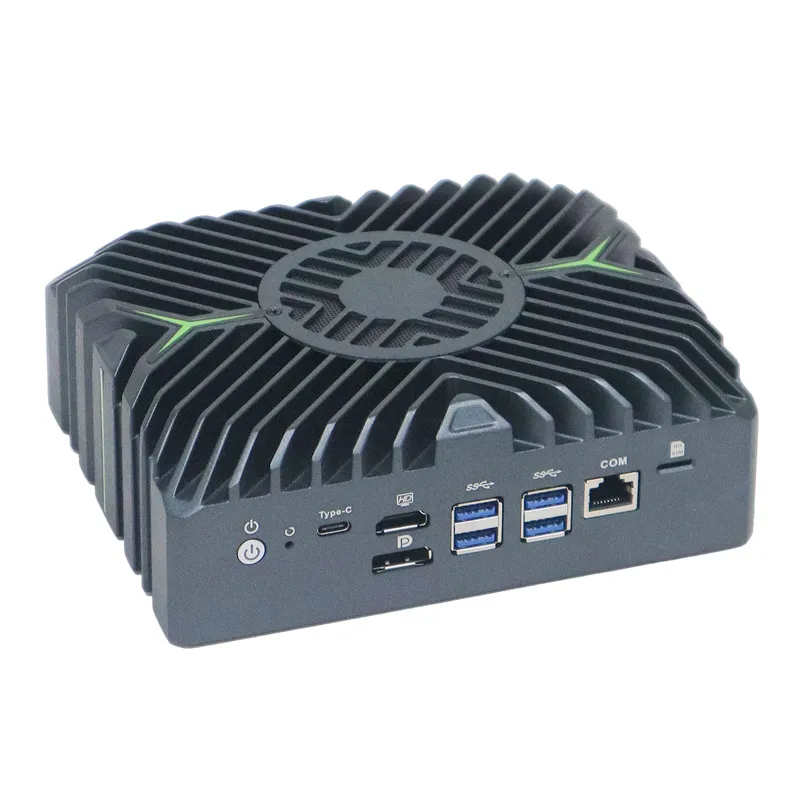

| Front I/O | 1x switch button, 1 restart/BIOS button, 1xType-C port (support video output/USB 3.2/PD 5V1A), 1x DP port, 1xHDMI port, 4xUSB 3.2 ports, 1xRJ45 port (support Console function), 1xNano-SIM card slot |

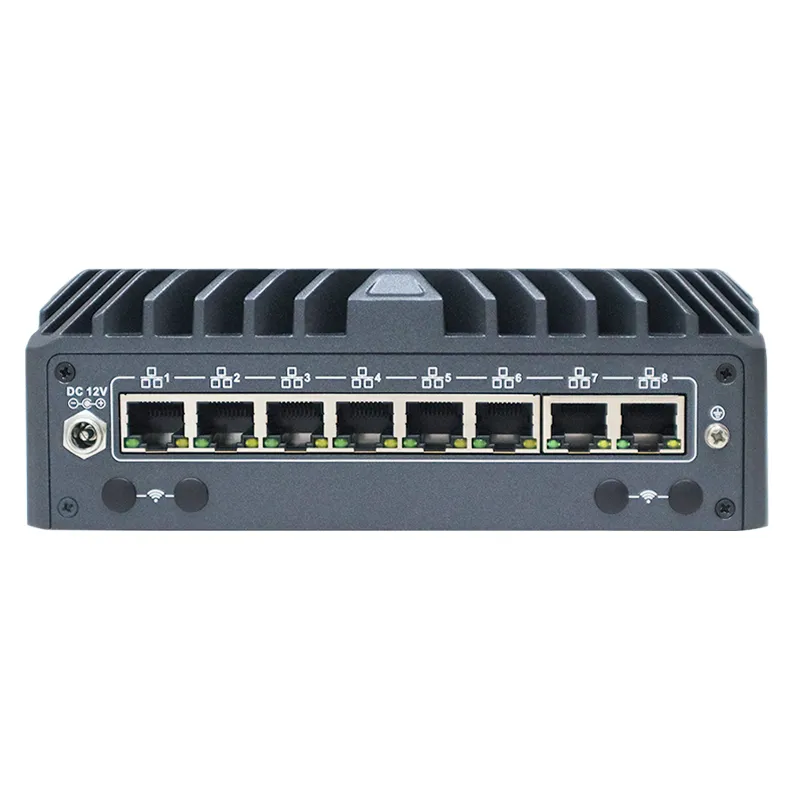

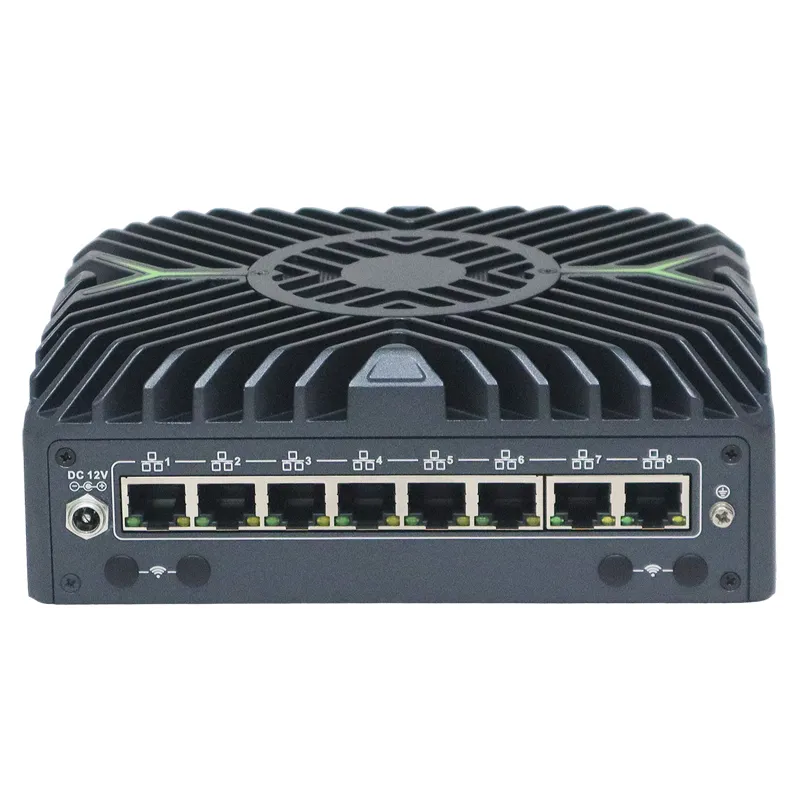

| Rear I/O | 1xDC 12V, 8x Intel 2.5G network ports(1x Intel i226-LM vPro, and 7x Intel i226-V vPro) |
| Expansion | Support 1xM.2 2280 M-Key slot (only NVME protocol, PCIe 4.0 x4) |
| Support 1xM.2 2230 E-key slot (only CNVio2 protocol WIFI modules) | |
| Support 1xM.2 3052(3042) B-key slot (USB3.0 interface, supports 4G/5G), and an external Nano-SIM card slot | |
| Optional: 4xGPIO, 2xUSB 2.0 | |
| Network | 7x Intel i226-V 100M/1000M/2500M Ethernet Network. LAN 1 is an Intel i226-LM 100M/1000M/2500M Ethernet interface, supporting Intel vPro. |
| Storage port | 1*M.2 2280 Card slot, onboard 1*2.5 inch hard disk |
| Other function | Power-on startup, timed startup, PXE boot, network wake-up, watchdog (0-255 levels), TPM 2.0 security encryption |
| Operation System | Support Windows 10/11, iKuai, pfsense, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Metallic grey |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 40°C(Commercial HDD), -20°C-50°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.33kgs |
| Gross weight | 2kgs |

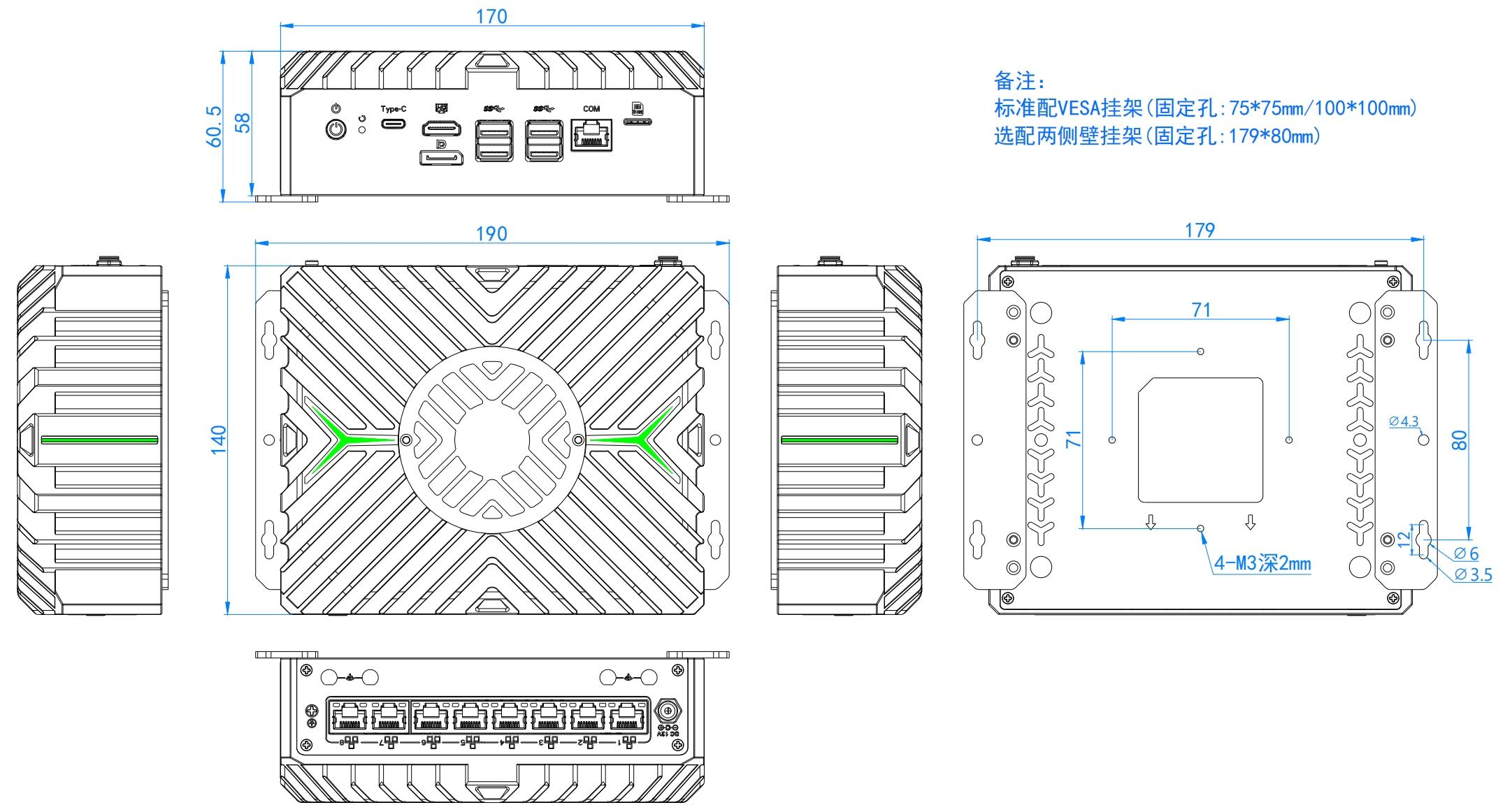

| Product Dimension | 170*140*58mm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Application | Firewalls, VPNs, network servers, network security, routers, and other related fields |
| Warranty | 3 years warranty |
