Model: SATA05
Features:
1. All aluminum alloy structure, no fan design.
2. On-board Intel Celeron N3700 quad-core processor.
3. Support DDR3L 8G memory.
4. Support 1 MSATA slot, 1 2.5-inch hard disk bit.
5. Support synchronous/asynchronous three display, can support 4K resolution display.
6. Compatible with Win7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Pentium N3700 (Quad Core, Quad thread, Base 1.6GHz, turbo 2.24GHz 2MB cache) |
| Chipset | Adopt Intel express chipset |
| Memory | 1*SODDR3L 1333/1600MHz SODIMM Memory Slot (Can up to 8G) |
| BIOS | AMI UEFI BIOS |
| Graphics | Integrated Intel HD Graphics Card |
| Display port | 1*DP, 2*HDMI(Support syn/asy trial display, support 3840x2160@30Hz) |
| Storage | 1×MSATA, 1x2.5 inch hard drive slot |
| Network | 2x10/100/1000M RTL8111E Ethernet port |

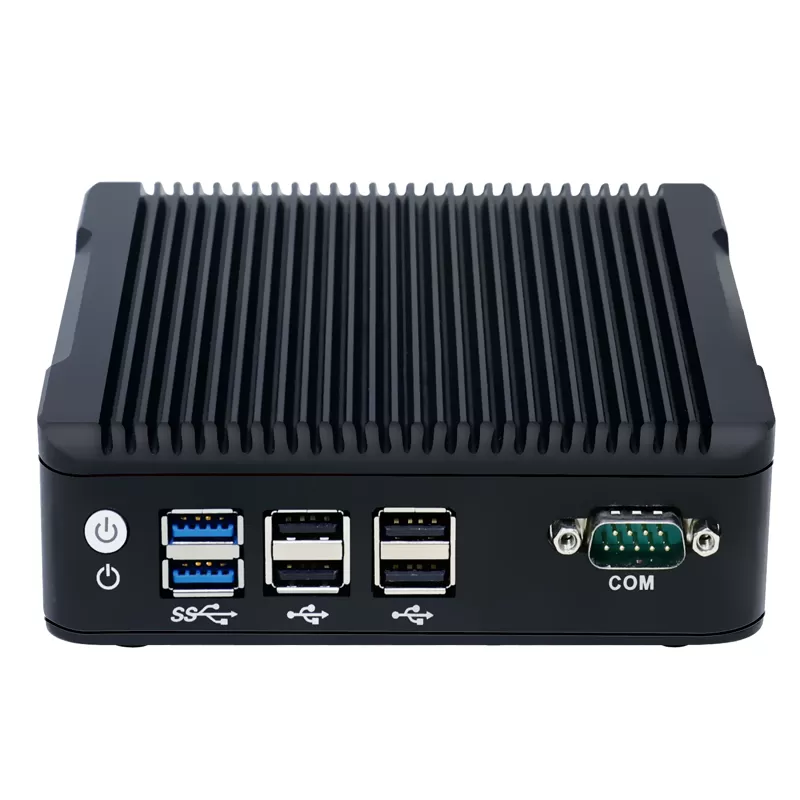

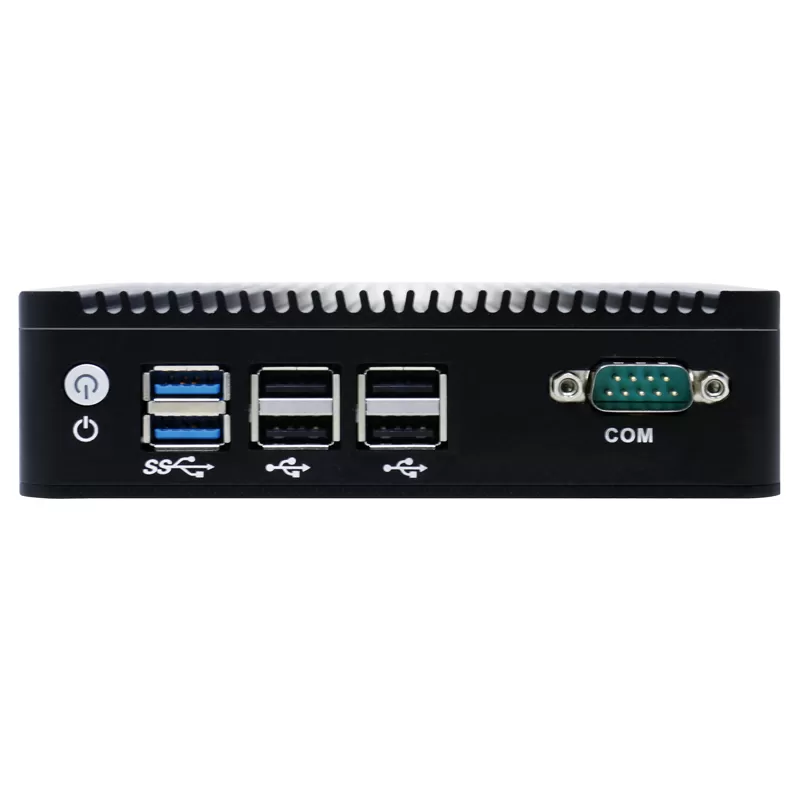

| Front I/O | 1xPower switch, 1xUSB3.0, 3xUSB2.0, 2xRS232 |

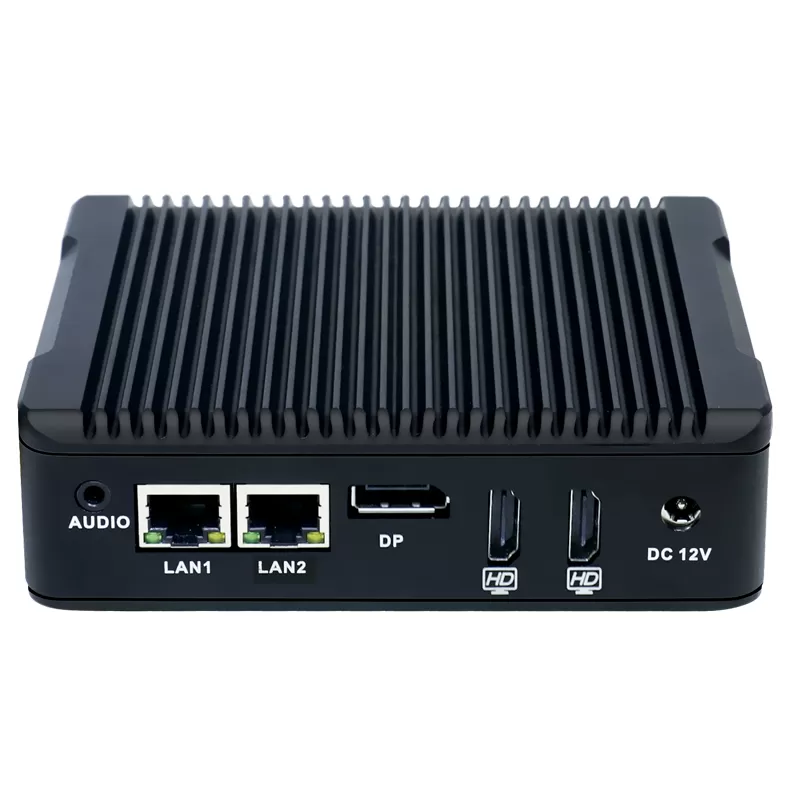

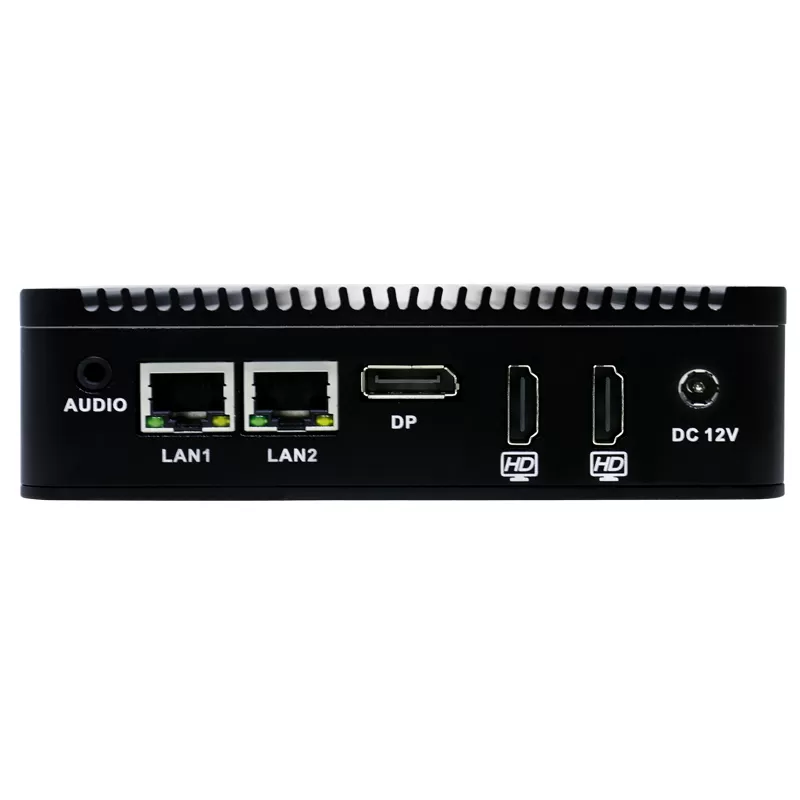

| Rear I/O | 1xAudio, 2xRJ45 Ethernet, 1xDP, 2xHDMI, 1xDC input |
| Expansion | 1xMINI PCIE Card Slot(support MSATA) |
| 1xMINI PCIE Card Slot(WIFI/3G/4G Optional), with SIM Card socket | |
| WDT | Support hardware reset(256level, 0-255 sec) |
| Other Function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| OS | Win 7/8/10, Ubuntu, Debian and Fedora and etc |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminium Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | 0-50°C(Commercial HDD), -20 to 50°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 0.7kg |
| Gross weight | 2.1kgs |

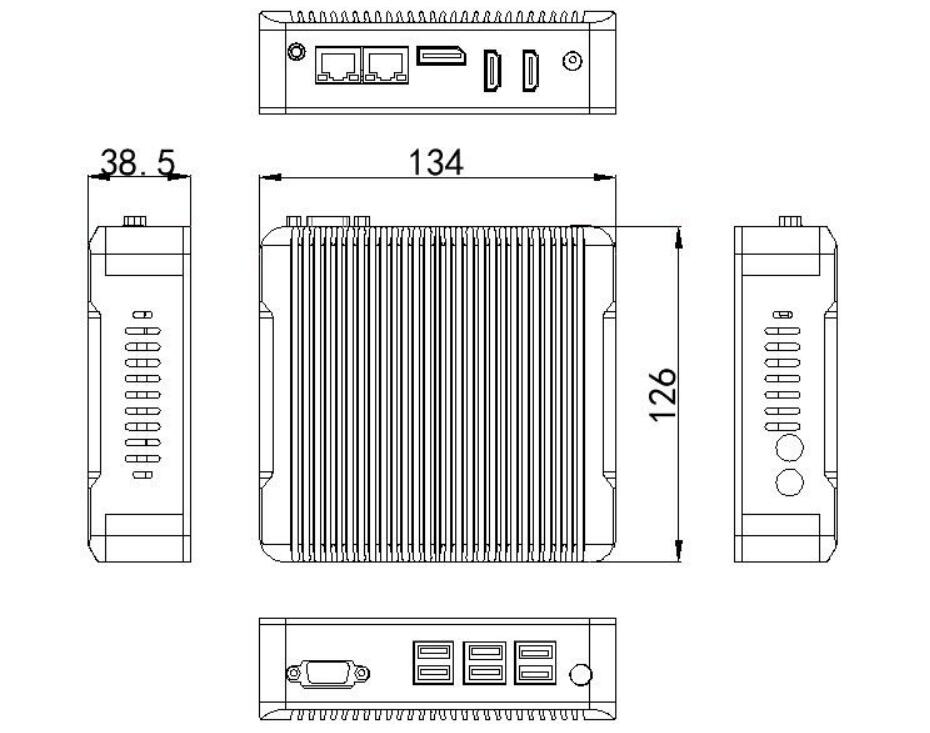

| Product Dimension | 134×126×38.5mm |
| Packing size | 19×15×15 cm(1pc), 79.5×32.5×26cm(16pcs) |
| Accessories | Power adapter, power cord, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | Vesa brackets(Free) |
| Desktop(Optional) | |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
