Model: SATA13
Features:
1. All aluminum structure, fanless design.
2. Onboard Intel Core i3-8130U.
3. 2xDDR4 1866/2133 32G Max.
4. Support 1xMSATA, 1x2.5"HDD.
5. Support 6xIntel 1000M LAN.
6. Support 1xRJ45 COM(Support console)
7. Compatible with Win7/8/10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Core i3-8130U, dual core quad thread, 2.2GHz, Turbo 1.8GHz |
| Chipset | Skylake-U/Kabylake-U |
| BIOS | 64MB SPI FALSH |
| Memory | 2xDDR4 1866/2133MHz(Max 32G) |
| Graphics | Integrated Intel HD Graphics 610/620, 1*HDMI(No sound output) |
| Expansion | Support 1*MINI PCIE Channel(WIFI/Bluetooth Optional) |
| Storage | 1×MSATA, 1*SATA3.0 |
| Audio | Intergrated Realtek ALC662 6 sound channel |
| Network | 6*Intel 82583V 10/100/1000M LAN |
| I/O Interface | 4×USB 3.0, 1*HDMI/Power switch, 1*RJ45 COM(Support CONSOLE), 6*RJ45 1000M LAN 1*DC 12V Input |
| WDT | Support hardware reset(256level, 0-255 sec) |
| OS | Win 7/8/10, Ubuntu, Debian, Fedora and etc |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminium Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | -10 to 50°C |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.6kgs |
| Gross weight | 2.1kgs |

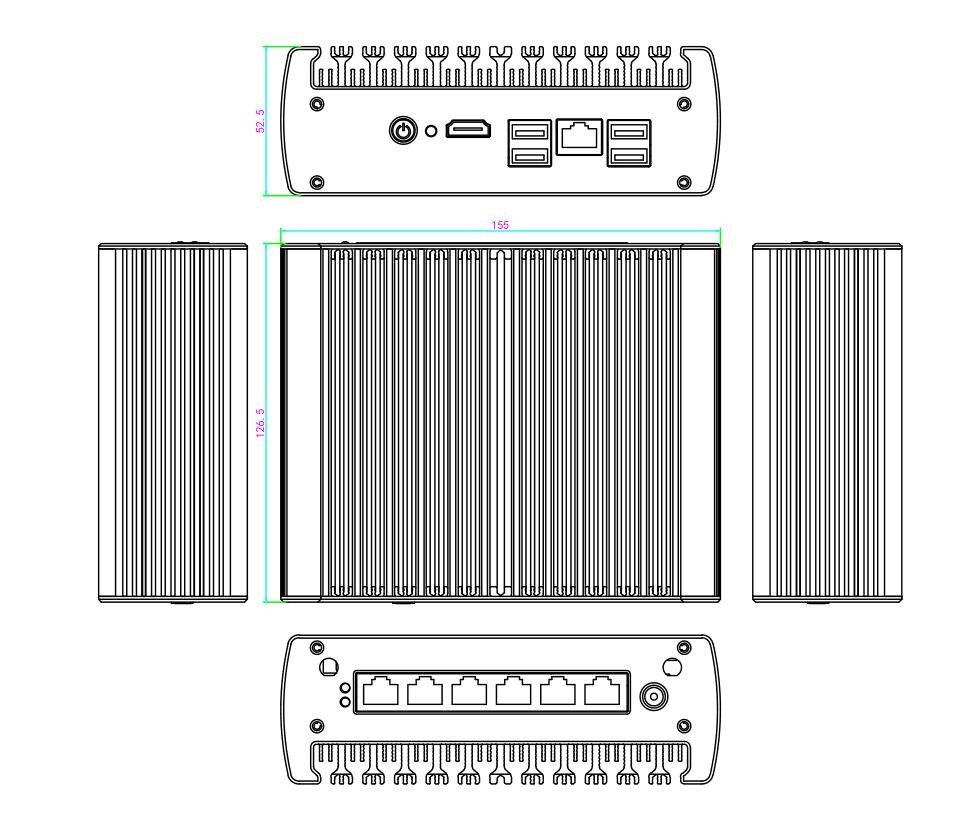

| Product Dimension | 15.5×12.7×5.3cm |
| Packing size | 19×15×15 cm(1pc), 79.5×32.5×26cm(16pcs) |
| Other | |
| Mounting | Vesa brackets(Free) |
| Desktop(Optional) | |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
