Model: SATA180
Features:
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Support processor Intel i3-8130U, i5-7200U.
4. Support MAX DDR4 2133 32GB.
5. Support 1*M.2 Slot, 1*2.5 inches hard drive.
6. Support WIFI/3G/4G(Choose 1 of 3).
7. Support 4*USB 3.0, 2*USB2.0.
8. Compatible Windows 7/8/10, Ubuntu, Debian, Federa and etc.
| Model: SATA180 | |
| PC | |
| CPU | Intel® Core i3-8130U, dual core, quad Core, 2.2GHz Turbo 3.4GHz 4MB Cache |
| CPU Optional | Intel® Core i5-7200U, dual core, Quad Core, 2.5GHz Turbo 3.1GHz 3MB Cache |
| CPU Architecture | Kabylake |
| Memory | Support 1x DDR4 2133 MHz SODIMM Slot Max 32GB |
| Storage | 1x M.2 2280 Slot, 1x 2.5 inch Hard drive |
| Display | 1x DP, 1x HDMI |
| Display Chip | Integrated Intel HD Graphics 620 card |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2xRTL8111H 10/100/1000M Ethernet |

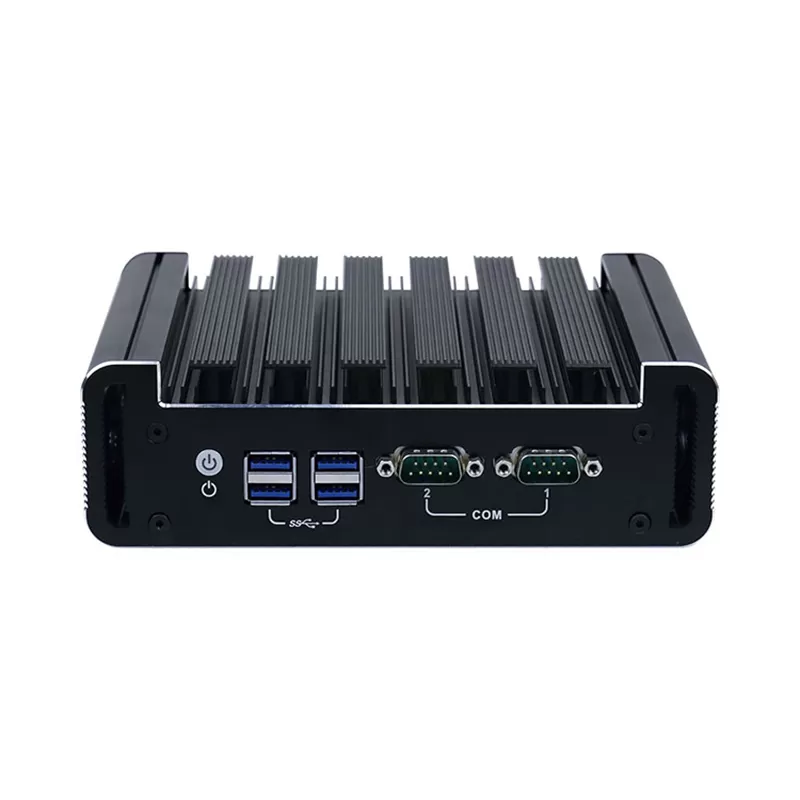

| Front I/O | 4xUSB3.0, 1xPower switch, 2xCOM |

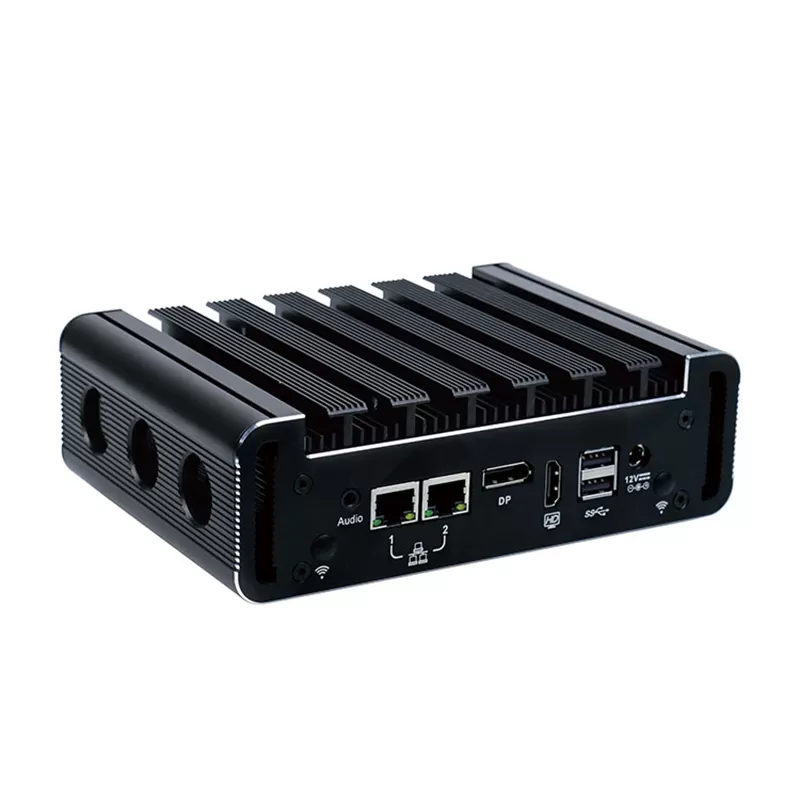

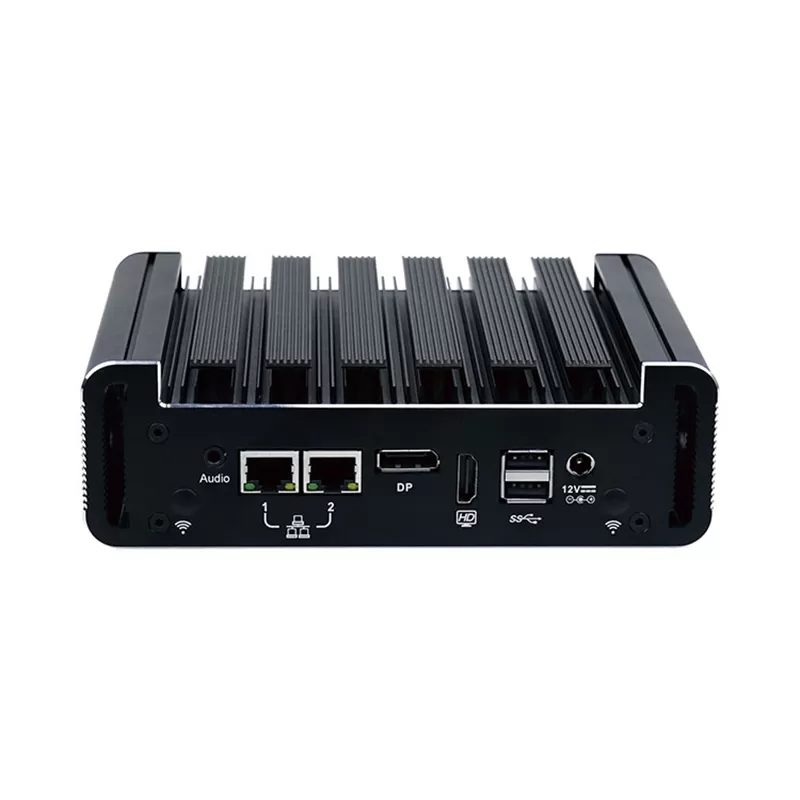

| Rear I/O | 2xRJ45 1000M Lan, 2xUSB 2.0, 1x HDMI/DP/2 in 1 Audio/DC 12V input |
| Expansion Slot | Support 1*M.2 2280 M-key Slot(support SATA protocol and NVME protocol) |
| Support 1*MINI PCIE Slot(WIFI/3G/4G), 1*SIM card socket | |
| Other Function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, color can be customized for bulk orders. |
| Operating Environment | |
| Temperature Range | Operating: 0~50°C(Commercial HDD), -20~50°C(industrial SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.13kgs |
| Gross weight | 2.5kgs |

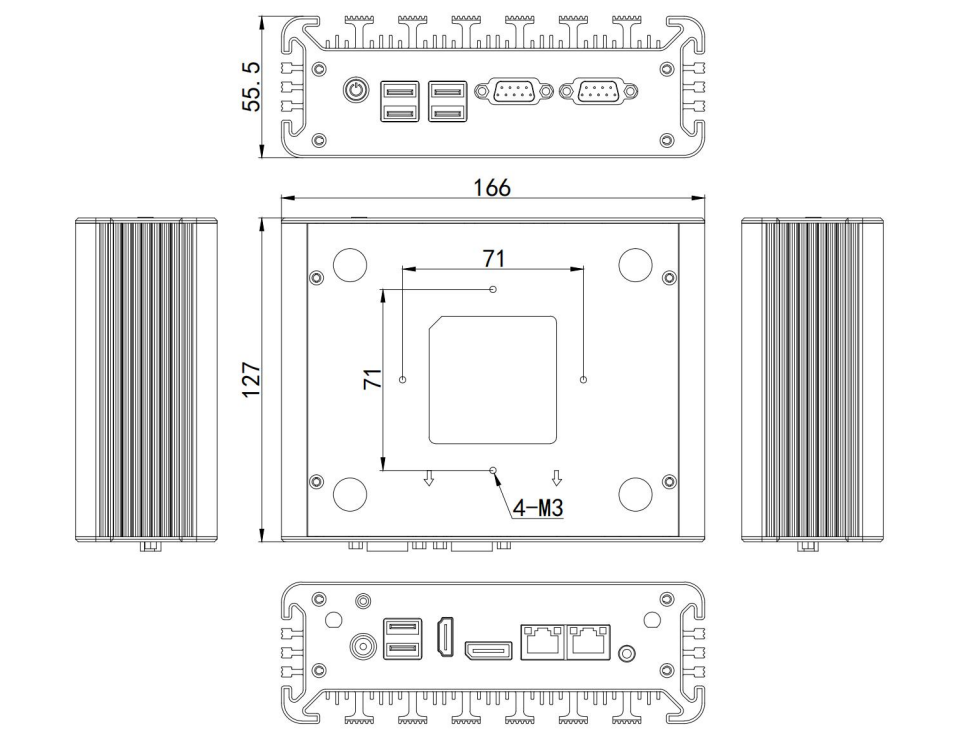

| Product Dimension | 16.6*12.7*5.55cm |
| Packing size | 28*25*8cm |
| Accessories | Power adapter, open frame kits, user manual, warranty card |
| Other | |
| Mounting (options) | Open frame |
| Wall mounting brackets (optional) | |
| Warranty | 3 years warranty |
