Model: SATA-DP2
Features:
1. Intel 12/13th Core i3/i5/i7 CPU Optional.
2. 2x DDR5 SODIMM slots, up to 64GB.
3. DP1.4a+HDMI2.1 dual display, synchronous/asynchronous mode.
4. 2x1000M LAN.
5. Turbine heat dissipation.
| PC | |
| CPU | Intel® Core i3-1215U, six core, eight thread, 1.2GHz, Max. Turbo 4.4GHz |
| CPU Optional | Intel® Core i5-1245U, ten core, twelve thread, 1.3GHz, Max. Turbo 4.4GHz |
| CPU Optional | Intel® Core i7-1265U, ten core, twelve thread, 1.7GHz, Max. Turbo 4.7GHz |
| CPU Optional | Intel® Core i5-1335U, ten core, twelve thread, 1.3GHz, Max. Turbo 4.6GHz |
| CPU Optional | Intel® Core i5-1350P, twelve core, sixteen thread, 1.9GHz, Max. Turbo 4.7GHz |
| CPU Optional | Intel® Core i7-1370P, fourteen core, twenty thread, 1.9GHz, Max. Turbo 5.2GHz |
| Memory | DDR5 SODIMM x2(up to 64GB) |
| Storage | 2x M.2 2280 NVME (One of M.2 port support SATA) |
| Display | 1x HDMI, 1xDP |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2x GbE RJ45 Realtek 8111H |

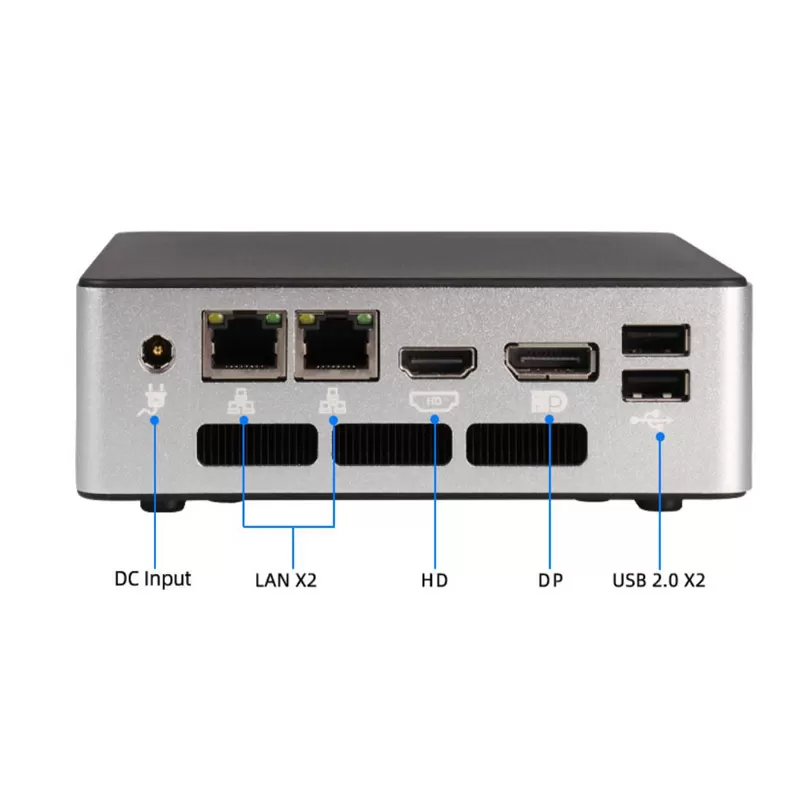

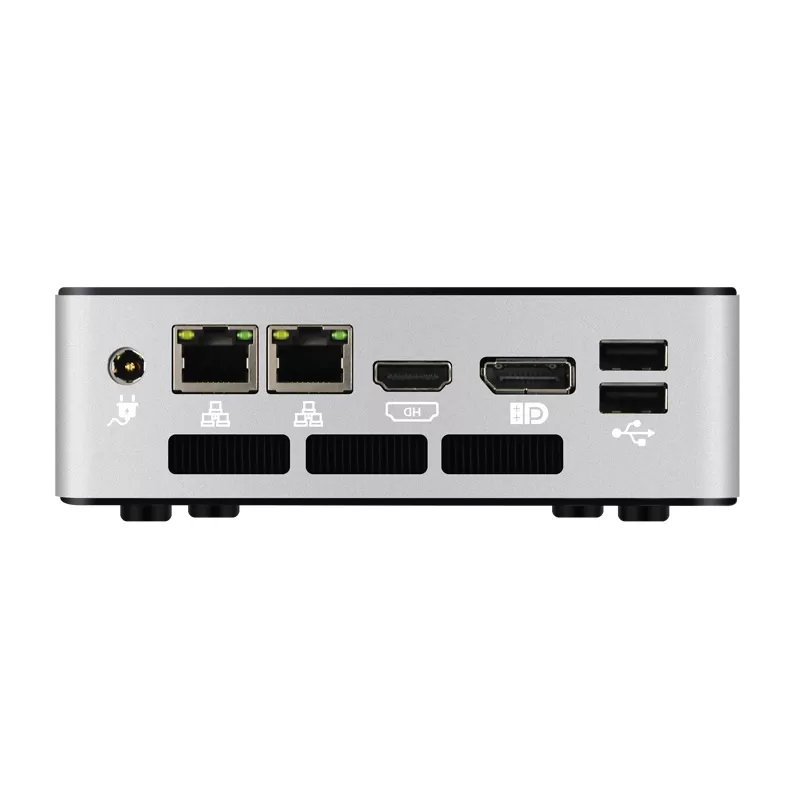

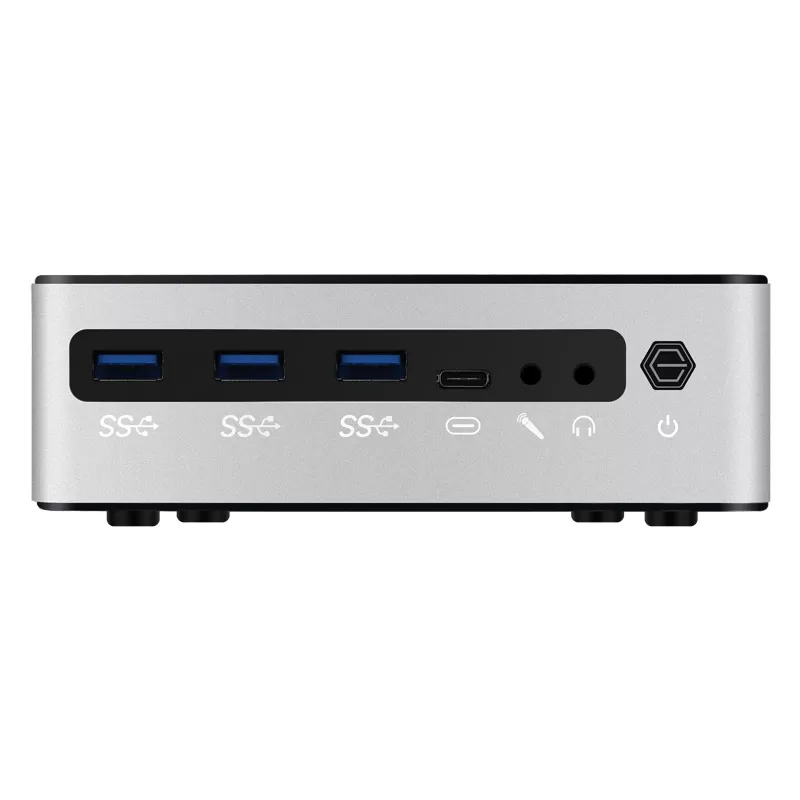

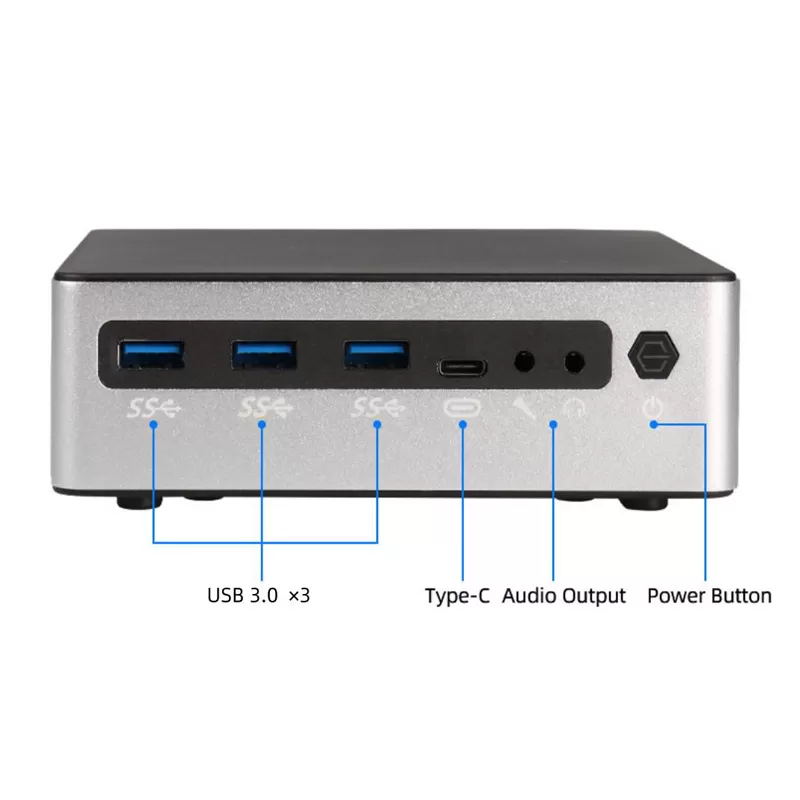

| I/O Interface | 3x USB 3.0, 2x USB 2.0, 2*RJ45, 1xHDMI/DP/Type-C/Audio Line-out/Audio Mic-in/Power Button/Power input |
| Expansion Slot | 1xM2 2232 WIFI |
| Operation System | Support Windows® 10/11, Ubuntu, Debian, Fedora and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum+plastic |
| Color | Black+Silver |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 0.64kg |
| Gross weight | 1kg |
| Product Dimension | 135x 125x49 mm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
