Model: SATA1241
Features:
1. All-aluminum structure, without fan design.
2. Onboard Intel Alder Lake-N series processor.
3. Support 4x Intel i225-V 2.5G Ethernet interfaces.
4. Support 3xM.2 slots (can simultaneously support SSD+WIFI+4G/5G).
5. Support 4K high-definition dual displays, 1xHDMI+1xDP display interface.
6. Compatible with iKuai, pfsense, Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel®Alder Lake-N N100, quad core, quad thread, 6MB Cache, 1.8GHz Max 3.4GHz |
| Architecture | Alder Lake-N |
| Memory | 1x DDR4 3200 MHz SODIMM Memory slot, Max. 16GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel UHD Graphics card |
| Display port | 1xHDMI, 1xDP HD Display port(support syn and asy display, support 4096x2160 @60Hz Max) |

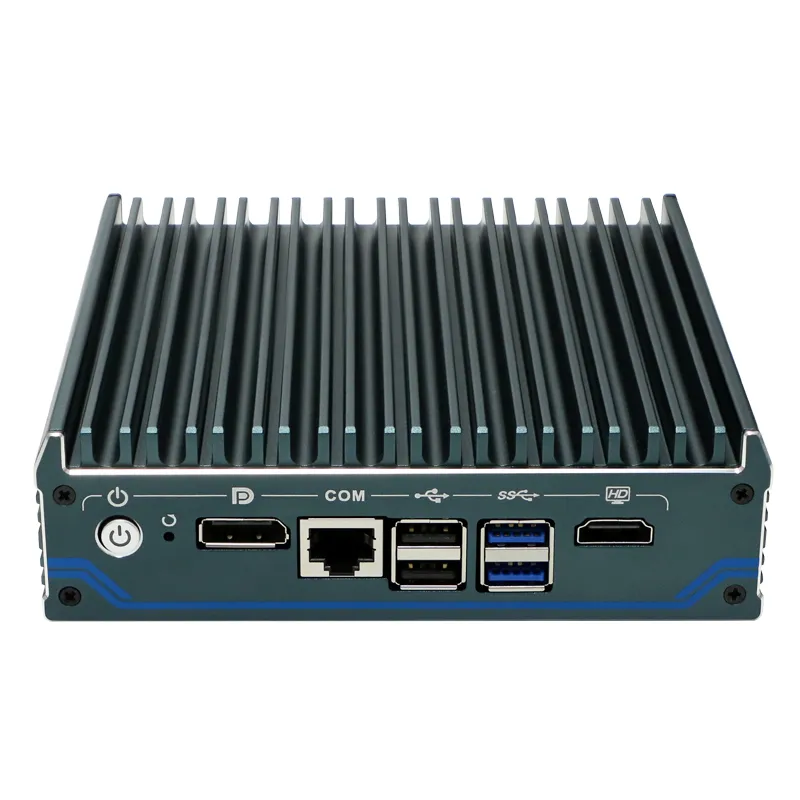

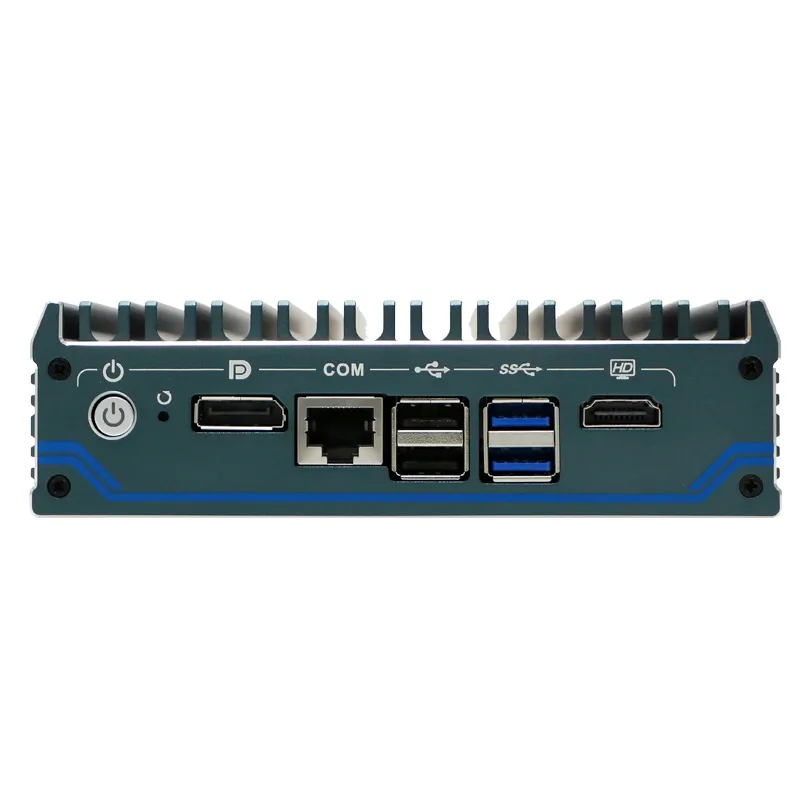

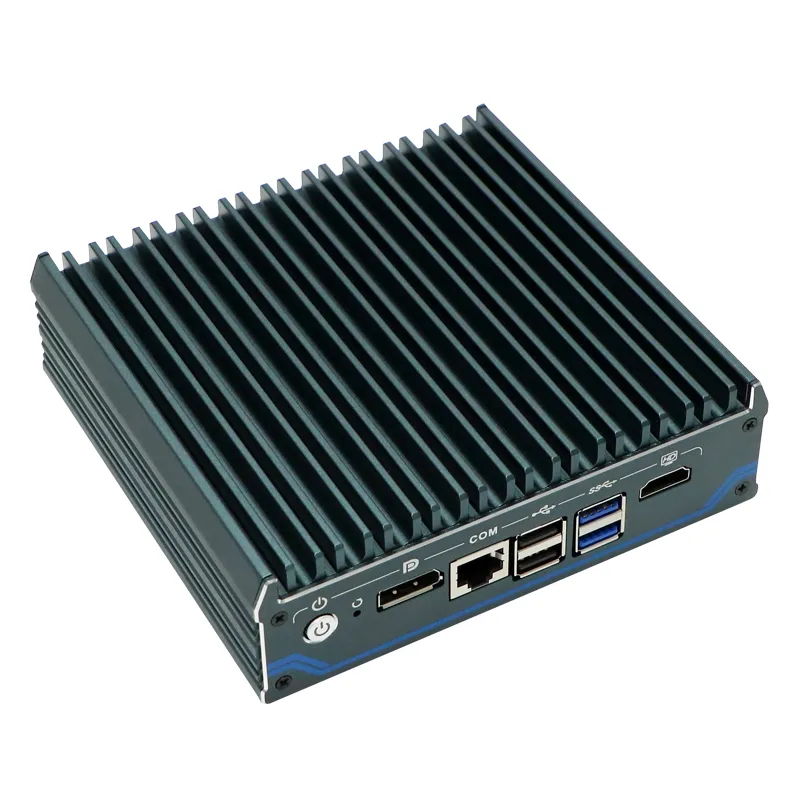

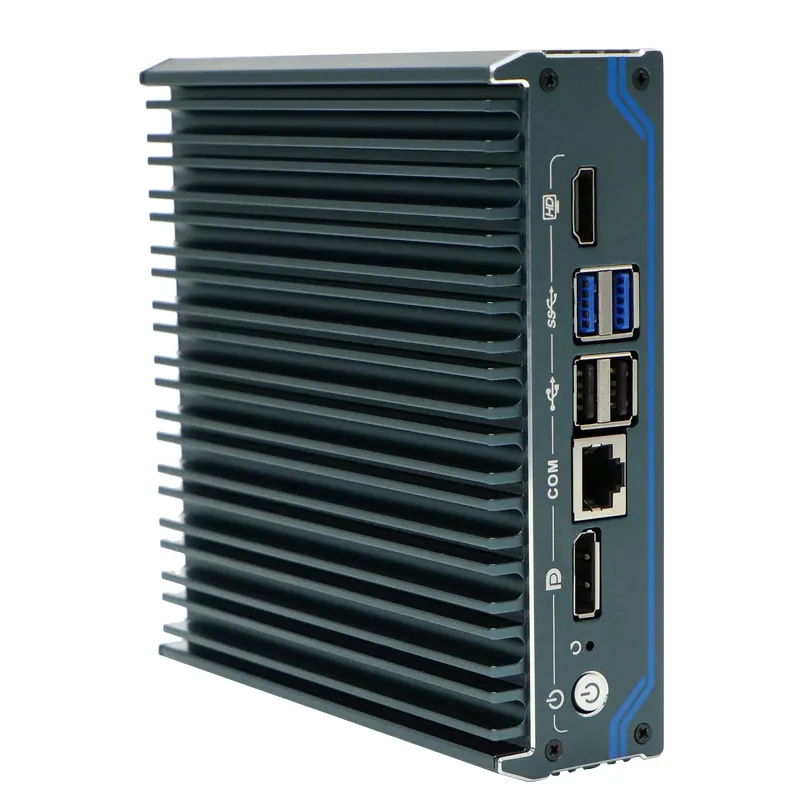

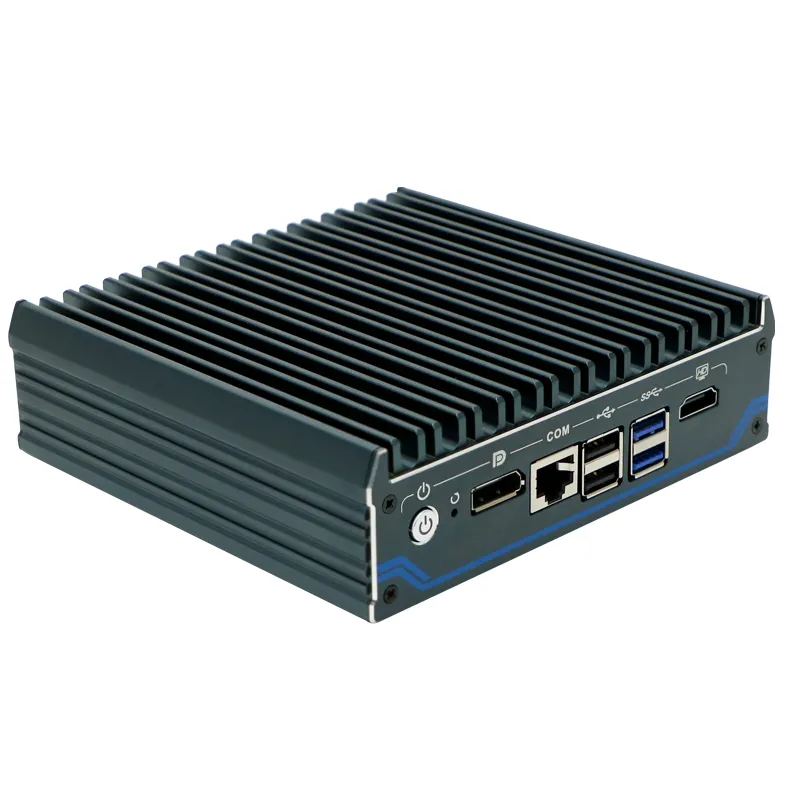

| Front I/O | 1*USB3.1, 3*USB2.0, 1*Power switch, 1*HDMI, 1*DP, 1*Reset 1*RJ45 COM(Support Console function) |

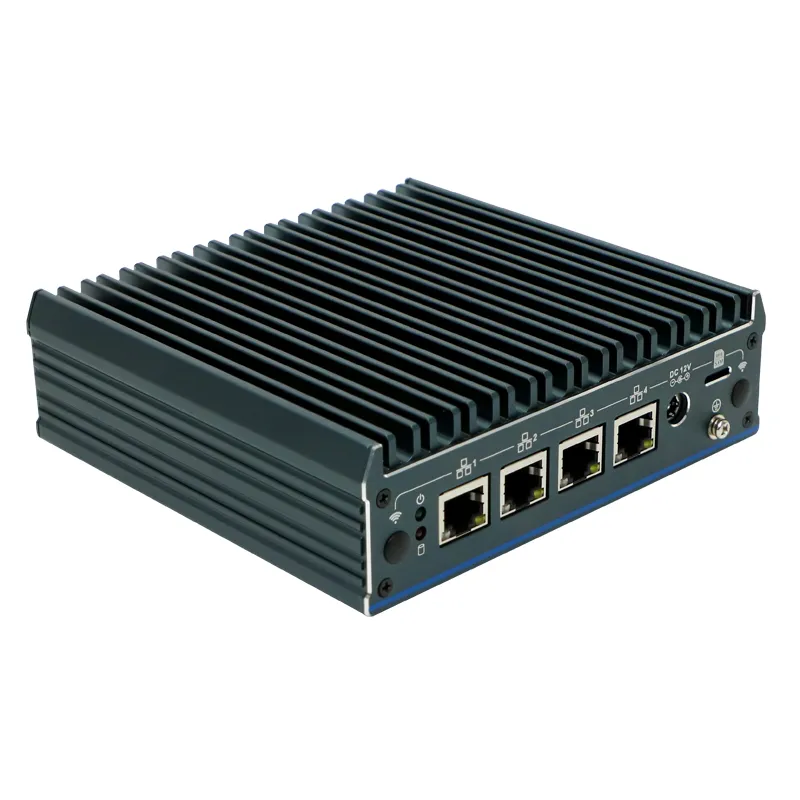

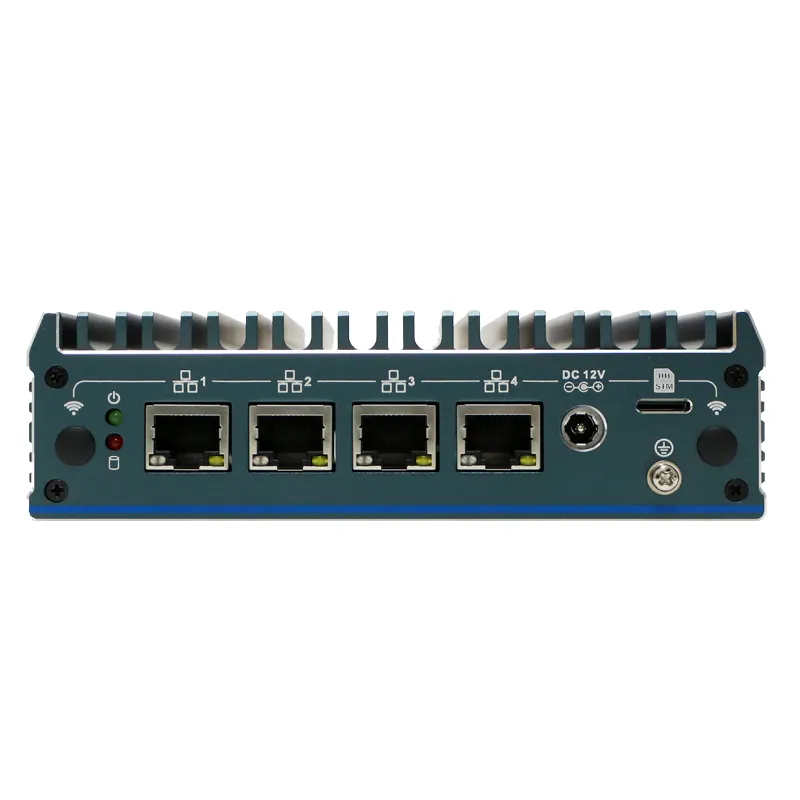

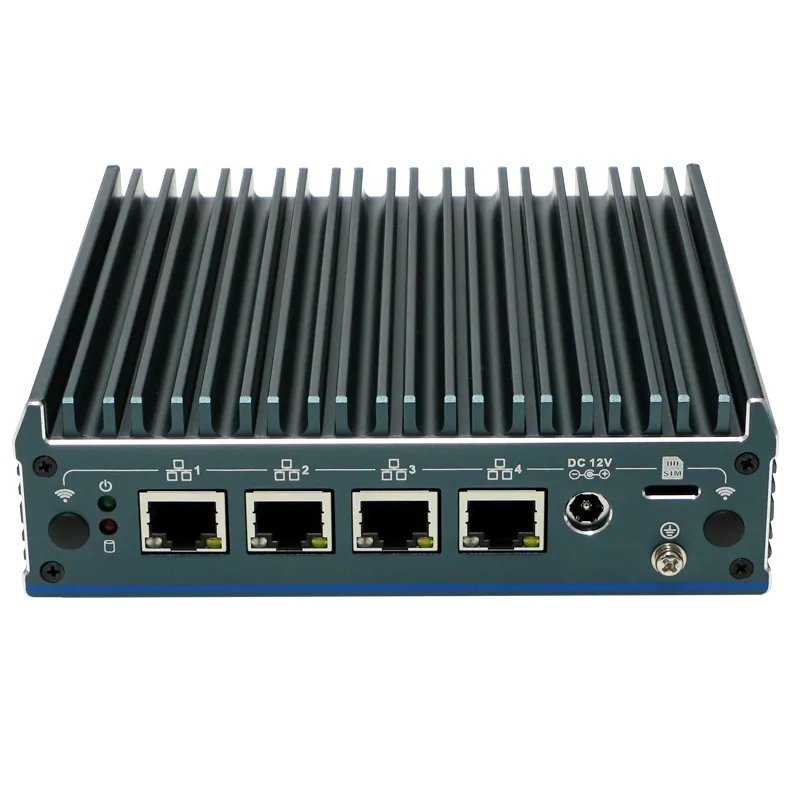

| Rear I/O | 4*2.5G LAN, 1*DC, 1*SIM Card slot |
| Expansion | Support 1*M.2 2280 M-key Card slot (support SATA protocol) |
| Support 1*M.2 2230 E-key slot (support WIFI and Bluetooth) | |
| Support 1*M.2 3052 B-key slot (USB3.0 interface, support 4G/5G), and an external SIM card slot | |
| Optional: 2*USB2.0 | |
| Network | 4* Intel i225-V 100/1000/2500M Ethernet cards |
| Storage port | 1*M.2 2280 Card slot, 1*2.5 inch hard disk |
| Other function | Power-on, timed startup, network wake up, watchdog (level 0-255), TPM2.0 security encryption |
| Operation System | Support iKuai, pfsense, Windows 10/11, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Metallic grey |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 40°C(Commercial HDD), -20°C-50°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 0.79kg |
| Gross weight | 1.2kgs |

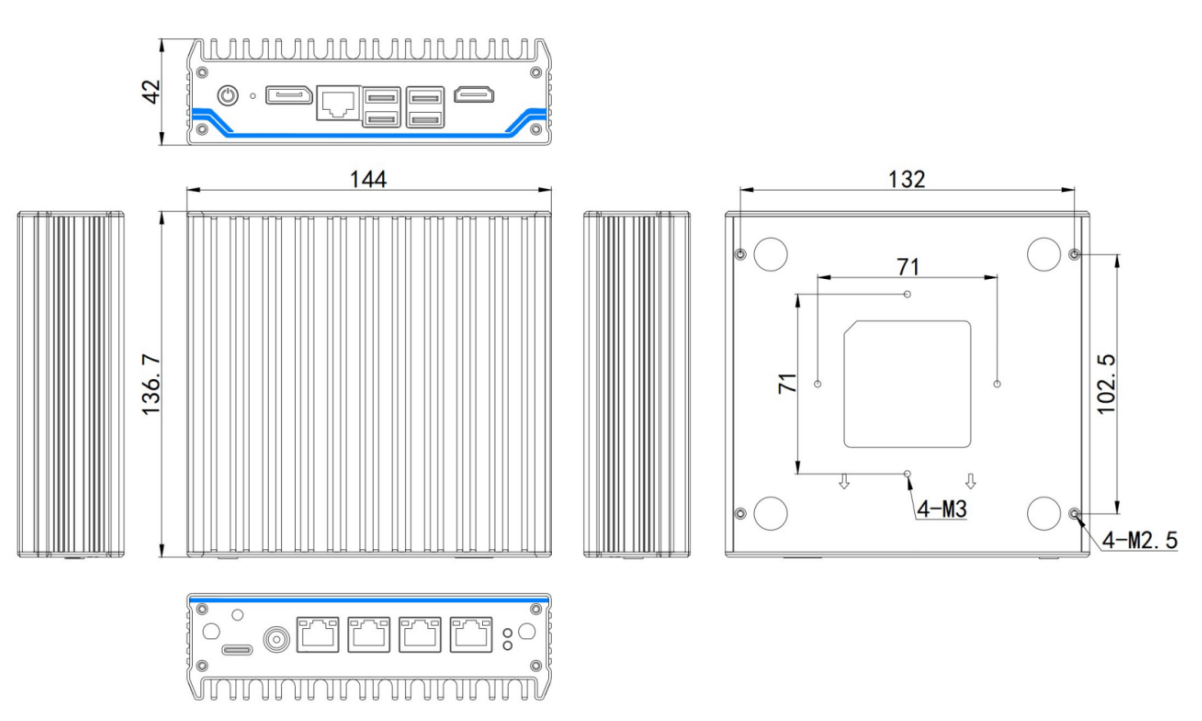

| Product Dimension | 14.4*13.67*4.2cm |
| Packing size | 21*16*13.5cm |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Application | Firewalls, VPNs, network servers, network security, routers, and other related fields |
| Warranty | 3 years warranty |
