Model: SATA1522
Features:
1. All-aluminum structure, without fan design.
2. Onboard Intel® Twin Lake processor.
3. Support 3xM.2 slots + 1 MINI PCIE slot.
4. Support 4K high-definition dual display, 2 HDMI display interfaces.
5. Support 8xUSB interfaces.
6. Support 2xCOM ports (2 optional RS232/485 modes).
7. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel®Twin Lake N150, quad core, quad thread, 6MB Cache, 1.2GHz Max 3.6GHz |
| Architecture | Twin Lake |
| Memory | 1x DDR5 4800 MHz SODIMM Memory slot, Max. 16GB |
| Storage | Support 1x MSATA, 1x SATA |
| BIOS | AMI UEFI BIOS |
| Display Chip | Integrated Intel UHD Graphics card |
| Display port | 2xHDMI Display port(support syn and asy display, support 4096x2160 @60Hz Max) |

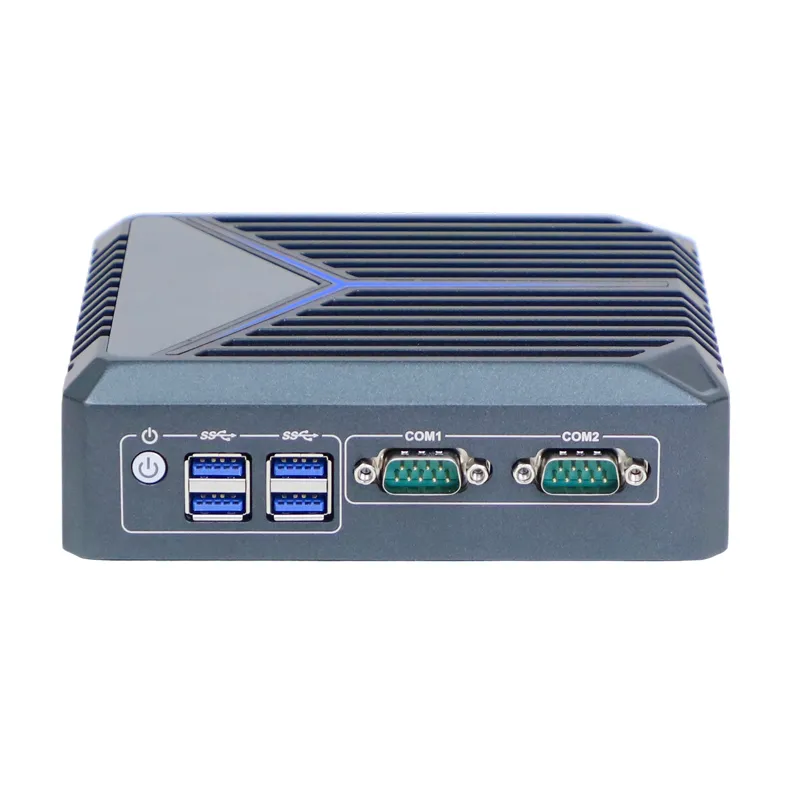

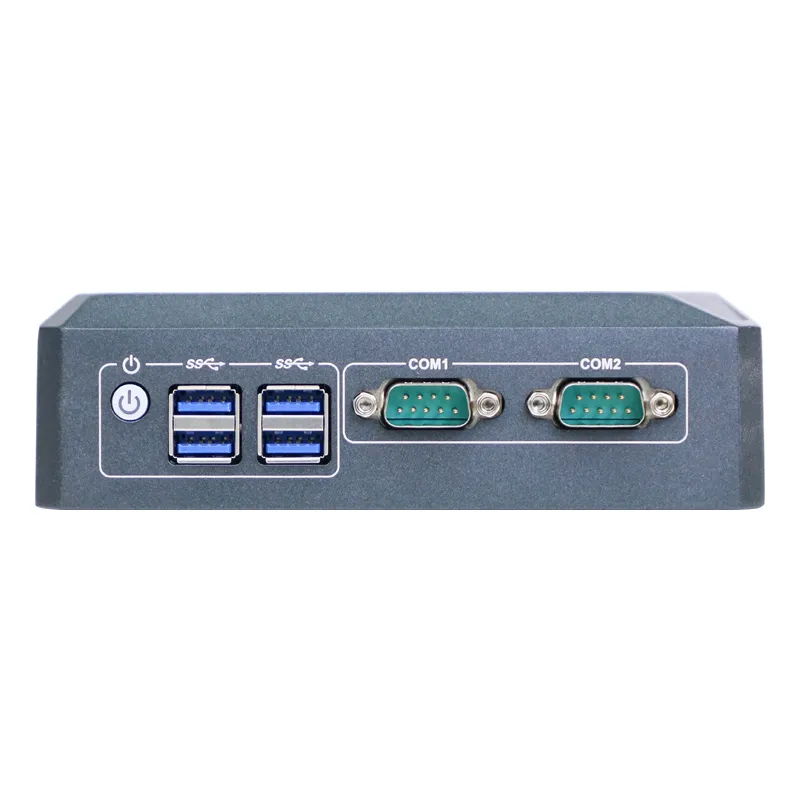

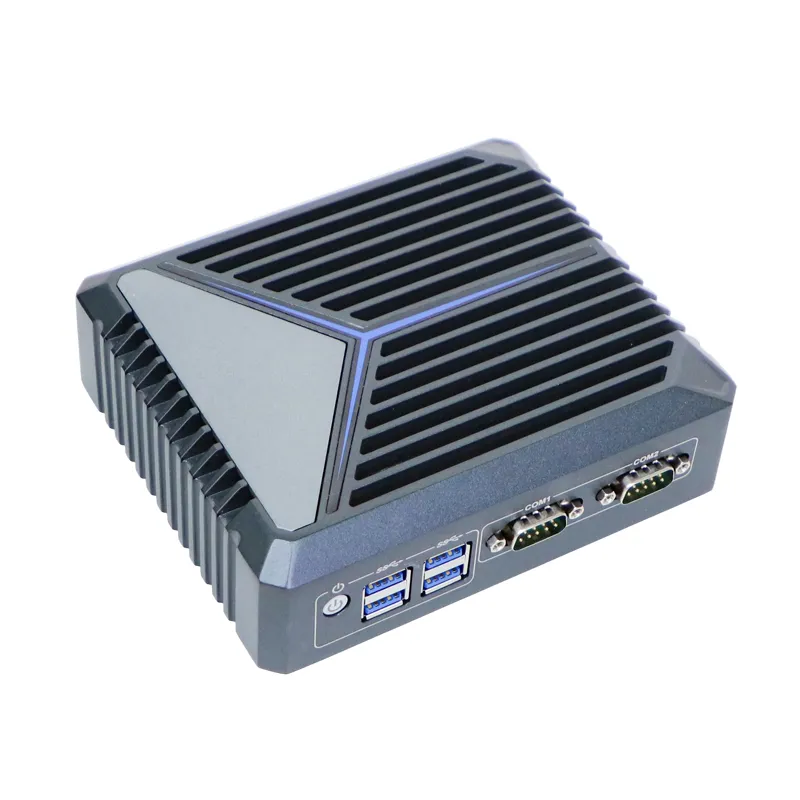

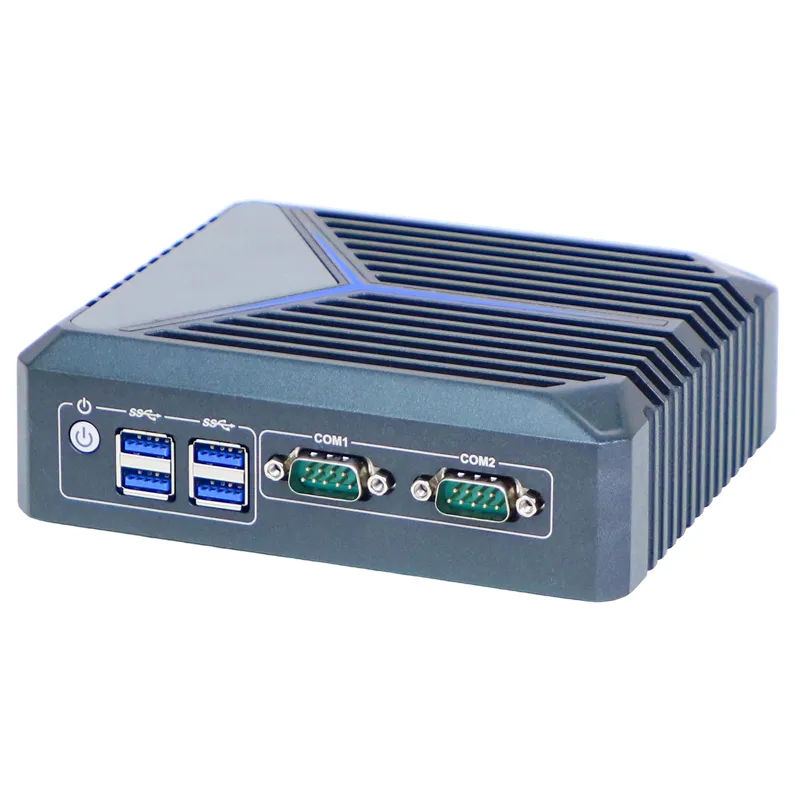

| Front I/O | 1xPower switch, 4xUSB3.2 2x COM ports (RS232/485 mode Optional) |

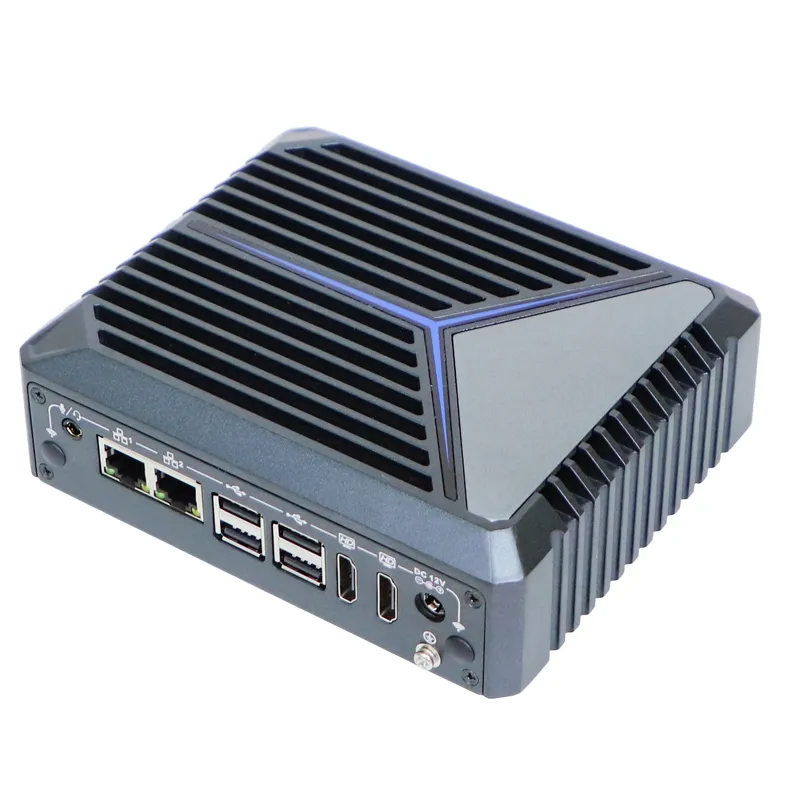

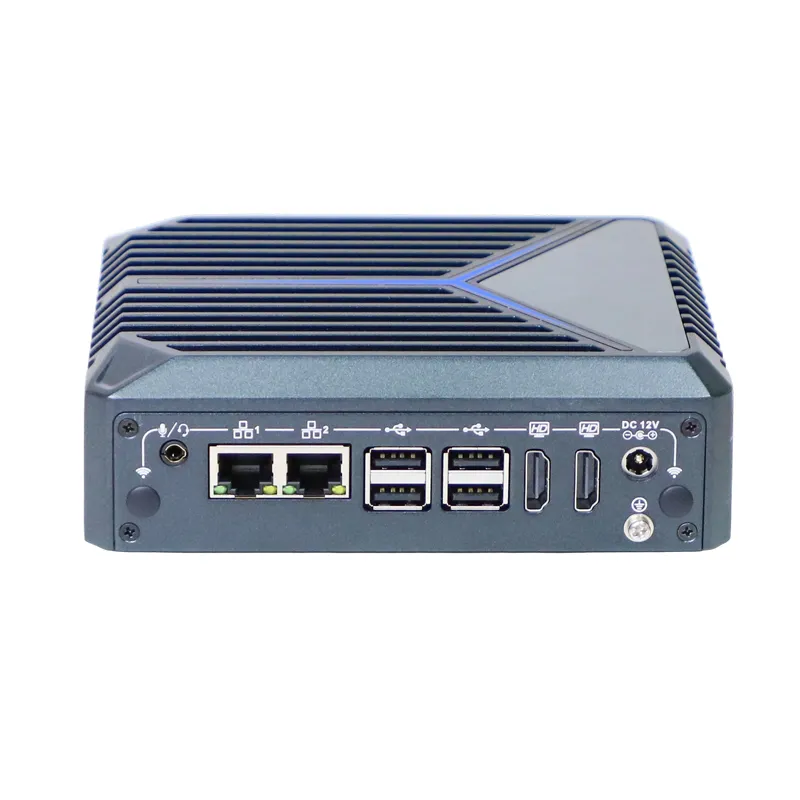

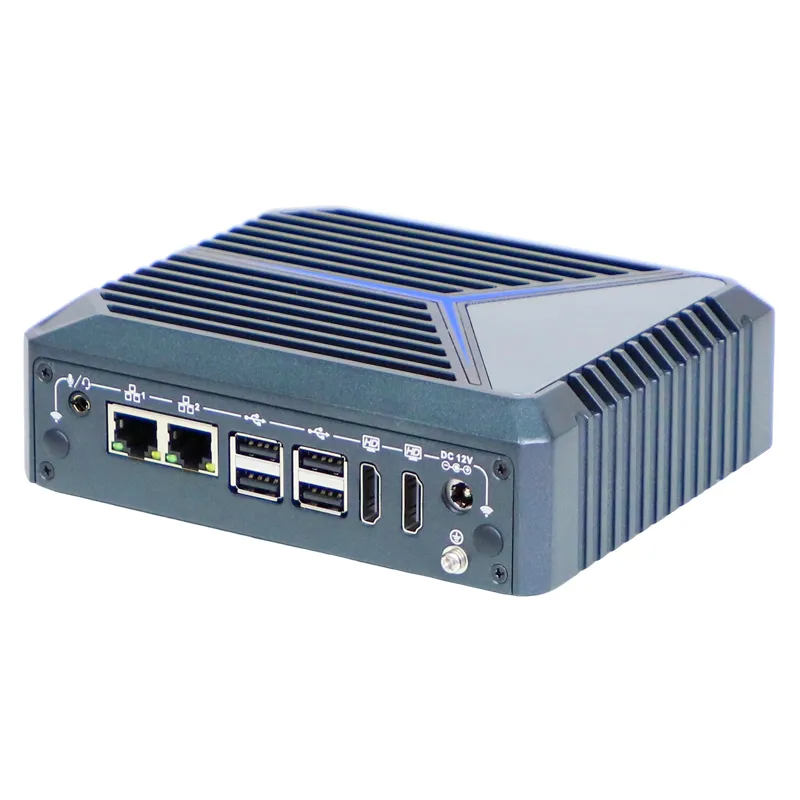

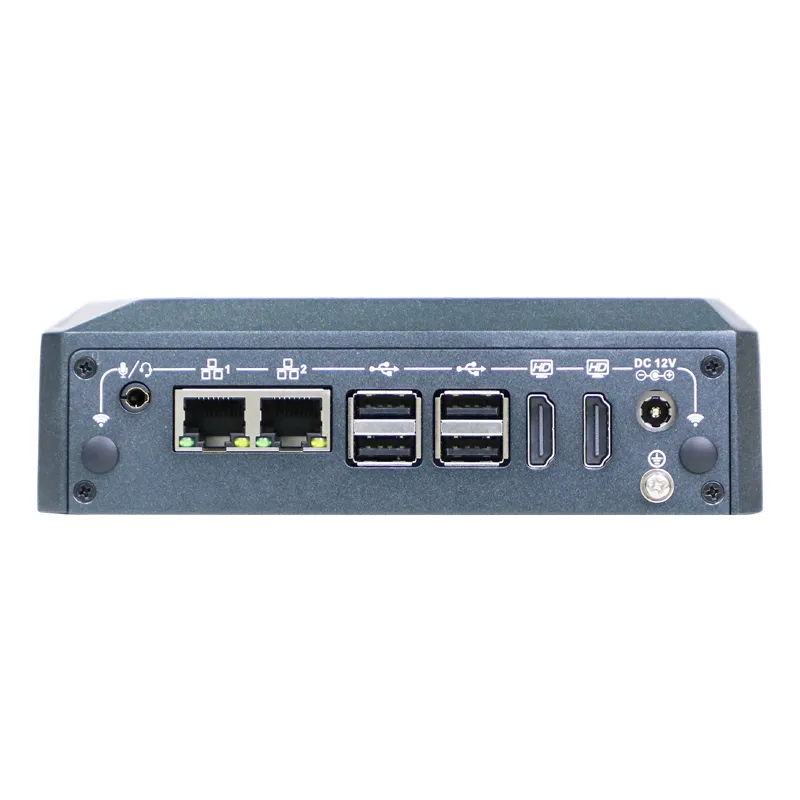

| Rear I/O | 1xDC, 2xHDMI, 4xUSB2.0, 2xRJ45 LAN, 1xAudio 2 in 1 |
| Expansion | Support 1xM.2 2280 M-key Card slot 1 (PCIe 3.0x1&SATA protocol) |
| Support 1xM.2 2280 M-key slot (PCIe 3.0 x1 protocol) | |
| Support 1xM.2 2230 E-key slot (Supports CNVio2 protocol for WIFI and Bluetooth) | |
| 1xMini PCIe slot (supporting PCIE & USB2.0 signals, optional WIFI/4G), built-in SIM card slot | |
| Optional: 4-channel GPIO, 1 USB 2.0 port | |
| Network | 2xRTL8111H 10/100/1000M Gigabit Ethernet |
| Storage port | 2*M.2 2280 Card slot, 1*2.5 inch hard disk |
| Other function | Power-on startup, timed startup, PXE boot, network wake-up, watchdog (0-255 levels), TPM 2.0 security encryption |
| Operation System | Support Windows 10/11, Ubuntu, Debian, Fedora 25 and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Metallic grey |
| Operating Environment | |
| Temperature Range | Operating: 0°C to 40°C(Commercial HDD), -20°C-50°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 0.84kg |
| Gross weight | 1.25kgs |

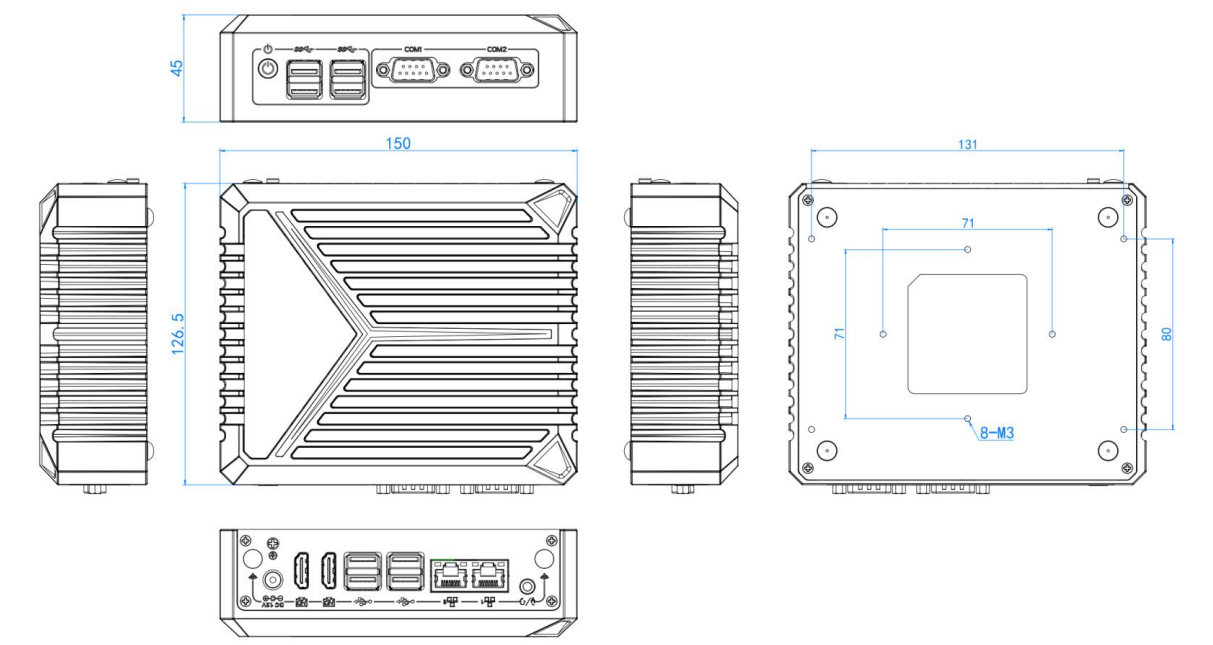

| Product Dimension | 15*12.65*4.5cm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting | VESA brackets (free) |
| Desktop (Optional) | |
| Application | Industrial control, industrial automation, robotics, Internet of Things gateway, edge computing, machine vision, AGV/AMR, etc. |
| Warranty | 3 years warranty |
