Features:
1. Intel Elkhart Lake J6412/J6413.
2. 2xRS-232 serial ports.
3. 2xRealtek 8111H Gigabit network cards.
4. One key restoration, watchdog, diskless start.
5. Low power consumption without fan.
6. Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Intel® Alder Lake N100, quad core, quad thread, 3.4GHz Max. 6MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6413, 4 Cores, 4 Threads, Base 1.8GHz, Turbo 3GHz, 1.5MB Cache, Fanless |
| Memory | DDR4 SODIMM x1(up to 8GB) |
| Storage | 1xM.2 2280 NVME, 1x2.5 inch HDD/SSD, 1xMSATA |
| Display | 2x HDMI, 1xDP |
| Display Chip | Integrated Intel HD Graphics card |
| Network | 2xGbE RJ45 Realtek 8111H |

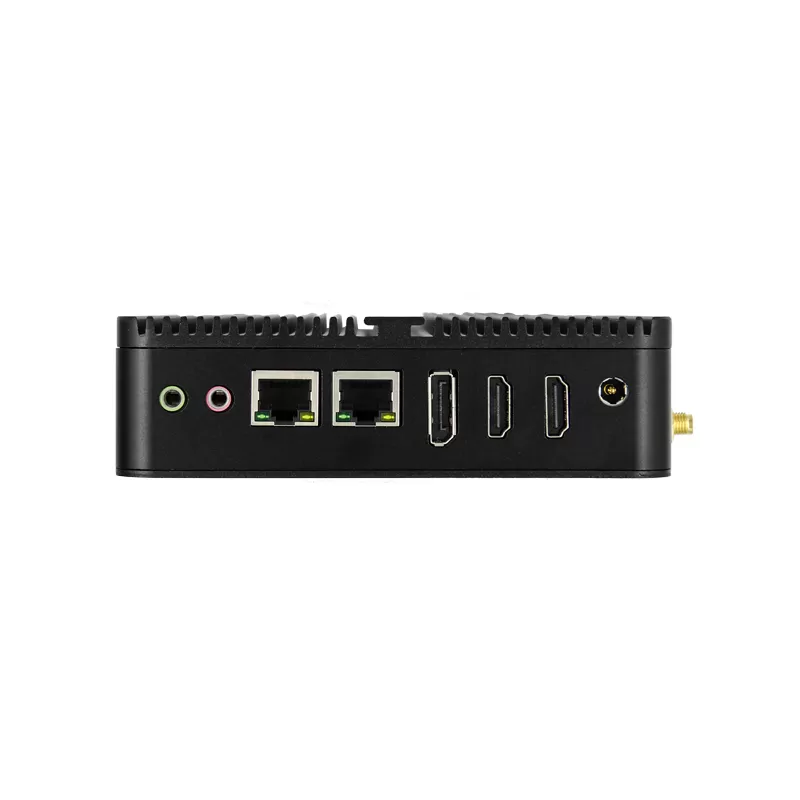

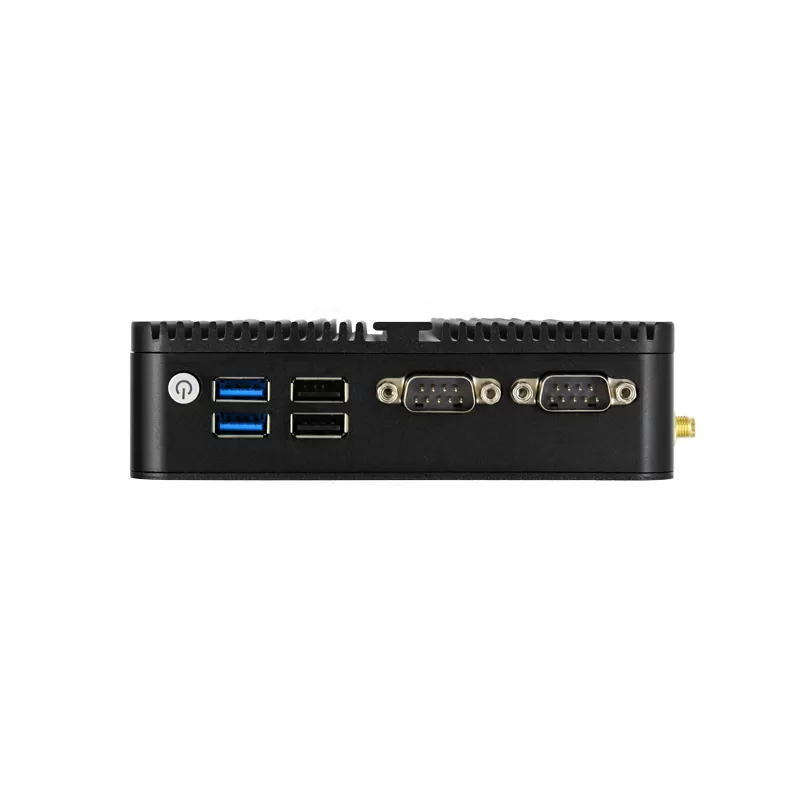

| I/O Interface | 2xUSB3.0, 2xUSB2.0, 2xDB9 COM, 2xRJ45 LAN, 2xHDMI, 1xDP, 1xPower LED/Power input/Power button, 2xAntenna port(WIFI) |
| Expansion | 1x M.2 2230 WIFI/Bluetooth |
| Operation System | Support Windows® 10, WES 10, Ubuntu, Debian, Fedora and etc. |
| Other function | Watch dog, One-button restore, no disk start-up |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Relative humidity | 10%~90% @30°C, non-condensing |
| Packing Details | |
| Net weight | 1kg |
| Gross weight | 1.8kgs |

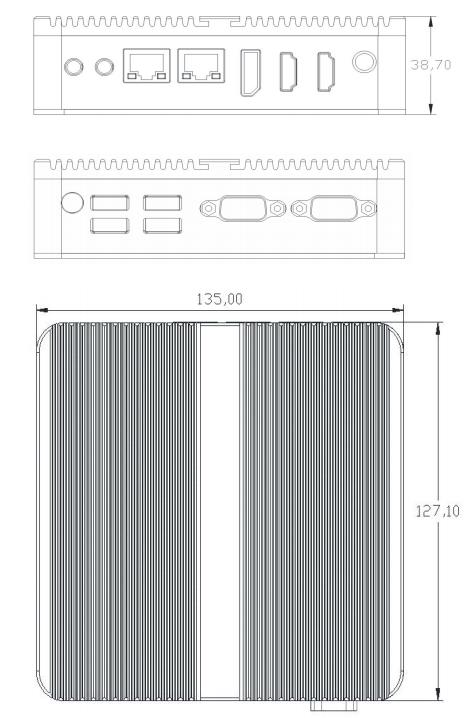

| Product Dimension | 13.5*12.7*3.87cm |
| Packing size | TBD |
| Accessories | Power adapter, VESA brackets, screws, user manual, warranty card |
| Other | |
| Mounting (Options) | VESA brackets (free) |
| Desktop | |
| Warranty | 2 years warranty |
