Model: SATA18
Features:
1. All aluminum alloy structure, no fan design.
2. On-board Intel 8GEN Core i5/i7.
3. Support 2 DDR4 memory slots, up to 32GB memory.
4. Support 1 MSATA, 1 2.5-inch hard disk bit.
5. Support 6 Intel Gigabit network ports.
6. Support 1 RJ45 serial port (support Console function).
| Model: SATA18 | |
| CPU | Intel® i5-8250U, quad core, eight thread, 1.6GHz, Turbo 3.4GHz, 6MB cache |
| CPU Optional | Intel® i7-8550U, quad core, eight thread, 1.8GHz, Turbo 4GHz, 6MB cache |
| Memory | 4G DDR4 2133/2400 MHz SODIMM Memory Slot (Max 32G) |
| Graphics | Integrated Intel UHD Graphics 620 core display |
| Display | 1*HDMI port (No sound output) |

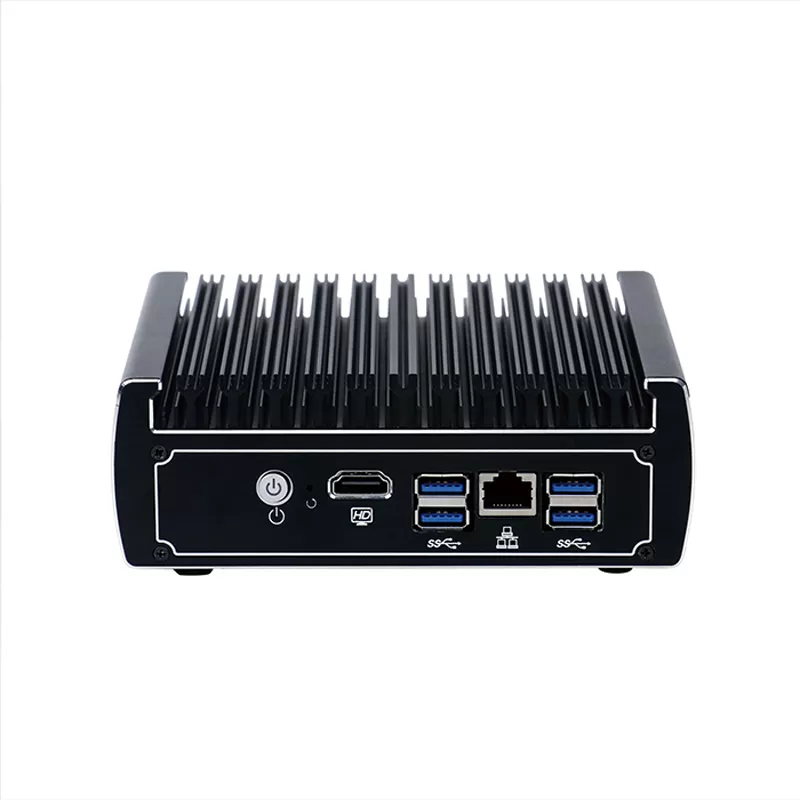

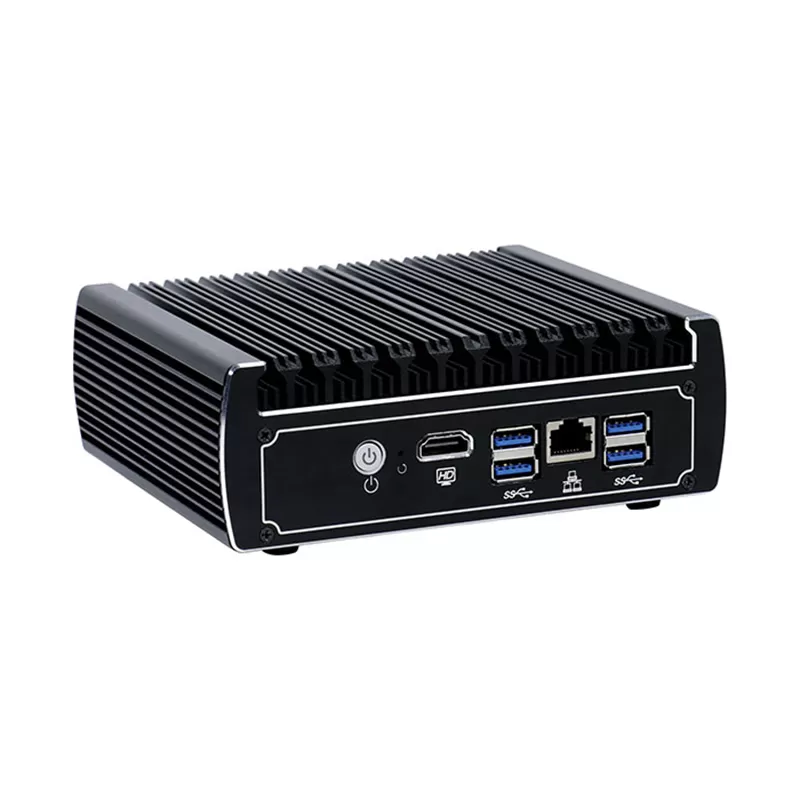

| Front I/O | 4*USB3.0, 1*Power switch, 1*RJ45 COM(Support Console function), 1*HDMI |

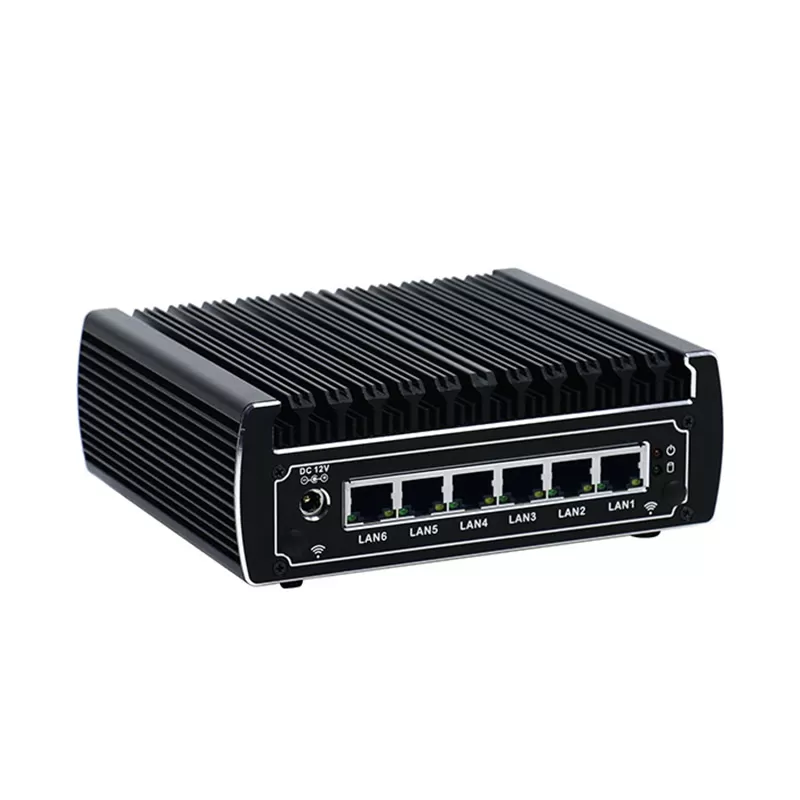

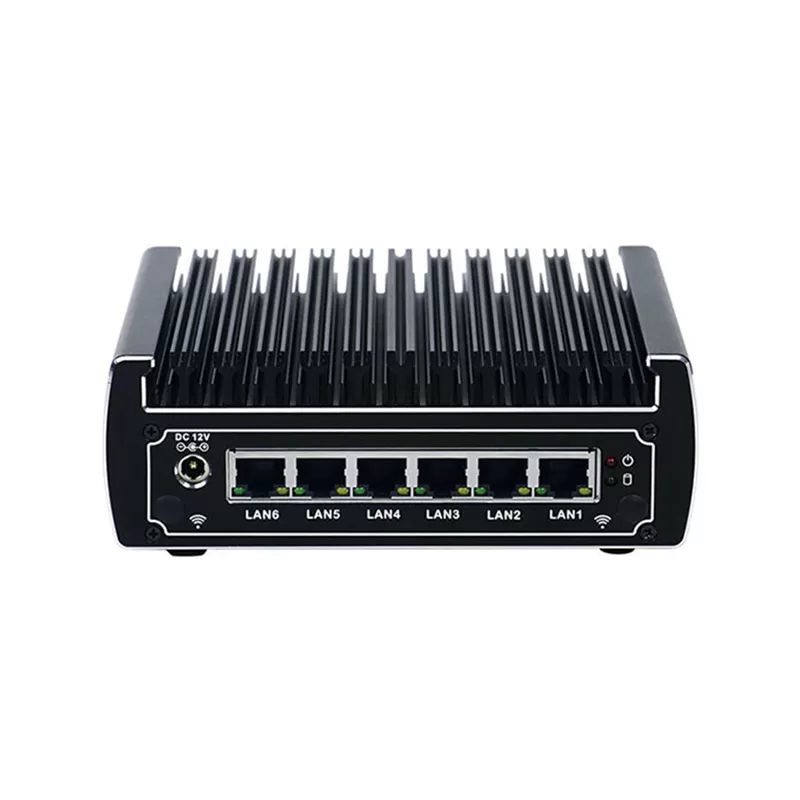

| Rear I/O | 6*RJ45 1000M LAN, 1*DC 12V Input |
| Expansion slot | One half-height MINI PCIE slot (WIFI/ Bluetooth optional) |
| Supports 1 full height MINI PCIE slot (MSATA/4G support, 1 external Nano-SIM slot) | |
| Network | 6*Intel i211-AT/i210-AT 10/100/1000M Ethernet LAN |
| Storage | 1*MSATA Slot, 1*2.5-inch hard disk |
| Other function | Power-on, timed boot, network wake up, PXE boot, watchdog (level 0~255) |
| OS | Win 7/8/10, Ubuntu, Debian, Fedora and etc |
| Material | Aluminium Alloy |
| Power supply | DC 12V Input |
| Temperature Range | 0-50°C(Commercial HDD), -20°C to 50°C(industrial SSD), surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Net weight | 1.3kgs |
| Gross weight | 2.1kgs |

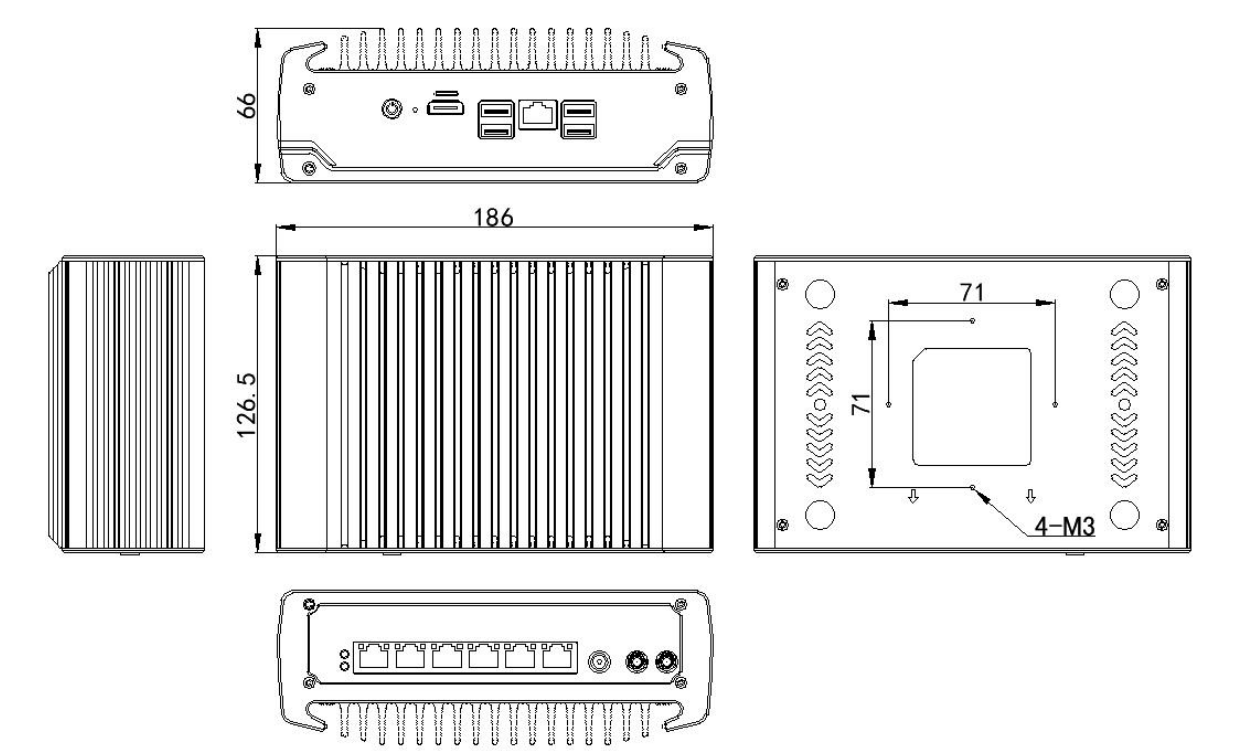

| Product Dimension | 18.6×12.65×6.6cm |
| Packing size | 27.3×14.6×22cm |
| Application | Firewall, VPN, network server, network security and other fields |
| Warranty | 3 years warranty |
| Certificates | CE, FCC, RoHS |
