Model: SATA3422
Features:
1. All-aluminum alloy structure, fanless and highly efficient heat dissipation.
2. Onboard 14th generation Intel® Core™ Ultra processor.
3. 3x2.5G network ports, support for Intel vPro Optional.
4. 3xHDMI+1xType-C interface, supporting synchronous/asynchronous four-display.
5. It can support M.2(SSD) + 2.5-inch hard drive+WIFI+4G simultaneously.
7. Compatible with Windows 10/11, Ubuntu, Debian, Fedora and etc.
| PC | |
| CPU | Onboard Intel® Core™ Ultra 5 125U (12 core 14 threads, Max. Turbo 4.3G, 12MB Cache) |
| CPU Optional | Onboard Intel® Core™ Ultra 7 155U (12 core 14 threads, Max. Turbo 4.8G, 12MB Cache) |
| NPU | Intel® AI Boost (Max Frequency 1.4 GHz) |
| RAM | Support 1*DDR5 5600 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel® Graphics |
| Display Port | 3xHDMI HD display interfaces, 1xType-C, support syn/asy four display, resolution up to 4096x2160 @60Hz |
| Front I/O | 2*COM (support RS232/RS485 Optional), 1*SIM Slot, 4*USB3.2, 1*Power Switch |

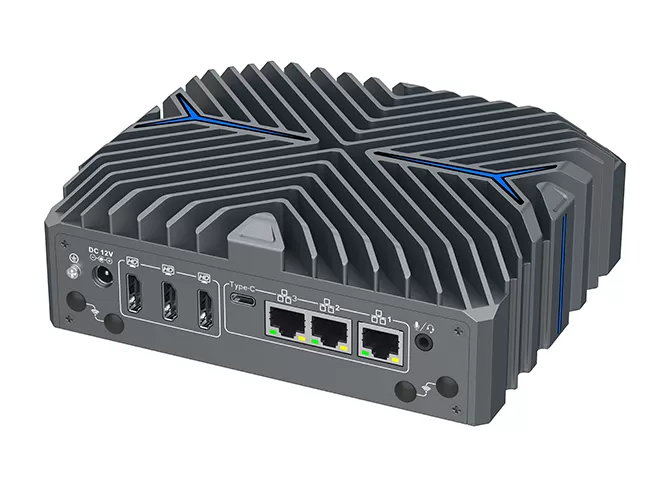

| Rear I/O | 1*DC-IN 12V, 3*HDMI, 1xType-C(support DP/USB3.2/PD 5V1A), 3*2.5G LAN, 1*two in one Audio port |
| Expansion Slot | Support 1*M.2 2280 M-key slot (NVME Protocol, PCIE4.0x4) |
| Support 1*M.2 2230 E-key slot (PCIe&USB protocol, CNVio2 protocol) | |
| Support 1*MINI PCIE Slot (PCIe&USB2.0 protocol, support 4G/WIFI), external Nano-SIM Slot | |
| Optional: 2*USB2.0, 4*GPIO | |
| Network | 3*Intel i226-V 100/1000/2500M Ethernet LAN(Optional LAN1 support Intel i226-LM 100/1000/2500M Ethernet and supports Intel vPro) |
| Storage | Support 1*M.2 2280 slot, 1*2.5” Hard disk slot |
| Other Function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0-255), TPM2.0 security encryption |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High quality Aluminum alloy |
| Color | Metallic grey (Color can customize) |
| Operating Environment | |
| Temperature Range | Operating: 0°C~ +40°C (Commercial HDD), -20°C~ +50°C (Industrial grade SSD), surface air flow |
| Relative humidity | 5%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.1kgs |
| Gross weight | 2kgs |

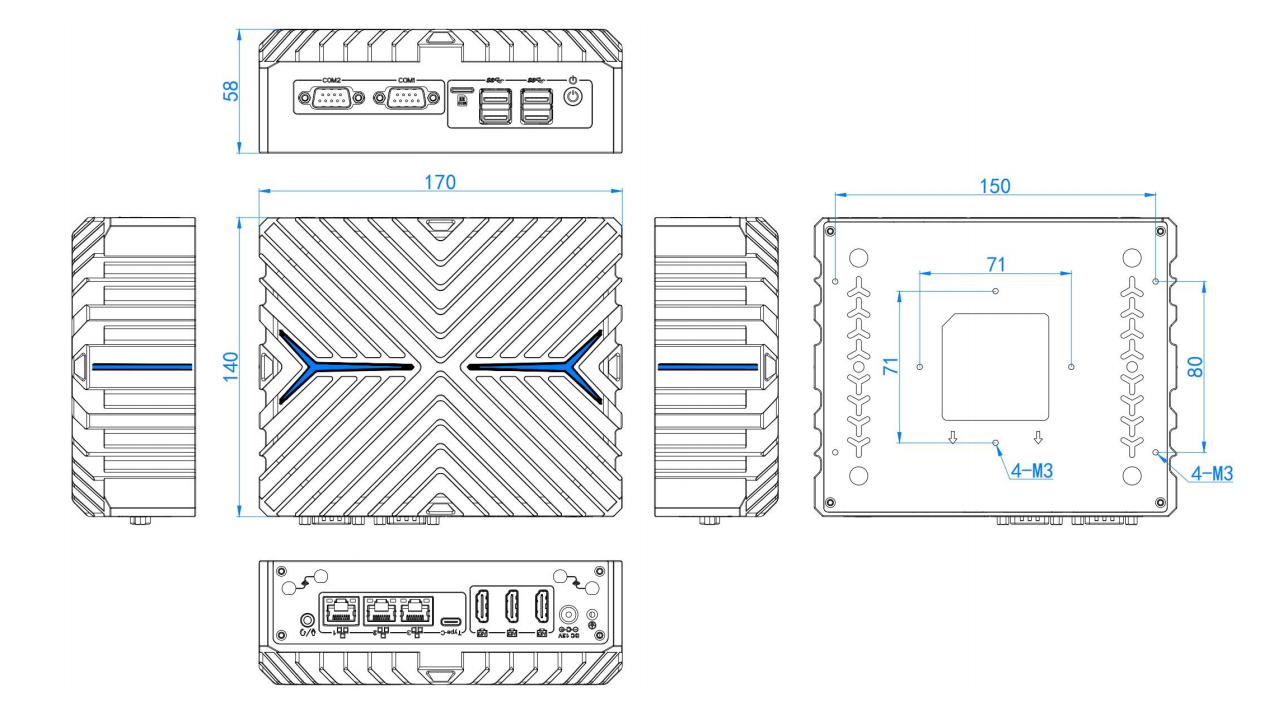

| Product Dimension | 17*14*5.8cm |
| Packing size | TBD |
| Accessories | Power adapter, power cord, Vesa mount, warranty card |
| Other | |

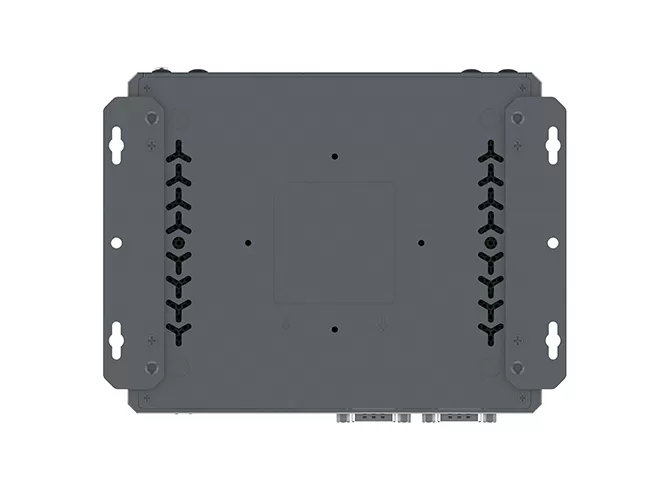

| Mounting (options) | Wall mounting brackets (Optional) |
| Warranty | 3 years warranty |
| Application | Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR and etc |
| Certificates | CE, FCC, RoHS |
