Model: SATA11
Features:
1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Intel Celeron J1900 quad core processor, 2.0GHz.
4. Support 1*DDR3 memory slot, Max. Support 8G.
5. Support 1*M.2 2280 slot, 1*2.5”HDD
6. Support WIFI/4G optional.
7. Support Din Rail, desktop, wall mount installation.
8. Compatible Windows 7/8/10, Linux.
| Model: SATA11 | |
| PC | |
| CPU | Intel Celeron J1900, quad core, 2.0GHz |
| Memory | 1*DDR3 memory slot，Max. Support 8G |
| Storage | 1*M.2 2280 slot, 1*2.5”HDD |
| Display | 1x HDMI, 1x VGA |
| Display Chip | Integrated Intel HD Graphics 620 |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2*Intel i211-AT 10/100/1000M LAN |
| Front I/O | 2*COM(RS232/485 is Optional), 2*USB2.0, 1*Power Switch, |
| Rear I/O | 1*DC-IN 12V, 1*USB3.0, 1*HDMI, 1*VGA, 2*Intel 1000M LAN, 1*Audio ( Support Mic and Speaker at the same time) 1*SIM slot 1*10 PIN Phoenix terminal(4 in 4 out GPIO） |
| Expansion Slot | Support 1*M.2 2280 slot (Support M.2 PCIE X4 and M.2 SATA SSD） Support 1*MINI PCIE slot (WIFI/3G/4G choose one from three, embedded SIM socket |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Grey+Blue |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, storage: -20 to 60°C, surface air flow |
| Relative humidity | 0%~95%, non-condensing |
| Packing Details | |
| Net weight | 1.2kgs |
| Gross weight | 1.7kgs |

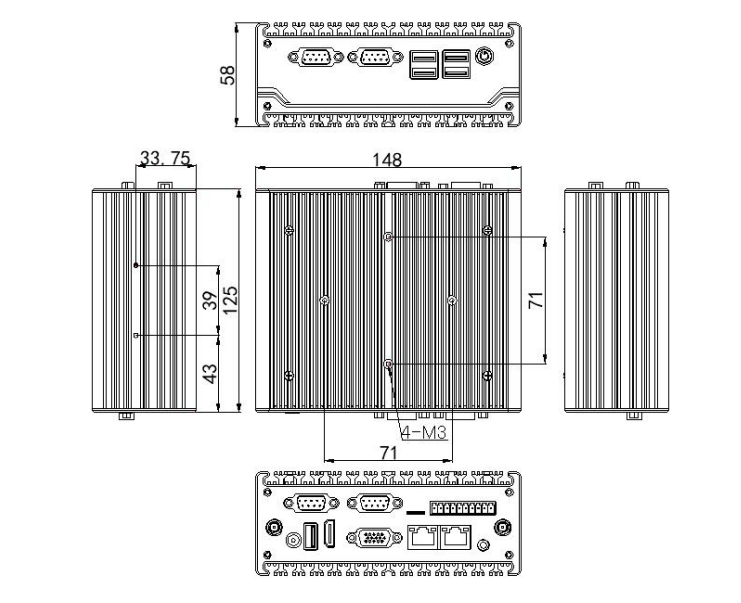

| Product Dimension | 14.8*12.5*5.8 cm |
| Packing size | 20*16*13cm |
| Accessories | Power adapter, wall mount braket, rail mounting kits, user manual, warranty card |
| Other | |
| Mounting (options) | Rail mounting |
| Wall mounting brackets | |
| Warranty | 3 years warranty |
