Model: SATA300A
Features:
1. Fully enclosed design, the whole tablet PC is dustproof.
2. Seamless design flat bezel, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Built-in WIFI&Bluetooth.
| PC | |
| CPU | A64, Cortex-A53, Quad-core, 1.5GHz |
| CPU Optional | RK3288 Cortex-A17 quad core,1.8GHz |
| CPU Optional | RK3399 Dual Cortex-A72+Quad Cortex-A53 2.0GHz 64bit |
| CPU Optional | RK3588 Quad Core Cortex-A76 and Quad Core Cortex-A55, 2.4GHz+1.8GHz 64bit |
| Memory | 2GB DDR3(4G/8G Optional) |
| Storage | 8GB EMMC(16G/32G/64G Optional) |
| Decoding Resolution | Support 1080P |
| Operating System | Android 6.0(Android 7.1/9.0/10.1/12.0, Linux 4.4 Optional) |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | Ethernet, Bluetooth, WIFI (3G/4G/5G Optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 2xUSB |
| COM | 2xCOM |
| LAN | 1xRJ45, 10M/100M adaptive ethernet |
| HDMI | 1xHDMI, support 1080p |
| DC | 1xDC |
| Micro USB | 1xMicro USB |
| Card Slot | 1xTF card slot |
| SIM Slot | 1xSIM slot |
| Audio I/O | 1xAudio I/O |
| UBOOT | 1xUBOOT |
| LCD panel | |
| Panel size | 8" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 300 cd/m² |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | -10°C to 60°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 5-85% (non-condensing） |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 1.5kgs |
| Gross weight | 2kgs |

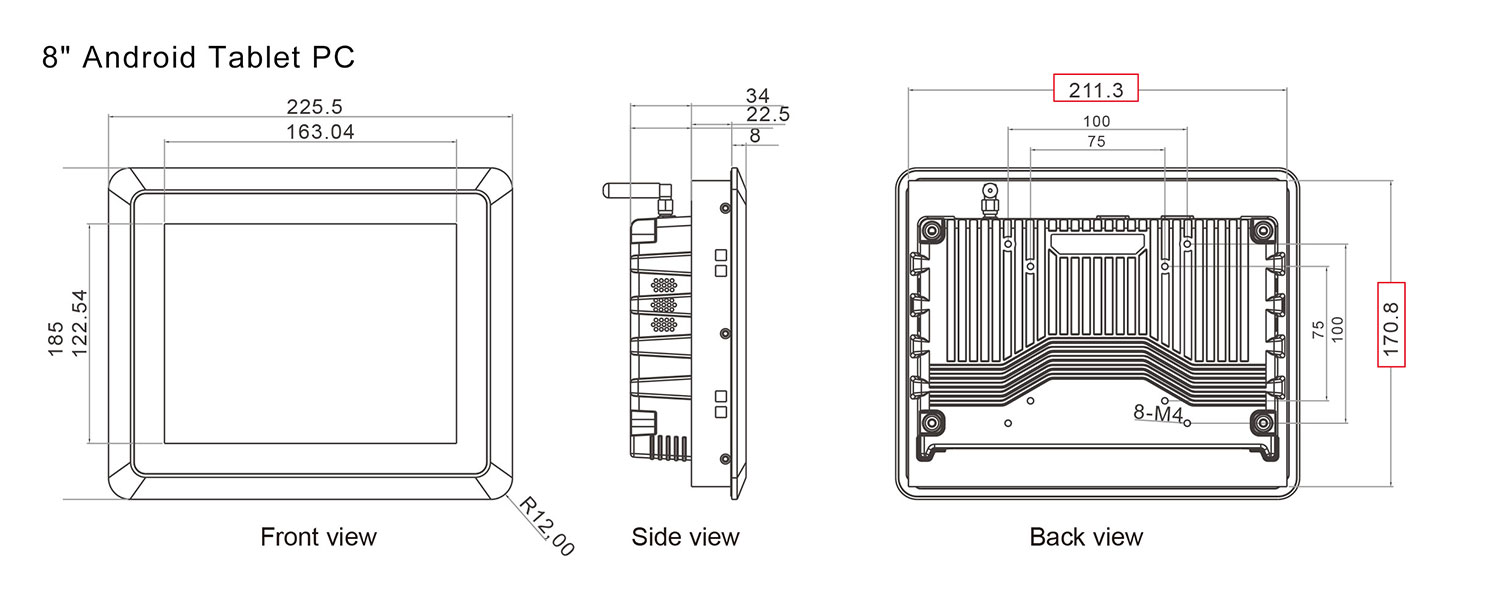

| Product dimension | 22.55x18.5x6.45 cm |
| Packing size | 42x27x15 cm |
| Accessories | Power adapter, power cord, embedded screws, user manual, warranty card |
| Other | |
| Mounting way | Wall mounting bracket (Optional) |
| Desk stand holder (Optional) | |
| Customization (optional) | 3G, 4G, Webcam, RFID reader etc. Optional |
| Warranty | 1 year warranty |
