Features:
1. Robust and durable full metal case, shockproof, excellent heat dissipation
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting, embedded mounting, desk stand mouting etc.
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 250+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch, non touch Optional) |

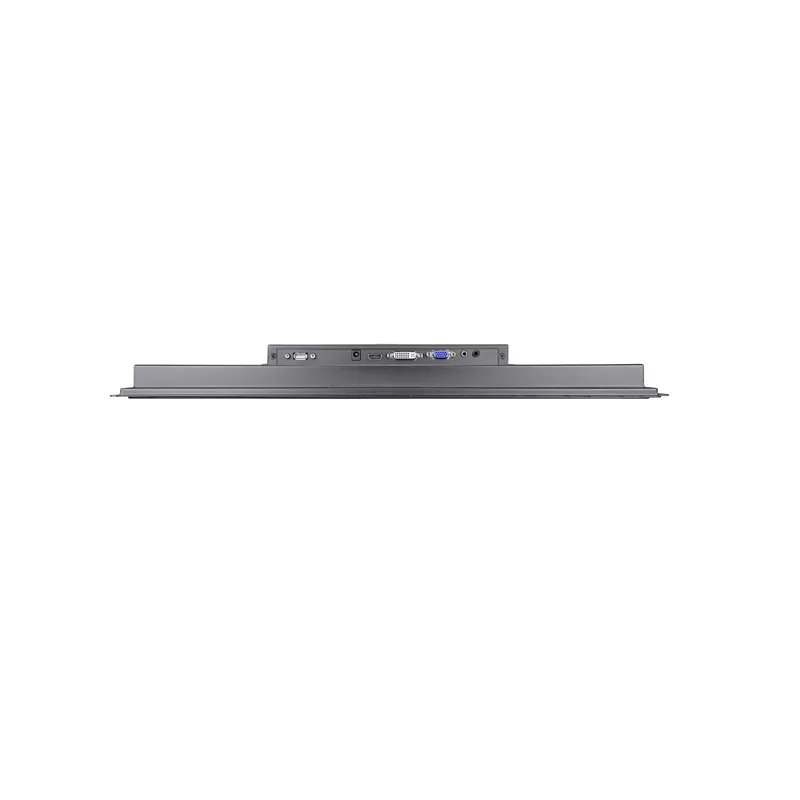

| Signal Ports | |
| VGA | 1×VGA |
| HDMI | 1xHDMI |
| DVI | 1×DVI |
| HDMI | Optional |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| Operating Environment | |
| Temperature Range | Operating: -0 to 50°C, Storage: -20 to 70°C |
| Relative humidity | Operating: 10% to 80%, Storage: 5% to 90% |
| Packing Details | |
| Net weight | 10kgs |
| Gross weight | 11kgs |

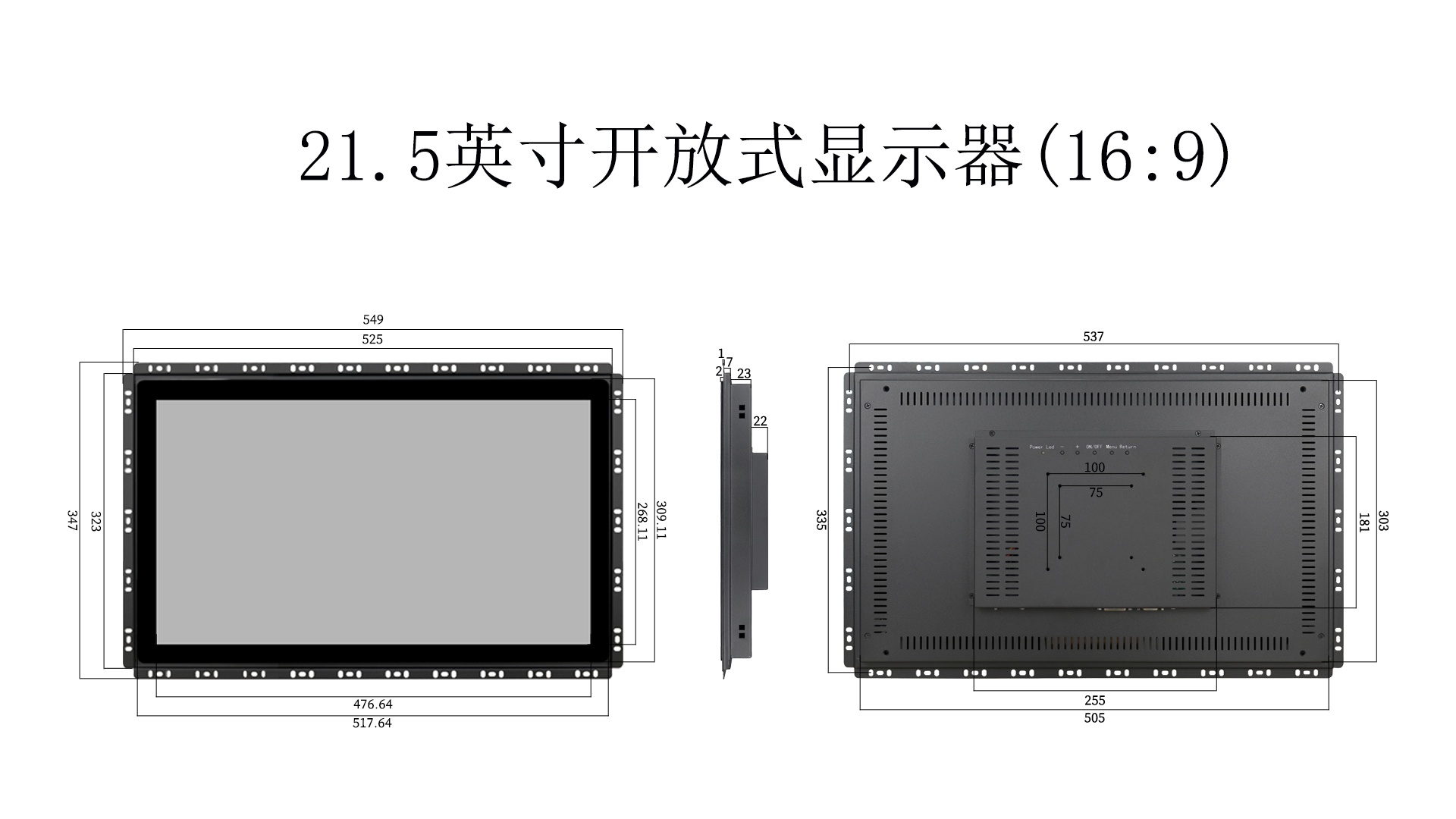

| Product Dimension | 55.48×35.26×5.5cm |
| Packing size | 67*18.5*47cm |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
| Other | |
| Mounting | Open frame |
| Embedded mounting screws | |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
