Features:
1. Fully enclosed, seamless design flat bezel, front panel IP65 waterproof&dustproof.
2. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
3. Adopt multi-points PCAP touch panel, Covered with 2mm tempered glass for vandalproof.

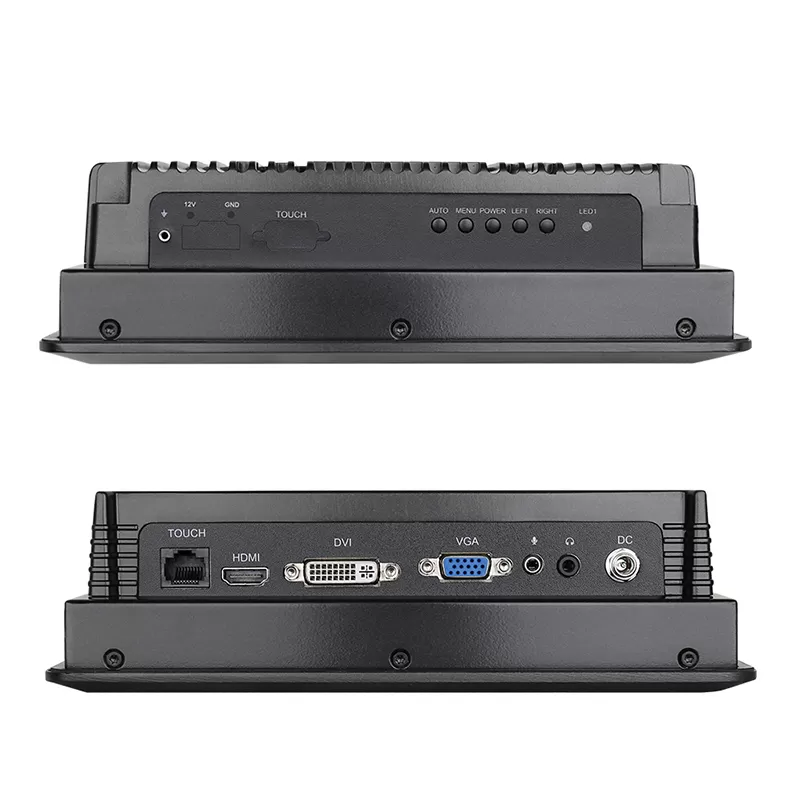

4. High performance mainboard, 7x24 continuous operation.
5. VGA+HDMI+DVI interfaces, USB for touch.
6. 12-24V wide voltage.
7. EMI/ EMC standard Anti-electromagnetic interference.
8. Shock proof standard: GB2423. anti-static: 4KV-8KV. Anti surge.
9. With waterproof rubber seal on the back side.
10. Support wall mounting, desk stand, embedded mounting.
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch, non touch Optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12-24V |
| Power consumption | ≤9W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |

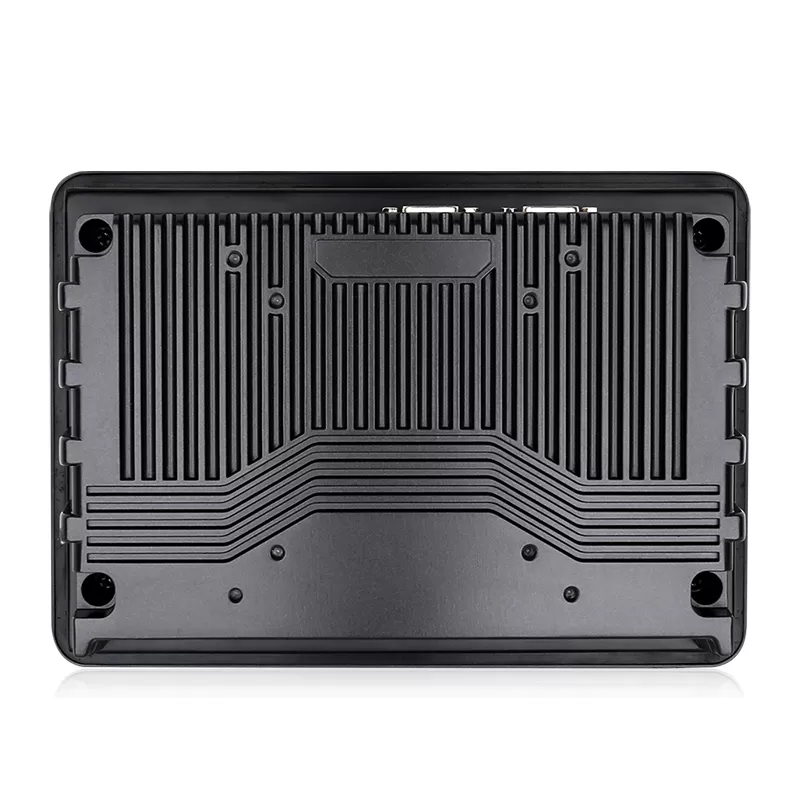

| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1.3kgs |
| Gross weight | 1.8kgs |

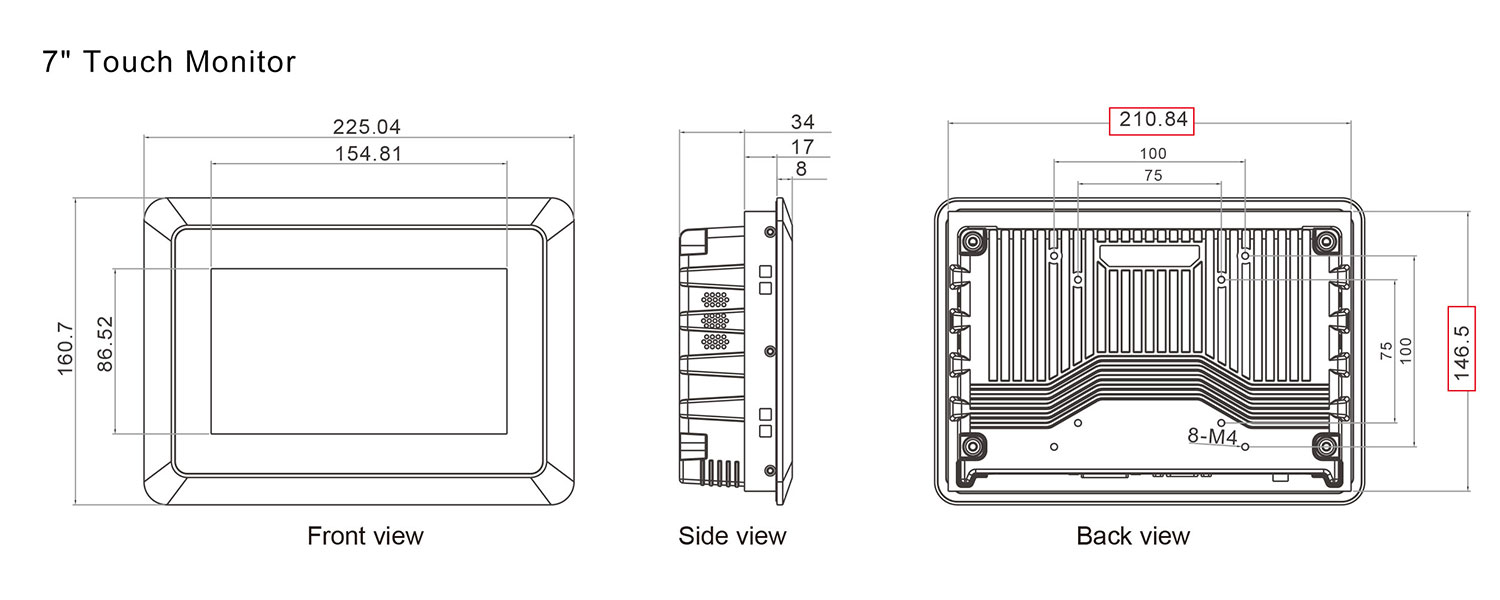

| Product Dimension | 22.504*16.07*5.9cm |
| Packing size | 43*38*18cm |
| Accessories | Power adapter, Power cord, VGA cable, USB touch cable, user manual, warranty card |
| Other | |
| Mounting Way | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
| Diagonal | Resolution | Aspect ratio | Touch type |
| 7" | 1024*600 | 16:9 | no touch/capacitive/resistive |
| 8" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 10.1" | 1280*800 | 16:10 | no touch/capacitive/resistive |
| 10.4" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 11.6" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 12.1" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15.6" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 17" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 17.3" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 19" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 19" wide | 1440*900 | 16:10 | no touch/capacitive/resistive |
| 21.5" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
