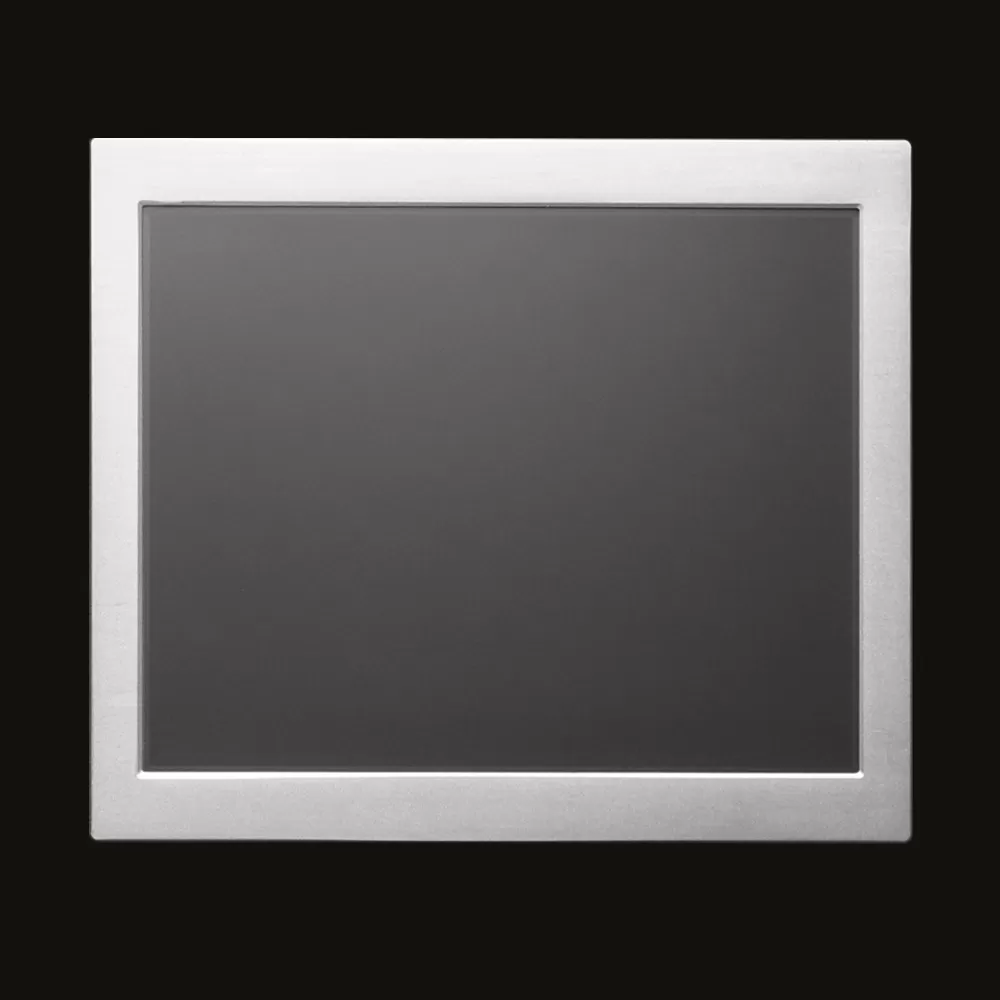

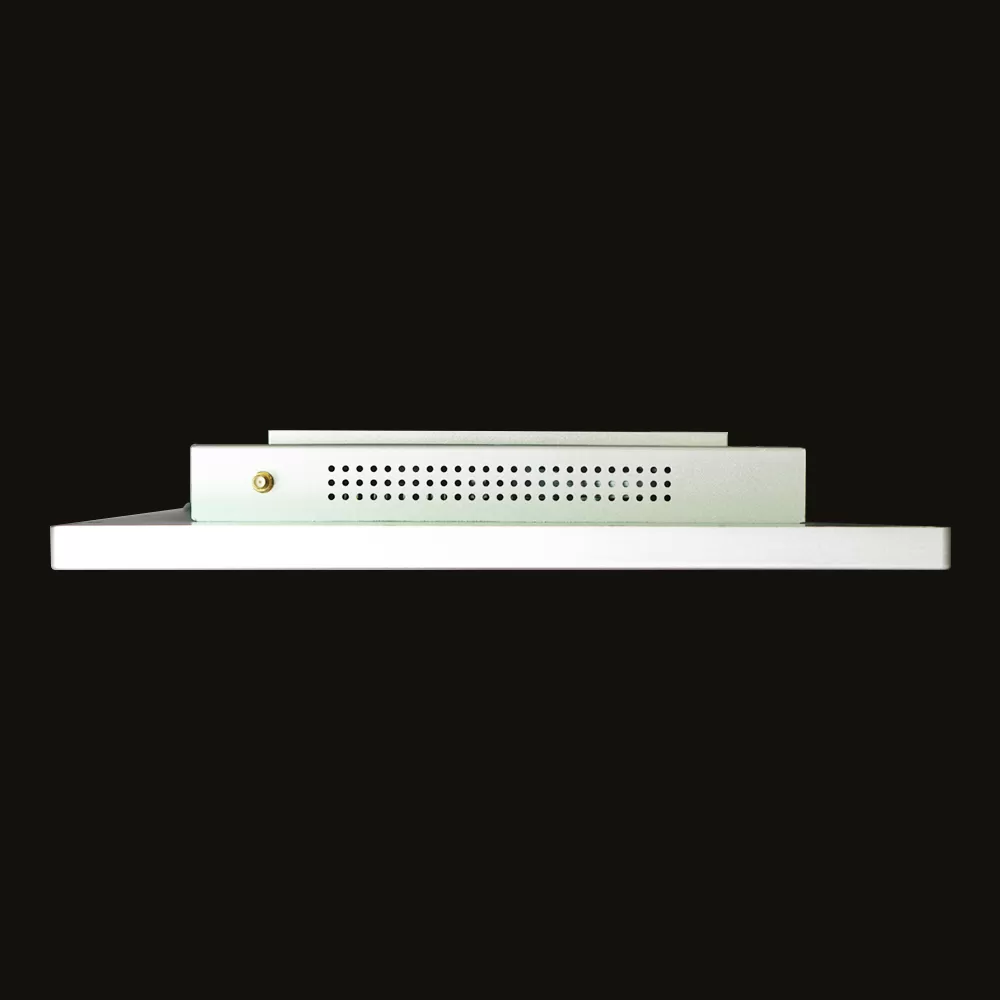

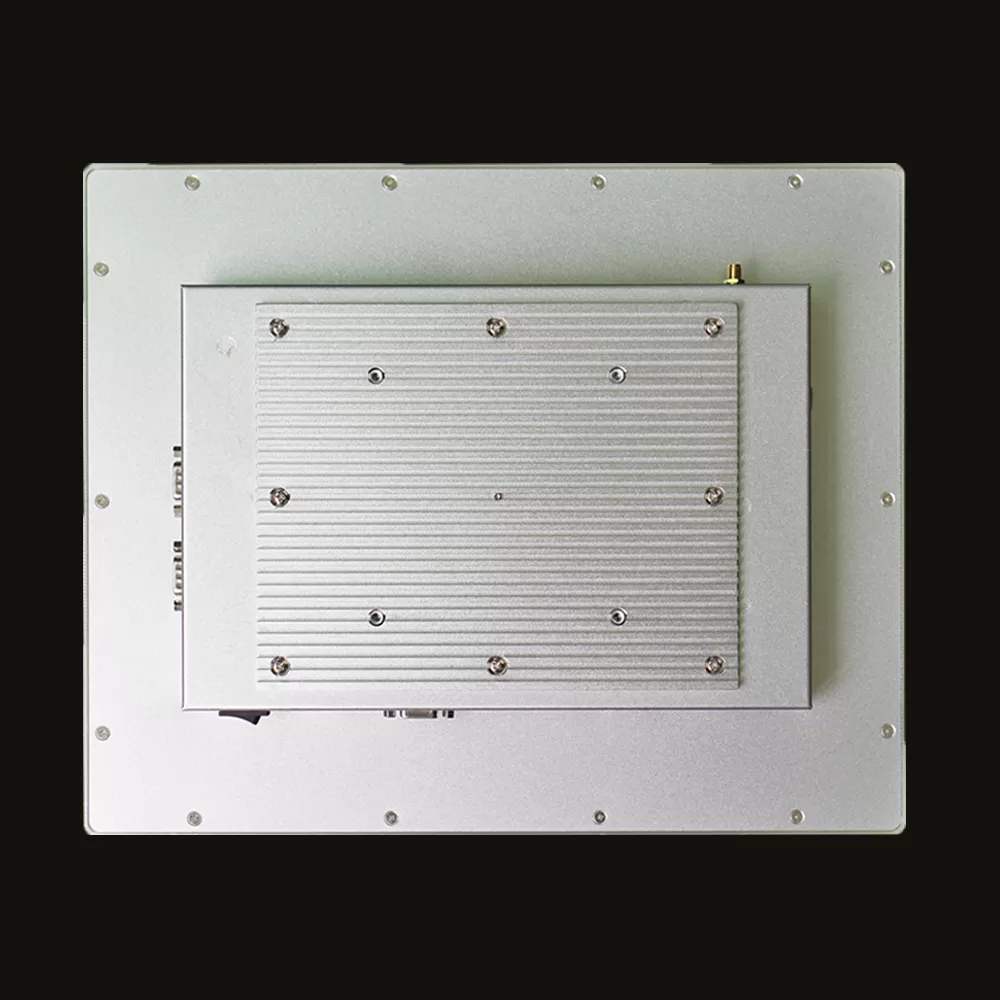

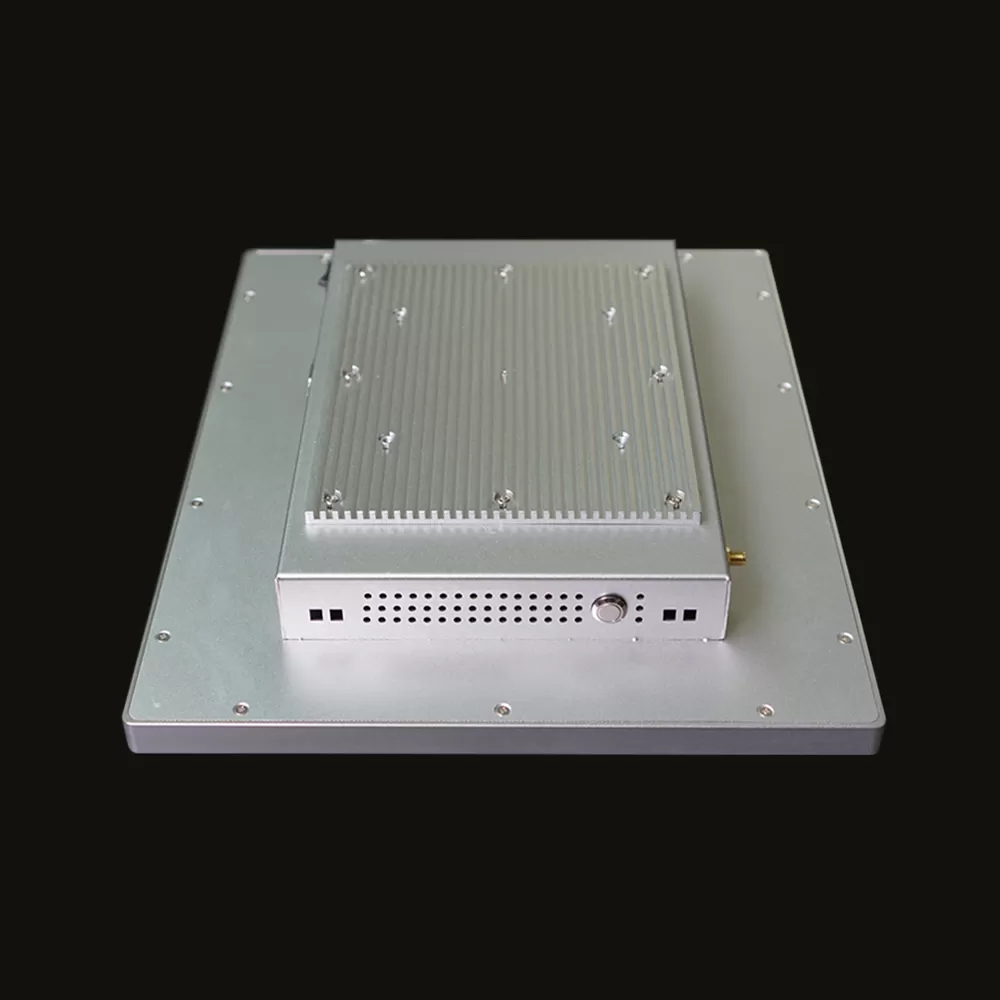

Model: SATA15X
Features:

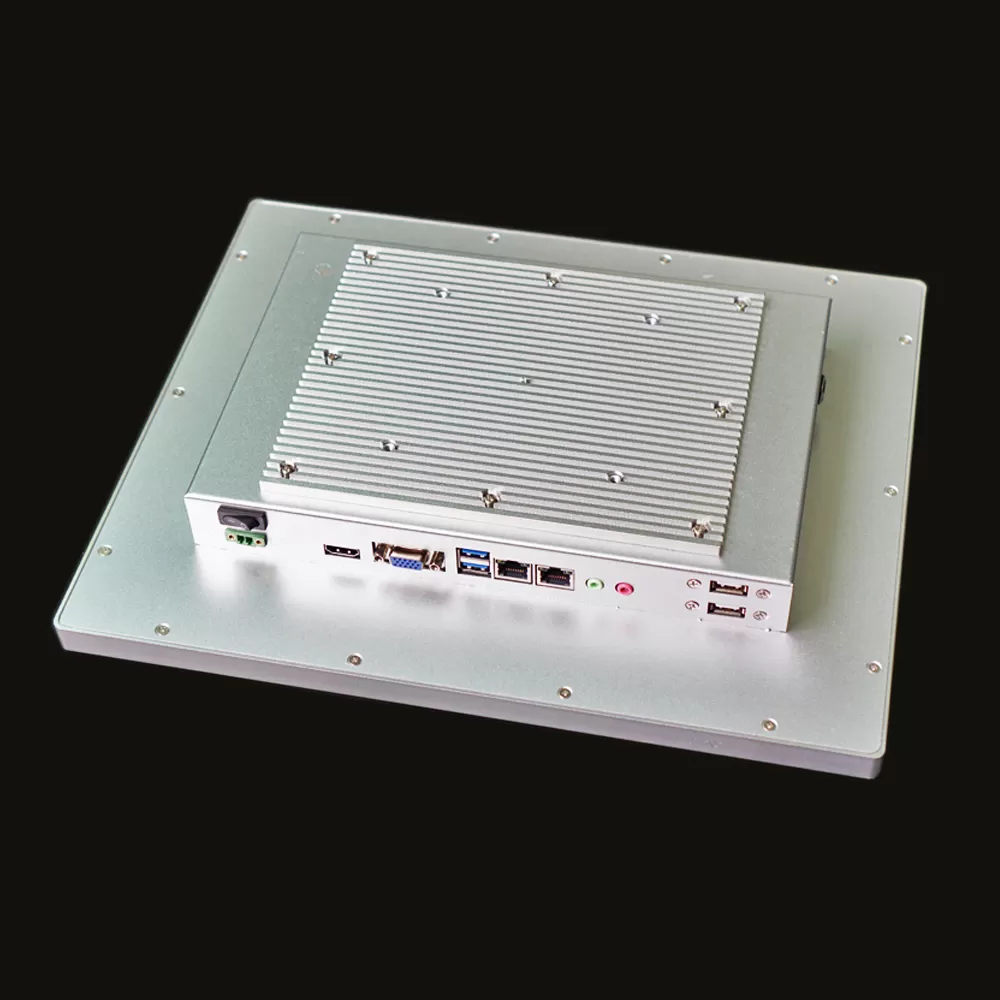

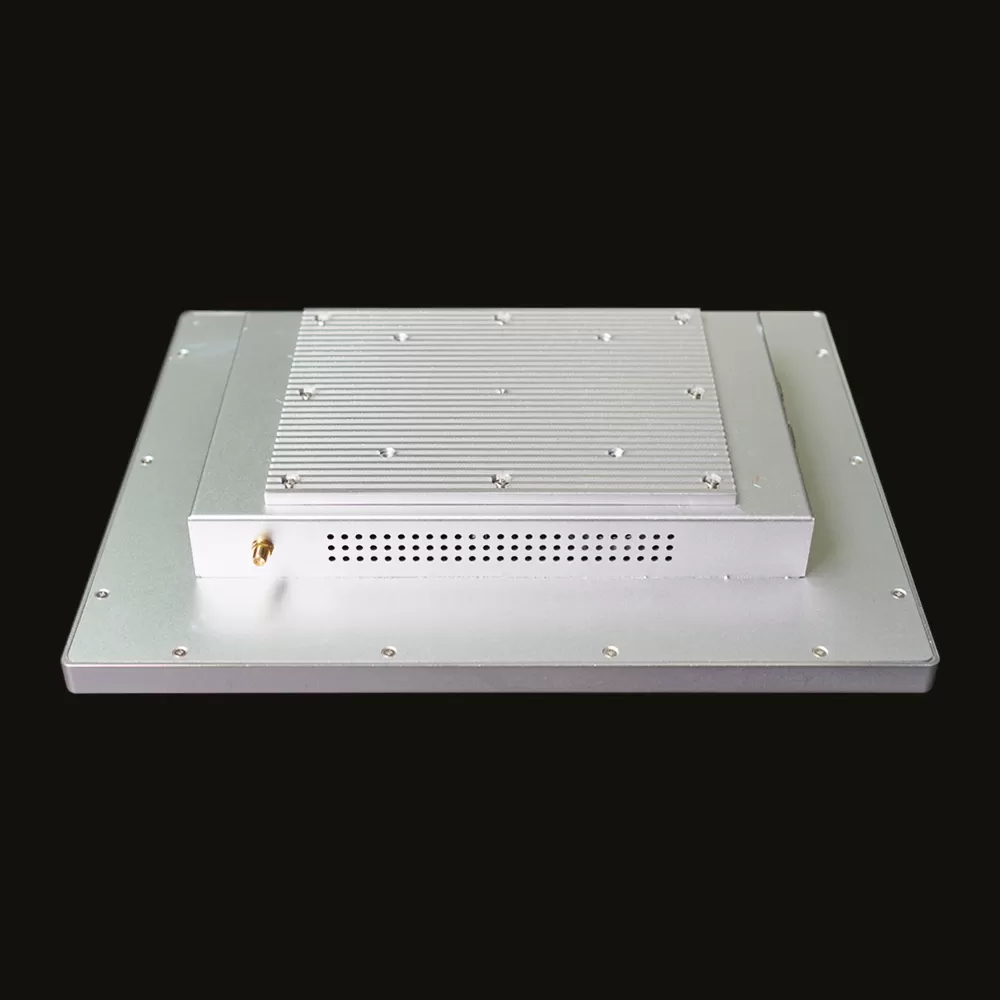

1. Beautiful silver Color, Full aluminum alloy enclosure, excellent heat dissipation
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, rackmount etc. apply to a wide range of industrial application.
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (Max. 8G) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 256GB, 512GB, 1TB |
| HDD: 500GB, 1TB, 2TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek® High Definition Audio Decoder (5.1) Digital audio via HDMI Port |
| Network | 2x Realtek® Gigabit Ethernet Controller(RTL8111F) |
| Wireless Network | WIFI |

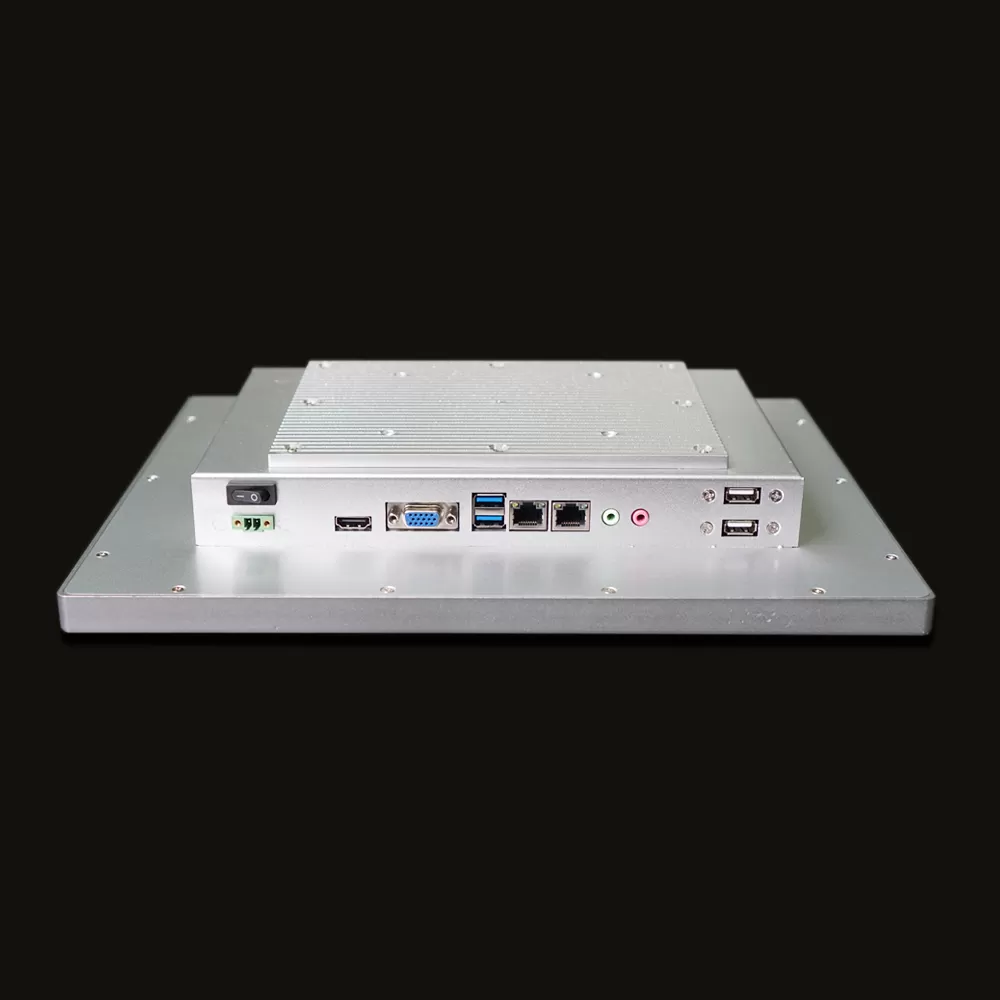

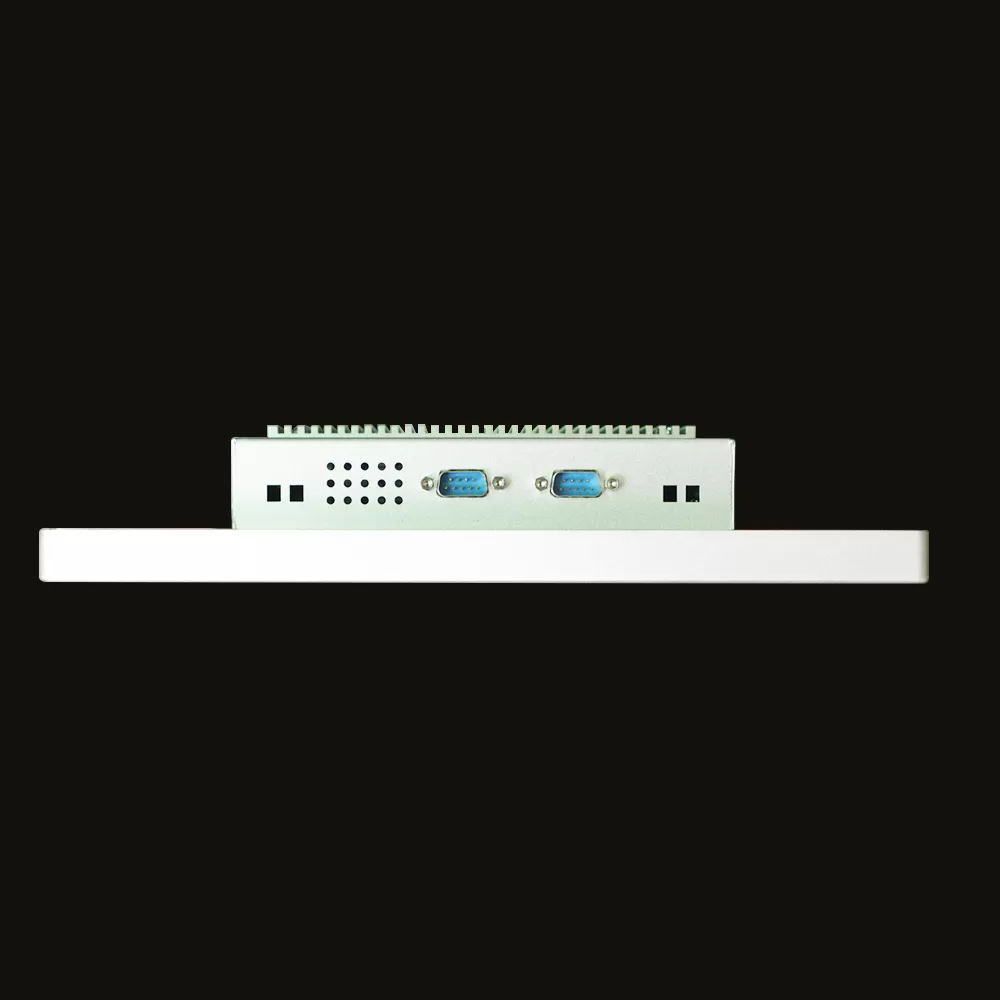

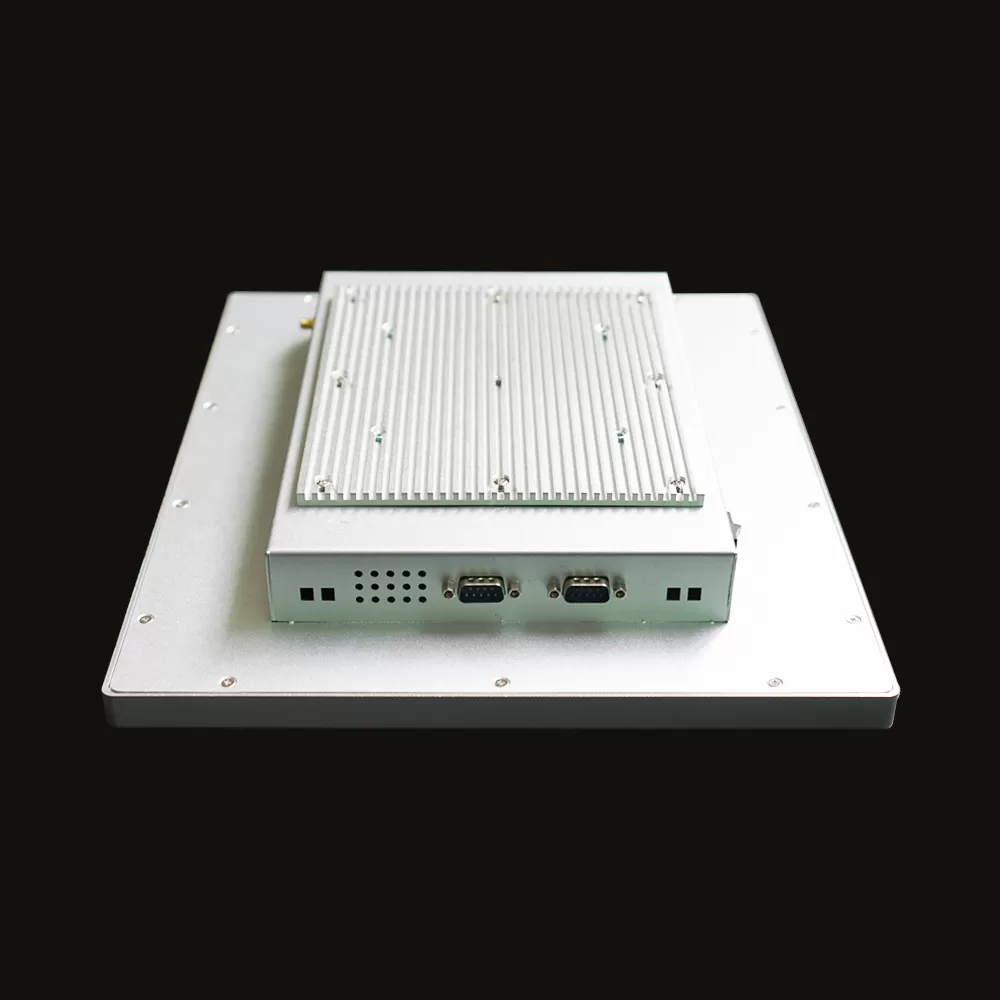

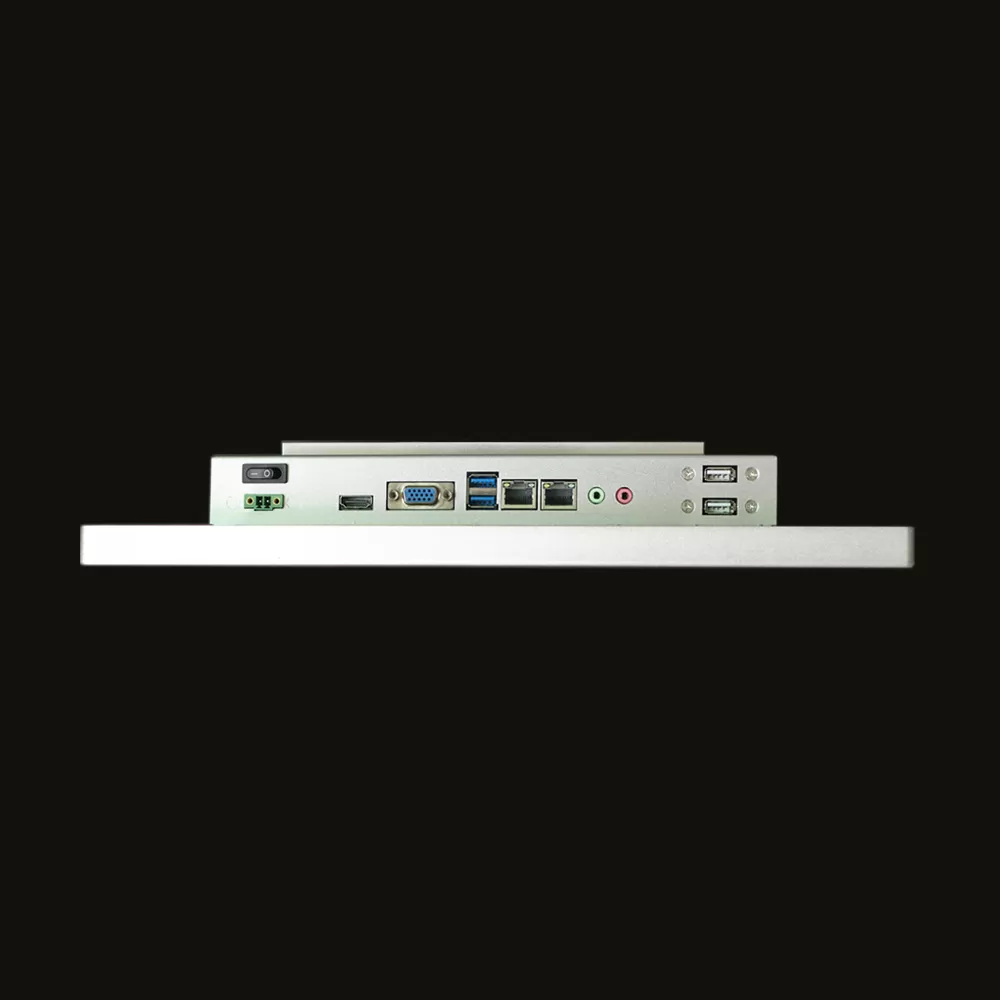

| I/O Interface | 2×USB2.0, 2×USB3.0, 2xCOM RS232, 2×LAN |
| 1×VGA/HDMI/Audio OUT/MIC IN/POWER DC | |
| Opetation System | Windows7/8/10, Linux/Ubuntu/Debian |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.2M colors |
| Brightness | 500 cd/m² |
| Response time | 10ms |
| Contrast ratio | 1500:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) full viewing angel |
| Touch panel | |
| Touchscreen Type | 5 wire Resistive touch |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (non touch, Capacitive touch Optional) |
| VESA mounting | 100×100 mm |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can customize |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof and dustproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -25 to 70°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.6kgs |
| Gross weight | 5kgs |
| Product Dimension | 35.5×29×5.7 cm |
| Packing size | 44×19×40 cm |

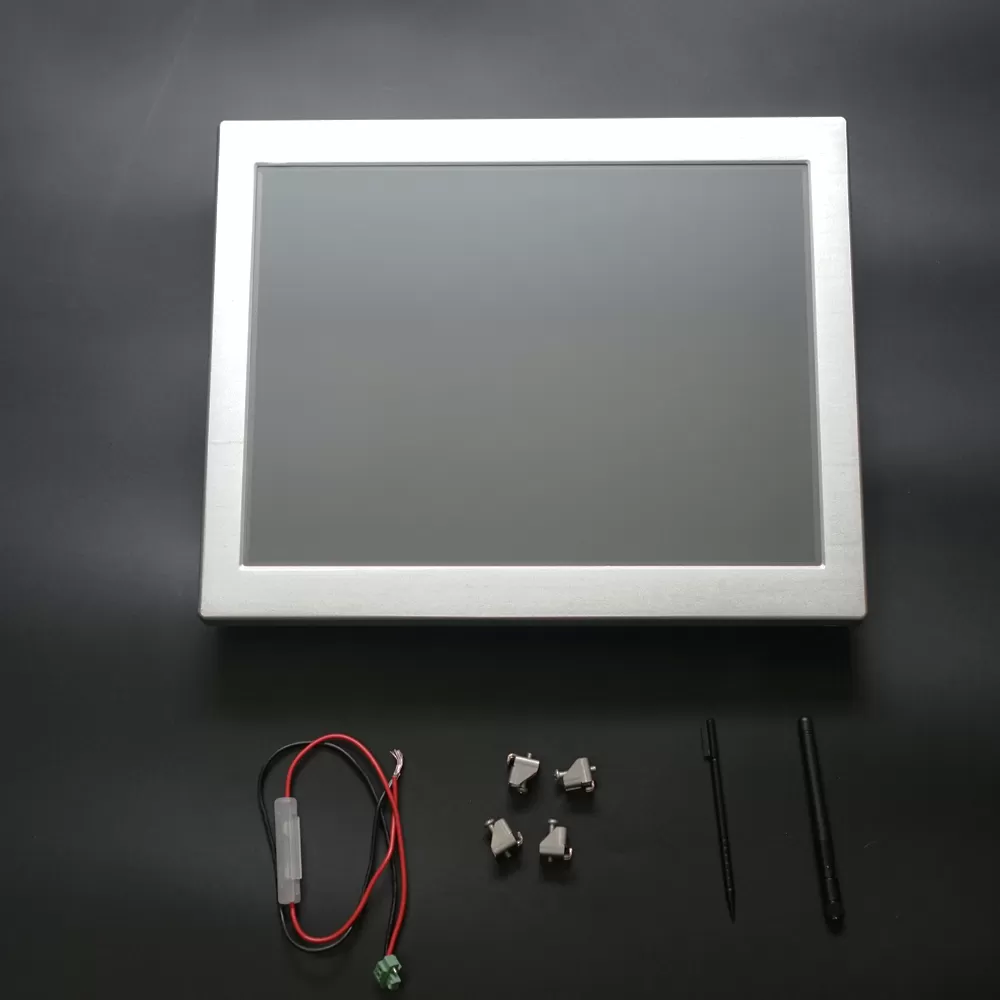

| Accessories | Power cable, touch pen, WIFI antenna, embedded mounting screws |
| Other | |
| Mounting (options) | 1) Provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
