Model: SATA700XU
Features:

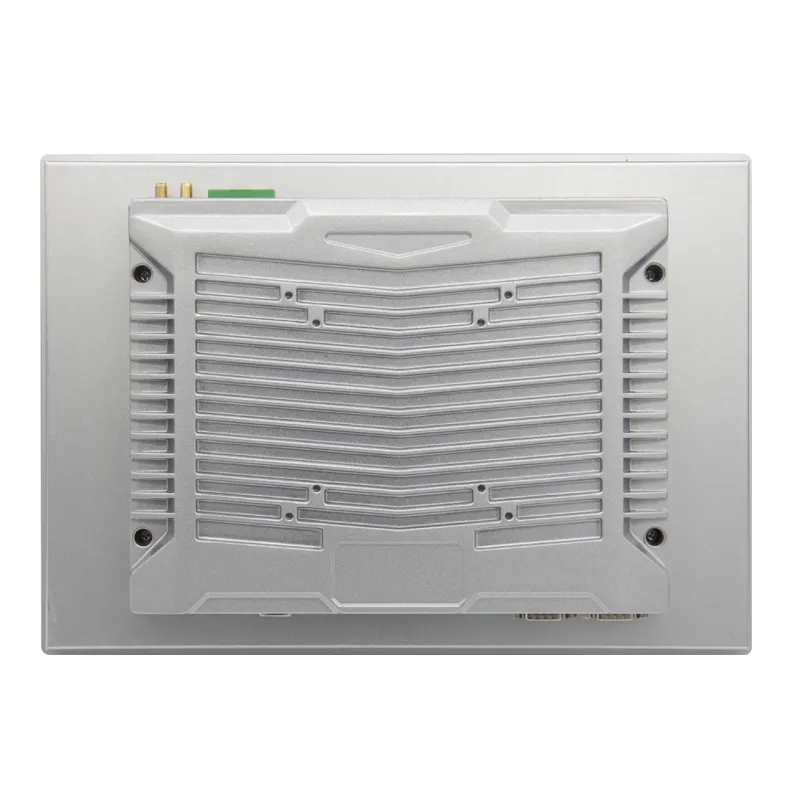

1. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back side, excellent heat dissipation.
2. Independent dual display, with 1*HDMI and 1*VGA display output.
2. Supports 1/2* Gigabit Ethernet cards, with Wake-on-LAN and PXE functions.
3. Supports 2/6* RS232 DB9 serial interfaces, with COM2 supporting RS232/485/422 function switching.
4. Supports watchdog function.
5. 1*USB3.0 interface and 4*USB2.0 interfaces.
6. High performance motherboard, 7x24 continuous operation.
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| CPU Optional | Intel® Celeron J6412, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.6 GHz, 1.5MB Cache, Fanless |
| CPU Optional | Intel® Core i5-10310U 4 Cores, 8 Threads, Base 1.7 GHz, Turbo 4.4 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10510U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-10610U 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i5-1135G7 4 Cores, 8 Threads, Base 2.4 GHz, Turbo 4.2 GHz, 8MB Cache, Fanless |
| CPU Optional | Intel® Core i7-1195G7 4 Cores, 8 Threads, Base 2.9 GHz, Turbo 5.0 GHz, 12MB Cache, Fanless |
| System Chip | Based on the integration of the Baytrail CPU, SOC |
| Display | Integrated Intel® HD Graphics core graphics card |
| Memory | J4125/J6412: DDR4 SODIMM x1 Core i5/i7: DDR4 SODIMM x2 |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB, 1TB SSD |
| HDD: 500GB, 1TB, 2TB | |
| Network | 2x 8111Hs 1000M LAN, Supports Wake-on-LAN and PXE functionality |
| Wireless Network | WIFI/Bluetooth Optional |

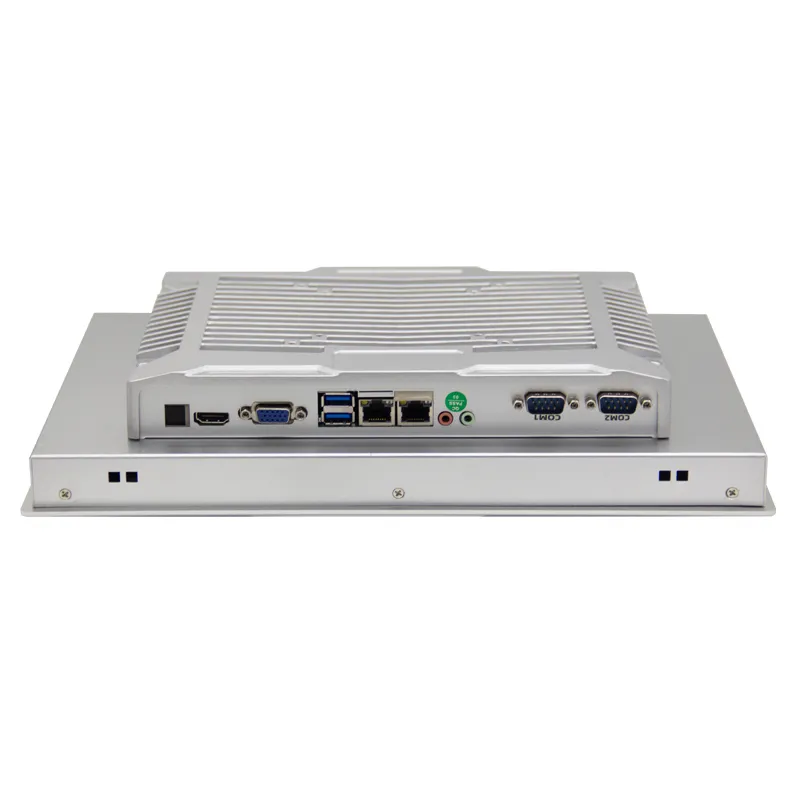

| I/O Interface | 2xUSB 2.0 interface, 2xUSB 3.0 interface 1x front USB 2.0 interface |
| 2x DB-9 COM1& COM2, RS232/422/485 | |
| 1x VGA/HDMI/Audio Line-out/DC/Front power switch | |
| 2x 8111Hs Gigabit network card, supporting network wake-up and PXE functions | |
| 2x RS232 DB9 serial interface, COM2 supports RS232/RS485/422 switching, COM1/2 supports the 9th pin being energized | |
| Storage | 1x mSATA SSD solid-state drive expansion, with transfer speeds up to 6Gbps 1x2.5-inch hard drive expansion |
| Expansion slot | 1 Mini-PCIe slot, supports WIFI, Bluetooth, 4G |
| Operation System | Support Windows® 7/10/11, LINUX, etc. |
| Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
| Support | PXE Boot |

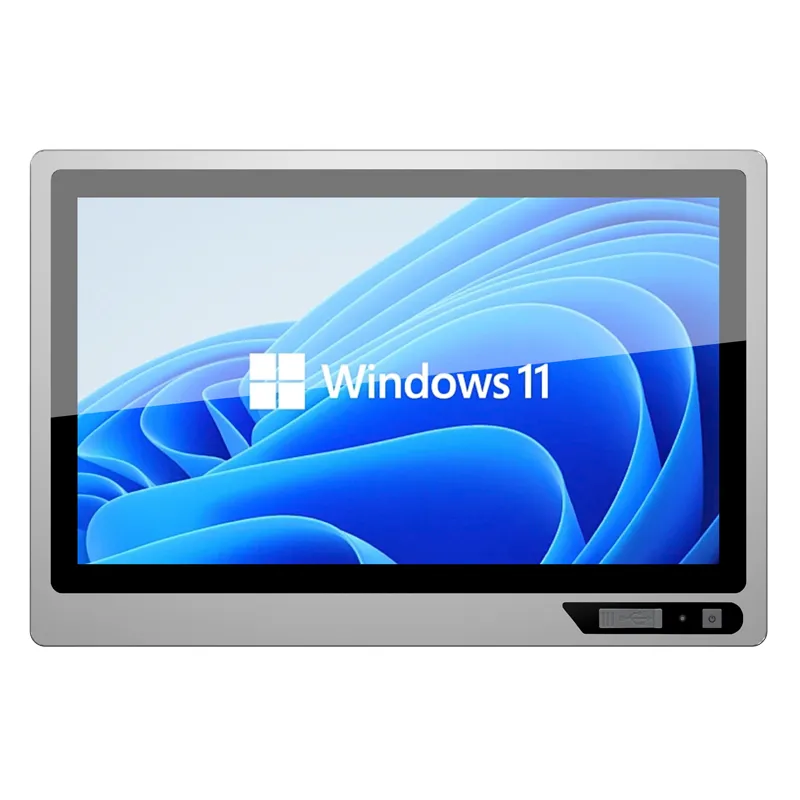

| LCD panel | |
| Panel size | 13.3" (10.1", 10.4", 12.1", 15", 15.6", 17", 18.5", 19", 21.5" Optional) |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 Wire Resistive Touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 9-36V DC Wide Voltage |
| Power consumption | 10~25W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver |
| VESA mounting | 75x75/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, Storage: -20 to 70°C |
| Relative humidity | 5%~95%, Non-condensing |
| Vibration | 0.5g rms/5-500HZ/random/operating |
| Packing Details | |
| Net weight | TBD |
| Gross weight | TBD |

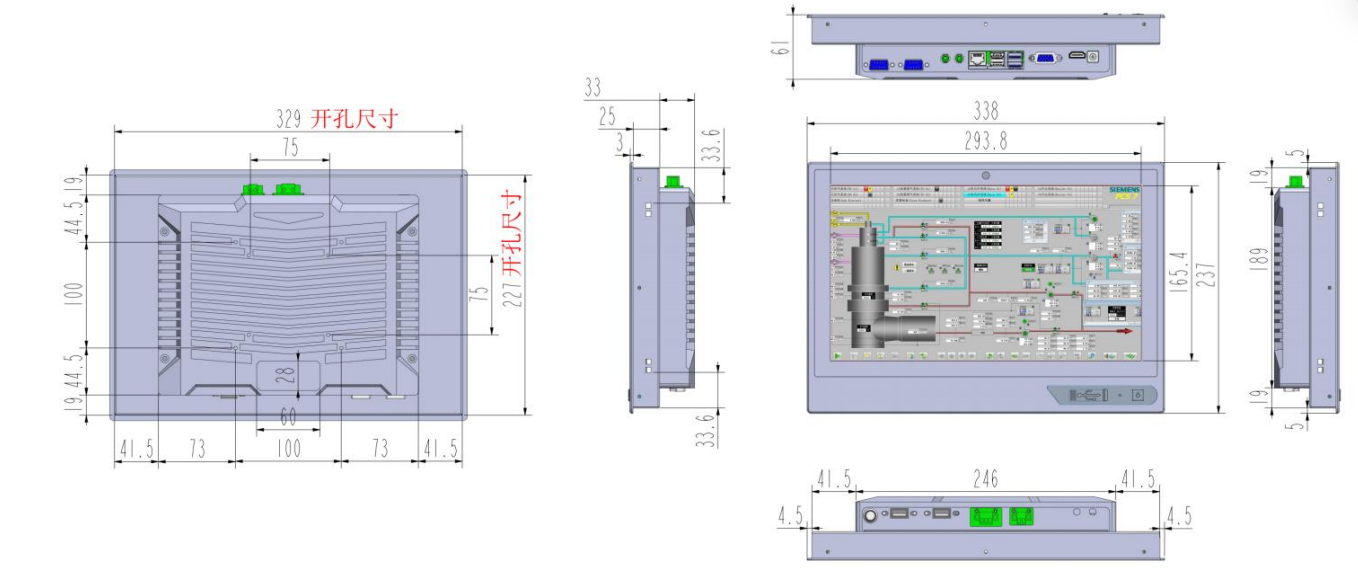

| Product Dimension | 338x237x61 mm |
| Packing size | TBD |

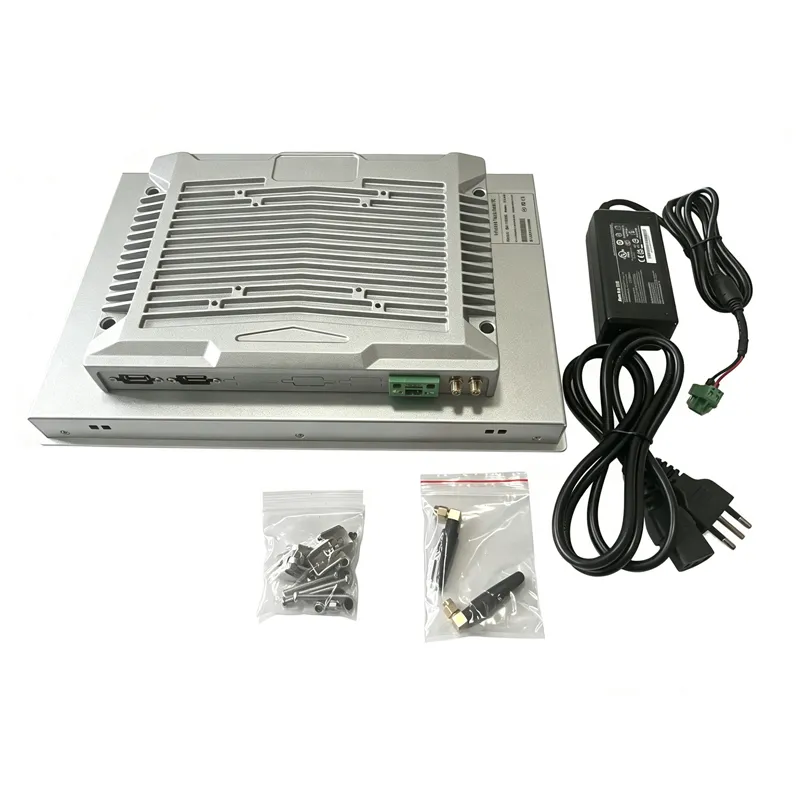

| Accessories | Power adapter, Power cord, Embedded screws, Phoenix terminal |
| Accessories optional | WIFI module, 3G/4G/5G module, VESA bracket |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
