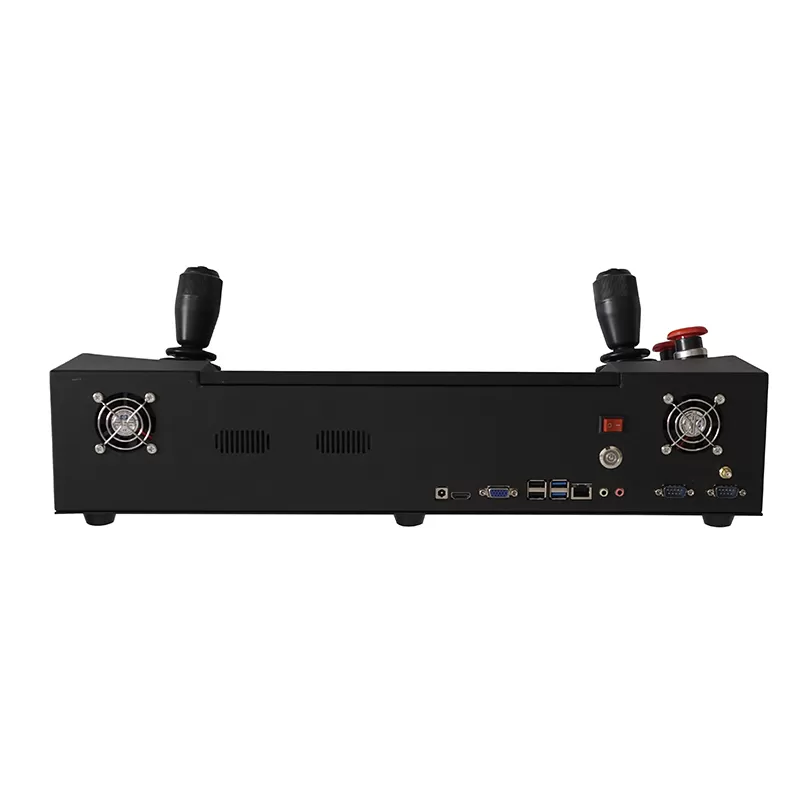

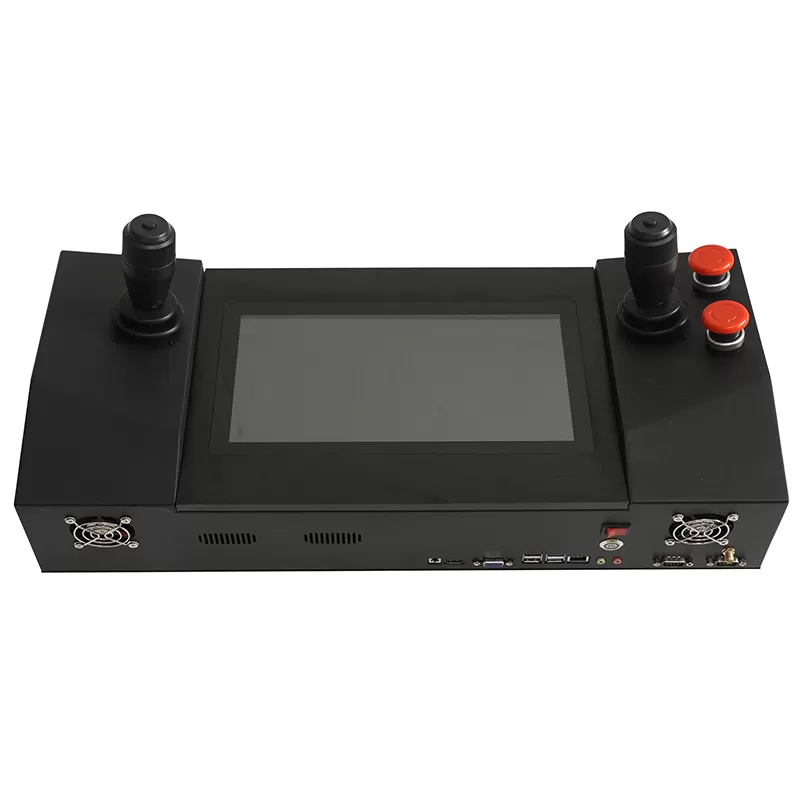

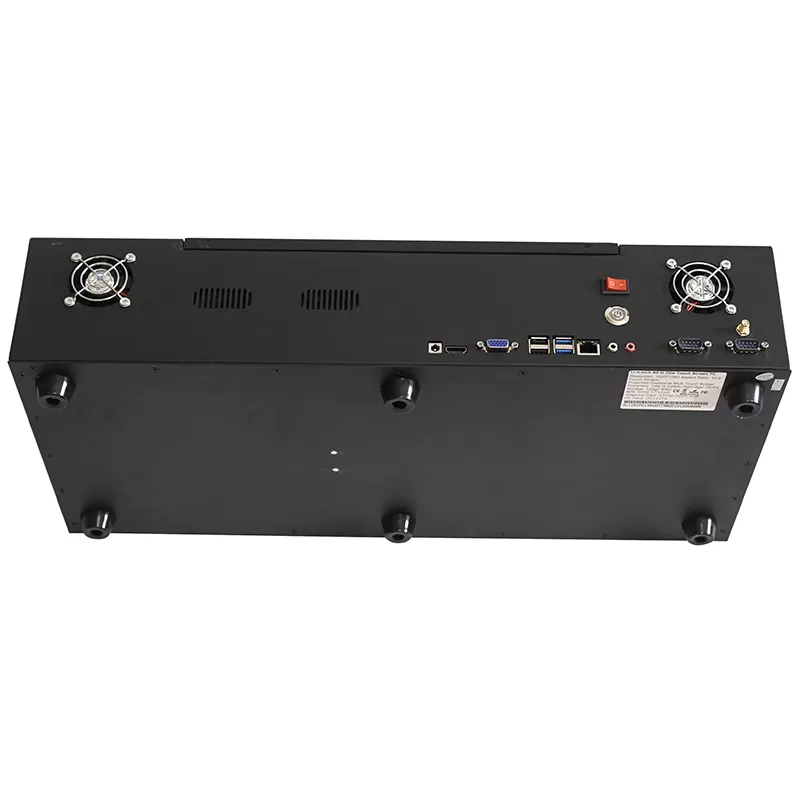

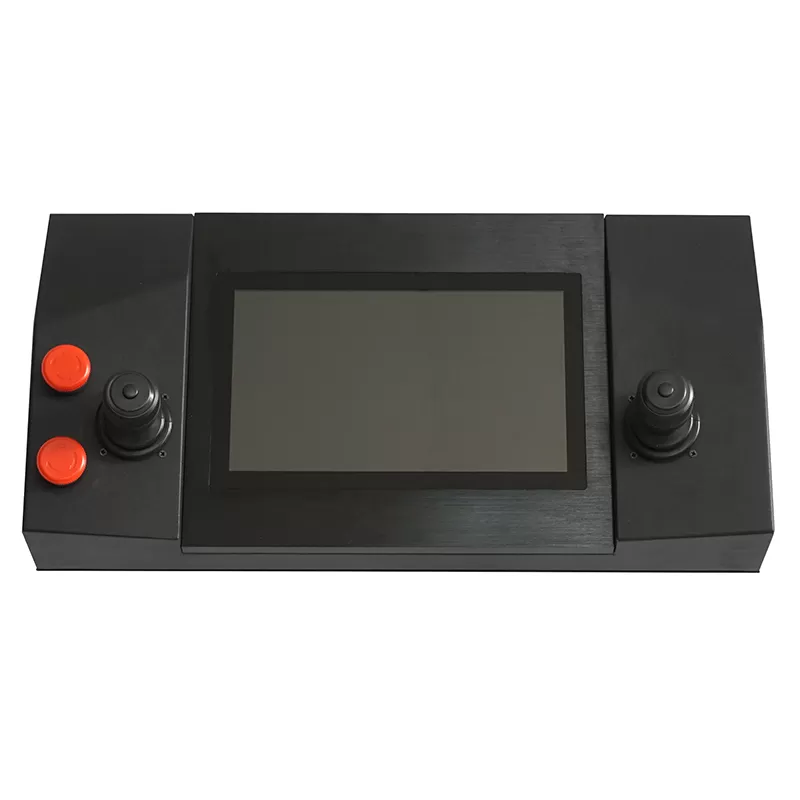

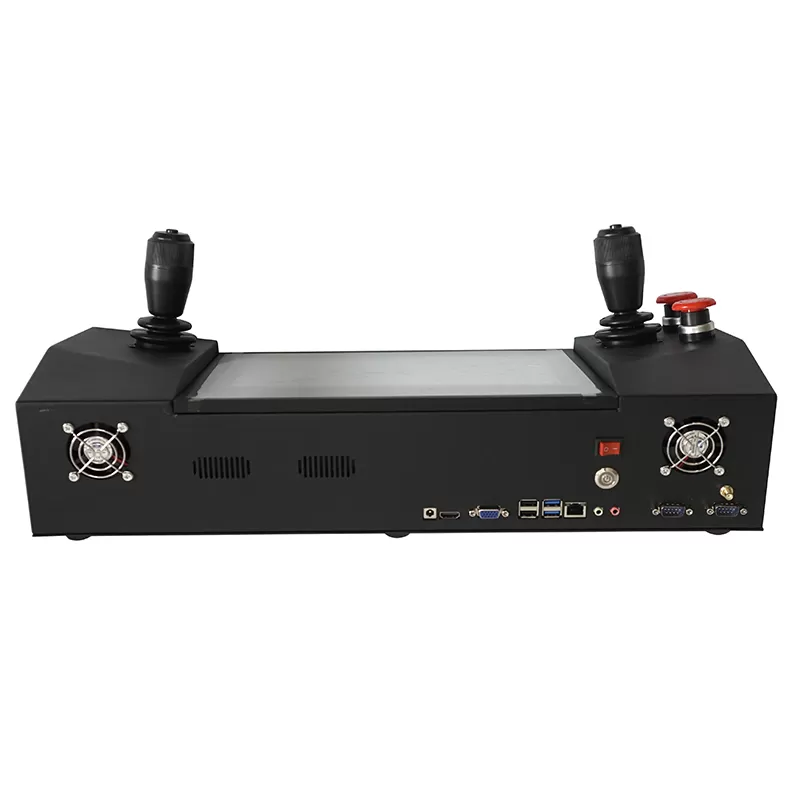

11.6 inch industrial PCAP touch panel PC with 3 axis Joystick and two emergency button

Model: SATA116XJ

1. Fully enclosed design, front IP65 waterproof.

2. Industrial LCD panel, wide viewing angle, High resolution screen 1920*1080p, true color.

3. Adopt multi-points PCAP touch panel, covered with 2mm tempered glass for vandalproof.

4. High performance motherboard, 7x24 continuous operation.

5. Integrated two HID Programmable 3 axis joystick.

6. Independent NVIDIA GeForce GT730 2G HD Graphics 5500.

7. Built-in 2 Fan for heat dissipation, with a switch can turn on/off the fans.

8. Built-in WIFI+Bluetooth.


PC
CPUIntel® Core i5-5200U-GT730 2G
ChipsetIntel ValleyView SSA-CUnit
Memory8G DDR3
Hard Drive Capacity128G SSD
GraphicsHD Graphics 5500
AudioRealtek ALC662, High Definition Audio (HD), Line in, Line out
Network1xRealtek RTL 8111E Gigabit Ethernet controller
I/O Interface2xUSB 3.0, 2xUSB2.0, 2xCOM RS232
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC/Power button/Fan Switch
Operation SystemSupport Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size11.6"
Resolution1920*1080
Aspect ratio16:9
Support Color16.7M colors
Brightness (cd/m²)400+
Response time5ms
Contrast ratio1000:1
View angle80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen TypeProject Capacitive Touch (10 points)
Touch InterfaceUSB (RS232 optional)
Touch response time2ms
Luminousness90%
Surface Hardness7H
Working life>50 million times
Touch options(5-wire resistive touch, non touch Optional)
Power Supply
External Power SupplyAC 100-240V
Working voltageDC 12V
Power consumption≤35W
Enclosure
MaterialAluminum Alloy front bezel+High strength rolled steel back base
ColorBlack, silver, white, color can be customized
IP gradeFront panel IP65 waterproof
Operating Environment
Temperature RangeOperating: -10 to 60°C, storage: -20 to 80°C
Relative humidity5%~95% @ 40° C, non-condensing
Vibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight7kgs
Gross weight9kgs
Product Dimension55.8x25.8x19.69CM
Packing size64x35x28CM
AccessoriesPower adapter, power cord, user manual, warranty card
Other
Mounting (options)Embedded mounting screws
Wall mounting brackets (Optional)
Desk stand holder (Optional)
Warranty1 year warranty
CertificateCE, FCC, RoHS
