Model: SATA156MO
Features:
1. 15.6 inch widescreen LCD panel, 1920*1080, wide viewing angle, high nits, true color.
2. 1000 nits, sunlight readable.
3. Wide voltage: 12-18V.

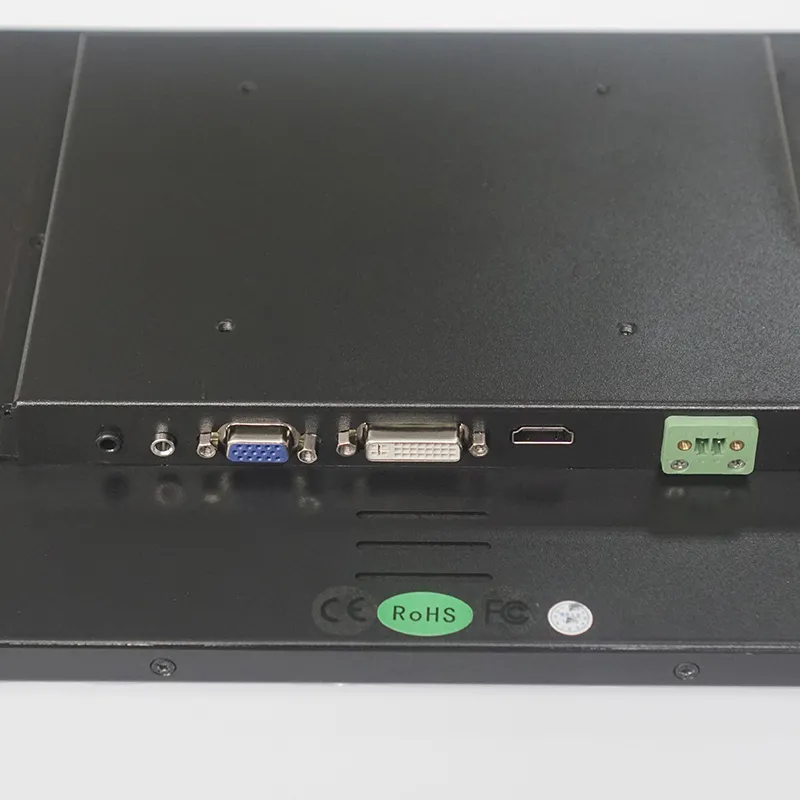

4. Interfaces: VGA+HDMI+DVI.
5. High performance mainboard, 7x24 continuous operation.
6. Support wall mounting, embedded mounting, desk stand mouting etc.
7. Light weight 1.6KG, suitable for assembling in motion control, drone, handheld box and other portable equipment.
| LCD panel | |
| Panel size | 15.6" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V-18V |
| Power consumption | ≤31W |
| Enclosure | |
| Material | Aluminum alloy |
| Color | Black, Silver |
| VESA mounting | 100x100mm |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 1.6 kgs |
| Gross weight | 2.35 kgs |
| Product Dimension | 43.56*24.59*3.35 cm |
| Packing size | 52*46*18 cm |
| Accessories | HDMI cable, power cord, open frame kits |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
