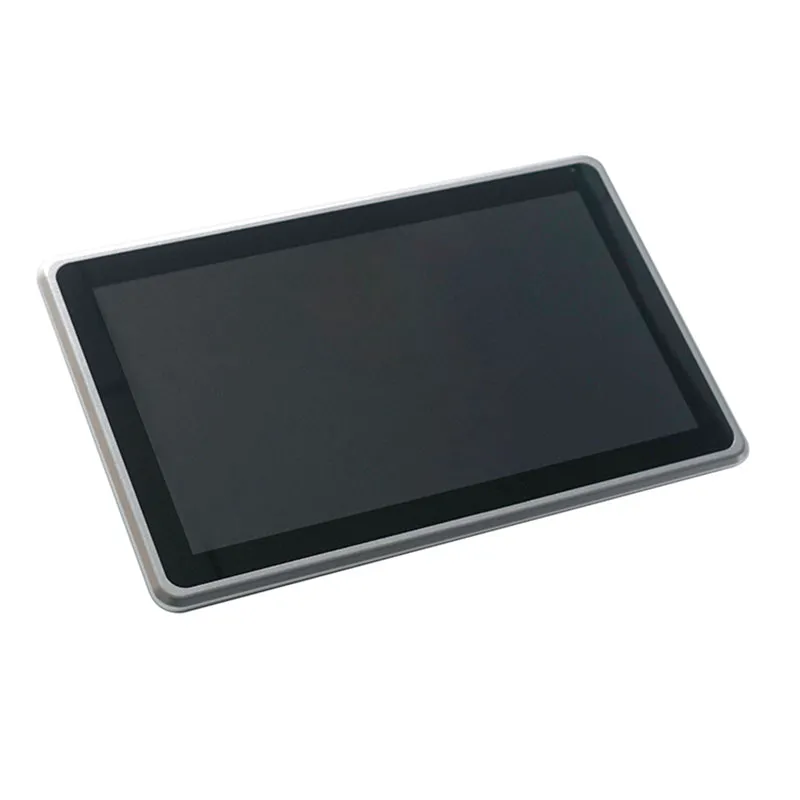

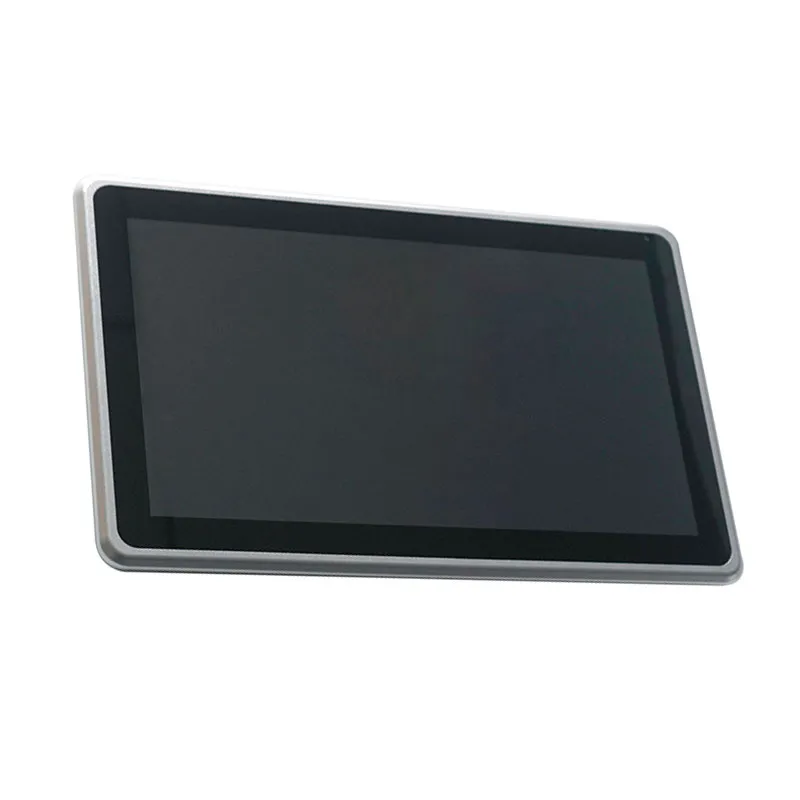

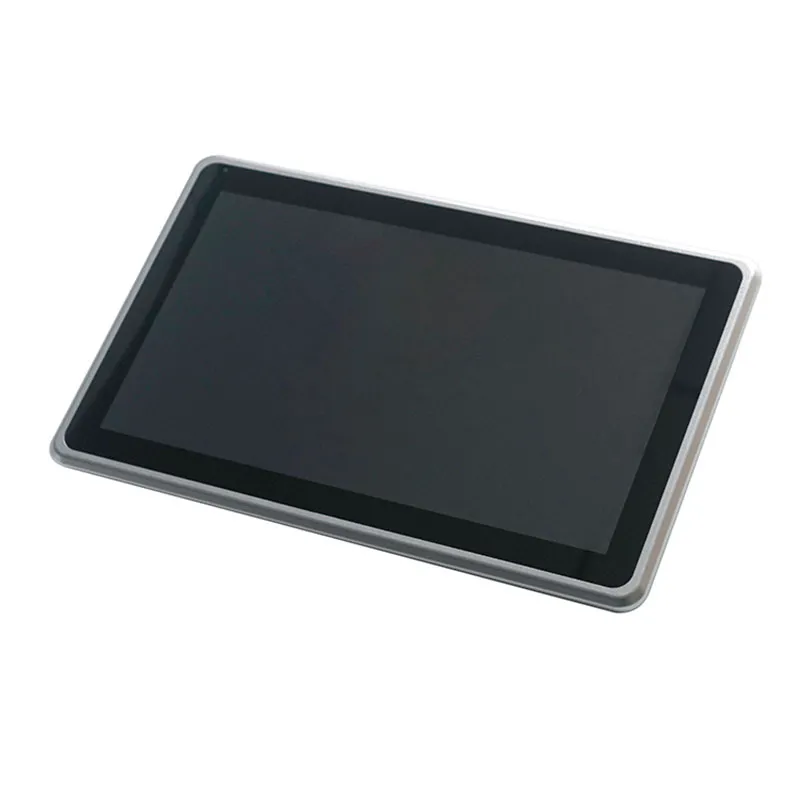

Model: SATA156M-4K
Features:
1. 15.6'' widescreen LCD panel, high resolution, wide viewing angle, high nits, true color.
2. 4K(3840*2160) high resolution.
3. 1000 nits sunlight readable.

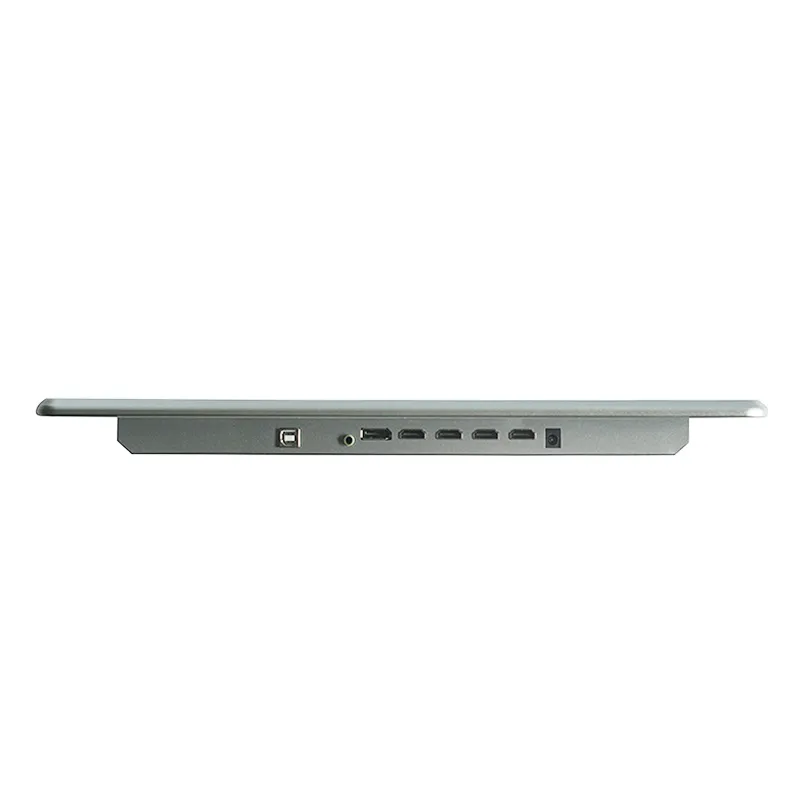

4. 4xHDMI+1xDP+Type B USB for touch.
5. High performance mainboard, 7x24 continuous operation.
6. Support wall mounting, desk stand mouting etc.
7. Built-in auto light sensor for eye-protect.
| LCD panel | |
| Panel size | 15.6" |
| Resolution | 3840*2160 |
| Aspect ratio | 4K |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires Resistive touch, non touch Optional) |
| Signal Ports | |
| VGA | 4x HDMI |
| DP | 1x DP |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum alloy |
| Color | Silver |

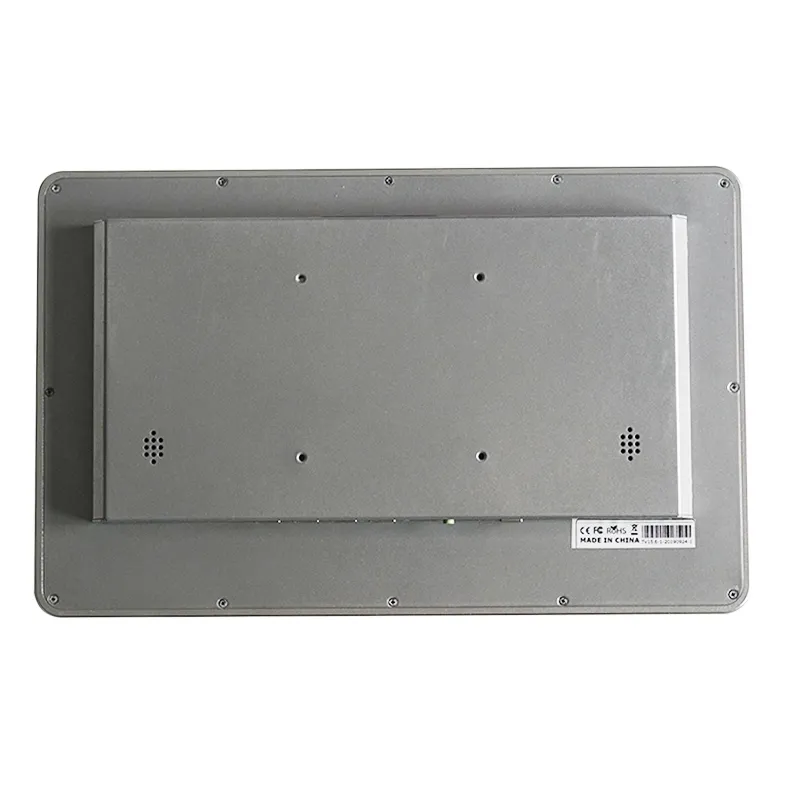

| VESA mounting | 100x100mm |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 3 kgs |
| Gross weight | 4.5 kgs |
| Product Dimension | 40.59*25.59*3.2 cm |
| Packing size | 49*41*18 cm |
| Accessories | HDMI cable, power cord, User Manual and Warranty card and etc |
| Other | |
| Mounting way | Wall mounting brackets (Optional) |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
