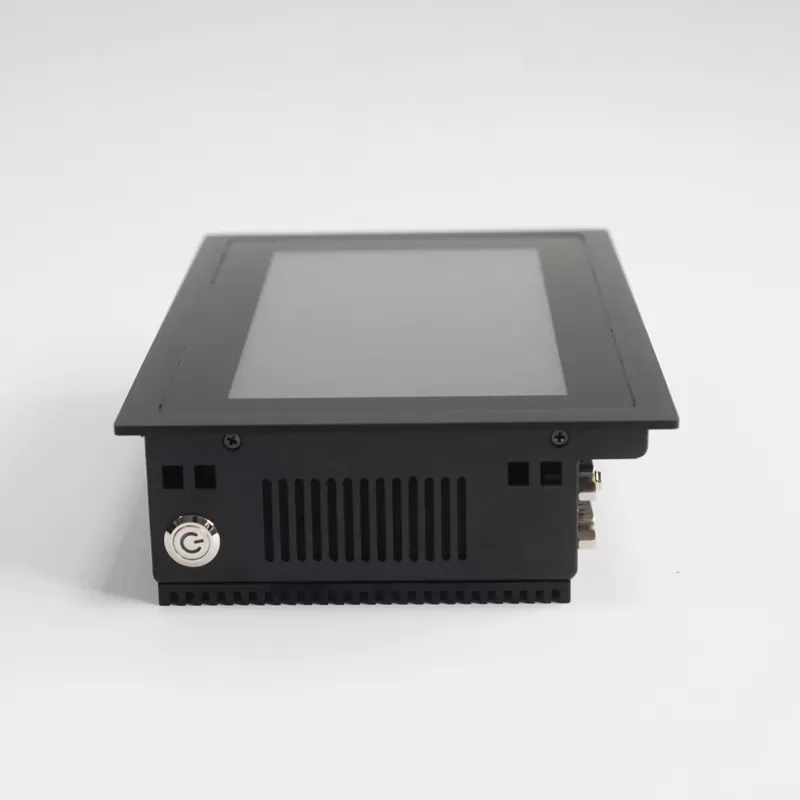

Model: SATA07X
Features:

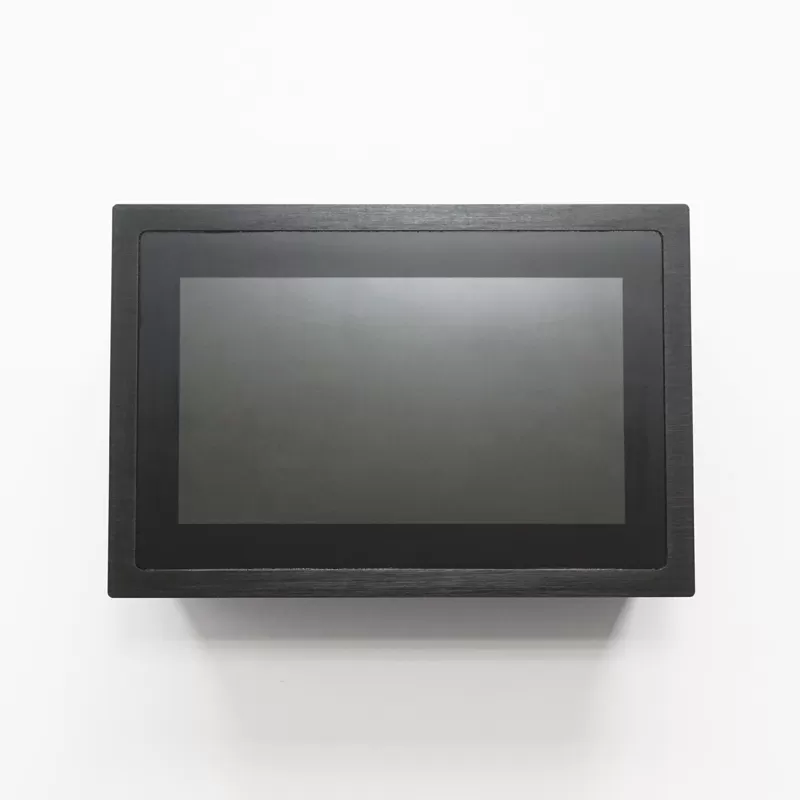

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide operating temperaturer: -20 ~ 70 °C, wide viewing angle, high nits, true color. 3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. Cover with AG glass, Anti-glare.
5. EETI touch controller, touch can work when screen with raindrop.
6. High performance motherboard, 7x24 continuous operation.
7. Ultra-thin front bezel 3mm, ideal for embedded mounting.
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (8G Optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |

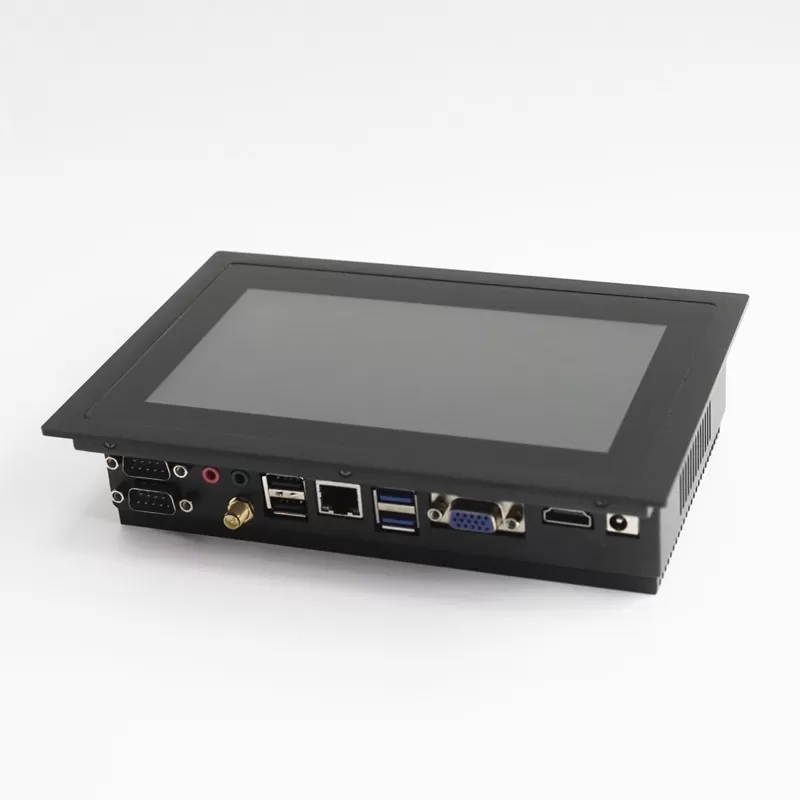

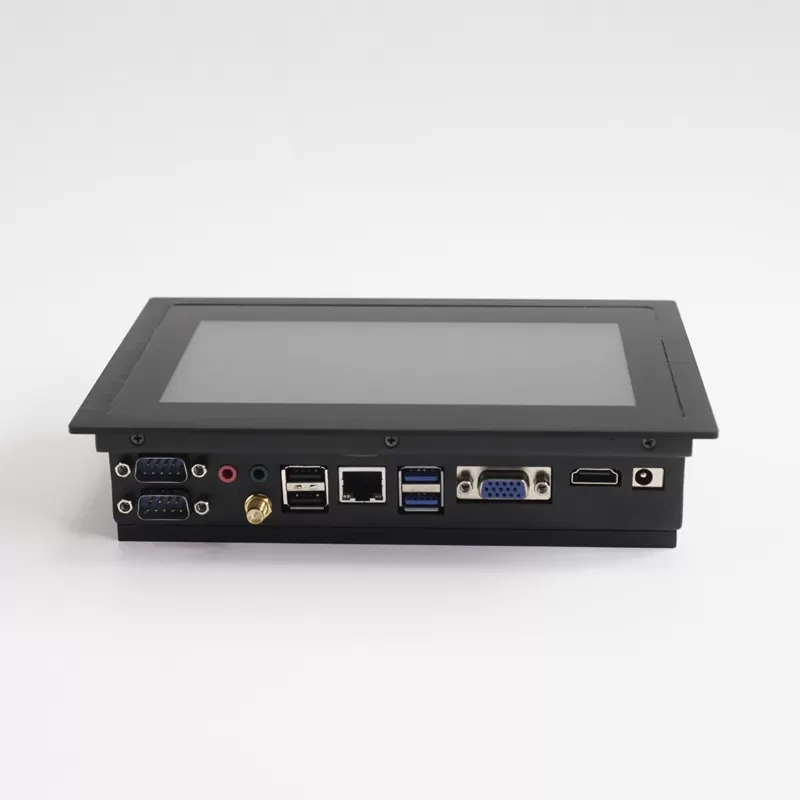

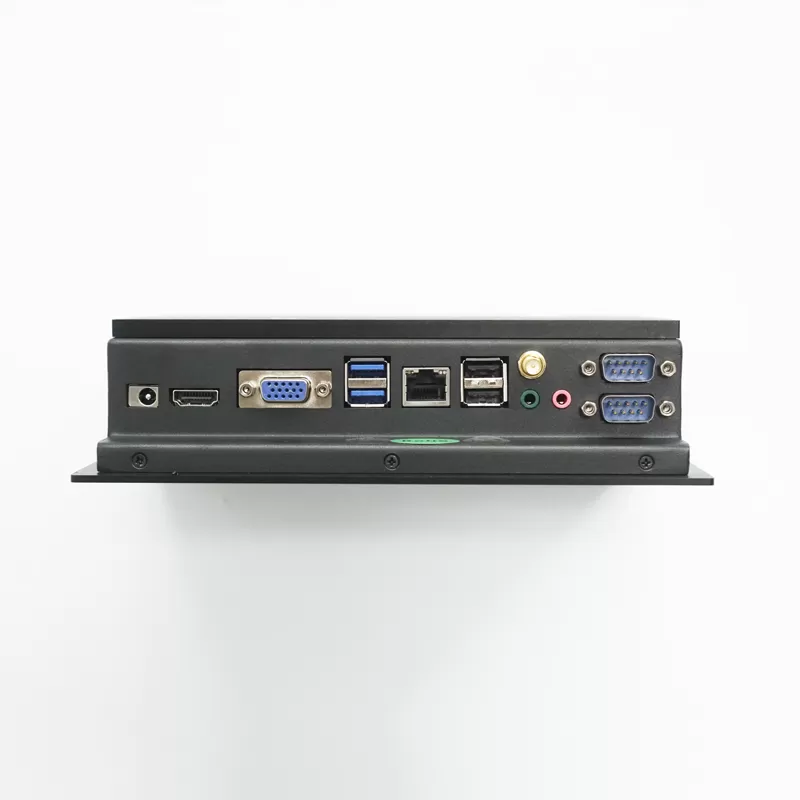

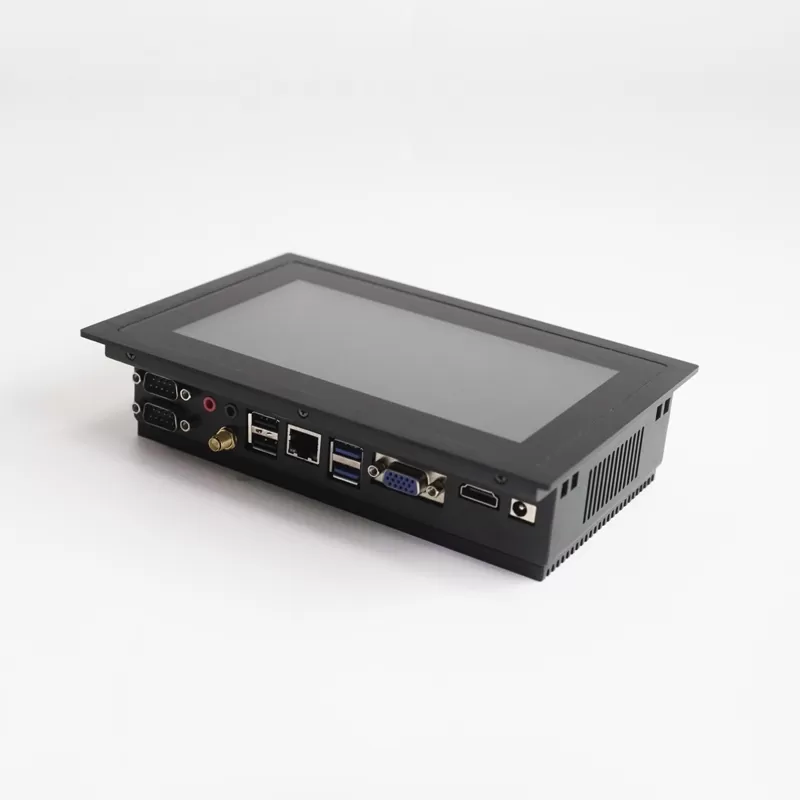

| I/O Interface | 2xUSB 2.0, 2xUSB 3.0, 2xCOM RS232 |
| 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 7" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 75°/75°/75°/75° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Silver, Black, White, color can customize |
| VESA mounting | 75×75mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 1.5kgs |
| Gross weight | 2kgs |
| Product Dimension | 20.11*13.66*5.05cm |
| Packing size | 40*33*16cm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
