Model: SATA-I20VKU
Features:
1. Support Windows 11;
2. Support USB3.0 type A connector;

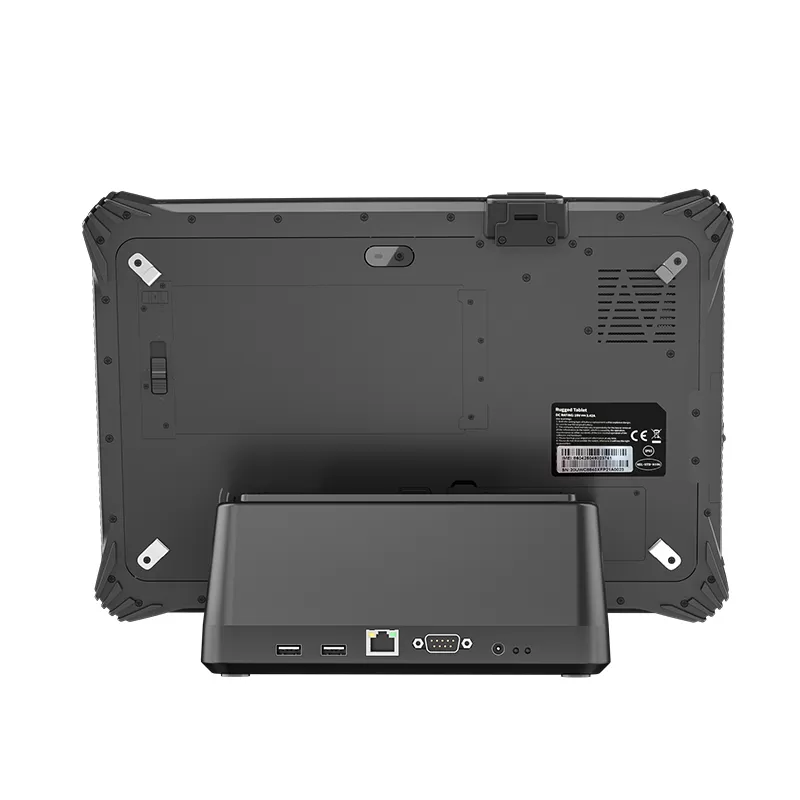

3. Support Battery Single Charger Docking;
4. Support GPS navigation;
5. Support 1D/2D barcode scanner;
6. Support Finger Identification;
7. Rugged IP65 protection level;
8. Support 6300mAh pluggable battery, big and small double batteries;
9. Support UART port, RJ45 port and customized port;
10. Support Wrist Strap and back jacket;
| PC | |
| CPU | 12th Generation alderlake Intel® Core™ i5-1235U, 12M Cache, 4.40 GHz |
| 12th Generation alderlake Intel® Core™ i7-1255U, maximum frequency 4.7 GHz | |
| GPU | Intel® UHD Graphics 620 |
| RAM | 8GB DDR4L (16G Optional) |
| SSD | NGFF, 128GB removable |
| TPM | TPM2.0 SLB9665T |
| G_sensor | Gravity acceleration sensor |
| Fingerprint | 1*SPI Fingerprint (windows hellow boot login) |
| Fan | 1*IPX5 Fan |
| NFC | NA (NXP100 optional) |
| WIFI | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v) |
| Bluetooth | BT5.1 (BLE) class1 transmited distance: 10m |
| 4G | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan |
| GPS | U-BLOX MSQ module, Support: GPS, Beidou module, Glonass |
| Camera | Front: 2.0MP, Rear: 8.0MP USB Camera With flash light |
| Speaker | Embedded 8Ω/0.8W waterproof speaker |
| Mic | Sensitivity: -42db, Output resistance: 2.2kΩ |
| Operation System | Windows 11 Home/Pro/Win10 IOT Optional |
| LCD panel | |
| Panel size | 12.2 inch (Optical bonding Optional) |
| Resolution | 1920*1200 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 650 cd/m2 |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points), G+G |
| Surface Hardness | 7H |
| Optional | AR Sunlight readable film |
| Interface | |
| USB2.0 | 1*USB 2.0 |
| DB9 COM Port | 1*DB9 COM PORT |
| Audio Output | 1*3.5mm standard headphone port |
| RJ45 Port | 1*(10/100M) Ethernet interface |
| HDMI | 1*HDMI 1.4a mini |
| TF Slot | 1*TF Slot, max: 128G |
| SIM | 1*SIM |
| Power | 1*DC 19V 3.42A, 5.5mm Power Connector |
| pogo pin | 1*12pin (USB&Docking charging) |
| Keys | |
| F KEY | 1*Scanner key, No barcode then customizable ((GPIO) |
| Volume+ | 1*Volume adjustment key(+) |
| Volume- | 1*Volume adjustment key(-) |
| Windows | 1 |
| Power Switch | 1*DC |
| Pilot lamp | |
| Power | Power on is always blue, power off light is off *1 |
| Baterry | (Red and Green) Charging red, full of green, red light flashing on low power, not discharging*1 |
| Power Supply | |
| Power Adaptor | AC100V~240V, 19V3.42A/65W |
| Battery1 | Build in Lithium-ion polymer battery, Non-removable |
| Capacity: 7.4V/700mAh | |
| Endurance: 30mins(default 50% volumn, default200nit, play 1080P HD video) | |

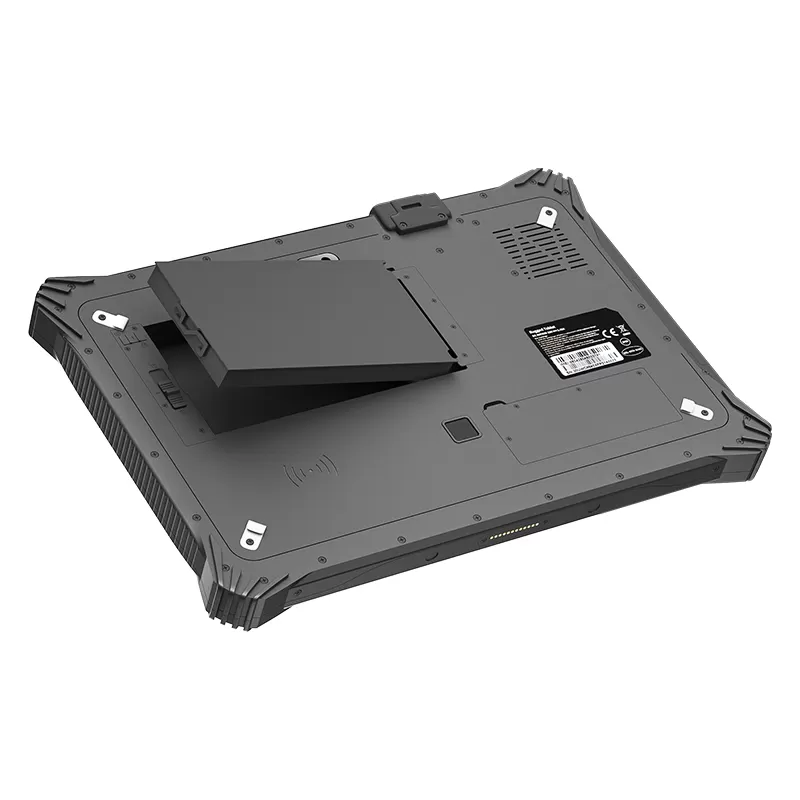

| Battery2 | Lithium-ion polymer battery, pluggable, Hot Swap |
| Capacity: 7.4V/6300mAh | |
| Endurance: 5hrs(default 50% volumn, default200nit, play 1080P HD video) | |
| Operating Environment | |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details | |
| Net weight | 1500g |
| Gross weight | TBD |

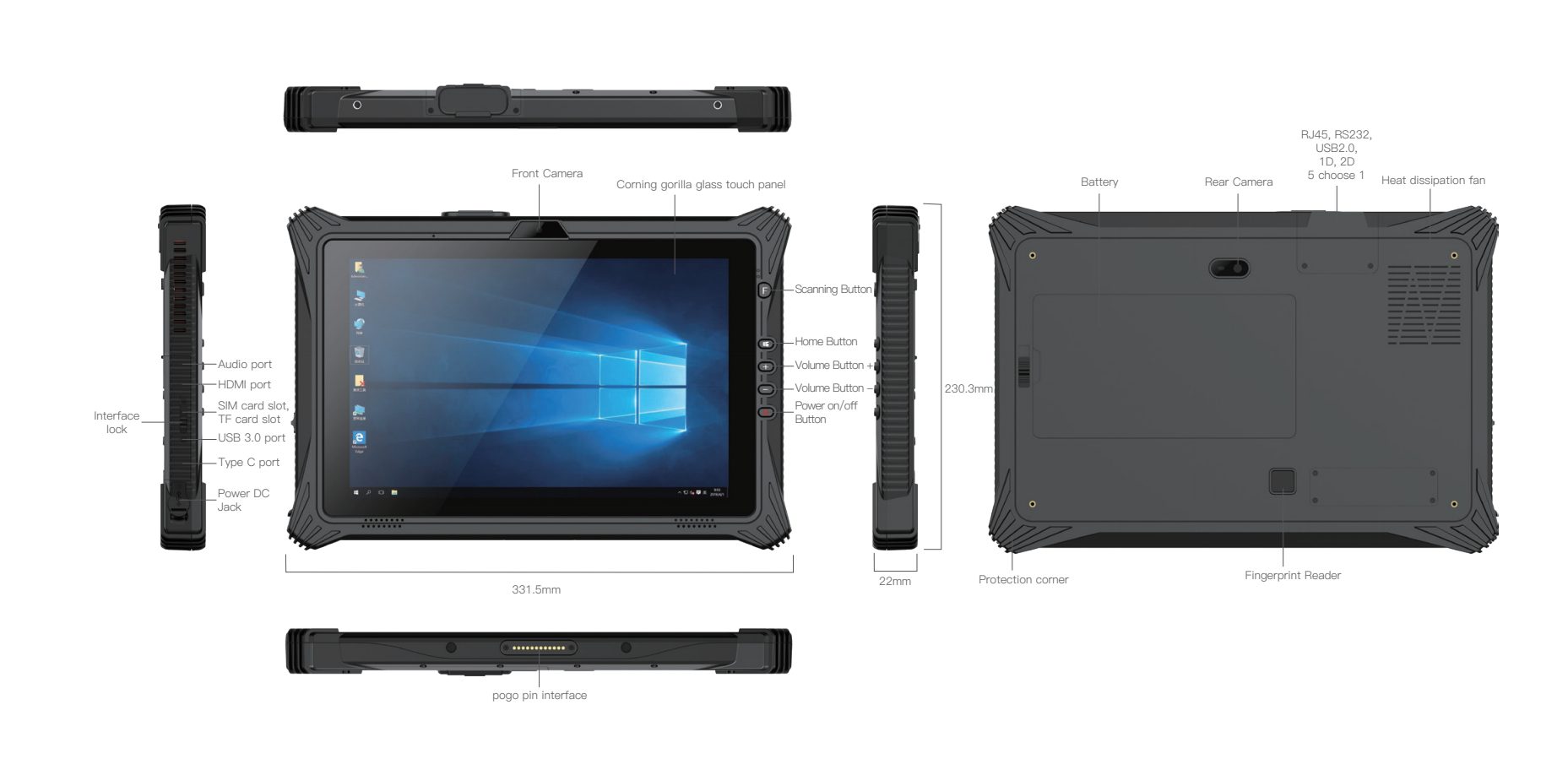

| Product Dimension | 331.5*230.3*22 mm |
| Packing size | TBD |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | Black(Front and Rear Panel: Black, Decorate Board:Black) |
| Module extension (Note: The following modules are one of five) | |
| USB2.0 | Optional:1*USB2.0 Big USB |
| DB9 board | Optional: 1*(RS232)9-line full function |
| One-dimension barcode | Optional: MOTO SE655E100R/Optical resolution: 5mil/scan speed:50 times/s serial port |
| Two-dimension barcode | Optional: Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin, Han Xin Inverse |
