Features:

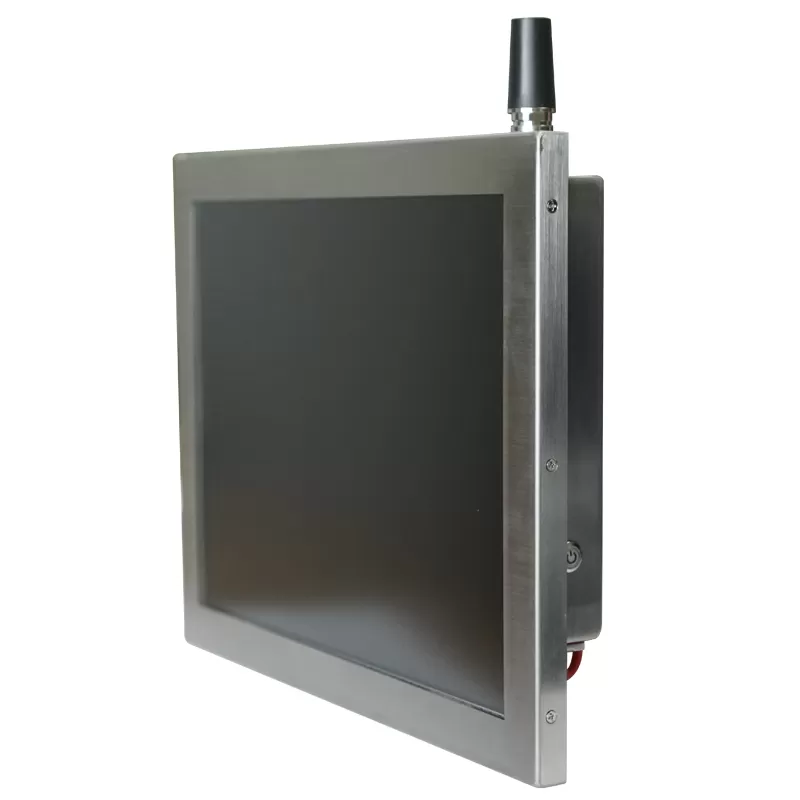

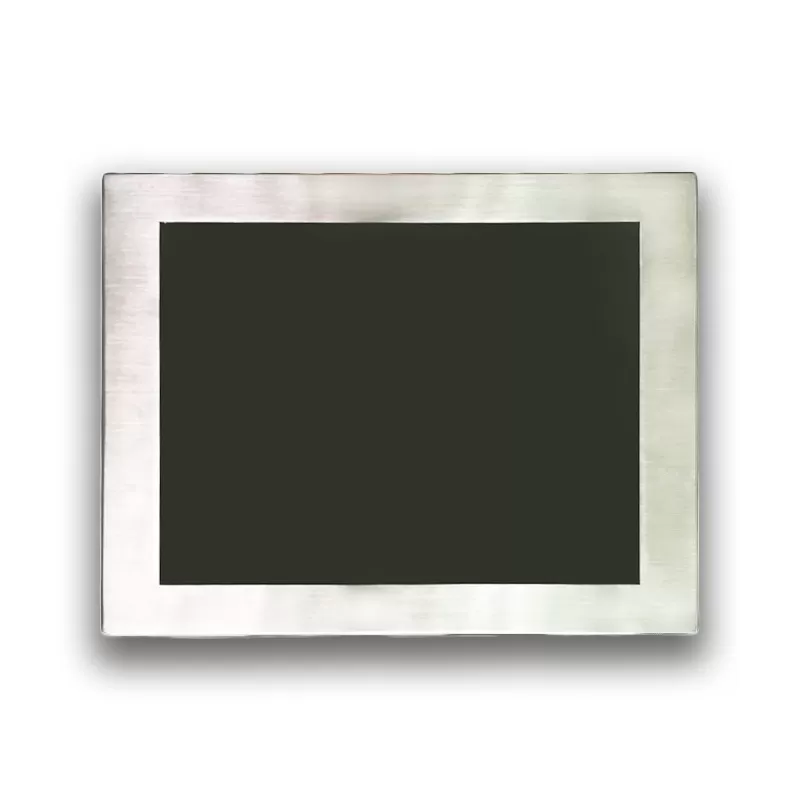

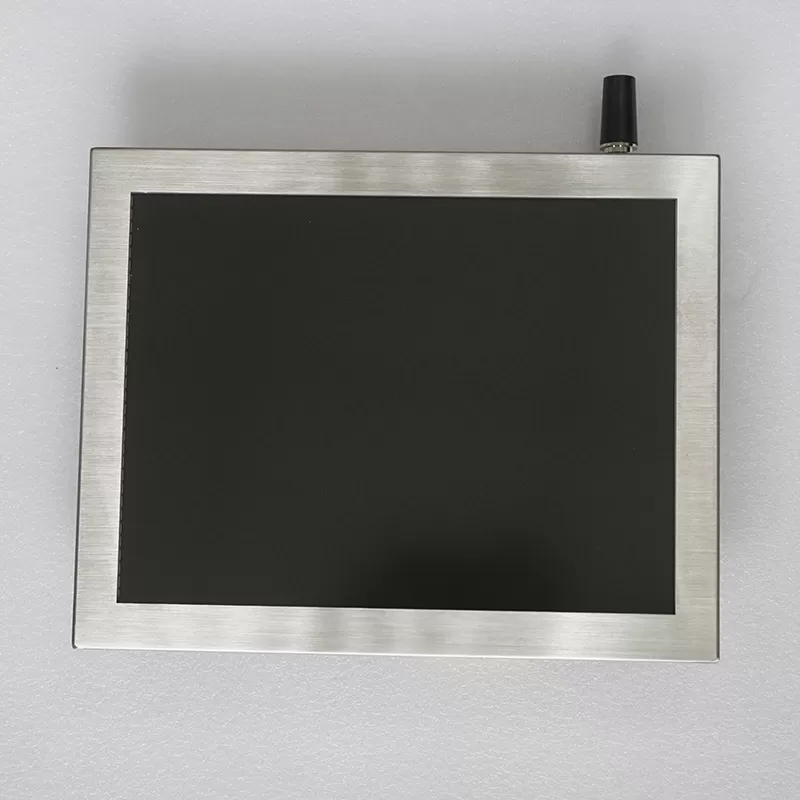

15 inch Stainless Steel Waterproof Panel PC, with 304/316 stainless steel shell, with IP65 grade waterproof and dustproof performance, designed for high-standard industrial environments such as food processing, pharmaceuticals, chemicals, outdoor control, etc. Equipped with high-brightness industrial LCD display and 10-point capacitive touch technology, it ensures excellent human-computer interaction experience in strong light and harsh environments.

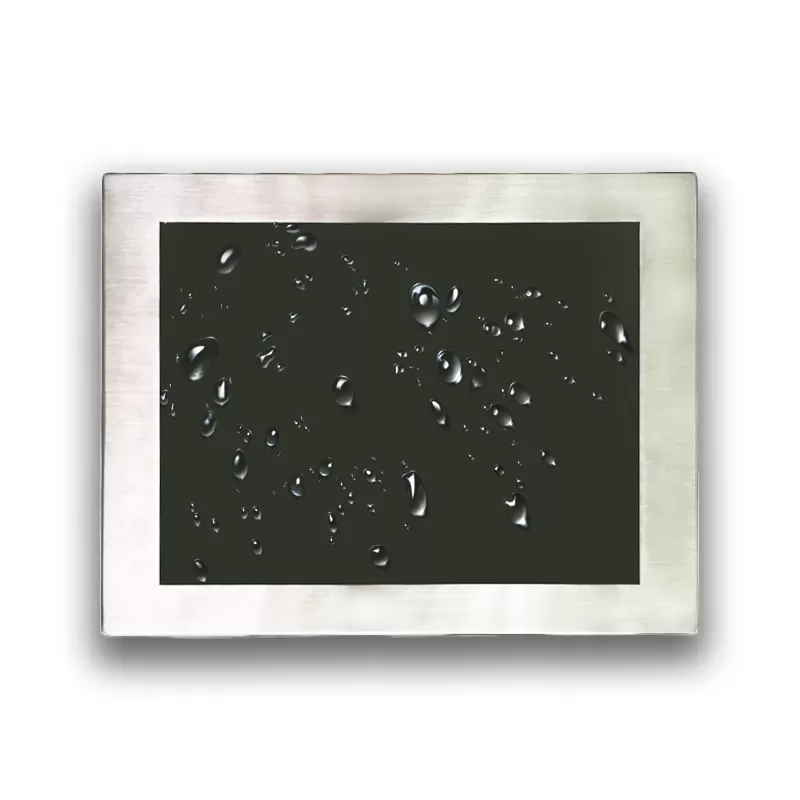

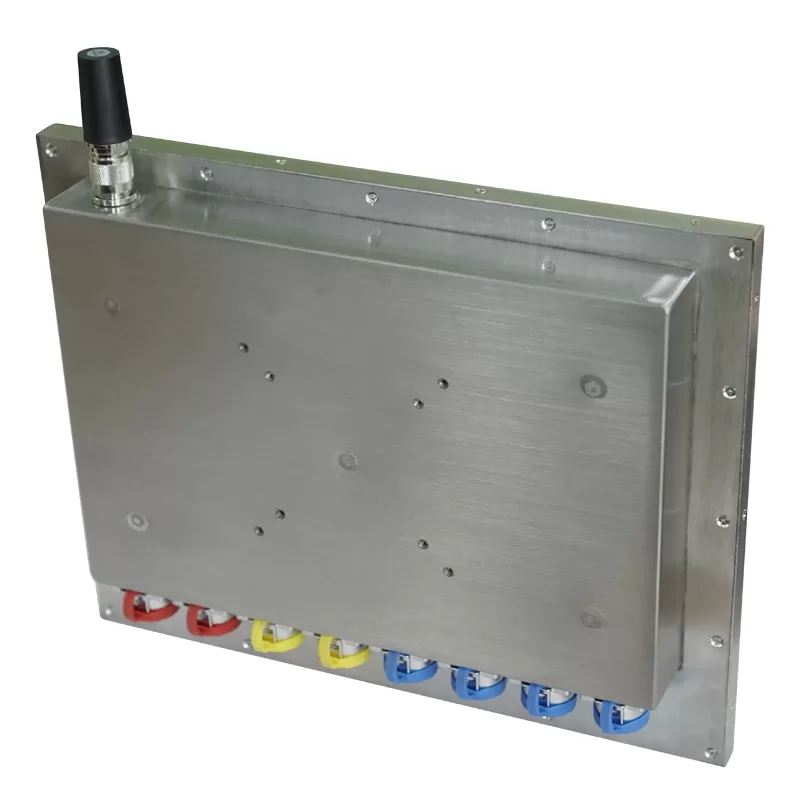

Fully enclosed IP65 stainless steel shell
Waterproof, dustproof, corrosion-resistant, suitable for high humidity, high oil, and highly corrosive environments, equipped with sealed I/O ports and dedicated waterproof cable sets.
High-brightness industrial-grade LCD display
Wide viewing angle, true color display, with 1000 nits high brightness, clear and readable in the sun, suitable for outdoor or strong light places.
10-point PCAP capacitive touch screen
Supports multi-touch, sensitive and efficient, can be operated with gloves, suitable for industrial operation needs.
High-performance embedded motherboard
Supports 7×24 hours of uninterrupted and stable operation, meeting multi-scenario applications such as industrial automation, control terminals, information display, etc.
Fully sealed fanless design
Effectively reduce dust and oil intrusion, ensure long-term stable operation of equipment, and reduce maintenance costs.
Food processing production line
Pharmaceutical sterile workshop
Outdoor equipment control terminal
Petrochemical plant area
Smart agricultural environment monitoring
Offshore oil platform
| PC | |
| CPU | Intel® Core i5-3337U, dual core,1.8 GHz ,fanless |
| Memory | 4G DDR3 (8G Optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI (Optional) |

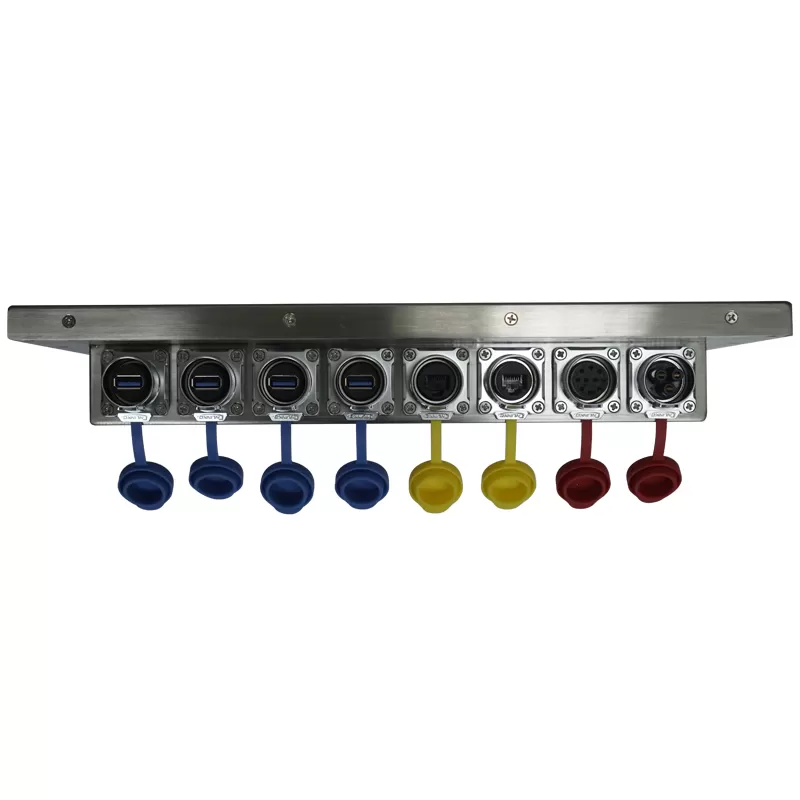

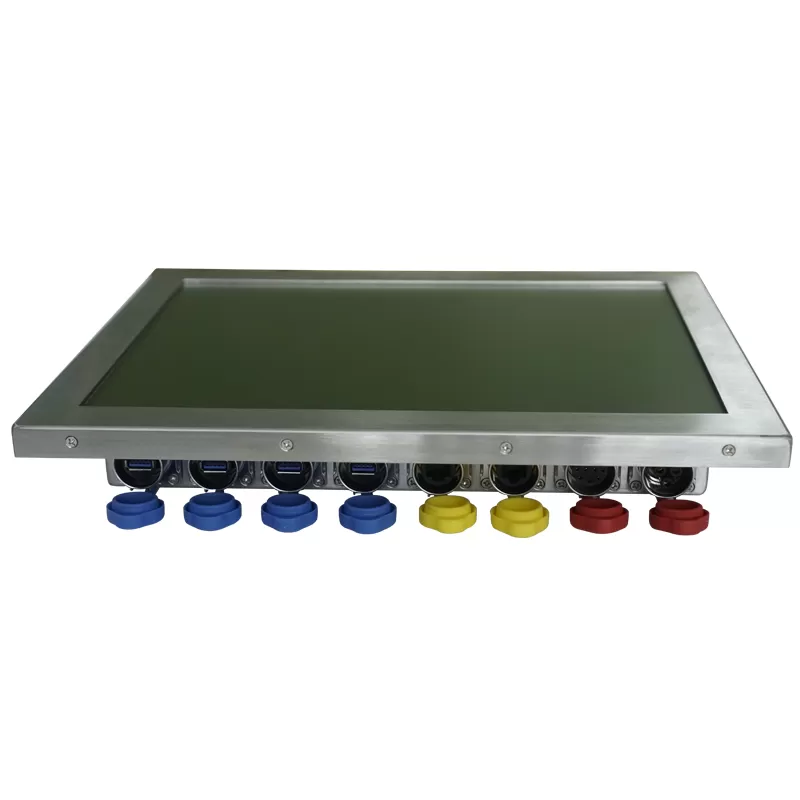

| I/O Interface | 4*USB+2*LAN+1*RS232 |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024x768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable (400 nits Optional) |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( 5 wires resistive touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 12V (9-36V wide voltage Optional) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Stainless steel case 304 |
| Color | Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7kgs |
| Gross weight | 9kgs |

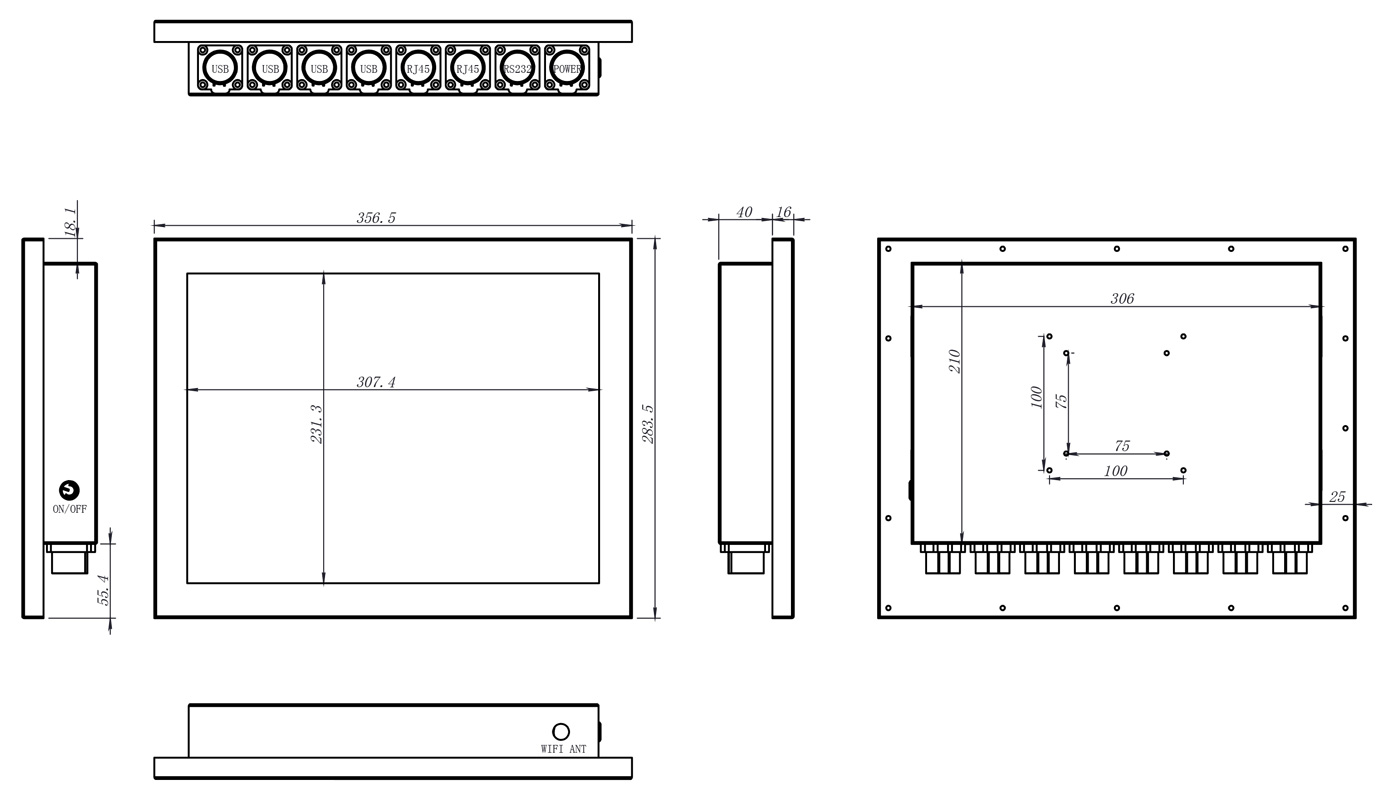

| Product Dimension | 35.65×28.35×5.6cm |
| Packing size | 48×44×19cm |

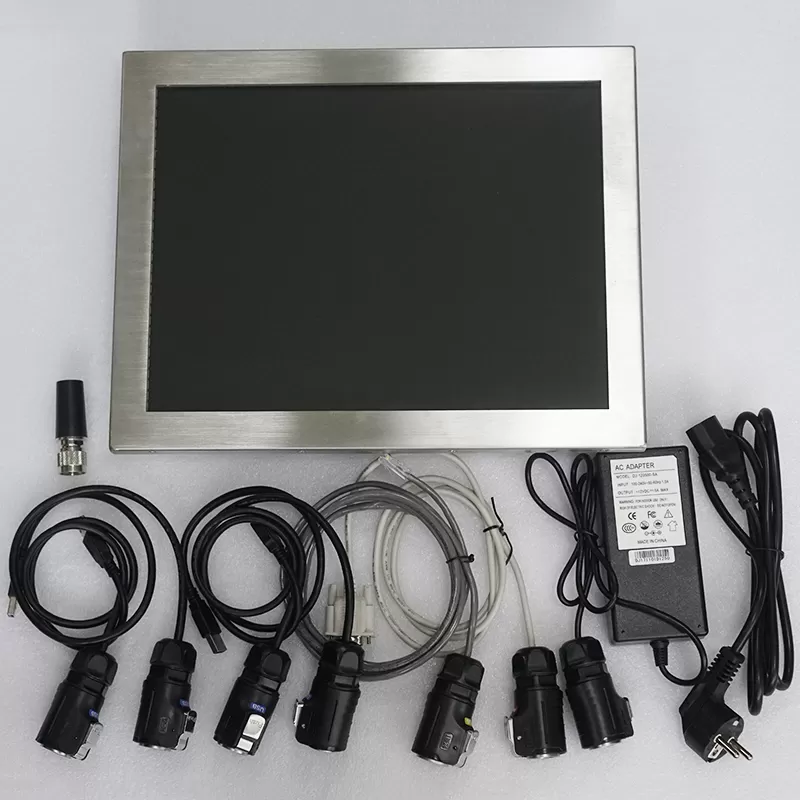

| Accessories | Power adapter, waterproof RS232/LAN/USB cable, power cord |
| Other | |
| Mounting (options) | 1) Provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Certificates | CE, FCC, RoHs |
| Warranty | 1 year warranty |
