Model: SATA19MWS
Features:
1. Full IP67 sealed stainless steel enclosure.
2. Including Water-Proof Military DTL-38999 series iii connectors, Sealed I/O with cable set included.
3. Industrial LCD panel, wide viewing angle, true color.
4. Brightness up to 1000 nits, sunlight readable.
5. Covered with 3mm AF glass, anti-fogging, anti-fingerprint.
6. High performance motherboard, 7x24 continuous operation.
7. Used for naval vessel monitoring.
| LCD panel | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 cd/m², sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/80°/80° (R/L/U/D) |
| Customization | Covered Anti-fogging glass |
| Signal Ports | |
| AV | Composite video (PAL & NTSC) Water-Proof Military DTL-38999 series iii connectors |
| VGA | Optional |
| DVI | Optional |
| HDMI | Optional |
| Audio in/out | Optional |
| OSD in the front bezel | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V Water-Proof Military DTL-38999 series iii connectors |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Stainless steel 304 |
| Color | Silver |

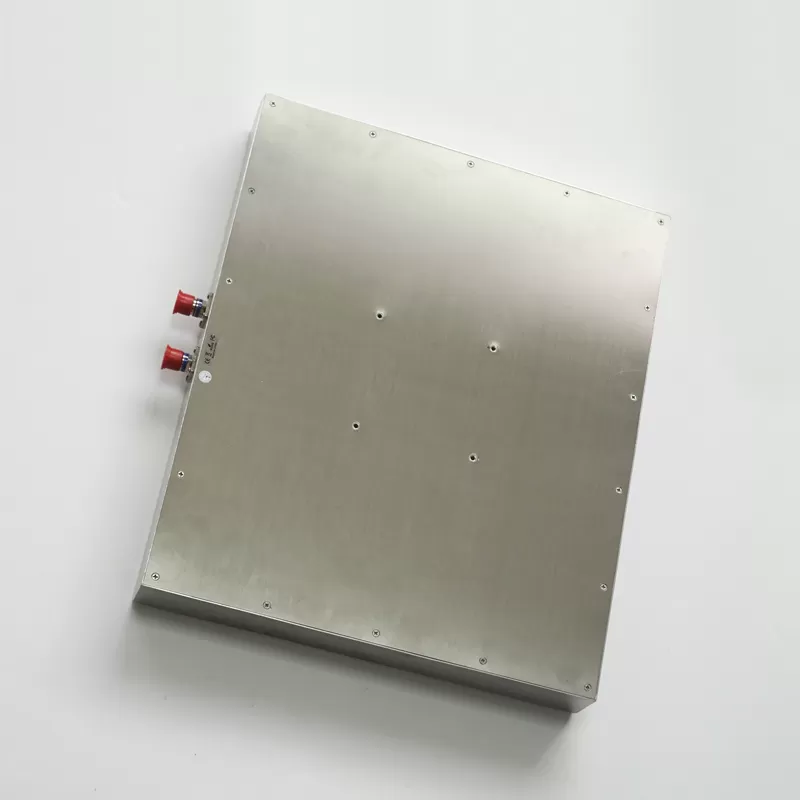

| VESA mounting | 100x100mm |
| IP grade | Full IP67 |
| Operating Environment | |
| Temperature Range | Operating: -30 to 85°C, storage: -30 to 85°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 8.35kgs |
| Gross weight | 10kgs |

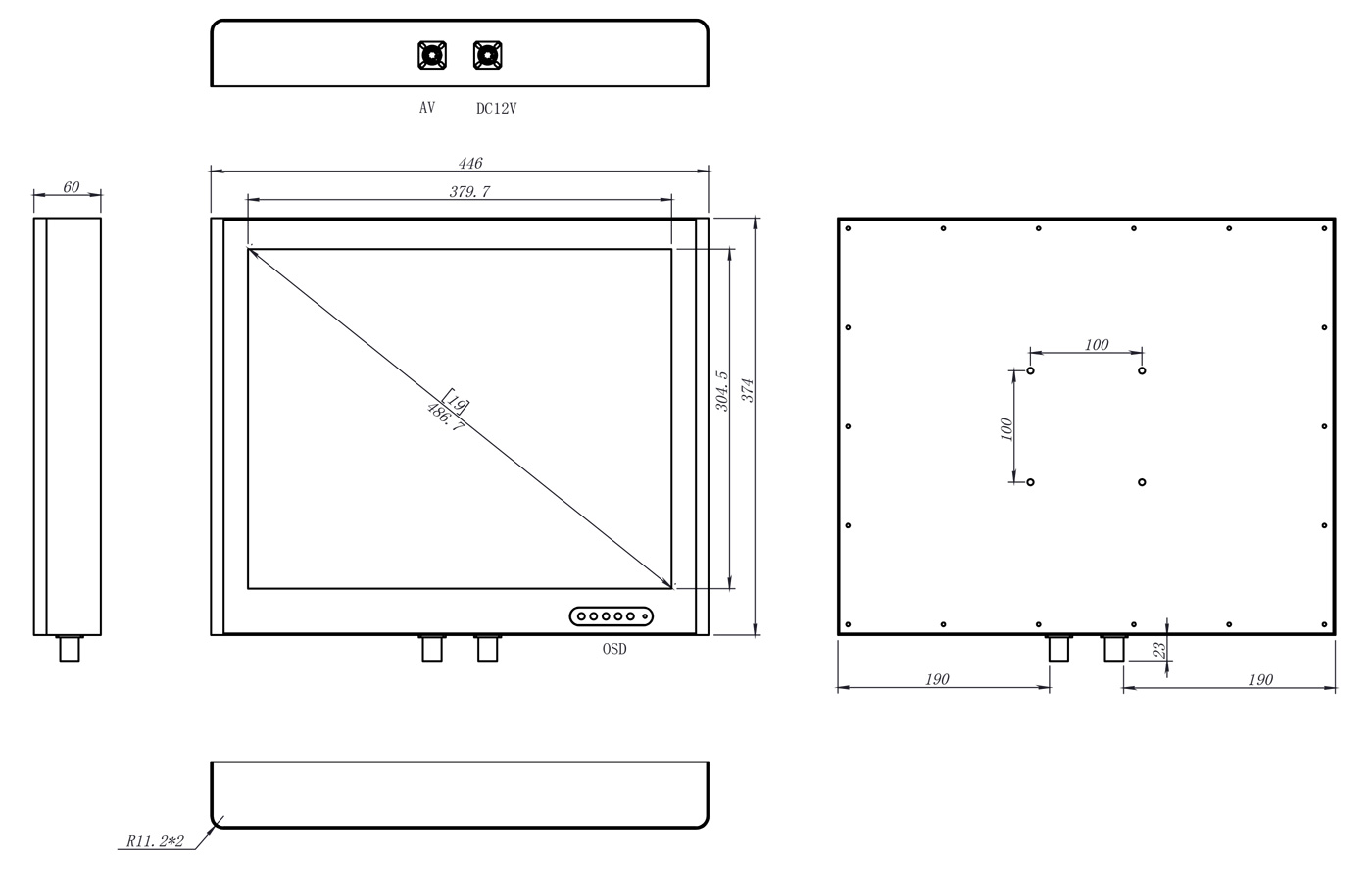

| Product Dimension | 44.6*37.4*6.0cm |
| Packing size | 53*47*18cm(55*36*48CM for 2pcs) |

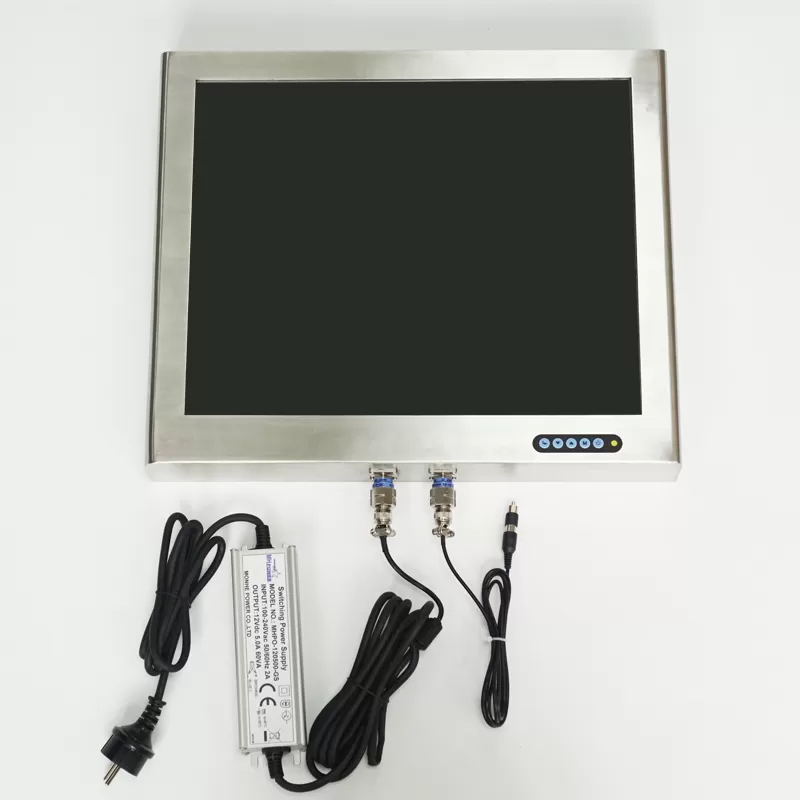

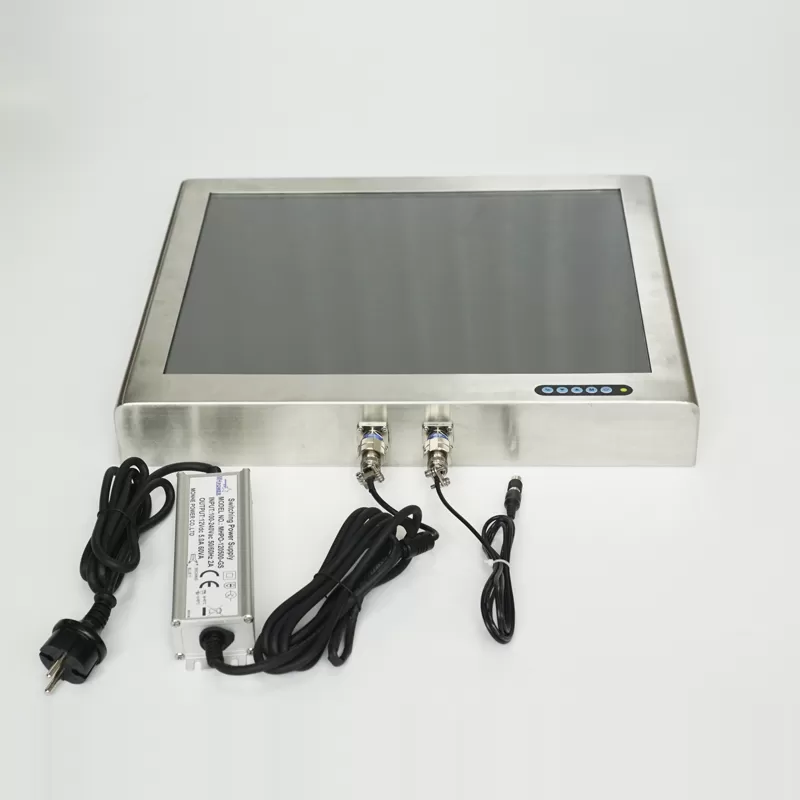

| Accessories | IP67 waterproof Power adapter, waterproof AV cables. |
| Other | |
| Mounting | VESA mounting |
| Embedded mounting screws (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
