Model: SATA215MWS
Features:
1. IP66 sealed Black Powder coated stainless steel 304 enclosure, Sealed I/O cables included.
2. With front OSD buttons.
3. Industrial LCD panel, wide viewing angle, true color.
4. 1000 nits high brightness, sunlight readable.
5. Covered with 3mm AF glass, anti-fogging, anti-fingerprint.

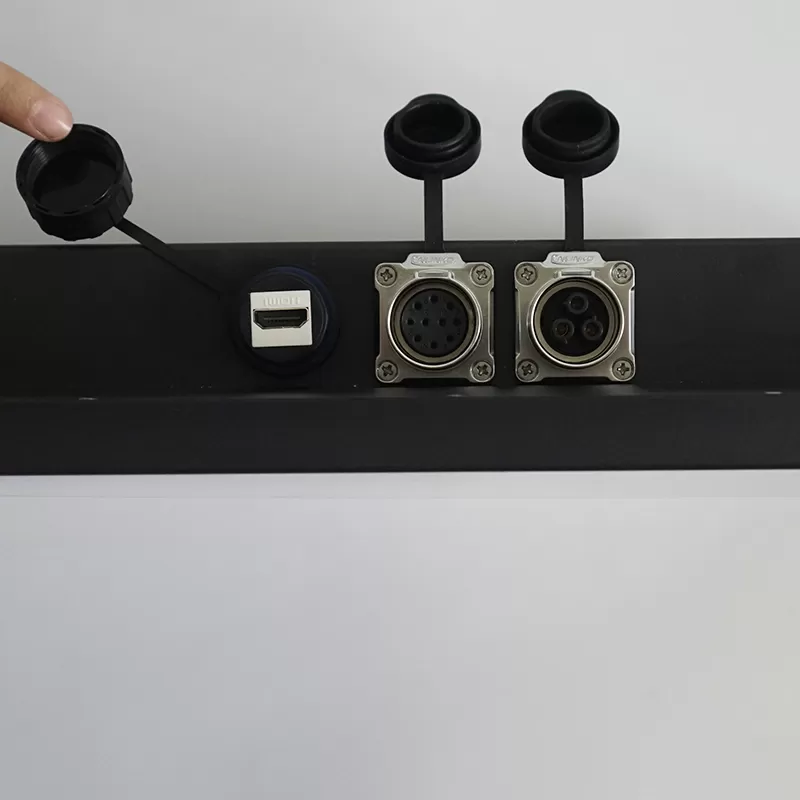

6. Interfaces: Video (BNC) & HDMI & DC12V (Power)
7. High performance motherboard, 7x24 continuous operation.
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 cd/m², sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Customization | Covered 3mm Anti-fogging glass |
| Signal Ports | |
| HDMI | 1x HDMI |
| BNC | 1x BNC |
| VGA | Optional |
| Audio in/out | Optional |
| OSD in the front bezel | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Stainless steel 304 |
| Color | Black |

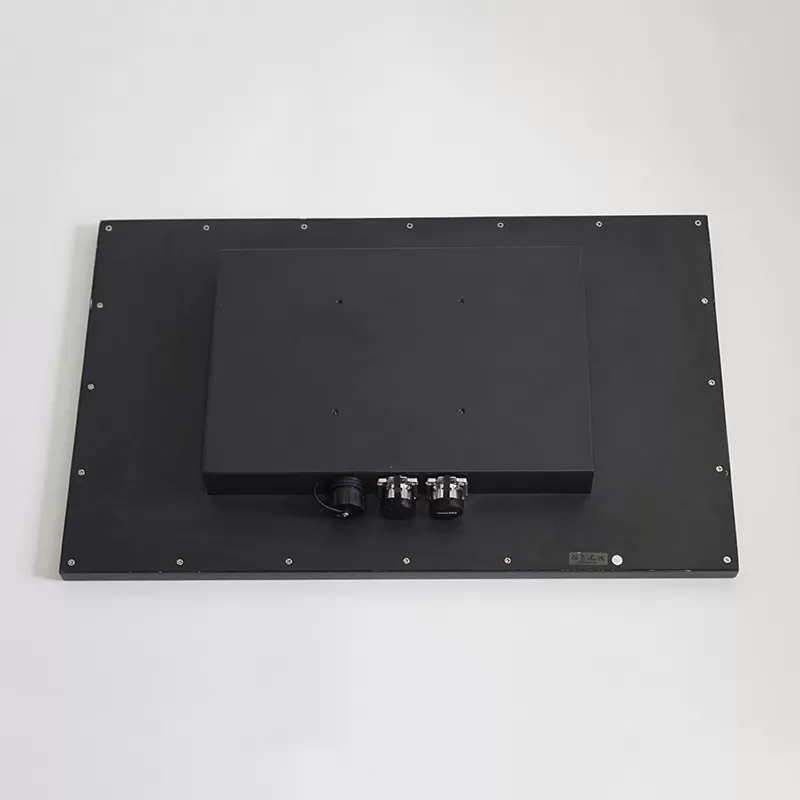

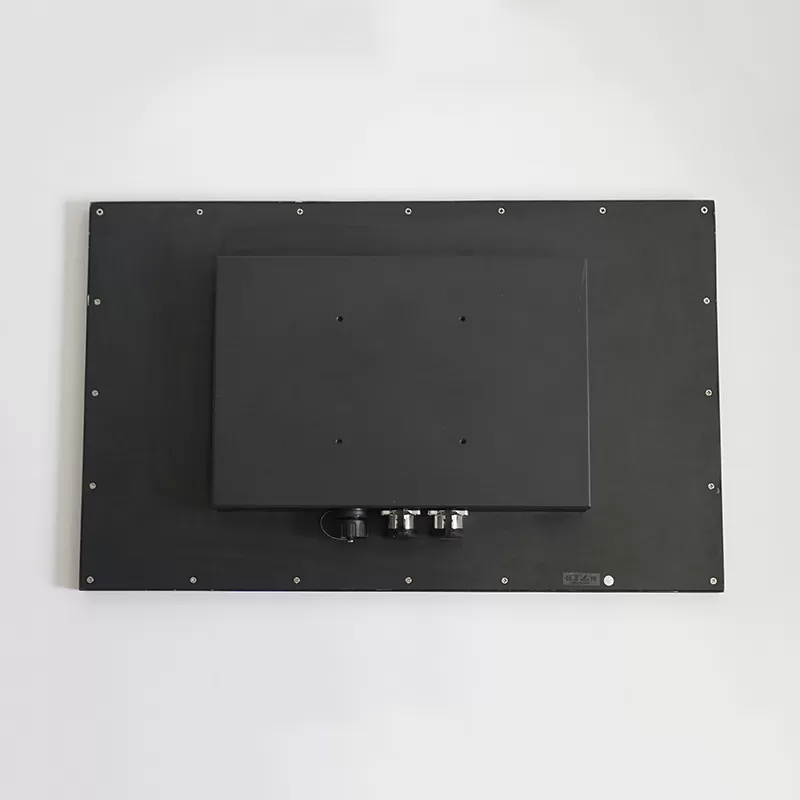

| VESA mounting | 100x100mm |
| IP grade | Full IP66 |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 7kgs |
| Gross weight | 9kgs |

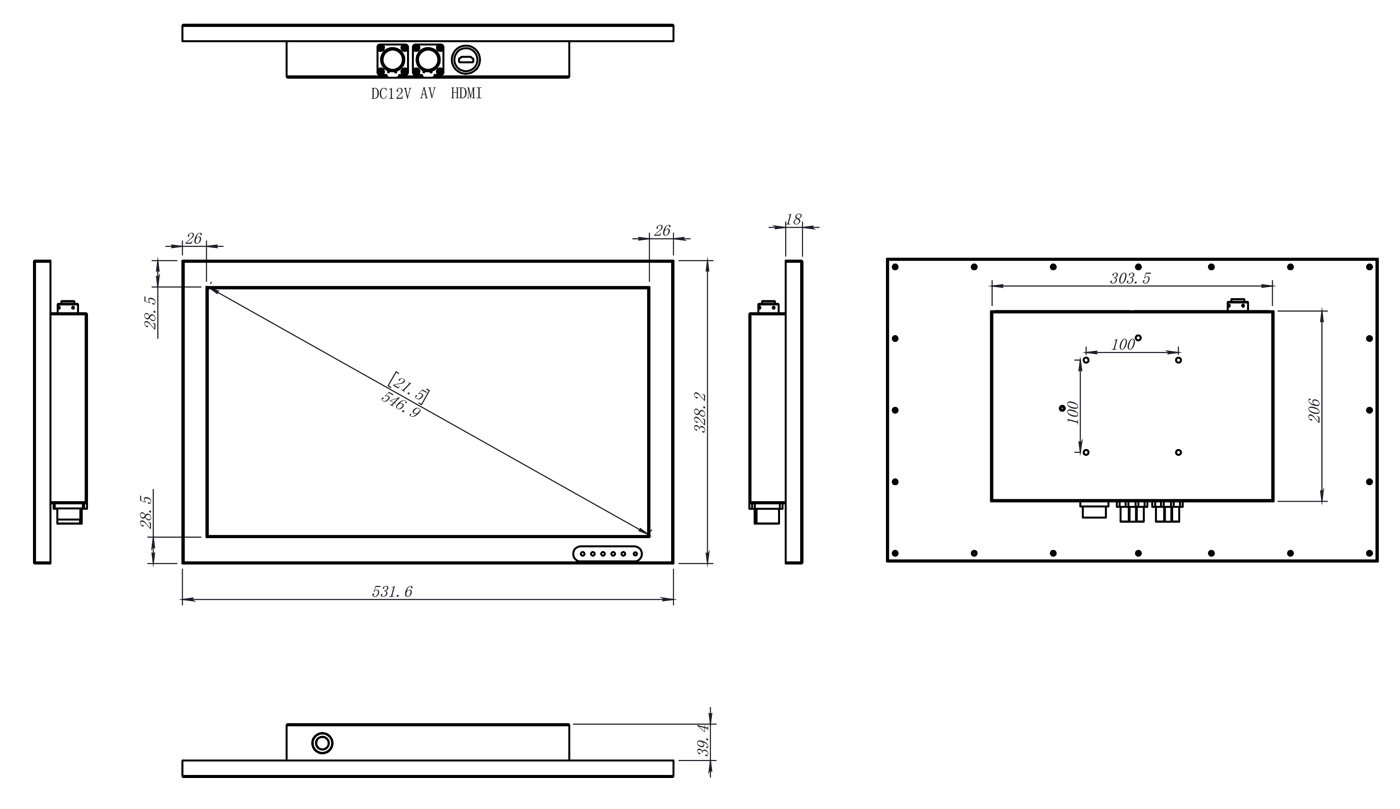

| Product Dimension | 53.16*32.82*5.74cm |
| Packing size | 65x45x19 cm |

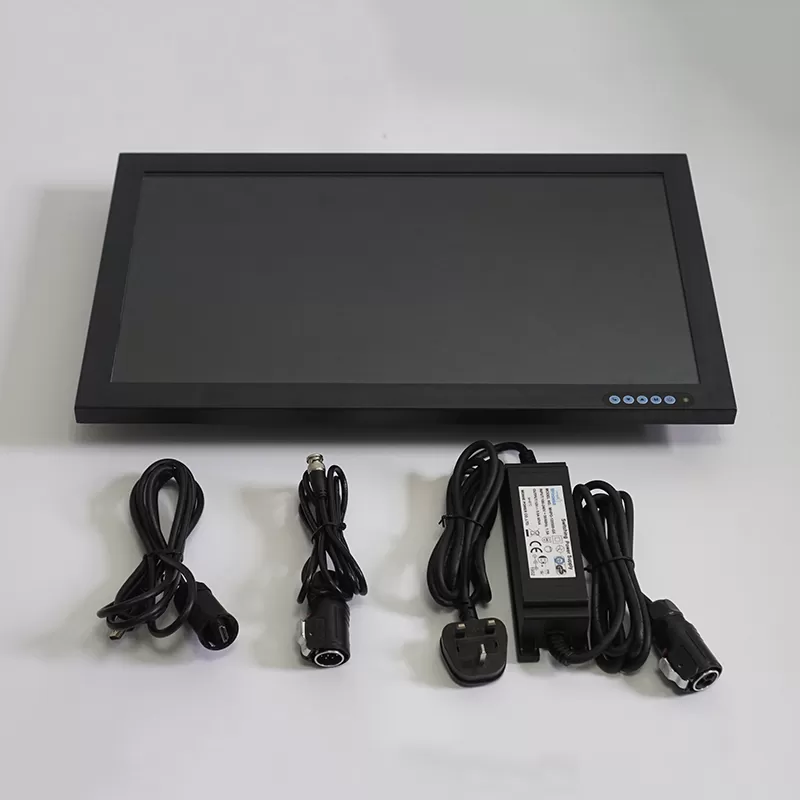

| Accessories | IP66 waterproof Power adapter, Power cord, waterproof HDMI and BNC cables |
| Other | |
| Mounting | VESA mounting |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
