Model: SATA27MS
Features:

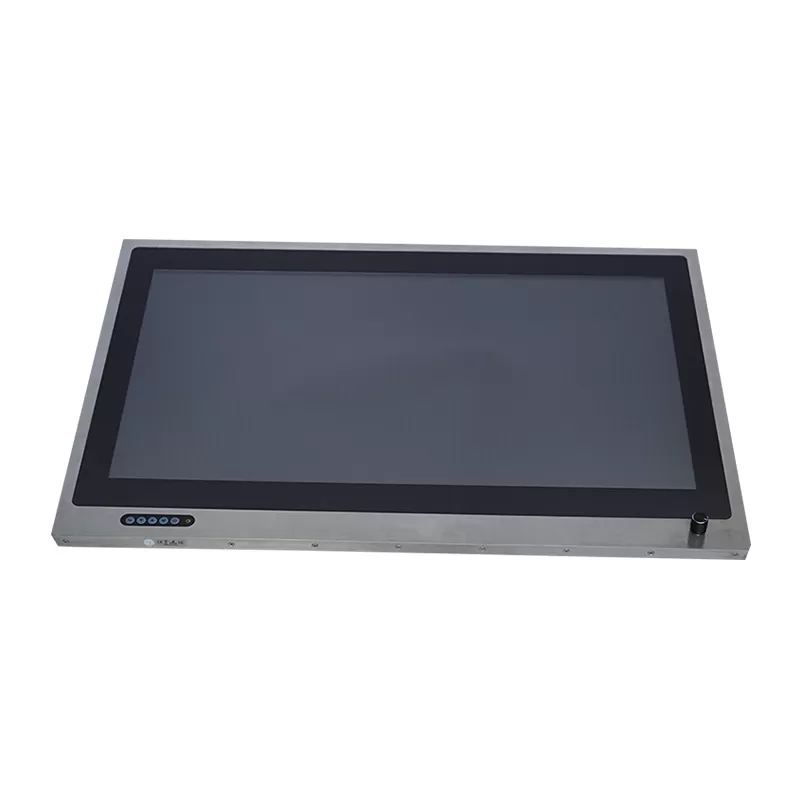

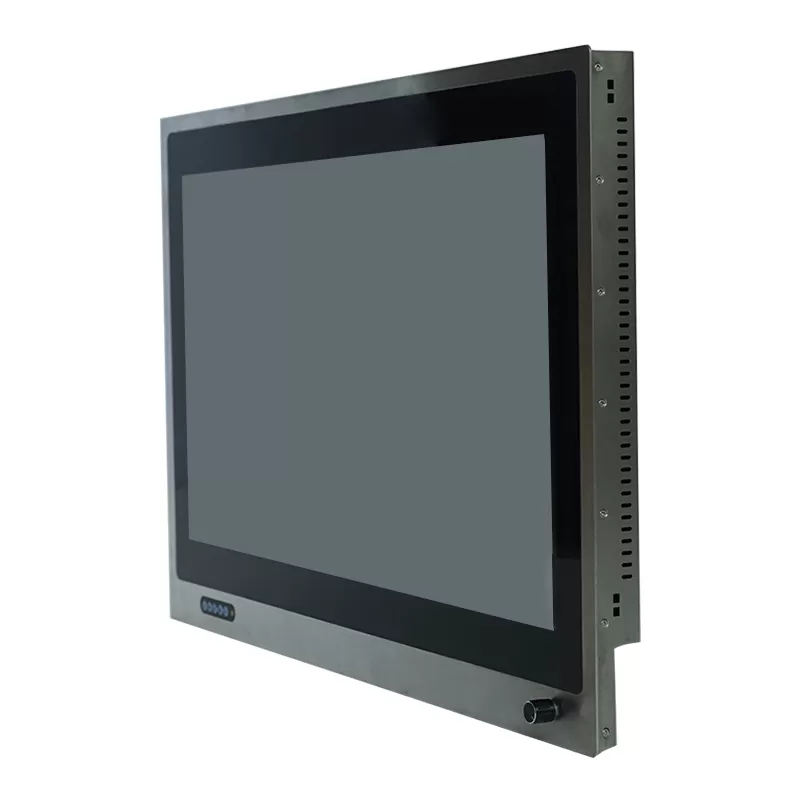

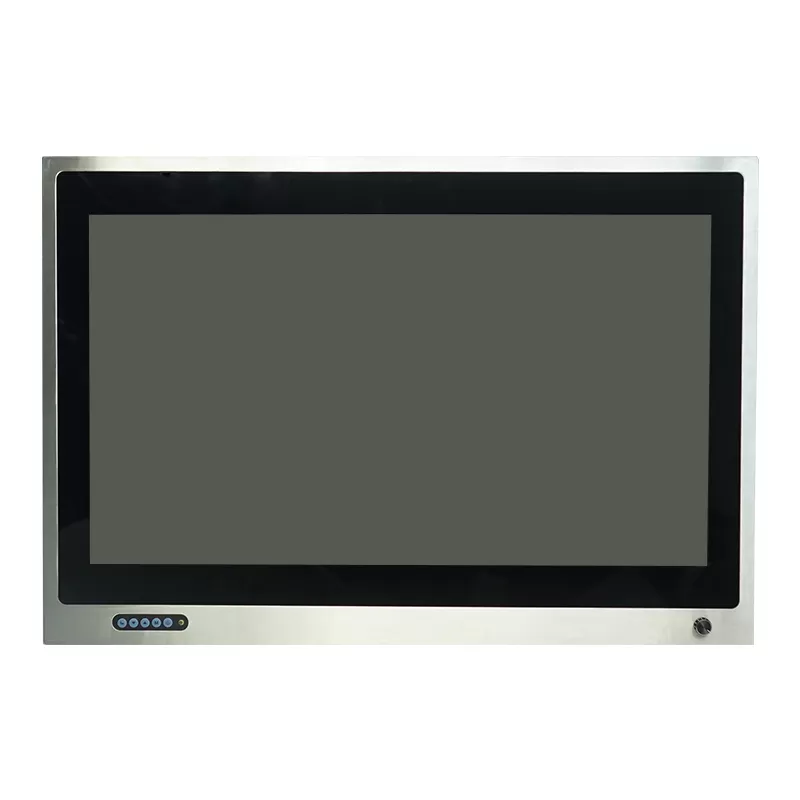

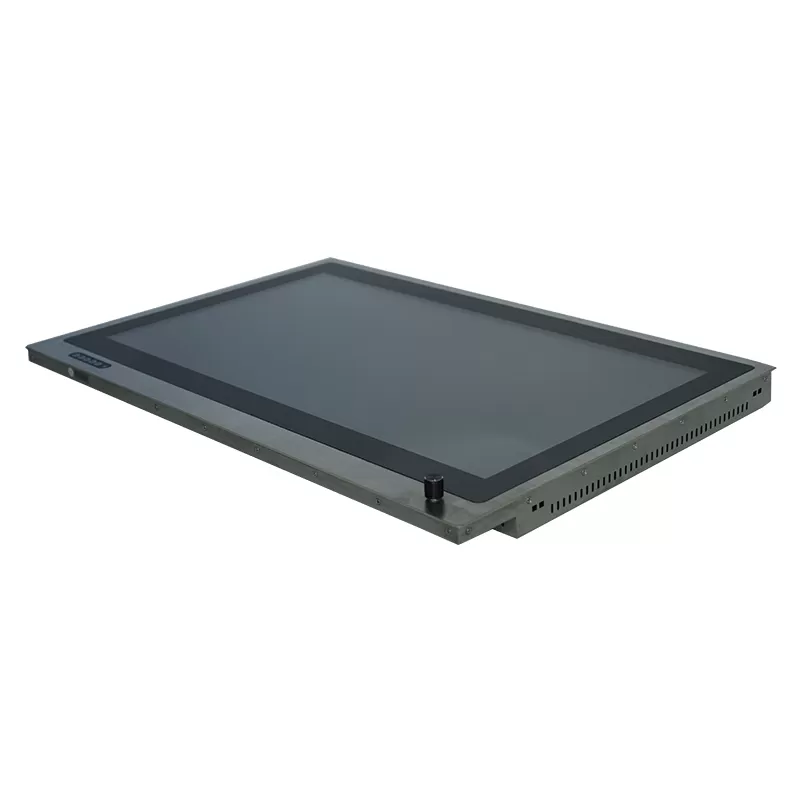

1. Robust and durable stainless steel enclosure, front panel IP65 waterproof.
2. 27" FHD Industrial LCD panel, high brightness 1000 nits, sunlight readable.
3. With a dimmer knob on the bezel to adjust the brightness, can adjust the brightness from 100% to 0.
4. High performance mainboard, 7x24 continuous operation.

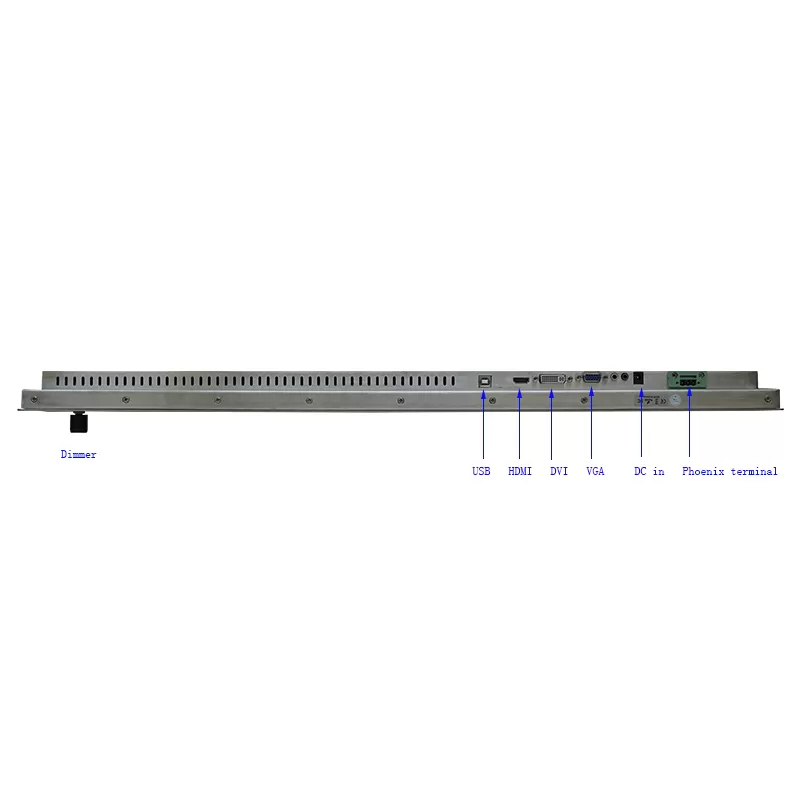

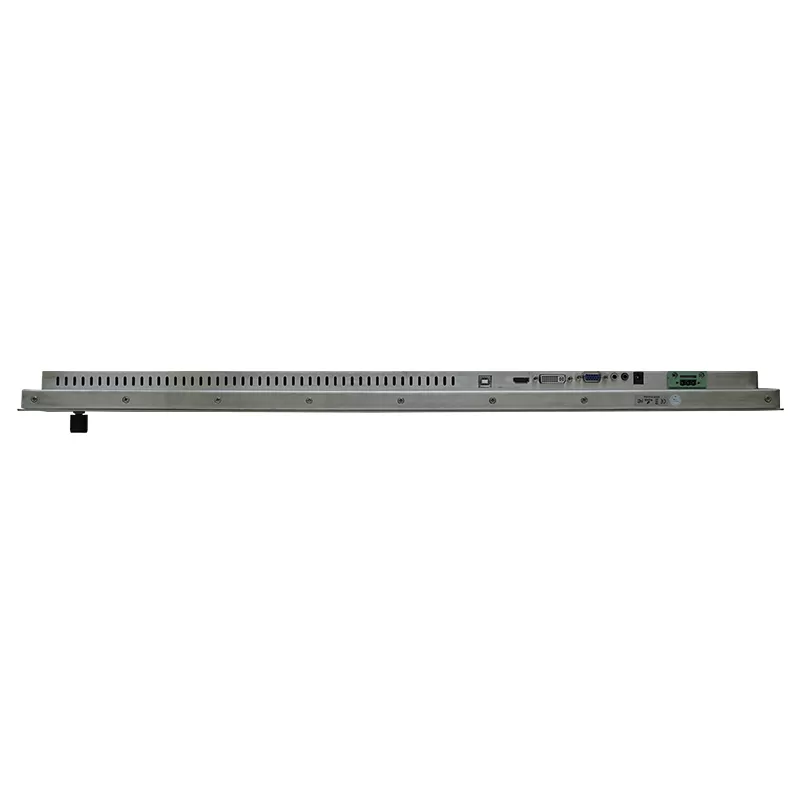

5. VGA+HDMI+DVI+USB for touch, 12V Phoenix terminal.
6. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
7. Support mbedded mounting, wall mounting, desk stand mouting etc.
| LCD panel | |
| Panel size | 27" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | Dimmer knob |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires resistive touch, non touch Optional) |
| Singal Ports | |
| VGA | 1xVGA |
| HDMI | 1xHDMI |
| DVI | 1xDVI |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | <40 W |
| Enclosure | |
| Material | Stainless steel 304 |
| Color | Silver |

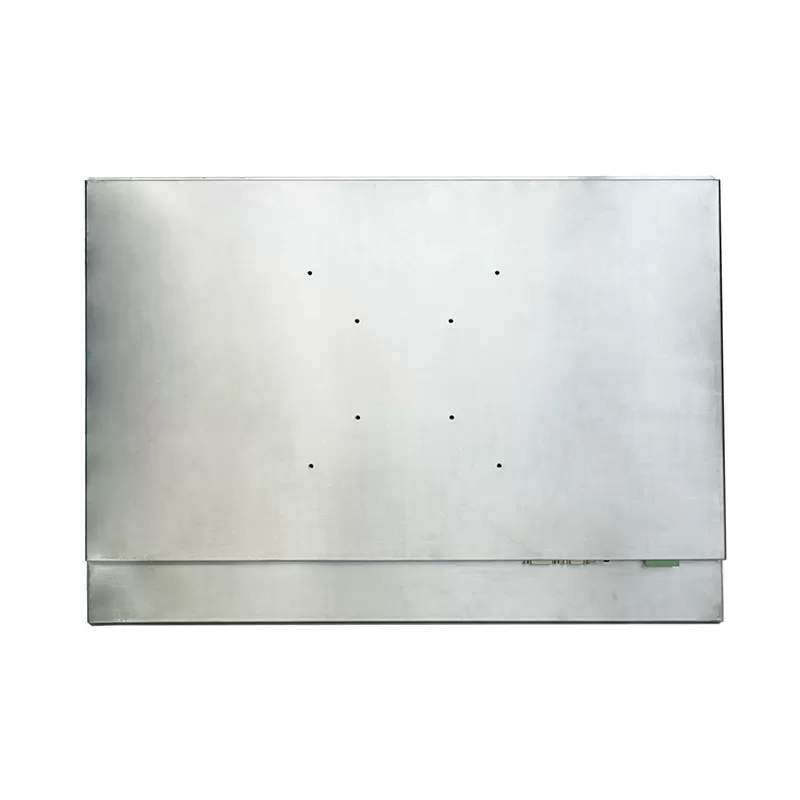

| VESA mounting | 100x100 mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 11kgs |
| Gross weight | 13kgs |

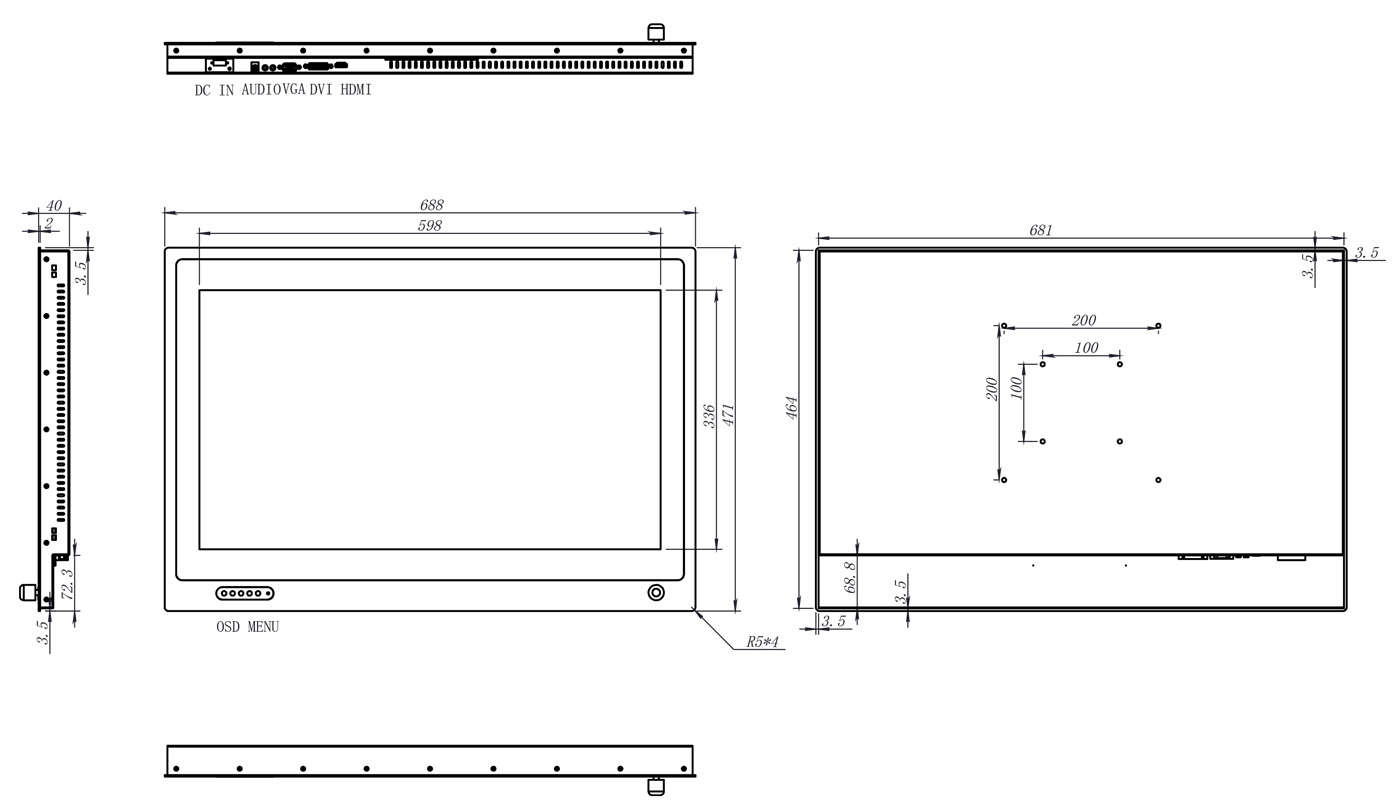

| Product Dimension | 68.8x47.1x4 cm |
| Packing size | 87x58x17 cm |

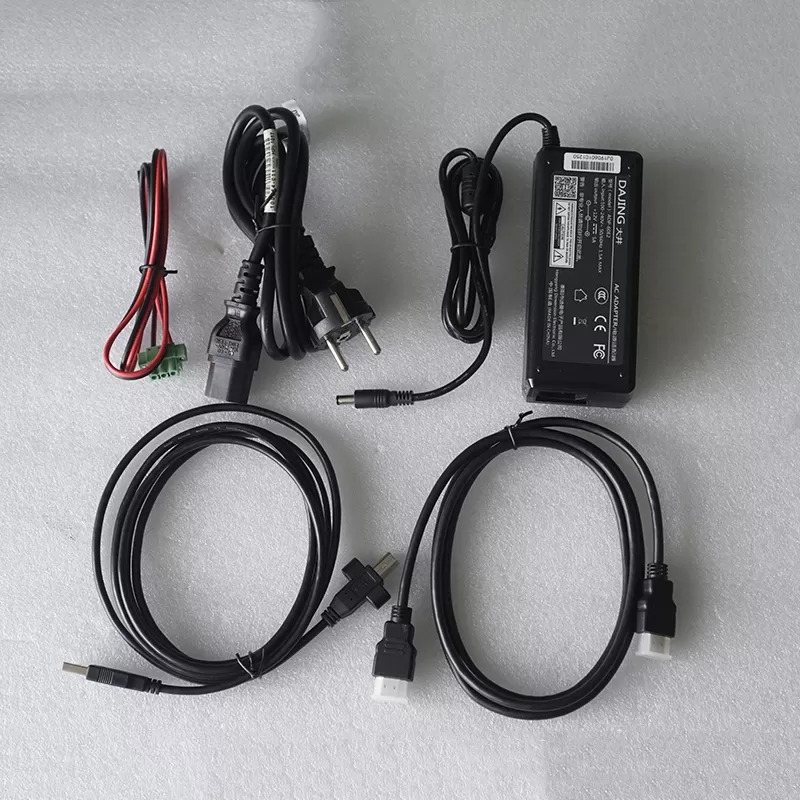

| Accessories | Power adapter, power cord, HDMI cable, USB touch cable, 12V Phoenix terminal cable, embedded screws |
| Other | |
| Mounting (options) | 1) Embedded screws |
| 2) Wall brackets for wall-mounting, VESA 100×100 mm | |
| 3) Stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
